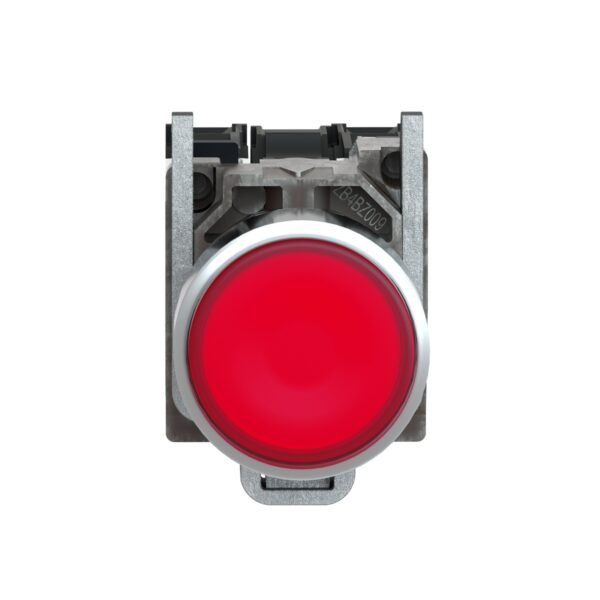

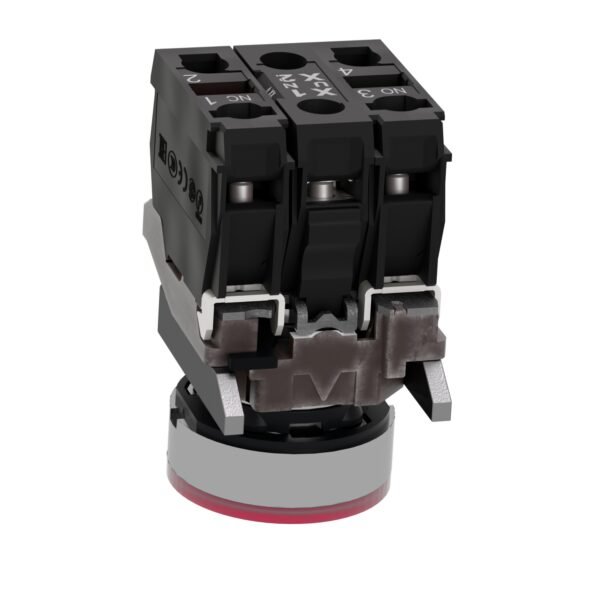

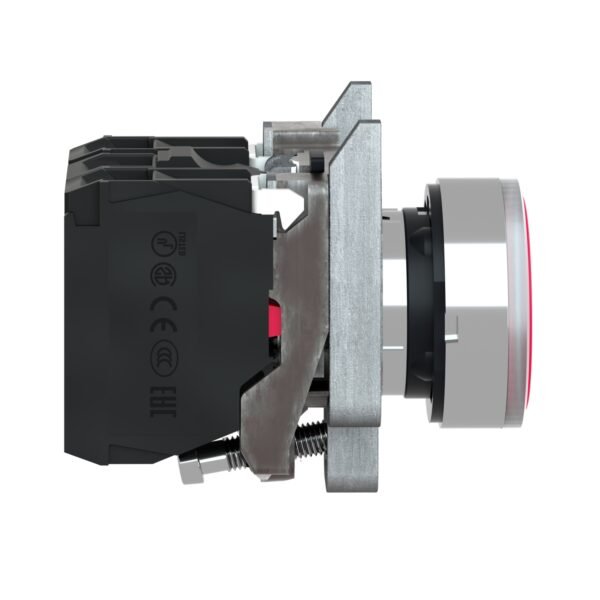

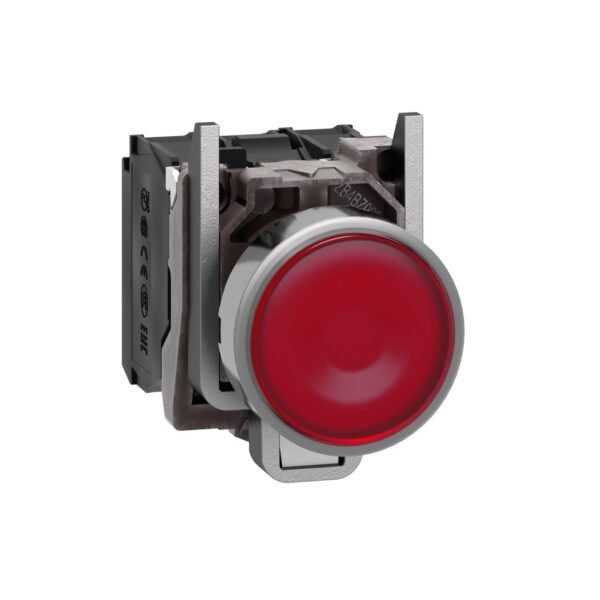

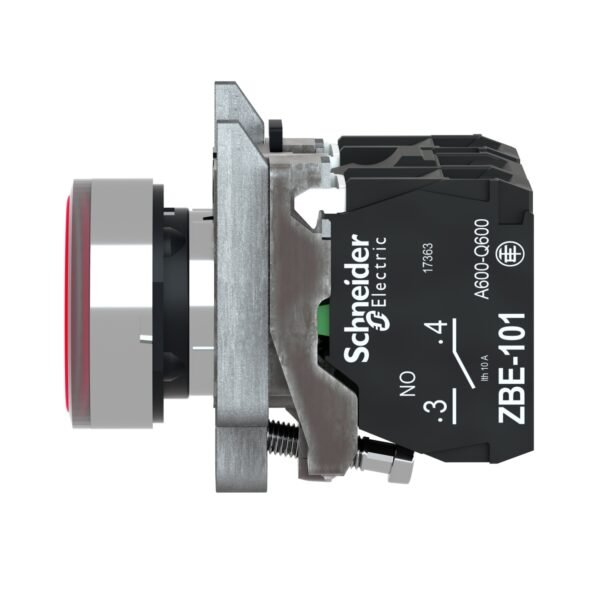

Schneider XB4BW34G5 Harmony | Red flush complete illum pushbutton Ø22 spring return 1NO+1NC 110…120V
Schneider XB4BW34G5 Harmony
Original price was: EGP 19,797.00.EGP 11,482.00Current price is: EGP 11,482.00.
Description
Schneider XB4BW34G5 Harmony
Durability and Reliability
One of the primary benefits of it is its exceptional durability. Designed to withstand harsh industrial environments, this switch is resistant to dust, water, and mechanical impacts. Its robust construction ensures a long lifespan, reducing the need for frequent replacements.
Ease of Installation and Maintenance
The modular design of it makes installation a breeze. It allows for quick assembly and disassembly, which is particularly useful during maintenance or upgrades. Plus, the clear labeling and intuitive design minimize the risk of installation errors.
Versatility in Applications
Whether you’re working in manufacturing, energy, transportation, or any other industrial sector, the Schneider XB4BW34G5 Harmony can be tailored to meet your needs. Its versatile design allows for customization, making it suitable for a wide range of control panel configurations.
Technical Specifications
Electrical Characteristics
- Rated Voltage: Up to 600V AC/DC
- Rated Current: 10A
- Insulation Resistance: >100 MΩ at 500V DC
Mechanical Characteristics
- Operating Force: 3-5 N
- Mechanical Life: 10 million operations
- Mounting Diameter: 22 mm
Environmental Conditions
- Operating Temperature: -40°C to +70°C
- Protection Rating: IP66, IP67, IP69K
Applications of Schneider XB4BW34G5 Harmony
Industrial Automation
In the realm of industrial automation, the Schneider XB4BW34G5 Harmony is used extensively in control panels and machinery. Its reliable performance ensures smooth operation of automated systems.
Control Panels and Consoles
For control panels and operator consoles, this switch provides an intuitive interface for operators, enhancing both efficiency and safety.
Custom Machinery
Custom machinery often requires unique control solutions, and the Schneider XB4BW34G5 Harmony’s flexibility makes it an ideal choice for these applications.
Installation Process
Pre-installation Checklist
Before installing the Schneider XB4BW34G5 Harmony, ensure you have the necessary tools and that the power is turned off to avoid electrical hazards.
Step-by-Step Installation Guide
- Prepare the Mounting Surface: Ensure the surface is clean and free of debris.
- Install the Switch: Insert the switch into the mounting hole and secure it using the provided hardware.
- Connect the Wiring: Follow the wiring diagram to connect the switch to the control circuit.
- Test the Installation: Power on the system and verify that the switch operates correctly.
Maintenance Tips
Regular Inspection Routines
Perform regular inspections to check for signs of wear and tear. Look for loose connections, damaged components, and other potential issues.
Troubleshooting Common Issues
If the switch fails to operate, check the wiring connections and ensure that there is no dirt or debris obstructing the switch mechanism. Replace any damaged parts as needed.
Comparing Schneider XB4BW34G5 Harmony with Competitors
Key Competitors in the Market
Other notable brands in the industrial switch market include Siemens, Rockwell Automation, and Eaton. Each offers similar products with varying features.
Comparative Analysis
While competitors’ products may offer similar functionality, the Schneider XB4BW34G5 Harmony often stands out due to its superior build quality, ease of use, and extensive support from Schneider Electric.
User Reviews and Feedback
Testimonials from Industry Professionals
Professionals in various industries praise the Schneider XB4BW34G5 Harmony for its reliability and user-friendly design. Many highlight its durability in demanding environments.
Common Praises and Criticisms
While the switch is generally well-received, some users note that it can be slightly more expensive than competing models. However, most agree that the quality justifies the cost.
Cost-Benefit Analysis
Initial Investment vs. Long-term Savings
Although the initial investment in Schneider XB4BW34G5 Harmony might be higher, the long-term savings from reduced maintenance and fewer replacements make it a cost-effective choice.
Return on Investment (ROI)
With its long lifespan and reliable performance, the ROI for the Schneider XB4BW34G5 Harmony is typically very favorable, particularly in high-demand environments.
Where to Buy Schneider XB4BW34G5 Harmony
Authorized Dealers and Distributors
For genuine products, it’s best to purchase from authorized Schneider Electric dealers and distributors. They can provide official warranties and support.
Online Marketplaces
You can also find the Schneider XB4BW34G5 Harmony on various online marketplaces. However, ensure that the seller is reputable to avoid counterfeit products.
Case Studies
Real-world Examples of Successful Implementations
A manufacturing plant reported a 20% increase in operational efficiency after upgrading to the Schneider XB4BW34G5 Harmony switches, thanks to their reliability and ease of use.
Lessons Learned from Various Industries
Different industries have found that investing in high-quality switches like the Schneider XB4BW34G5 Harmony can significantly reduce downtime and maintenance costs.
Future Prospects and Innovations
Upcoming Trends in Industrial Automation
As industrial automation continues to evolve, expect to see more advanced features and integration capabilities in products like the Schneider XB4BW34G5 Harmony.
Potential Upgrades and New Features
Future iterations may include enhanced connectivity options, improved environmental resistance, and more customizable features to meet specific industrial needs.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of Product | Harmony XB4 |
|---|---|
| Product or Component Type | Illuminated push-button |
| Device short name | XB4 |
| Bezel material | Chromium plated metal |
| Fixing collar material | Zamak |
| Mounting diameter | 0.9 in (22.5 mm) |
| Sale per indivisible quantity | 1 |
| Head type | Standard |
| Shape of signaling unit head | Round |
| Type of operator | spring return |
| Operator profile | Red flush |
| Operator additional information | With plain lens |
| Contacts type and composition | 1 NO + 1 NC |
| Contact operation | Slow-break |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 |
| Light source | Universal LED |
| Bulb base | Integral LED |
| [Us] rated supply voltage | 110...120 V AC 50/60 Hz |
| Height | 1.9 in (47 mm) |
|---|---|
| Width | 1.2 in (30 mm) |
| Depth | 2.2 in (57 mm) |

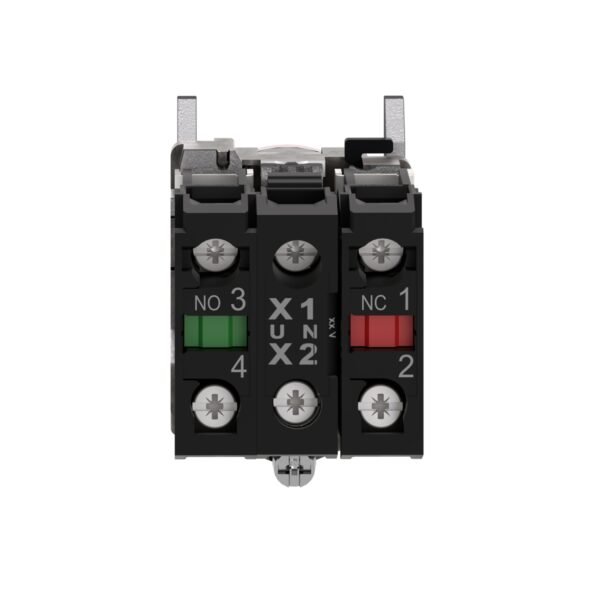

| Terminals description ISO n°1 | (21-22)NC (13-14)NO |
| Net Weight | 0.214 lb(US) (0.097 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Contacts usage | Standard contacts |
| Positive opening | With IEC 60947-5-1 appendix K |
| Operating travel | 0.06 in (1.5 mm) NC changing electrical state) 0.1 in (2.6 mm) NO changing electrical state) 0.2 in (4.3 mm) total travel) |
| Operating force | 3.5 N NC changing electrical state 3.8 N |
| Mechanical durability | 10000000 cycles |
| Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 |
| Shape of screw head | Cross Philips no 1 Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| [Ie] rated operational current | 3 A 240 V, AC-15, A600 IEC 60947-5-1 6 A 120 V, AC-15, A600 IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Electrical reliability | Λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 Λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4 |
| Signalling type | Steady |
| Current Consumption | 14 mA |
| Service life | 100000 h at rated voltage and 25 °C |
| Surge withstand | 1 kV IEC 61000-4-5 |
| Supply voltage limits | 100…132 V AC |
| Device presentation | Complete product |
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient air temperature for operation | -40…158 °F (-40…70 °C) |
| Electrical shock protection class | Class I IEC 60536 |
| IP degree of protection | IP66 IEC 60529 IP67 IP69 IP69K |
| NEMA degree of protection | NEMA 13 NEMA 4X |
| IK degree of protection | IK06 conforming to IEC 50102 |
| Standards | JIS C8201-5-1 IEC 60947-5-5 IEC 60947-5-4 IEC 60947-5-1 CSA C22.2 No 14 UL 508 IEC 60947-1 JIS C8201-1 |
| Product Certifications | CSA LROS (Lloyds register of shipping) BV UL Listed DNV |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Resistance to fast transients | 2 kV IEC 61000-4-4 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 |
| Resistance to electrostatic discharge | 6 kV on contact (on metal parts) IEC 61000-4-2 8 kV in free air (in insulating parts) IEC 61000-4-2 |
| Electromagnetic emission | Class B IEC 55011 |
| Category | US10CS222468 |
|---|---|
| Discount Schedule | 0CS2 |
| GTIN | 3389110892093 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.46 in (8.800 cm) |
| Package 1 Width | 1.34 in (3.400 cm) |
| Package 1 Length | 2.13 in (5.400 cm) |
| Package 1 Weight | 3.386 oz (96.000 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 50 |
| Package 2 Height | 5.91 in (15.000 cm) |
| Package 2 Width | 11.81 in (30.000 cm) |
| Package 2 Length | 15.75 in (40.000 cm) |
| Package 2 Weight | 11.208 lb(US) (5.084 kg) |
| Warranty | 18 months |
|---|
