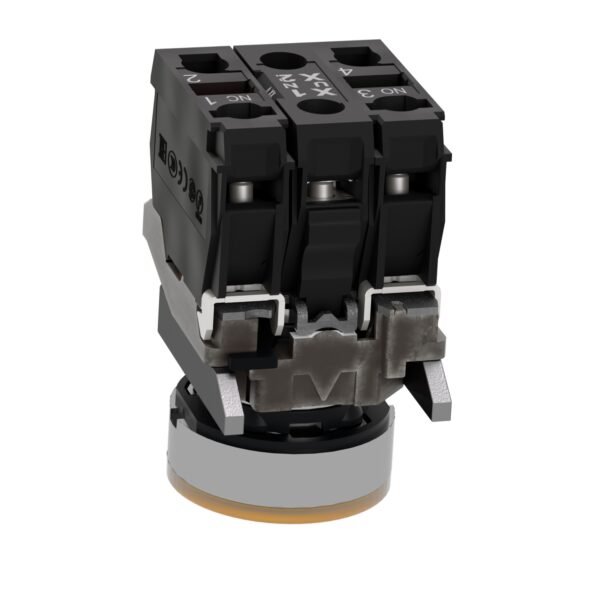

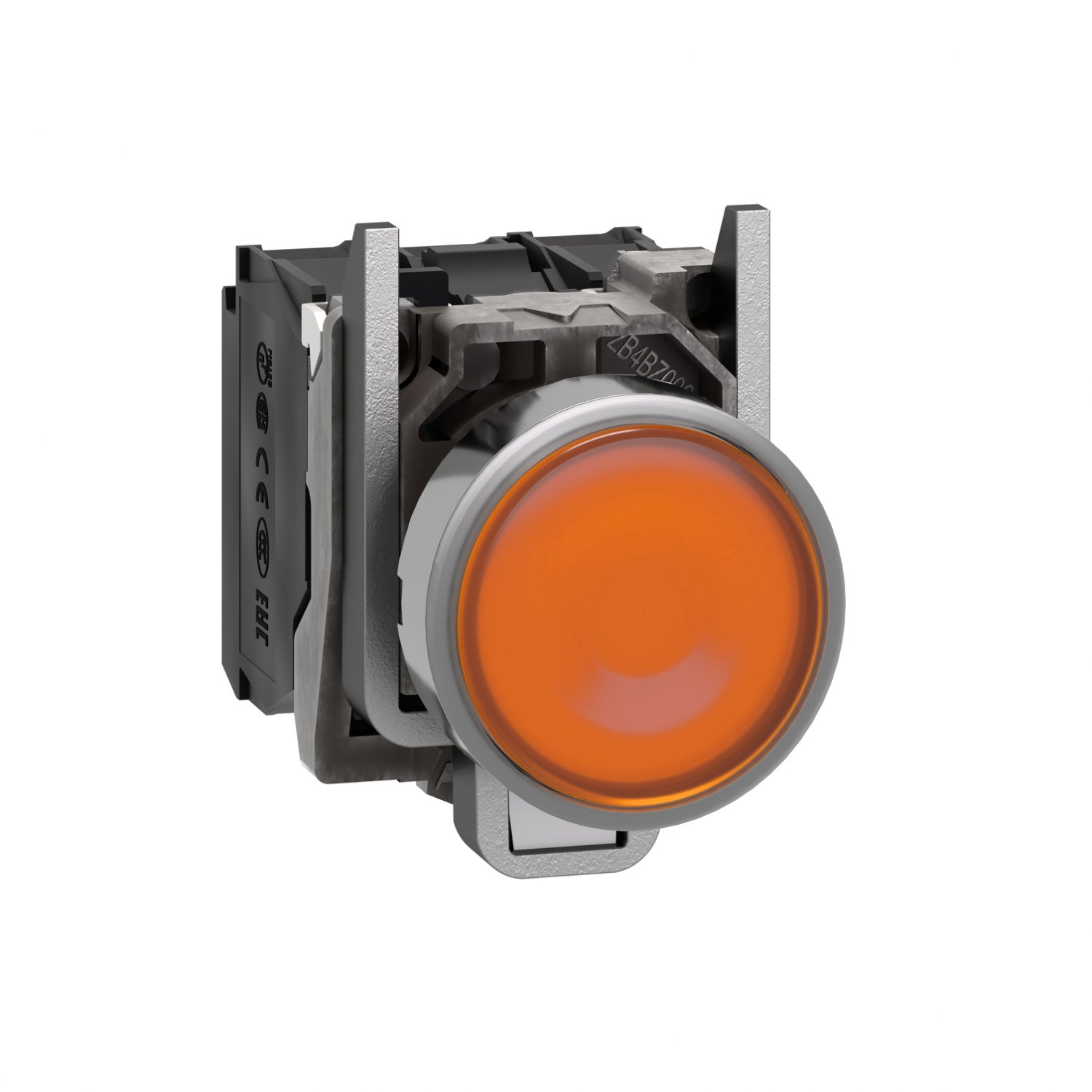

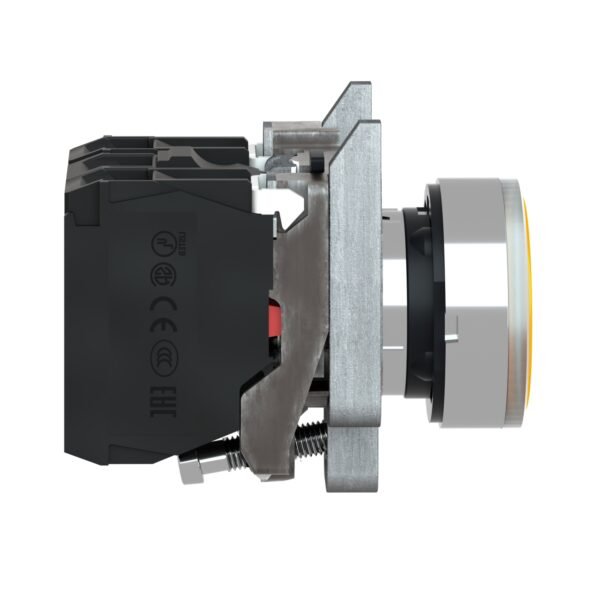

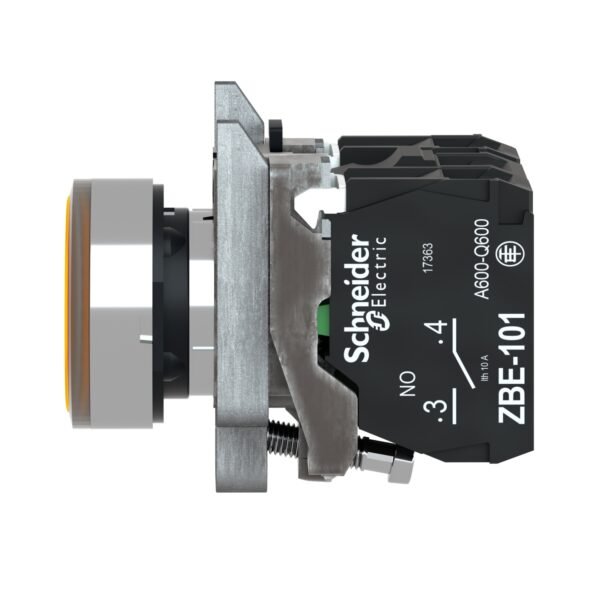

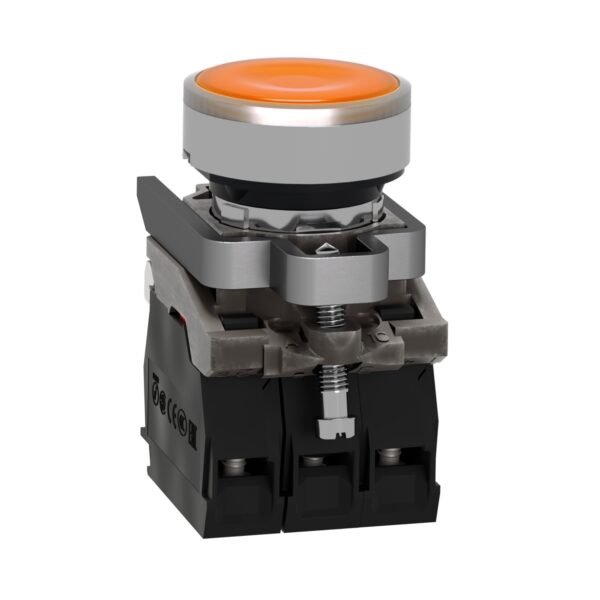

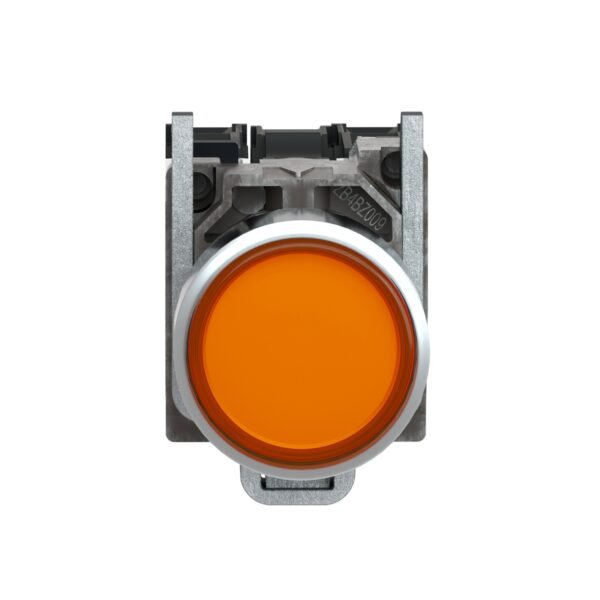

Schneider XB4BW35B5 | Illuminated push button, metal, flush, orange, Ø22, spring return, 1 NO + 1 NC 24 V AC/DC
Original price was: EGP 15,654.00.EGP 9,079.00Current price is: EGP 9,079.00.
Description
Schneider XB4BW35B5 | Illuminated push button, metal, flush, orange, Ø22, spring return, 1 NO + 1 NC 24 V AC/DC
Schneider XB4BW35B5 | Illuminated Push Button, Metal, Flush, Orange, Ø22, Spring Return, 1 NO + 1 NC 24 V AC/DC Description
it is an illuminated push button designed with precision to meet the needs of various industrial and commercial applications. Its metal construction ensures durability and reliability, making it a preferred choice for control panels and machinery interfaces.
Introduction to Schneider XB4BW35B5
it is part of Schneider Electric’s range of industrial control products known for their quality and performance. This illuminated push button combines functionality with aesthetics, featuring a flush design and an orange color that enhances visibility in control environments.
Specifications of the Illuminated Push Button
The key specifications of it include:
- Material: Metal construction for robustness.
- Operation: Flush design for seamless integration.
- Color: Vibrant orange for clear visibility.
- Diameter: Ø22, ensuring compatibility with standard panel cutouts.
- Action: Spring return for reliable operation.
- Contacts: 1 Normally Open (NO) and 1 Normally Closed (NC) contact for versatility.
- Voltage: Supports 24 V AC/DC, suitable for various power systems.
Features and Benefits
- Enhanced Visibility: The orange illumination makes it easy to identify the button’s status.
- Durable Construction: Metal housing ensures longevity in demanding environments.
- Versatile Contacts: Offers flexibility in wiring and circuit configurations.
- Easy Integration: Flush mounting design facilitates installation in control panels.
- Reliable Operation: Spring return action ensures consistent performance over time.
Applications and Uses
The Schneider XB4BW35B5 is suitable for a wide range of applications, including:
- Industrial machinery control panels
- Process automation systems
- Control rooms and operator interfaces
- Commercial equipment with push-button controls
Installation and Maintenance Tips
For optimal performance and longevity:
- Follow manufacturer guidelines for wiring and installation.
- Regularly inspect and clean the push button to prevent dust accumulation.
- Check electrical connections periodically for secure operation.
- Replace worn-out buttons promptly to avoid operational disruptions.
Comparison with Similar Products
When compared to similar illuminated push buttons, it stands out due to its:
- Robust metal construction
- Enhanced visibility with orange illumination
- Versatile contact configuration
- Reliable spring return action
Conclusion
The Schneider XB4BW35B5 illuminated push button combines quality construction, visibility, and reliability, making it an excellent choice for industrial and commercial applications where control precision is paramount.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of Product | Harmony XB4 |
|---|---|
| Product or Component Type | Illuminated push-button |
| Device short name | XB4 |
| Bezel material | Chromium plated metal |
| Fixing collar material | Zamak |
| Mounting diameter | 0.9 in (22.5 mm) |
| Sale per indivisible quantity | 1 |
| Head type | Standard |
| Shape of signaling unit head | Round |
| Type of operator | spring return |
| Operator profile | Orange flush |
| Operator additional information | With plain lens |
| Contacts type and composition | 1 NO + 1 NC |
| Contact operation | Slow-break |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 |
| Light source | Universal LED |
| Bulb base | Integral LED |
| [Us] rated supply voltage | 24 V AC/DC 50/60 Hz |
| Height | 1.9 in (47 mm) |
|---|---|
| Width | 1.2 in (30 mm) |
| Depth | 4.0 in (101 mm) |

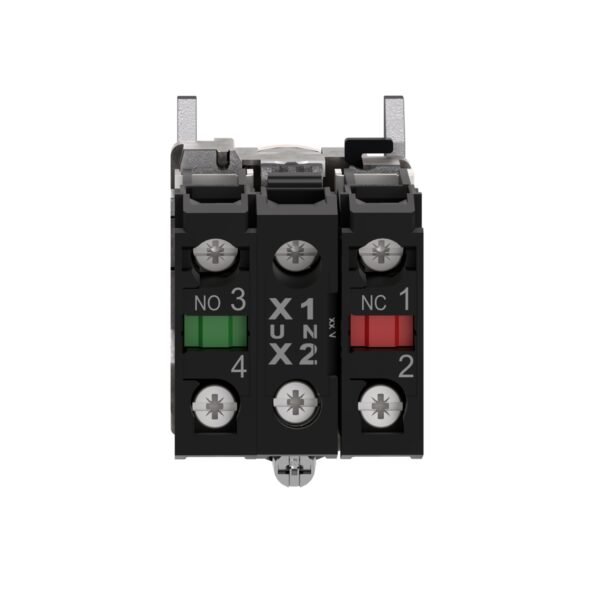

| Terminals description ISO n°1 | (13-14)NO (21-22)NC |
| Net Weight | 0.214 lb(US) (0.097 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Contacts usage | Standard contacts |
| Positive opening | With IEC 60947-5-1 appendix K |
| Operating travel | 0.06 in (1.5 mm) NC changing electrical state) 0.1 in (2.6 mm) NO changing electrical state) 0.2 in (4.3 mm) total travel) |
| Operating force | 3.5 N NC changing electrical state 3.8 N |
| Mechanical durability | 10000000 cycles |
| Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 |
| Shape of screw head | Cross Philips no 1 Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| [Ie] rated operational current | 3 A 240 V, AC-15, A600 IEC 60947-5-1 6 A 120 V, AC-15, A600 IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Electrical reliability | Λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 Λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4 |
| Signalling type | Steady |
| Current Consumption | 18 mA |
| Service life | 100000 h at rated voltage and 25 °C |
| Surge withstand | 1 kV IEC 61000-4-5 |
| Supply voltage limits | 19.2…30 V DC 21.6…26.4 V AC |
| Device presentation | Complete product |
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Electrical shock protection class | Class I IEC 60536 |
| IP degree of protection | IP66 IEC 60529 IP67 IP69 IP69K |
| NEMA degree of protection | NEMA 13 NEMA 4X |
| IK degree of protection | IK06 conforming to IEC 50102 |
| Standards | IEC 60947-5-5 IEC 60947-1 IEC 60947-5-1 CSA C22.2 No 14 IEC 60947-5-4 JIS C8201-5-1 UL 508 JIS C8201-1 |
| Product Certifications | CSA LROS (Lloyds register of shipping) BV UL Listed DNV |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Resistance to fast transients | 2 kV IEC 61000-4-4 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 |
| Resistance to electrostatic discharge | 6 kV on contact (on metal parts) IEC 61000-4-2 8 kV in free air (in insulating parts) IEC 61000-4-2 |
| Electromagnetic emission | Class B IEC 55011 |
| Category | US10CS222468 |
|---|---|
| Discount Schedule | 0CS2 |
| GTIN | 3389110892062 |
| Returnability | Yes |
| Country of origin | FR |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.465 in (8.800 cm) |
| Package 1 Width | 1.339 in (3.400 cm) |
| Package 1 Length | 2.126 in (5.400 cm) |
| Package 1 Weight | 3.351 oz (95.000 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 150 |
| Package 2 Height | 11.811 in (30.000 cm) |
| Package 2 Width | 11.811 in (30.000 cm) |
| Package 2 Length | 15.748 in (40.000 cm) |
| Package 2 Weight | 32.800 lb(US) (14.878 kg) |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 1200 |
| Package 3 Height | 29.528 in (75.000 cm) |
| Package 3 Width | 23.622 in (60.000 cm) |
| Package 3 Length | 31.496 in (80.000 cm) |
| Package 3 Weight | 286.134 lb(US) (129.788 kg) |
| Warranty | 18 months |
|---|
