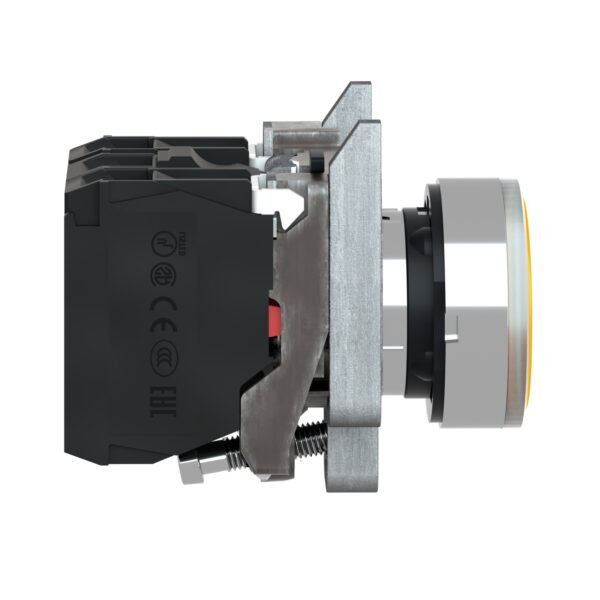

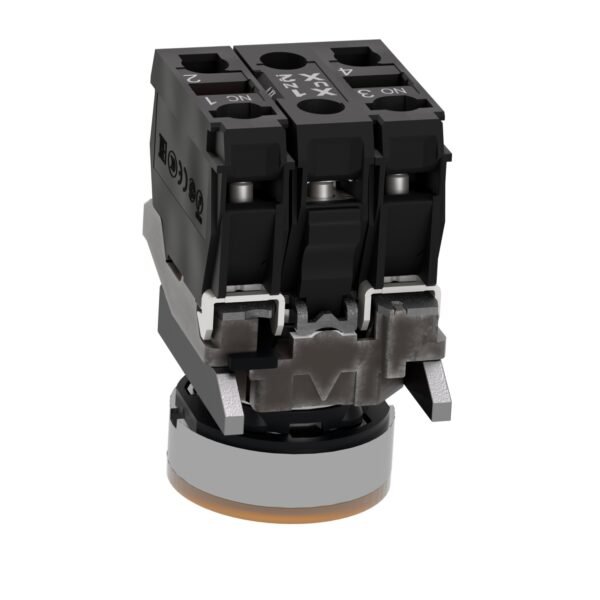

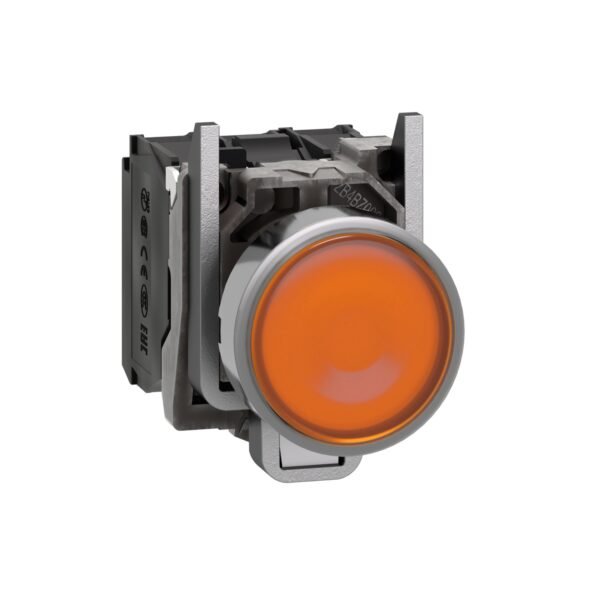

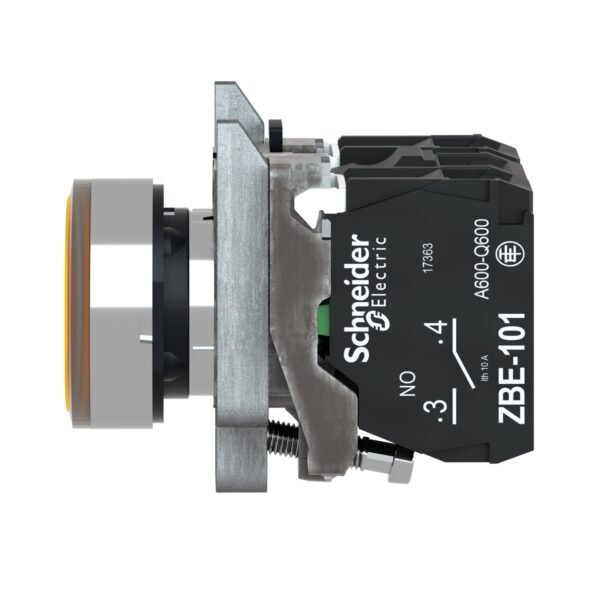

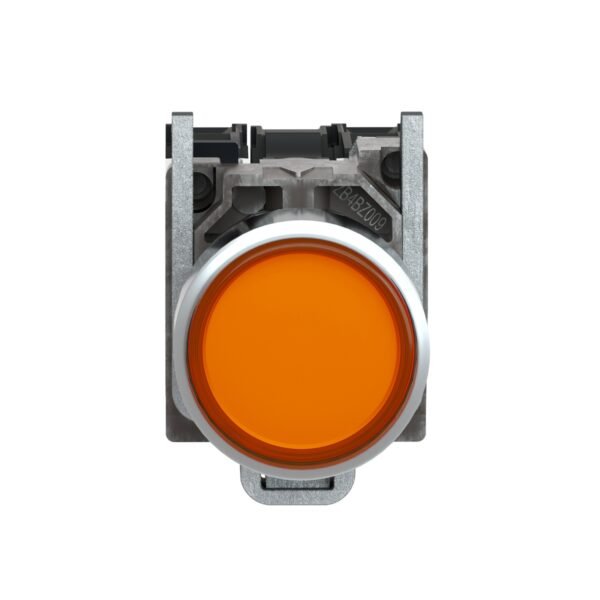

Schneider XB4BW35G5 Harmony | Orange flush complete illum pushbutton Ø22 spring return 1NO+1NC 110…120V
Schneider XB4BW35G5 Harmony
Original price was: EGP 19,797.00.EGP 11,482.00Current price is: EGP 11,482.00.
Description
What is the Schneider XB4BW35G5 Harmony?
it is a high-quality push-button switch designed for industrial and commercial applications. Part of Schneider Electric’s Harmony XB4 range, it boasts a wide array of features that make it ideal for various environments requiring robust and reliable control solutions.
Key Features of the Schneider XB4BW35G5 Harmony
Understanding the key features of it can help you appreciate its value:
- Durability: Built to withstand harsh environments.
- Ease of Use: Simple installation and operation.
- Versatility: Suitable for a range of applications.
- Reliability: Consistent performance over time.
Design and Build Quality
it stands out for its excellent design and build quality. It’s constructed with high-grade materials that ensure longevity and resilience, making it a trustworthy component in demanding settings.
Durability
One of the standout features is its durability. Whether in a factory or an outdoor installation, this switch can handle extreme conditions. It’s resistant to dust, water, and mechanical impacts, ensuring it remains functional even in the toughest environments.
Aesthetics
Beyond functionality, the Harmony XB4BW35G5 also scores high on aesthetics. Its sleek and modern design allows it to blend seamlessly into control panels, making it not just a functional but also a visually appealing choice.
Ease of Installation
Installing it is straightforward, thanks to its user-friendly design. It doesn’t require specialized tools or extensive training, which is a significant advantage for maintenance teams.
Step-by-Step Installation Guide
- Prepare the Panel: Ensure the panel where the switch will be installed is clean and ready.
- Insert the Switch: Place the switch into the designated hole in the panel.
- Secure the Switch: Tighten the fixing nut to hold the switch firmly in place.
- Connect the Wires: Attach the electrical wires to the switch terminals according to the wiring diagram.
- Test the Installation: Verify the installation by testing the switch for proper operation.
Performance and Reliability
When it comes to performance, the Schneider XB4BW35G5 Harmony does not disappoint. It offers reliable operation, ensuring that your control systems function smoothly.
User Reviews and Testimonials
Users have praised the Schneider XB4BW35G5 Harmony for its dependability and ease of use. Many highlight its long lifespan and minimal maintenance needs as significant benefits.
Comparison with Other Products
Compared to other push-button switches in its category, the Harmony XB4BW35G5 often outperforms in terms of durability and user satisfaction. Its build quality and design features set it apart from competitors.
Applications of Schneider XB4BW35G5 Harmony
The versatility of the Schneider XB4BW35G5 Harmony makes it suitable for various applications.
Industrial Uses
In industrial settings, this switch is used for controlling machinery, conveyor systems, and safety interlocks. Its robustness ensures it can handle the rigors of industrial use.
Commercial Uses
In commercial environments, it finds applications in control panels for HVAC systems, lighting control, and security systems. Its reliability and ease of use make it a preferred choice.
Benefits of Using Schneider XB4BW35G5 Harmony
The Schneider XB4BW35G5 Harmony offers numerous benefits that enhance operational efficiency and cost-effectiveness.
Enhanced Efficiency
By providing reliable control, this switch helps streamline operations, reducing downtime and improving productivity.
Cost-Effectiveness
Its durability and low maintenance requirements translate into cost savings over time, making it a smart investment for businesses.
Maintenance Tips
To ensure the longevity of the Schneider XB4BW35G5 Harmony, regular maintenance is key.
Routine Checks
Conducting routine checks can help identify potential issues before they escalate. Inspect the switch for any signs of wear and tear and ensure all connections are secure.
Troubleshooting Common Issues
If the switch is not functioning correctly, check the wiring connections and ensure there is no debris obstructing the switch mechanism. Refer to the user manual for specific troubleshooting steps.
Where to Buy the Schneider XB4BW35G5 Harmony
Purchasing the Schneider XB4BW35G5 Harmony from reputable sources ensures you get a genuine product.
Authorized Dealers
Authorized Schneider Electric dealers offer the best assurance of quality and support. These dealers can also provide expert advice and assistance.
Online Platforms
Several online platforms, including Schneider Electric’s official website, offer the XB4BW35G5 Harmony. Ensure the platform is reputable to avoid counterfeit products.
Customer Support and Warranty
Schneider Electric provides excellent customer support and comprehensive warranty coverage for the XB4BW35G5 Harmony.
Warranty Details
The product comes with a standard warranty that covers manufacturing defects and ensures you get a replacement or repair if needed.
Support Channels
For any issues or inquiries, Schneider Electric’s customer support is available through multiple channels, including phone, email, and live chat.
Conclusion
The Schneider XB4BW35G5 Harmony is a standout product in the realm of industrial control components. Its blend of durability, reliability, and ease of use makes it an excellent choice for various applications. Whether you’re looking to upgrade your industrial control systems or need a reliable component for commercial installations, the Harmony XB4BW35G5 is worth considering.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of Product | Harmony XB4 |
|---|---|
| Product or Component Type | Illuminated push-button |
| Device short name | XB4 |
| Bezel material | Chromium plated metal |
| Fixing collar material | Zamak |
| Mounting diameter | 0.9 in (22.5 mm) |
| Sale per indivisible quantity | 1 |
| Head type | Standard |
| Shape of signaling unit head | Round |
| Type of operator | spring return |
| Operator profile | Orange flush |
| Operator additional information | With plain lens |
| Contacts type and composition | 1 NO + 1 NC |
| Contact operation | Slow-break |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 |
| Light source | Universal LED |
| Bulb base | Integral LED |
| [Us] rated supply voltage | 110...120 V AC 50/60 Hz |
| Height | 1.9 in (47 mm) |
|---|---|
| Width | 1.2 in (30 mm) |
| Depth | 4.0 in (101 mm) |

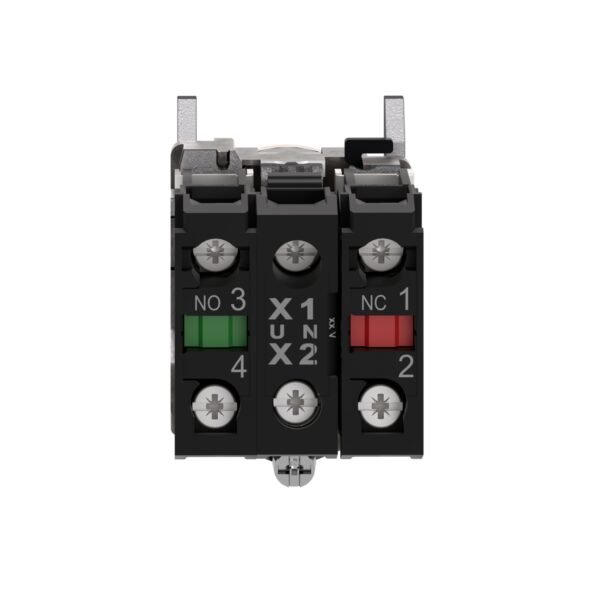

| Terminals description ISO n°1 | (13-14)NO (21-22)NC |
| Net Weight | 0.214 lb(US) (0.097 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Contacts usage | Standard contacts |
| Positive opening | With IEC 60947-5-1 appendix K |
| Operating travel | 0.06 in (1.5 mm) NC changing electrical state) 0.1 in (2.6 mm) NO changing electrical state) 0.2 in (4.3 mm) total travel) |
| Operating force | 3.5 N NC changing electrical state 3.8 N |
| Mechanical durability | 10000000 cycles |
| Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 |
| Shape of screw head | Cross Philips no 1 Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| [Ie] rated operational current | 3 A 240 V, AC-15, A600 IEC 60947-5-1 6 A 120 V, AC-15, A600 IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Electrical reliability | Λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 Λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4 |
| Signalling type | Steady |
| Current Consumption | 14 mA |
| Service life | 100000 h at rated voltage and 25 °C |
| Surge withstand | 1 kV IEC 61000-4-5 |
| Supply voltage limits | 100…132 V AC |
| Device presentation | Complete product |
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient air temperature for operation | -40…158 °F (-40…70 °C) |
| Electrical shock protection class | Class I IEC 60536 |
| IP degree of protection | IP66 IEC 60529 IP67 IP69 IP69K |
| NEMA degree of protection | NEMA 13 NEMA 4X |
| IK degree of protection | IK06 conforming to IEC 50102 |
| Standards | IEC 60947-1 CSA C22.2 No 14 JIS C8201-5-1 IEC 60947-5-1 IEC 60947-5-5 IEC 60947-5-4 UL 508 JIS C8201-1 |
| Product Certifications | CSA LROS (Lloyds register of shipping) BV UL Listed DNV |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Resistance to fast transients | 2 kV IEC 61000-4-4 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 |
| Resistance to electrostatic discharge | 6 kV on contact (on metal parts) IEC 61000-4-2 8 kV in free air (in insulating parts) IEC 61000-4-2 |
| Electromagnetic emission | Class B IEC 55011 |
| Category | US10CS222468 |
|---|---|
| Discount Schedule | 0CS2 |
| GTIN | 3389110892109 |
| Returnability | Yes |
| Country of origin | FR |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.46 in (8.800 cm) |
| Package 1 Width | 1.34 in (3.400 cm) |
| Package 1 Length | 2.13 in (5.400 cm) |
| Package 1 Weight | 3.422 oz (97.000 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 100 |
| Package 2 Height | 11.81 in (30.000 cm) |
| Package 2 Width | 11.81 in (30.000 cm) |
| Package 2 Length | 15.75 in (40.000 cm) |
| Package 2 Weight | 22.827 lb(US) (10.354 kg) |
| Warranty | 18 months |
|---|
