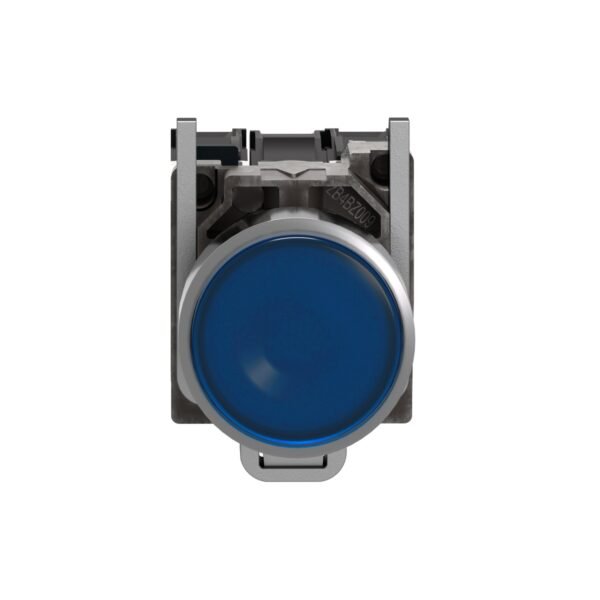

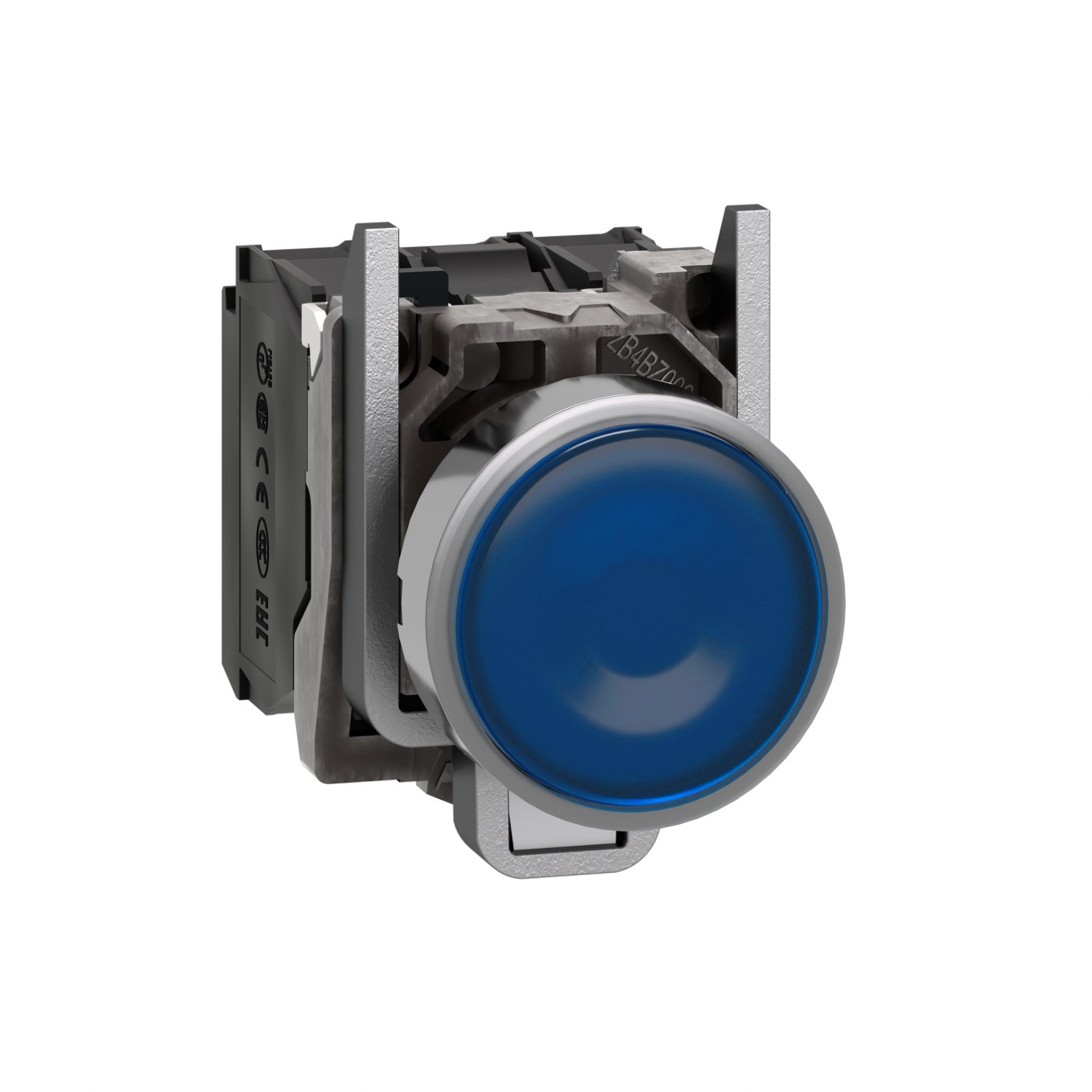

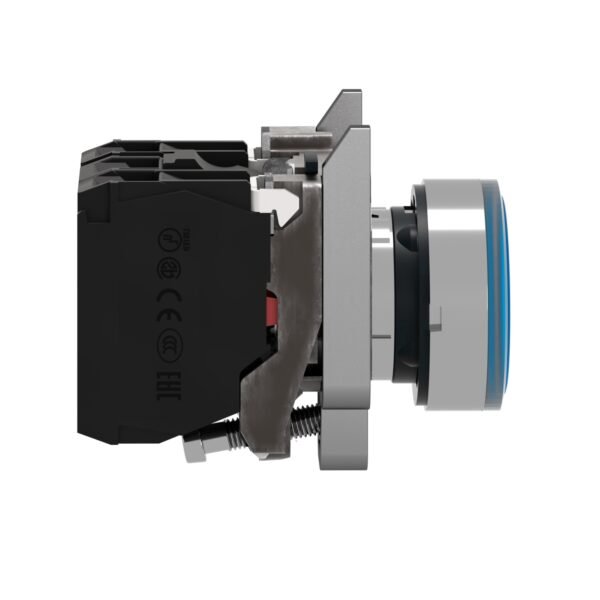

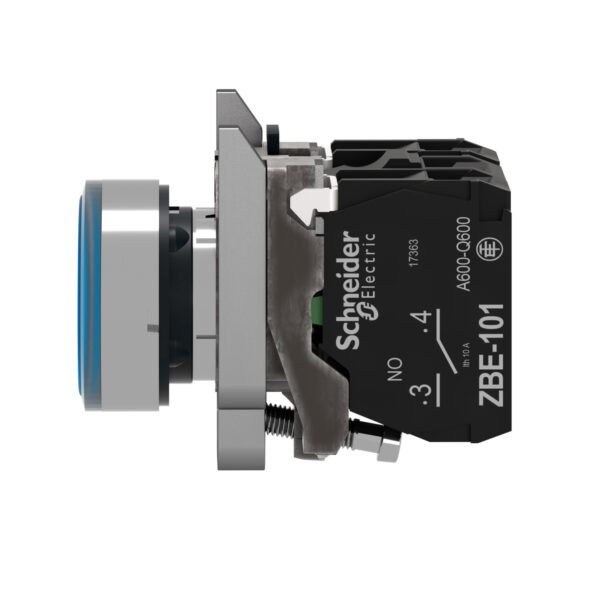

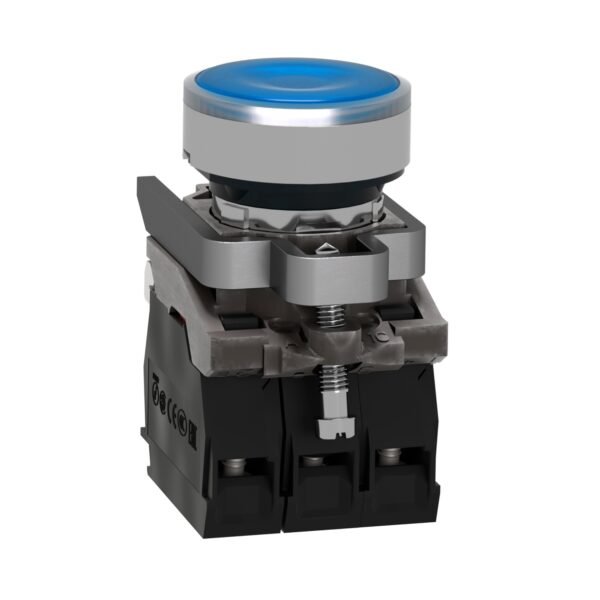

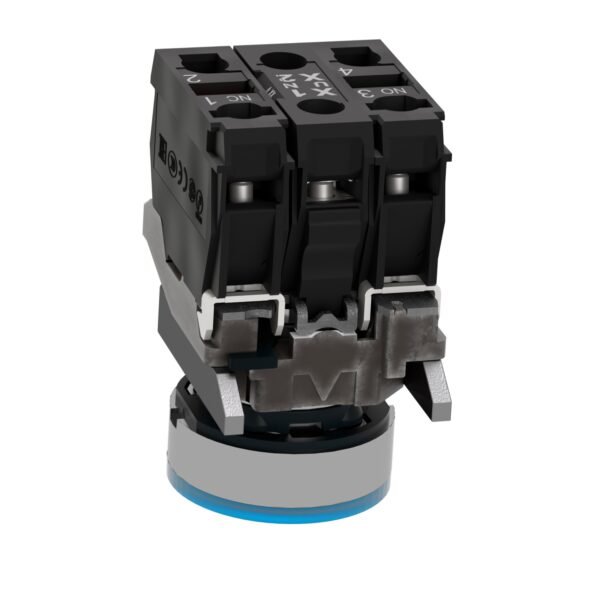

Schneider XB4BW36M5 | Illuminated push button, metal, flush, blue, Ø22, spring return, 230…240 V AC, 1 NO + 1 NC
Original price was: EGP 26,037.00.EGP 15,102.00Current price is: EGP 15,102.00.
Description
Schneider XB4BW36M5 | Illuminated push button, metal, flush, blue, Ø22, spring return, 230…240 V AC, 1 NO + 1 NC
Schneider XB4BW36M5 | Illuminated Push Button, Metal, Flush, Blue, Ø22, Spring Return, 230…240 V AC, 1 NO + 1 NC Description
Schneider Electric’s XB4BW36M5 is a robust illuminated push button designed for industrial applications, offering reliable performance and durability. Let’s dive deeper into its features, specifications, benefits, and applications.
Introduction to Schneider XB4BW36M5
Schneider Electric is a renowned name in the electrical equipment industry, known for its innovative and high-quality products. The XB4BW36M5 illuminated push button is no exception, designed to meet the demanding requirements of industrial control systems.
Understanding Illuminated Push Buttons
Illuminated push buttons combine the functionality of a standard push button with visual indication, typically through LED lights. They are used in control panels and machinery to provide status feedback or indicate operational conditions.
Features of XB4BW36M5
- Metal Construction: Ensures durability and resistance to harsh environments.
- Flush Design: Provides a sleek and integrated look in control panels.
- Blue Color: Offers clear visual indication and differentiation.
- 22mm Diameter: Standard size compatible with various mounting options.
- Spring Return: Ensures reliable operation and reset after activation.
- Voltage Rating: Compatible with 230-240V AC systems.
- 1 NO + 1 NC Contacts: Provides flexibility in circuit configurations.
Specifications of XB4BW36M5
- Manufacturer: Schneider Electric
- Series: XB4
- Model: XB4BW36M5
- Type: Illuminated Push Button
- Material: Metal
- Color: Blue
- Operation: Spring Return
- Voltage Rating: 230-240V AC
- Contacts: 1 Normally Open (NO) + 1 Normally Closed (NC)
Benefits of Using Schneider Illuminated Push Buttons
- Enhanced Visibility: Clear indication of operational status.
- Durable Construction: Resistant to environmental factors.
- Easy Integration: Compatible with standard control systems.
- Reliable Performance: Spring return ensures consistent operation.
- Safety Compliance: Meets industry standards for electrical components.
Installation and Wiring Guide
When installing XB4BW36M5, ensure proper wiring according to the provided manual to maintain functionality and safety standards. Follow best practices for control panel assembly and labeling.
Maintenance Tips for Longevity
Regular inspection and cleaning of the push button can prolong its lifespan. Check for any signs of wear or damage and replace components as needed.
Applications of XB4BW36M5
The XB4BW36M5 push button finds applications in:
- Industrial control panels
- Machinery operation
- Process automation systems
- Electrical distribution units
Comparison with Other Push Buttons
Compared to standard push buttons, Schneider’s XB4BW36M5 offers:
- Enhanced durability
- Visual indication
- Standardized sizing
- Reliable performance
Customer Reviews and Testimonials
“The XB4BW36M5 has been a great addition to our control panel. The blue illumination makes it easy to identify critical functions.” – John D., Electrical Engineer
“Easy to install and reliable in operation. Schneider never disappoints!” – Sarah M., Maintenance Supervisor
Conclusion
In conclusion, Schneider XB4BW36M5 illuminated push button combines reliability, durability, and visual indication, making it an ideal choice for industrial applications where performance matters.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| range of product | Harmony XB4 |
|---|---|
| product or component type | Illuminated push-button |
| Device short name | XB4 |
| Bezel material | Chromium plated metal |
| Fixing collar material | Zamak |
| Mounting diameter | 22.5 mm |
| Sale per indivisible quantity | 1 |
| Head type | Standard |
| Shape of signaling unit head | Round |
| Type of operator | spring return |
| Operator profile | Blue flush |
| Operator additional information | With plain lens |
| Contacts type and composition | 1 NO + 1 NC |
| Contact operation | Slow-break |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1 |
| Light source | Universal LED |
| Bulb base | Integral LED |
| [Us] rated supply voltage | 230...240 V AC at 50/60 Hz |
| Height | 47 mm |
|---|---|
| Width | 30 mm |
| Depth | 101 mm |

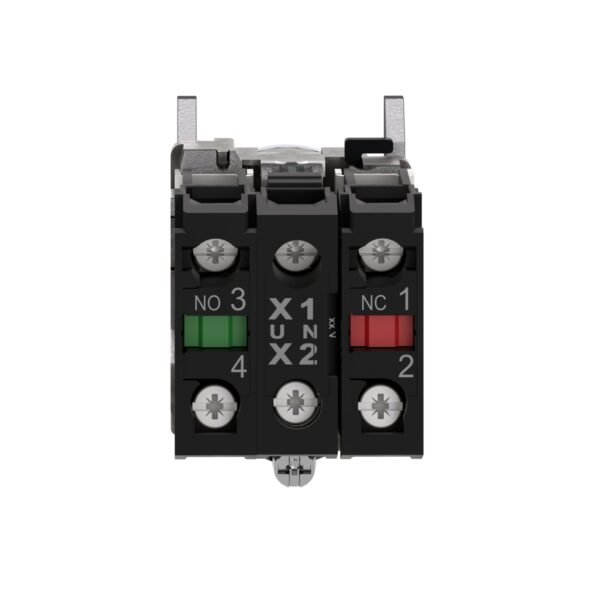

| Terminals description ISO n°1 | (21-22)NC (13-14)NO |
| net weight | 0.097 kg |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Contacts usage | Standard contacts |
| Positive opening | With conforming to IEC 60947-5-1 appendix K |
| Operating travel | 1.5 mm (NC changing electrical state) 2.6 mm (NO changing electrical state) 4.3 mm (total travel) |
| Operating force | 3.5 N NC changing electrical state 3.8 N |
| Mechanical durability | 10000000 cycles |
| Tightening torque | 0.8…1.2 N.m conforming to IEC 60947-1 |
| Shape of screw head | Cross compatible with Philips no 1 screwdriver Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse type gG conforming to IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| Electrical reliability | Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4 Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4 |
| Signalling type | Steady |
| current consumption | 14 mA |
| Service life | 100000 h at rated voltage and 25 °C |
| Surge withstand | 1 kV conforming to IEC 61000-4-5 |
| Supply voltage limits | 195…264 V AC |
| Device presentation | Complete product |
| Protective treatment | TH |
|---|---|
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -40…70 °C |
| Electrical shock protection class | Class I conforming to IEC 60536 |
| IP degree of protection | IP66 conforming to IEC 60529 IP67 IP69 IP69K |
| NEMA degree of protection | NEMA 13 NEMA 4X |
| IK degree of protection | IK06 conforming to IEC 50102 |
| Standards | UL 508 IEC 60947-1 IEC 60947-5-5 IEC 60947-5-1 CSA C22.2 No 14 IEC 60947-5-4 JIS C8201-5-1 JIS C8201-1 |
| Product certifications | CSA LROS (Lloyds register of shipping) BV UL listed DNV |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Resistance to fast transients | 2 kV conforming to IEC 61000-4-4 |
| Resistance to electromagnetic fields | 10 V/m conforming to IEC 61000-4-3 |
| Resistance to electrostatic discharge | 6 kV on contact (on metal parts) conforming to IEC 61000-4-2 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2 |
| Electromagnetic emission | Class B conforming to IEC 55011 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.800 cm |
| Package 1 Width | 3.400 cm |
| Package 1 Length | 5.400 cm |
| Package 1 Weight | 96.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 100 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 10.315 kg |
| Warranty | 18 months |
|---|
