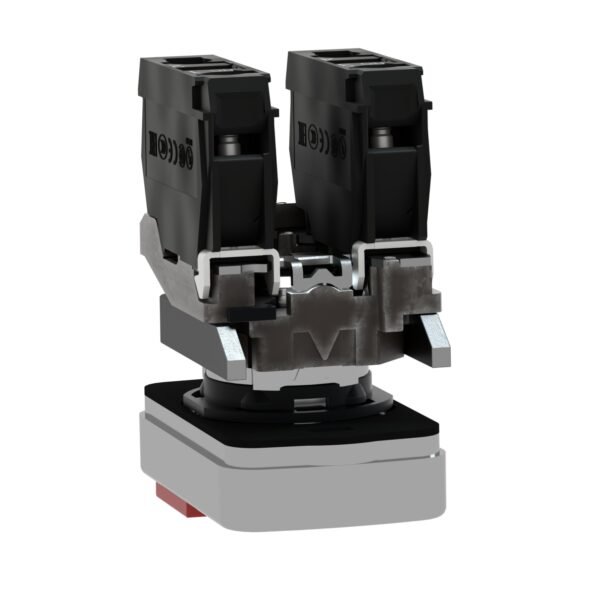

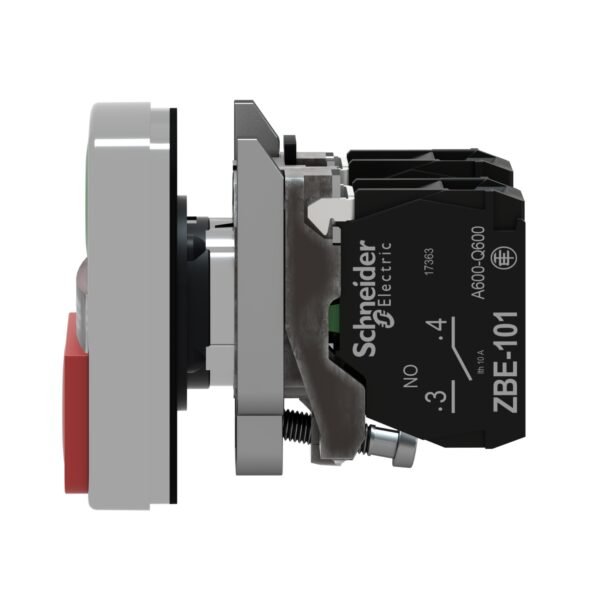

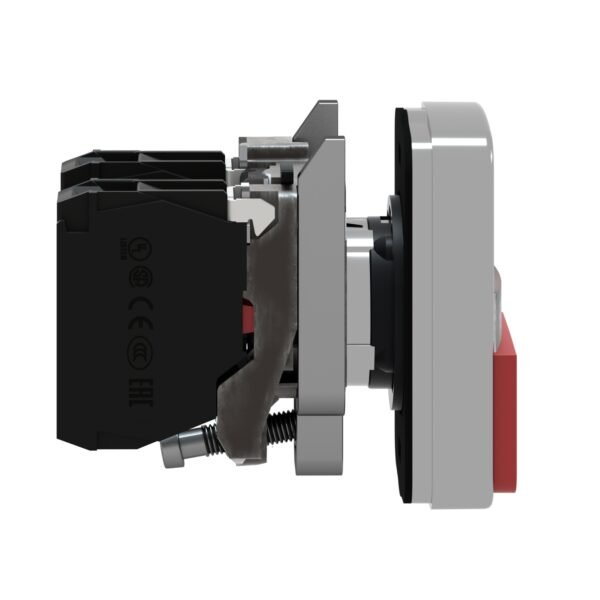

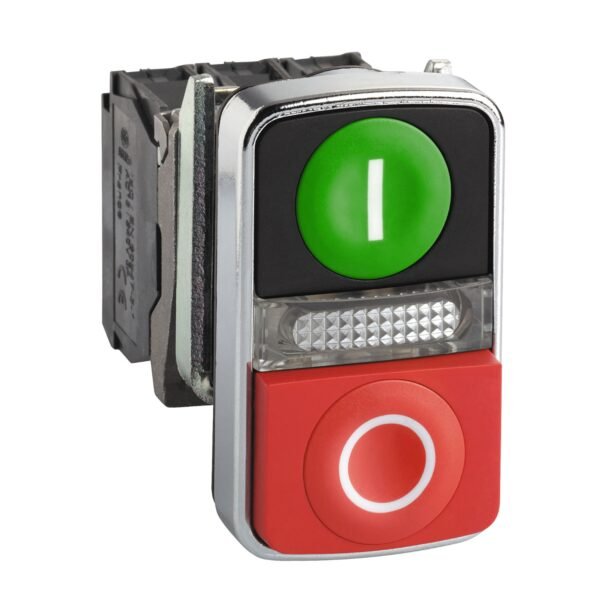

Schneider XB4BW73731B5 Harmony | Illuminated double-headed push button, metal, Ø22, 1 green flush I + 1 pilot light + 1 red projecting O, 1 NO + 1 NC
Schneider XB4BW73731B5 Harmony
Original price was: EGP 25,788.00.EGP 14,958.00Current price is: EGP 14,958.00.
Description
Schneider XB4BW73731B5 Harmony
In the realm of industrial control and automation, the name Schneider Electric stands out prominently, renowned for its cutting-edge solutions and innovative products. Among its stellar lineup is the it, a versatile and high-performance component that has become a staple in various industries worldwide.
I. Introduction to Schneider XB4BW73731B5 Harmony
A. What is Schneider XB4BW73731B5 Harmony?
it is a premium-grade control button, meticulously designed to meet the demanding requirements of industrial applications. It combines robust construction with advanced functionality, making it an indispensable tool for operators and technicians alike.
B. Importance and Applications
This Harmony series device finds extensive use across diverse sectors, including manufacturing, automotive, pharmaceuticals, and more. Its versatility allows it to be integrated seamlessly into control panels, machinery, and equipment, facilitating efficient operation and precise control.
II. Features of Schneider XB4BW73731B5 Harmony
A. Robust Design
Crafted with durability in mind, it boasts a rugged construction that can withstand harsh industrial environments. Its sturdy build ensures longevity, even in the most demanding conditions.
B. High Performance
Equipped with state-of-the-art technology, this Harmony control button delivers exceptional performance, guaranteeing smooth operation and reliable functionality. Its responsive interface and precise feedback make it a preferred choice for critical control applications.
C. Compatibility
it is designed to integrate seamlessly with existing systems and equipment, offering versatile compatibility and easy installation. Whether retrofitting or incorporating into new installations, compatibility issues are minimal, streamlining the integration process.
III. Benefits of Schneider XB4BW73731B5 Harmony
A. Enhanced Efficiency
By providing intuitive control and reliable operation, it enhances overall efficiency, reducing downtime and optimizing productivity. Its user-friendly design simplifies operation, empowering operators to perform tasks with ease.
B. Improved Safety
Safety is paramount in industrial environments, and it prioritizes this aspect with built-in safety features and protocols. Its ergonomic design and tactile feedback contribute to a safer working environment, minimizing the risk of accidents and injuries.
C. Cost-effectiveness
Despite its advanced features and premium quality, it remains cost-effective, offering excellent value for money. Its durability and reliability translate to long-term savings, reducing maintenance costs and enhancing operational efficiency.
IV. How to Install Schneider XB4BW73731B5 Harmony
A. Step-by-Step Installation Guide
Installing the Schneider XB4BW73731B5 Harmony is a straightforward process, thanks to its user-friendly design and comprehensive installation manual. Following the provided guidelines ensures proper installation and optimal performance.
V. Maintenance and Care Tips
A. Regular Inspection
To maintain peak performance, regular inspection of the Schneider XB4BW73731B5 Harmony is recommended. This includes checking for signs of wear, cleaning contacts, and ensuring proper alignment.
B. Cleaning Procedures
Keeping the Schneider XB4BW73731B5 Harmony clean is essential for optimal performance. Use mild detergent and a soft cloth to remove dirt and debris, ensuring uninterrupted operation.
VI. Troubleshooting Common Issues
A. Identify Problems
In the event of operational issues, troubleshooting the Schneider XB4BW73731B5 Harmony is a systematic process. Identify the root cause of the problem, whether it’s mechanical, electrical, or software-related.
B. Solutions
Once the issue is identified, implement appropriate solutions based on the nature of the problem. This may involve adjusting settings, replacing components, or seeking technical support from Schneider Electric’s customer service.
VII. Comparison with Alternatives
A. Competitor Analysis
Comparing the Schneider XB4BW73731B5 Harmony with alternative products reveals its superior performance, durability, and value proposition. Its advanced features and robust design set it apart from competitors in the market.
B. Advantages of Schneider XB4BW73731B5 Harmony
Key advantages of choosing the Schneider XB4BW73731B5 Harmony include reliability, compatibility, and cost-effectiveness. Its comprehensive feature set and stellar reputation make it the preferred choice for industrial control applications.
VIII. Customer Reviews and Testimonials
[Include relevant customer reviews and testimonials to showcase real-world experiences and satisfaction with the Schneider XB4BW73731B5 Harmony.]
IX. Conclusion
In conclusion, the Schneider XB4BW73731B5 Harmony represents a paradigm shift in industrial control, offering unmatched performance, reliability, and versatility. With its robust design, advanced features, and user-friendly interface, it has become the go-to solution for businesses seeking to optimize their operations and enhance productivity.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Harmony XB4 |
|---|---|
| Product or component type | Illuminated double-headed push-button |
| Device short name | XB4 |
| Bezel material | Chromium plated metal |
| Head type | Standard |
| Mounting diameter | 22.5 mm |
| Colour of marking | White marking when green, red or black caps Black marking when white caps |
| Light source | Protected LED |
| Light source colour | White |
| Device presentation | Complete product |
| Fixing collar material | Zamak |
|---|---|
| Net weight | 0.13 kg |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Shape of signaling unit head | Rectangular |
| Type of operator | spring return |
| Operator profile | 1 flush - 1 projecting push-buttons - 1 central pilot light |
| Operators description | Green ''I'' - red ''O'' |
| Operator profile | Green flush, I (white) Red projecting, O (white) |

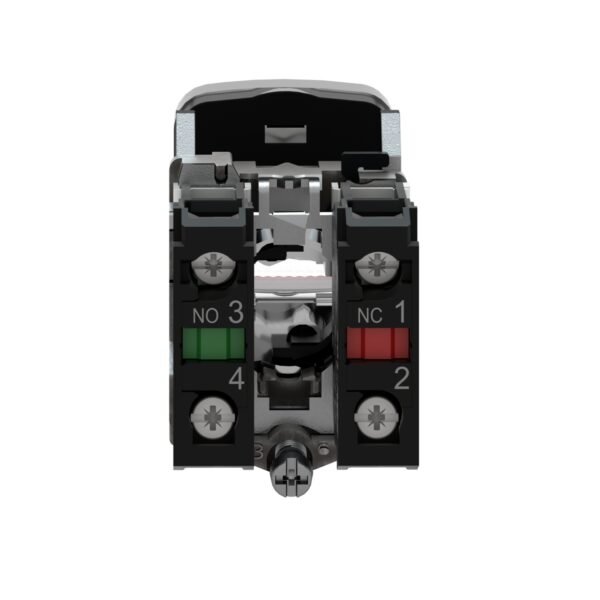

| Contacts type and composition | 1 NO + 1 NC |
| Contact operation | Slow-break |
| Contacts usage | Standard contacts |
| Positive opening | With conforming to IEC 60947-5-1 appendix K |
| Operating travel | 1.5 mm (NC changing electrical state) 2.6 mm (NO changing electrical state) 4.3 mm (total travel) |
| Operating force | 3.5 N NC changing electrical state 3.8 N NO changing electrical state |
| Mechanical durability | 1000000 cycles |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1 |
| Tightening torque | 0.8…1.2 N.m conforming to IEC 60947-1 |
| Shape of screw head | Cross compatible with JIS No 1 screwdriver Cross compatible with Philips no 1 screwdriver Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse type gG conforming to IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| Electrical reliability | Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4 Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4 |
| Signalling type | Steady |
| Bulb base | Integral LED |
| [Us] rated supply voltage | 24 V AC/DC at 50/60 Hz |
| Supply voltage limits | 19.2…30 V DC 21.6…26.4 V AC |
| Current consumption | 18 mA |
| Service life | 100000 h at rated voltage and 25 °C |
| Surge withstand | 1 kV conforming to IEC 61000-4-5 |
| Compatibility code | XB4 |
| Protective treatment | TH |
|---|---|
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -40…70 °C |
| Electrical shock protection class | Class I conforming to IEC 60536 |
| IP degree of protection | IP66 conforming to IEC 60529 IP69K conforming to IEC 60529 IP69 conforming to IEC 60529 |
| NEMA degree of protection | NEMA 13 NEMA 4X |
| IK degree of protection | IK06 conforming to IEC 50102 |
| Standards | IEC 60947-1 IEC 60947-5-1 CSA C22.2 No 14 JIS C8201-5-1 IEC 60947-5-5 IEC 60947-5-4 UL 508 JIS C8201-1 |
| Product certifications | CSA LROS (Lloyds register of shipping) BV UL listed DNV |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Resistance to fast transients | 2 kV conforming to IEC 61000-4-4 |
| Resistance to electromagnetic fields | 10 V/m conforming to IEC 61000-4-3 |
| Resistance to electrostatic discharge | 6 kV on contact (on metal parts) conforming to IEC 61000-4-2 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2 |
| Electromagnetic emission | Class B conforming to IEC 55011 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.500 cm |
| Package 1 Width | 5.500 cm |
| Package 1 Length | 9.000 cm |
| Package 1 Weight | 124.800 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 100 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 12.905 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 800 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 60.000 cm |
| Package 3 Weight | 111.240 kg |
| Warranty | 18 months |
|---|
