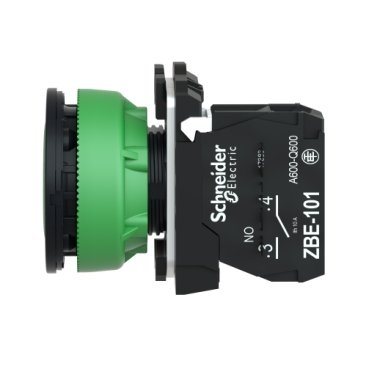

Schneider XB5FA31 | Push button flush mounted, plastic, green, Ø30, spring return, unmarked, 1 NO
Schneider XB5FA31 | Flush-Mounted Push Button – Overview
The Schneider Electric XB5FA31 is a flush-mounted push button from the Harmony XB5F series. Designed for industrial control applications, it features a green actuator, spring return mechanism, and a single normally open (1 NO) contact.
General Specifications
-
Product name: XB5FA31
-
Product type: Flush-mounted push button
-
Series: Harmony XB5F
-
Mounting type: Flush mounting
-
Body material: High-quality plastic
-
Color: Green
-
Button marking: Unmarked (plain head)
-
Actuation type: Spring return (momentary operation)
-
Contact configuration: 1 NO (Normally Open)
Dimensions and Design
-
Operator diameter: Ø30 mm
-
Front panel cut-out: 30.5 mm standard round hole
-
Design: Sleek, modern, and ergonomic
-
Mounting collar and fixing included for secure installation
-
Minimal protrusion from panel surface for a clean look
Electrical Characteristics
-
Contact type: Snap action
-
Rated insulation voltage: Typically 600V (check application specifics)
-
Rated operational current: Depends on contact block configuration
-
Conforming standards: IEC 60947-5-1, UL, CSA
Mechanical and Environmental Features
-
Mechanical durability: Up to 10 million operations
-
Protection rating: IP66, IP67, IP69, and IP69K (when properly installed)
-
Operating temperature: -40°C to +70°C
-
Vibration resistance and shock resistance: High industrial-grade tolerance
Applications
-
Industrial control panels
-
Machine start/stop commands
-
Operator interfaces in automation systems
-
Control stations and equipment panels
Benefits
-
Stylish flush-mounted design for modern panels
-
High durability and long mechanical life
-
Easy to install and wire
-
Resistant to harsh industrial environments
-
Suitable for a wide range of control applications
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of produc | Harmony XB5 |
|---|---|
| Product or component type | Push-button |
| Device short name | XB5F |
| Product compatibility | ZBYF2101 ZBYF4101 ZBYF6101 ZBYF6102 ZBZF32 ZBZF33 ZB4FBZ007 |
| bezel material | Plastic Dark grey plastic |
| Head type | Built-in-flush |
| Fixing collar material | Plastic |
| Mounting diameter | 30.5 mm |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round |
| Type of operator | Spring return |
| Operator profile | Green flush, unmarked |
| Contacts type and composition | 1 NO |
| contact operation | Slow-break |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1 |
| height | 42 mm |
|---|---|
| Width | 36.6 mm |
| Depth | 55 mm |
| Terminals description ISO n°1 | (13-14)NO |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| contacts usage | Standard contacts |
| Positive opening | Without |
| Operating travel | 2.6 mm (NO changing electrical state) 4.3 mm (total travel) |
| Operating force | 3.8 N NO changing electrical state |
| Mechanical durability | 10000000 cycles |
| Tightening torque | 0.8…1.2 N.m conforming to IEC 60947-1 |
| Shape of screw head | Cross compatible with Philips no 1 screwdriver Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse type gG conforming to IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1 |
| Electrical durability | 1000000 cycles AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C 1000000 cycles AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C 1000000 cycles AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C 1000000 cycles DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C 1000000 cycles DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C |
| Electrical reliability | Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4 Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4 |
| device presentation | Complete product |
| customizable | No |
| Customizable | 1 |
| GCR BRIDGE | XB5FACUST01 |
| Compatibility code | XB5 |
| Protective treatment | TH |
|---|---|
| Ambient air temperature for storage | -40…70 °C |
| ambient air temperature for operation | -40…70 °C |
| Overvoltage category | Class II conforming to IEC 60536 |
| IP degree of protection | IP66 conforming to IEC 60529 IP67 IP69 IP69K Type 13 conforming to UL 50 E Type 12 conforming to UL 50 E Type 4 conforming to UL 50 E Type 4X conforming to UL 50 E |
| NEMA degree of protection | NEMA 13 NEMA 4X |
| IK degree of protection | IK03 conforming to IEC 50102 |
| Standards | IEC 60947-1 UL 508 JIS C8201-5-1 IEC 60947-5-4 IEC 60947-5-1 CSA C22.2 No 14 JIS C8201-1 ISO 22196:2011 ISO 21702 |
| product certifications | UL listed CSA |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 2 mm peak to peak (f= 2…10 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.600 cm |
| Package 1 Width | 4.300 cm |
| Package 1 Length | 5.300 cm |
| Package 1 Weight | 42.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 8.600 cm |
| Package 2 Width | 4.300 cm |
| Package 2 Length | 26.000 cm |
| Package 2 Weight | 211.000 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 120 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 5.873 kg |
