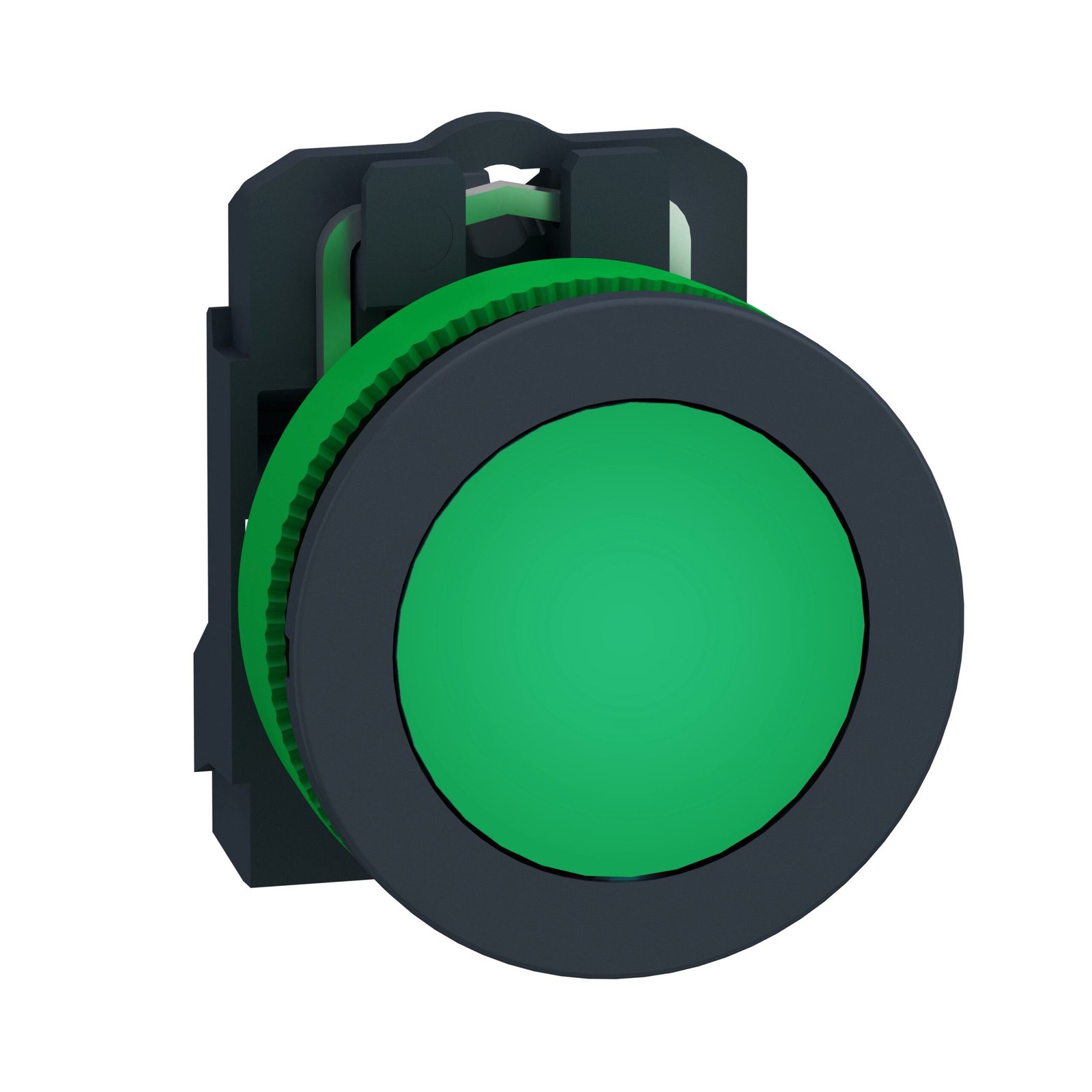

Schneider XB5FVM3 | Pilot light flush mounted, plastic, green, Ø30, plain lens with integral LED, 230…240 V AC
Original price was: EGP 9,151.00.EGP 5,308.00Current price is: EGP 5,308.00.
Description
Schneider XB5FVM3 | Pilot light flush mounted, plastic, green, Ø30, plain lens with integral LED, 230…240 V AC
Schneider XB5FVM3: An Overview of the Visual Indicator
it is a prominent visual indicator designed to provide efficient status indication in various industrial applications. With its robust construction and versatile features, it has become a preferred choice for machinery control and process monitoring tasks across different sectors.
Applications
it finds extensive use in various industrial applications, including:
- Industrial Automation: Integrating seamlessly into automated systems, the visual indicator provides real-time status feedback, facilitating efficient monitoring and control of manufacturing processes.
- Machinery Control: In equipment and machinery control panels, the Schneider XB5FVM3 serves as a reliable indicator of operating conditions, helping operators maintain optimal performance and productivity.
- Process Monitoring: From monitoring production lines to overseeing critical processes, the visual indicator offers instant visual cues, enabling timely interventions and ensuring smooth operation.
Installation and Configuration
Installing it is straightforward, thanks to its user-friendly design:
Mounting Procedure
Simply align the indicator with the mounting cutout and secure it in place using the provided fasteners. The compact form factor allows for seamless integration into tight spaces, optimizing panel layout and aesthetics.
Wiring Instructions
Connect the indicator to the power source and control circuit using standard wiring practices. Clear labeling on the terminal blocks simplifies the wiring process, minimizing installation time and effort.
Configuration Options
it offers customizable settings for brightness and flashing patterns, allowing users to tailor the indicator’s behavior to specific application requirements. This flexibility ensures optimal visibility and clarity in diverse operating conditions.
Advantages
The Schneider XB5FVM3 offers several advantages over traditional visual indicators:
Enhanced Safety
With its bright and conspicuous illumination, the Schneider XB5FVM3 enhances safety by providing instant status indication, reducing the risk of accidents and errors in industrial environments.
Durability
Built to withstand harsh conditions, the visual indicator exhibits exceptional durability, minimizing downtime and maintenance costs associated with frequent replacements or repairs.
Easy Integration
Compatible with standard control systems and protocols, the Schneider XB5FVM3 facilitates seamless integration into existing infrastructure, ensuring compatibility with a wide range of equipment and applications.
Comparison
Compared to similar products on the market, the Schneider XB5FVM3 stands out for its reliability, performance, and versatility. Its robust construction and advanced features make it a preferred choice for industrial users seeking dependable status indication solutions.
Customer Reviews
Customers praise the Schneider XB5FVM3 for its reliability, durability, and ease of installation. Positive testimonials highlight its contribution to improving operational efficiency and safety in various industrial settings.
Maintenance and Troubleshooting
Regular maintenance of the Schneider XB5FVM3 involves periodic cleaning to remove dust and debris accumulation. In case of issues, refer to the product manual for troubleshooting guidelines or contact Schneider Electric’s customer support for assistance.
Pricing and Availability
The Schneider XB5FVM3 is competitively priced and readily available through authorized distributors and online retailers. Bulk purchase options may be available for larger orders, offering cost savings for industrial customers.
Conclusion
In conclusion, the Schneider XB5FVM3 visual indicator offers a reliable and efficient solution for status indication in industrial applications. With its advanced features, durable construction, and easy integration, it helps improve safety, productivity, and operational efficiency across diverse industries.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| range of product | Harmony XB5 |
|---|---|
| Product or component type | Pilot light |
| Device short name | XB5F |
| bezel material | Dark grey plastic |
| Fixing collar material | Plastic |
| Head type | Built-in-flush |
| Mounting diameter | 30.5 mm |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round |
| Cap/operator or lens colour | Green |
| Operator additional information | With plain lens |
| Light source | Universal LED |
| Bulb base | Integral LED |
| light source colour | Green |
| [Us] rated supply voltage | 230...240 V AC at 50/60 Hz |
| device presentation | Complete product |
| height | 42 mm |
|---|---|
| Width | 36.6 mm |
| Depth | 55 mm |
| Terminals description ISO n°1 | (X1-X2)PL |
| Net weight | 0.038 kg |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1 |
| [Ui] rated insulation voltage | 250 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60947-1 |
| Signalling type | Steady |
| GCR BRIDGE | XB5FVCUST04 |
| Compatibility code | XB5 |
| Supply voltage limits | 195…264 V AC |
| Current consumption | 14 mA |
| Service life | 100000 h at rated voltage and 25 °C |
| Surge withstand | 1 kV conforming to IEC 61000-4-5 |
| Protective treatment | TH |
|---|---|
| Ambient air temperature for storage | -40…70 °C |
| ambient air temperature for operation | -40…70 °C |
| Overvoltage category | Class II conforming to IEC 60536 |
| IP degree of protection | IP66 conforming to IEC 60529 IP67 conforming to IEC 60529 IP69 conforming to IEC 60529 IP69K conforming to ISO 20653 |
| NEMA degree of protection | NEMA 13 NEMA 4X |
| IK degree of protection | IK03 conforming to IEC 50102 |
| Standards | JIS C8201-5-1 CSA C22.2 No 14 UL 508 IEC 60947-1 IEC 60947-5-4 IEC 60947-5-1 JIS C8201-1 ISO 21702 ISO 22196:2011 |
| product certifications | UL listed CSA |
| Vibration resistance | 5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 30 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Resistance to fast transients | 2 kV conforming to IEC 61000-4-4 |
| Resistance to electromagnetic fields | 10 V/m conforming to IEC 61000-4-3 |
| Electromagnetic compatibility | Electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 Electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 Electromagnetic emission class B conforming to IEC 55011 |
| Resistance to electrostatic discharge | 6 kV on contact (on metal parts) conforming to IEC 61000-4-2 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2 |
| Electromagnetic emission | Class B conforming to IEC 55011 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.3 cm |
| Package 1 Width | 5.3 cm |
| Package 1 Length | 8.6 cm |
| Package 1 Weight | 42.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 120 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 5.575 kg |
