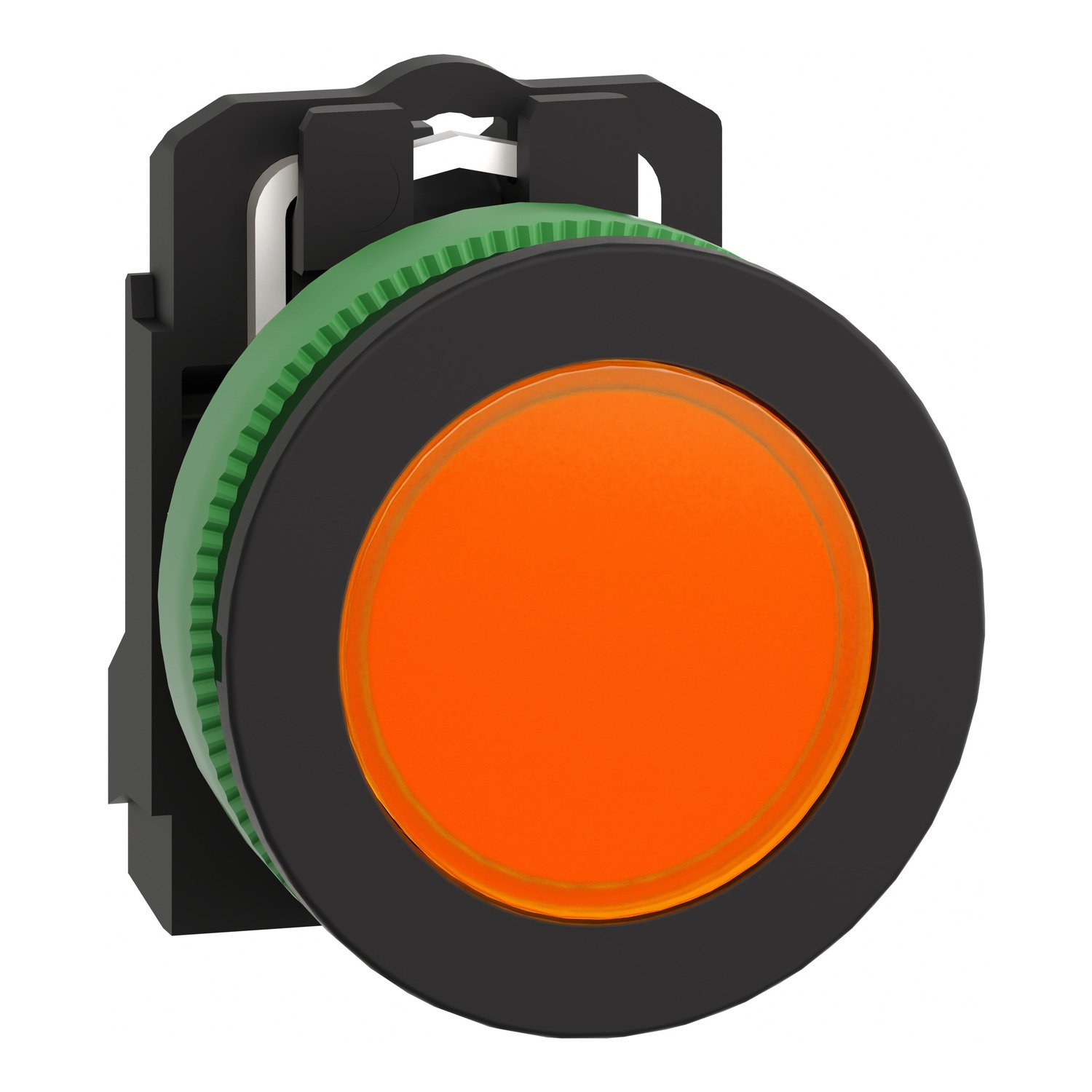

Schneider XB5FVM5 | Pilot light flush mounted, plastic, orange, Ø30, plain lens with integral LED, 230…240 V AC
Schneider XB5FVM5 | Pilot light flush mounted, plastic, orange, Ø30, plain lens with integral LED, 230…240 V AC
Original price was: EGP 10,121.00.EGP 5,871.00Current price is: EGP 5,871.00.
Description
Schneider XB5FVM5 | Pilot light flush mounted, plastic, orange, Ø30, plain lens with integral LED, 230…240 V AC
Technical Specifications
-
Product Reference: XB5FVM5
-
Product Series: Harmony XB5F
-
Device Type: Pilot light
-
Mounting Type: Flush-mounted
-
Mounting Hole Diameter: Ø30 mm
-
Lens Color: Orange
-
Lens Type: Plain (unmarked)
-
Material: Plastic bezel
-
Light Source: Integrated LED module
-
Rated Operational Voltage: 230…240 V AC
-
Power Consumption: Approx. 0.6 W
-
Frequency Range: 50/60 Hz
-
Illumination Type: Steady (non-flashing)
-
Degree of Protection:
-
Front: IP66, IP67, IP69, IP69K
-
Electrical: Double insulated
-
-
Operating Temperature: -40°C to +70°C
-
Electrical Durability: Up to 100,000 hours (LED life expectancy)
-
Panel Thickness Compatibility: 1 to 6 mm
-
Standards Compliance: IEC 60947-5-1, UL, CSA
Key Features
-
Flush-Mounted Aesthetic: Sleek and modern appearance ideal for visible operator panels.
-
Bright and Distinct Illumination: Orange color provides clear status indication even in bright environments.
-
Integrated LED Module: Ensures long lifespan and energy efficiency without the need for separate bulb replacement.
-
230…240V AC Rated: Can be connected directly to standard mains voltage control circuits.
-
Rugged Construction: IP69K rating enables use in harsh, dusty, and high-pressure washdown environments.
-
Tool-Free Assembly: Modular design allows for quick installation and maintenance.
Applications
The XB5FVM5 pilot light is well-suited for a variety of industrial and commercial applications, including:
Industrial Control Panels
-
Status indication for power, faults, machine readiness, or alarms
Process and Manufacturing Plants
-
Used as part of human-machine interface (HMI) for equipment status feedback
Food & Beverage Industry
-
Washdown-resistant front face suitable for hygienic areas
Commercial Automation
-
Building management systems and infrastructure control panels
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Harmony XB5 |
|---|---|
| Product or component type | Pilot light |
| Device short name | XB5F |
| bezel material | Dark grey plastic |
| Fixing collar material | Plastic |
| Head type | Built-in-flush |
| Mounting diameter | 30.5 mm |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round |
| Cap/operator or lens colour | Orange |
| Operator additional information | With plain lens |
| Light source | Universal LED |
| Bulb base | Integral LED |
| light source colour | Orange |
| [Us] rated supply voltage | 230...240 V AC at 50/60 Hz |
| device presentation | Complete product |
| height | 42 mm |
|---|---|
| Width | 36.6 mm |
| Depth | 55 mm |
| Terminals description ISO n°1 | (X1-X2)PL |
| Net weight | 0.038 kg |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1 |
| [Ui] rated insulation voltage | 250 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60947-1 |
| Signalling type | Steady |
| GCR BRIDGE | XB5FVCUST04 |
| Compatibility code | XB5 |
| Supply voltage limits | 195…264 V AC |
| Current consumption | 14 mA |
| Service life | 100000 h at rated voltage and 25 °C |
| Surge withstand | 1 kV conforming to IEC 61000-4-5 |
| Protective treatment | TH |
|---|---|
| Ambient air temperature for storage | -40…70 °C |
| ambient air temperature for operation | -40…70 °C |
| Overvoltage category | Class II conforming to IEC 60536 |
| IP degree of protection | IP66 conforming to IEC 60529 IP67 conforming to IEC 60529 IP69 conforming to IEC 60529 IP69K conforming to ISO 20653 |
| NEMA degree of protection | NEMA 13 NEMA 4X |
| IK degree of protection | IK03 conforming to IEC 50102 |
| Standards | JIS C8201-5-1 CSA C22.2 No 14 UL 508 IEC 60947-1 IEC 60947-5-4 IEC 60947-5-1 JIS C8201-1 ISO 21702 ISO 22196:2011 |
| product certifications | UL listed CSA |
| Vibration resistance | 5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 30 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Resistance to fast transients | 2 kV conforming to IEC 61000-4-4 |
| Resistance to electromagnetic fields | 10 V/m conforming to IEC 61000-4-3 |
| Electromagnetic compatibility | Electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 Electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 Electromagnetic emission class B conforming to IEC 55011 |
| Resistance to electrostatic discharge | 6 kV on contact (on metal parts) conforming to IEC 61000-4-2 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2 |
| Electromagnetic emission | Class B conforming to IEC 55011 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.3 cm |
| Package 1 Width | 5.3 cm |
| Package 1 Length | 8.6 cm |
| Package 1 Weight | 42 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 4.3 cm |
| Package 2 Width | 9 cm |
| Package 2 Length | 26.5 cm |
| Package 2 Weight | 210 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 40 |
| Package 3 Height | 15 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 2.005 kg |
