Schneider XB7NA42 | Monolithic push button, plastic,red, Ø22, spring return, unmarked, 1 NC

Schneider XB7NA42 | Monolithic Push Button – Harmony XB7, Ø22 mm, Red, 1 NC, Spring Return

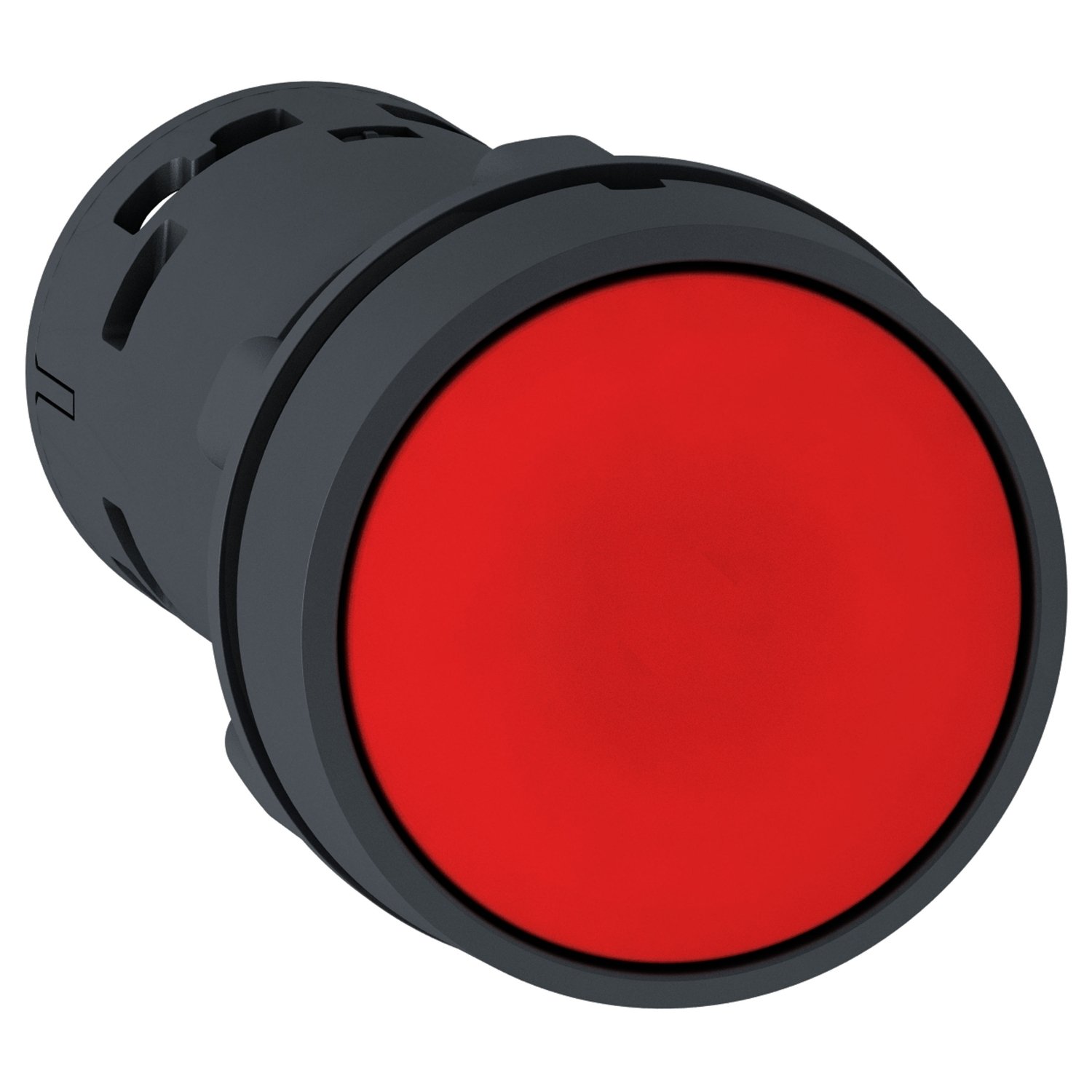

The Schneider XB7NA42 is a durable monolithic push button from the Harmony XB7 series, designed for simple yet effective control in industrial and commercial applications. Featuring a red button with a spring return mechanism, this push button is equipped with 1 normally closed (NC) contact, making it ideal for emergency stop functions or safety-related applications.

Key Features

• Product Type: Monolithic Push Button

• Series: Harmony XB7

• Model: XB7NA42

• Color: Red

• Button Diameter: 22 mm

• Mounting Type: Panel mount

• Material: Plastic

• Contact Configuration: 1 NC (Normally Closed)

• Operation: Momentary (spring return)

• Marking: Unmarked button head

Technical Specifications

• Mounting Hole Diameter: 22 mm (standard for industrial applications)

• Electrical Contacts: Screw clamp terminals for secure connections

• Button Design: Red color, commonly used for stop or emergency functions

• Ingress Protection: Suitable for industrial environments

• Compliance: Meets international standards such as IEC and EN for safety devices

Applications

• Emergency Stop Controls

• Safety Circuits and Interlocks

• Control Panels for Industrial Machinery

• Automated Systems and Equipment

• Motor or Conveyor Systems

Advantages

• • Reliable Operation

    • NC contact ensures the circuit is closed in the default state and opened when pressed

  • Safety Focused

    • Red color is universally recognized for stop functions, ensuring high visibility

  • Simple and Robust Design

    • Monolithic structure with integrated contact block for easy installation and maintenance

  • Ergonomic Design

    • Designed for quick and easy pressing, even in demanding environments

  • Durable and Cost-Effective

    • Designed for long-lasting use in various control applications
