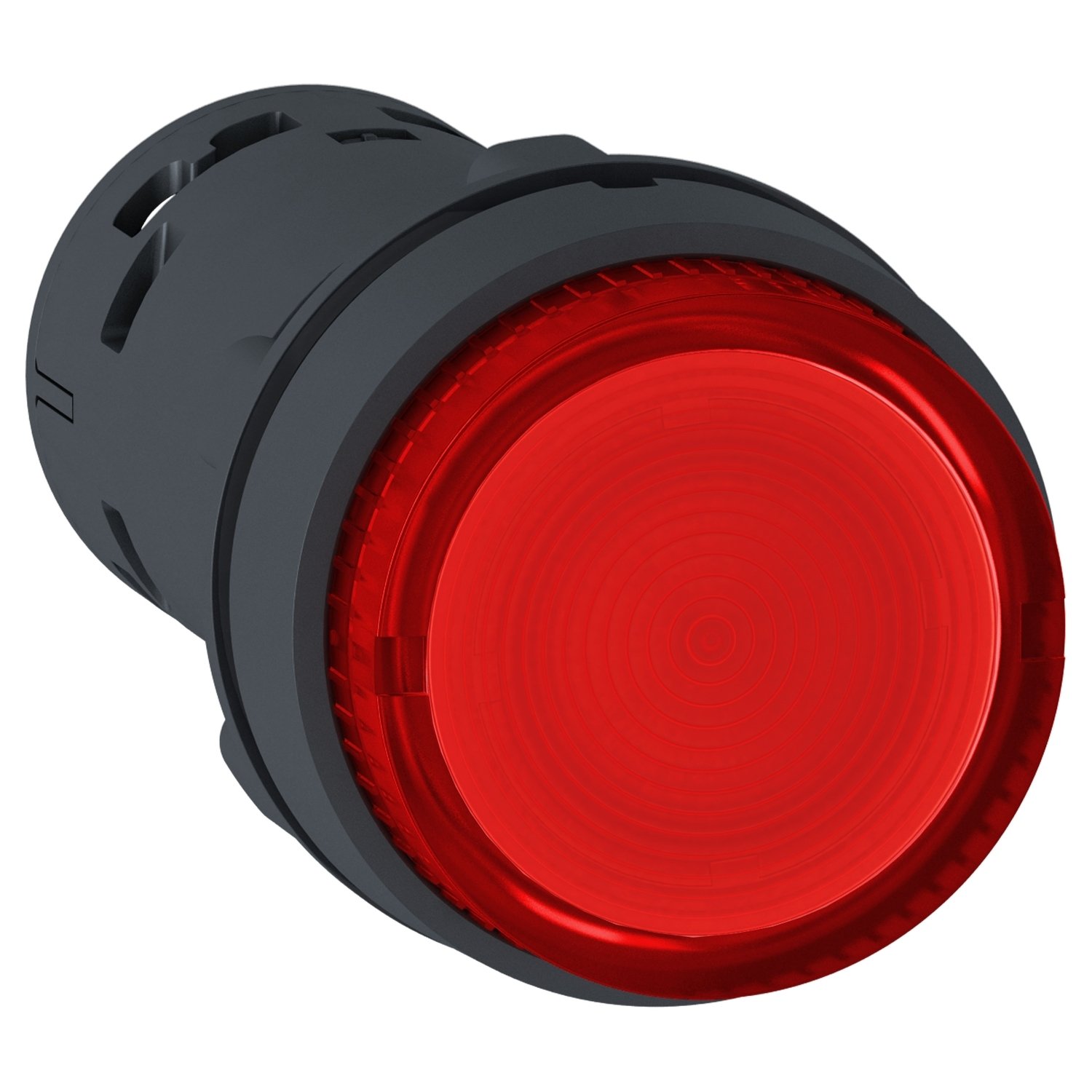

Schneider XB7NW3461 | ILLUM. P.B – Bulb – Spring Rtn -1NO – Red – 230v

Specifications Schneider XB7NW3461

• Model: XB7NW3461

• Type: Illuminated Pushbutton

• Illumination: Bulb-based

• Action: Spring Return (momentary action)

• Voltage: 230 V AC

• Contact Configuration: 1NO (One Normally Open contact)

• Button Color: Red

• Shape: Round (Standard Ø 22 mm)

• Spring Return: Yes (returns to the original position after being pressed)

Features Schneider XB7NW3461

1. Illuminated Pushbutton with Bulb:

   • The bulb illumination provides a clear visual indication of when the pushbutton is activated, making it easy to see at a glance whether the system is in operation or idle. The red color is commonly used for signaling purposes (e.g., to indicate a warning or alert).

2. Spring Return Mechanism:

   • The spring return feature ensures that the button returns to its initial position after being pressed. This momentary action is ideal for applications where a temporary action is required, such as activating a function while the button is pressed.

3. Voltage Rating:

   • The 230 V AC rating makes this pushbutton suitable for use in standard AC power systems, common in industrial, commercial, and residential control applications.

4. 1NO (Normally Open) Contact Configuration:

   • The 1NO configuration means that the circuit is open until the button is pressed, at which point the contact closes, allowing current to flow. This configuration is ideal for controlling relays, alarms, and other systems that require a momentary action.

5. Durable and Reliable:

   • The button is designed to be durable and withstand frequent operation, making it suitable for industrial control panels, machinery, and other demanding environments.

6. High Visibility:

   • The red color provides high visibility, making it easy to locate and operate, especially in emergency or alert situations.

7. Easy Installation:

   • The pushbutton is designed to fit into standard 22 mm mounting holes, making it easy to install in control panels, machinery, and other electrical systems that use this size.

Applications Schneider XB7NW3461

• Industrial Control Systems: Used in factories, plants, and machinery to control equipment or processes.

• Emergency Stop: The red color is commonly used for emergency stop or critical signaling applications in machinery or production lines.

• Alarm Systems: Used in alarm or signaling circuits to indicate a fault or alert condition.

• Automation Systems: Ideal for use in control systems for automated machinery, where momentary actions are required.

• Control Panels: A standard component for control panels in industrial, commercial, and residential applications.
