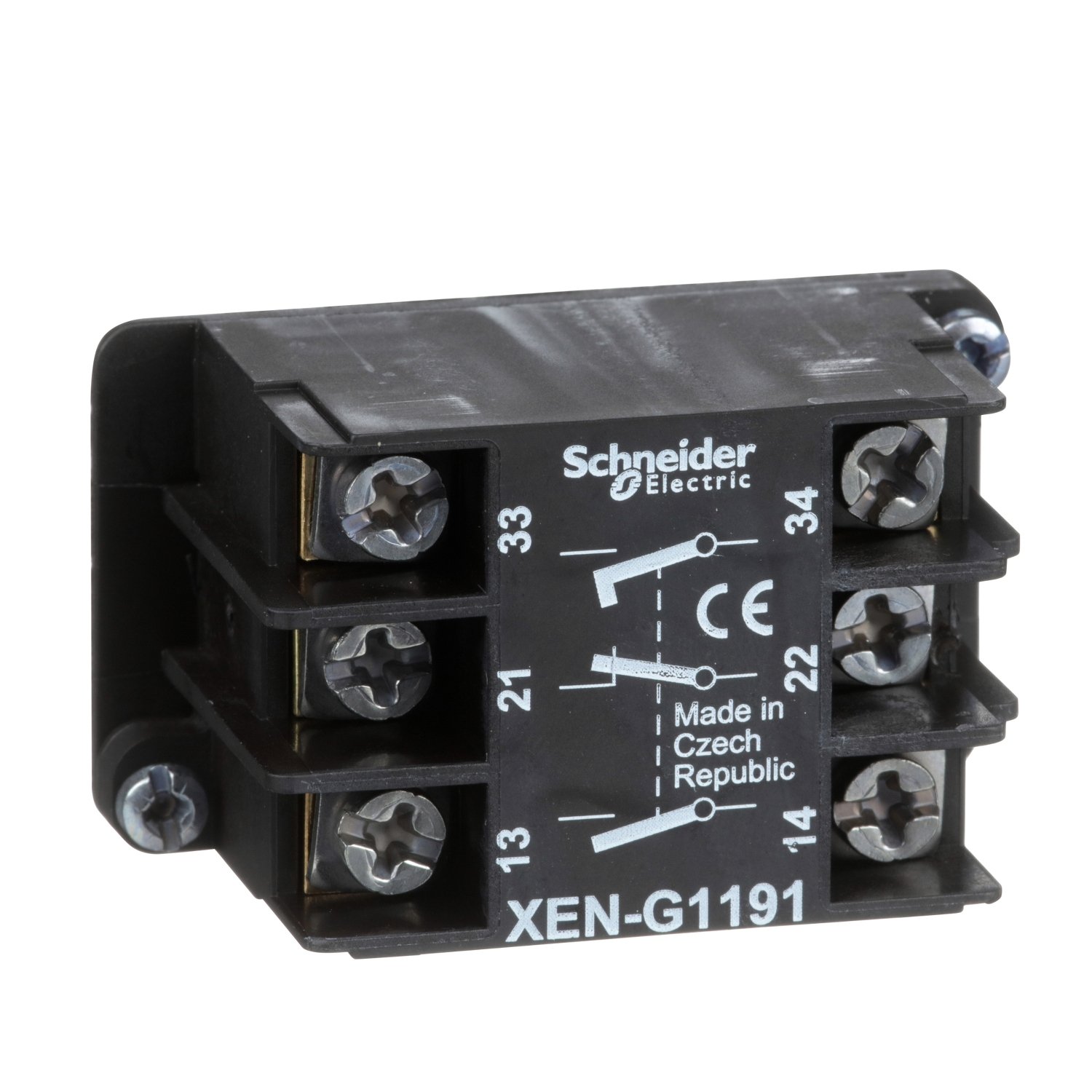

Schneider XENG1191 | Single contact block, spring return, 2-speed, spring return, front mounting, 2 NO + 1 NC
Schneider XENG1191 | Single contact block, spring return, 2-speed, spring return, front mounting, 2 NO + 1 NC
Original price was: EGP 13,582.00.EGP 7,878.00Current price is: EGP 7,878.00.
Description
Schneider XENG1191 | Single contact block, spring return, 2-speed, spring return, front mounting, 2 NO + 1 NC
The Schneider XENG1191 is a 2-speed single contact block from the Harmony range, designed for front mounting in control stations and operator panels. It features spring return functionality and provides 2 normally open (NO) and 1 normally closed (NC) contacts, making it ideal for applications requiring multi-speed or dual-function control, such as crane or hoist operations.
Key Features
-
Product Type: Single contact block
-
Part Number: XENG1191
-
Functionality: 2-speed with spring return
-
Mounting Style: Front mounting
-
Contact Configuration: 2 NO + 1 NC
-
Mechanism: Spring return (momentary action)
Technical Specifications
-
Control Type: Mechanical operation with spring return
-
Speed Control: Designed for two-speed operations (step 1 and step 2)
-
Electrical Rating: Suitable for standard industrial voltage and current ratings
-
Mounting Location: Front-mounted to Harmony enclosures or panels
-
Contact Type: Snap-action contacts for reliable switching
-
Standards: Compliant with IEC/EN standards for industrial controls
Advantages
-
Two-Speed Control: Perfect for hoists, cranes, and directional motors
-
Easy Mounting: Front installation saves time during assembly
-
Durable Construction: Built for industrial environments
-
Versatile Contact Layout: Combines 2NO and 1NC for flexible circuit integration
-
Spring Return: Ensures automatic return to neutral/off position for safety
Typical Applications
-
Crane pendant stations
-
Hoisting equipment
-
Material handling systems
-
Industrial machinery requiring dual-speed operation
-
Custom control panels
Additional information
| brands | Schneider Electric |
|---|
Specifications
| range of product | Harmony XAC |
|---|---|
| Product or component type | Contact block |
| component name | XENG |
| Electrical circuit type | Control circuit |
| Contact block application | 2-speed |
| Contact block type | Single |
| Type of operator | Spring return |
| Product compatibility | XACA XACA9...head |
| Contacts type and composition | 1 NC + 2 NO |
| Mounting of block | Front mounting |
| contact operation | Slow-break Staggered |
| Connections - terminals | Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end Screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end |
|---|---|
| Mechanical durability | 1000000 cycles |
| Contact code designation | A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A |
| [Ithe] conventional enclosed thermal current | 10 A |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Maximum resistance across terminals | 25 MOhm |
| Operating force | 18 N |
| Short-circuit protection | 10 A fuse protection by cartridge fuse type gG |
| Rated operational power in W | 40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C 65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C |
| Terminals description ISO n°1 | (21-22)NC (33-34)NO_CL (13-14)NO |
| Net weight | 0.04 kg |
| Standards | UL 508 EN/IEC 60947-5-1 CSA C22.2 No 14 |
|---|---|
| ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…70 °C |
| Vibration resistance | 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 100 gn conforming to IEC 60068-2-27 |
| Overvoltage category | Class II conforming to IEC 61140 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.0 cm |
| Package 1 Width | 4.0 cm |
| Package 1 Length | 5.5 cm |
| Package 1 Weight | 42.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 100 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 4.55 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 1600 |
| Package 3 Height | 77.0 cm |
| Package 3 Width | 80.0 cm |
| Package 3 Length | 60.0 cm |
| Package 3 Weight | 81.3 kg |
| Warranty | 18 months |
|---|
