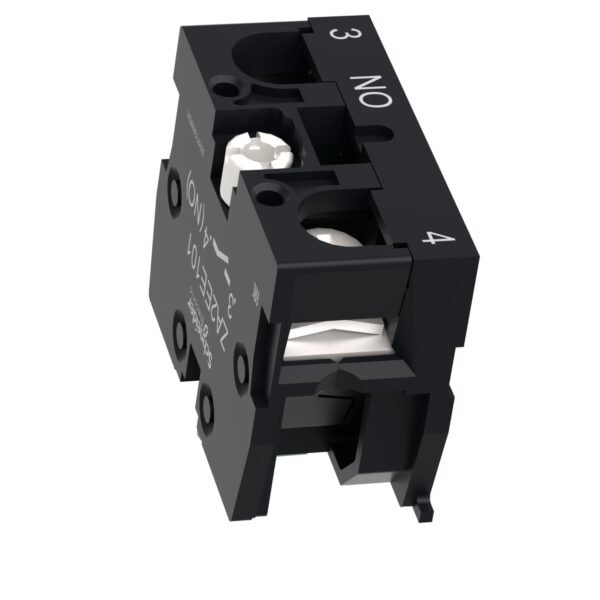

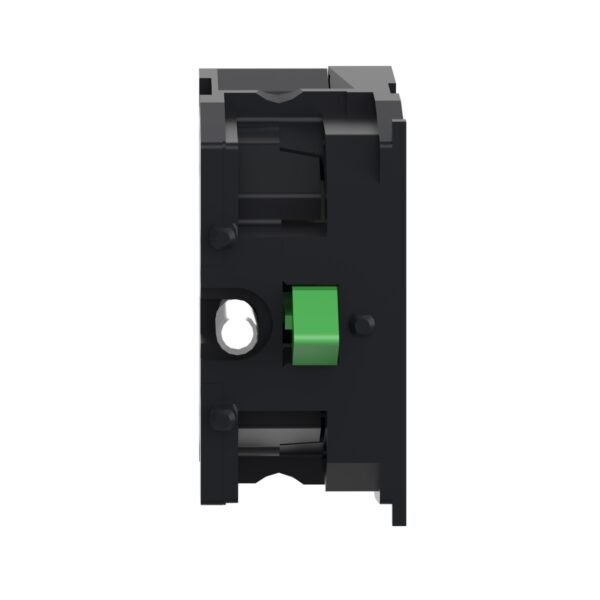

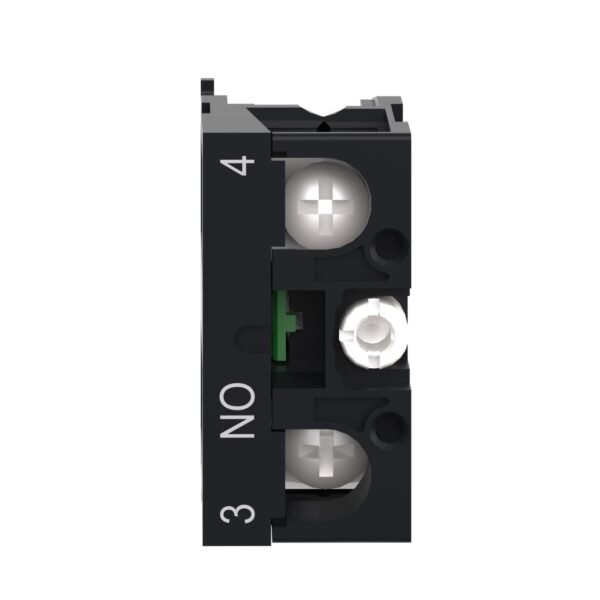

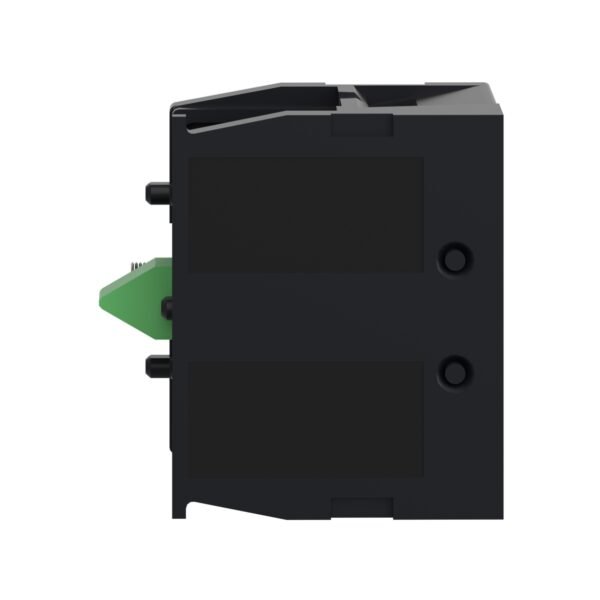

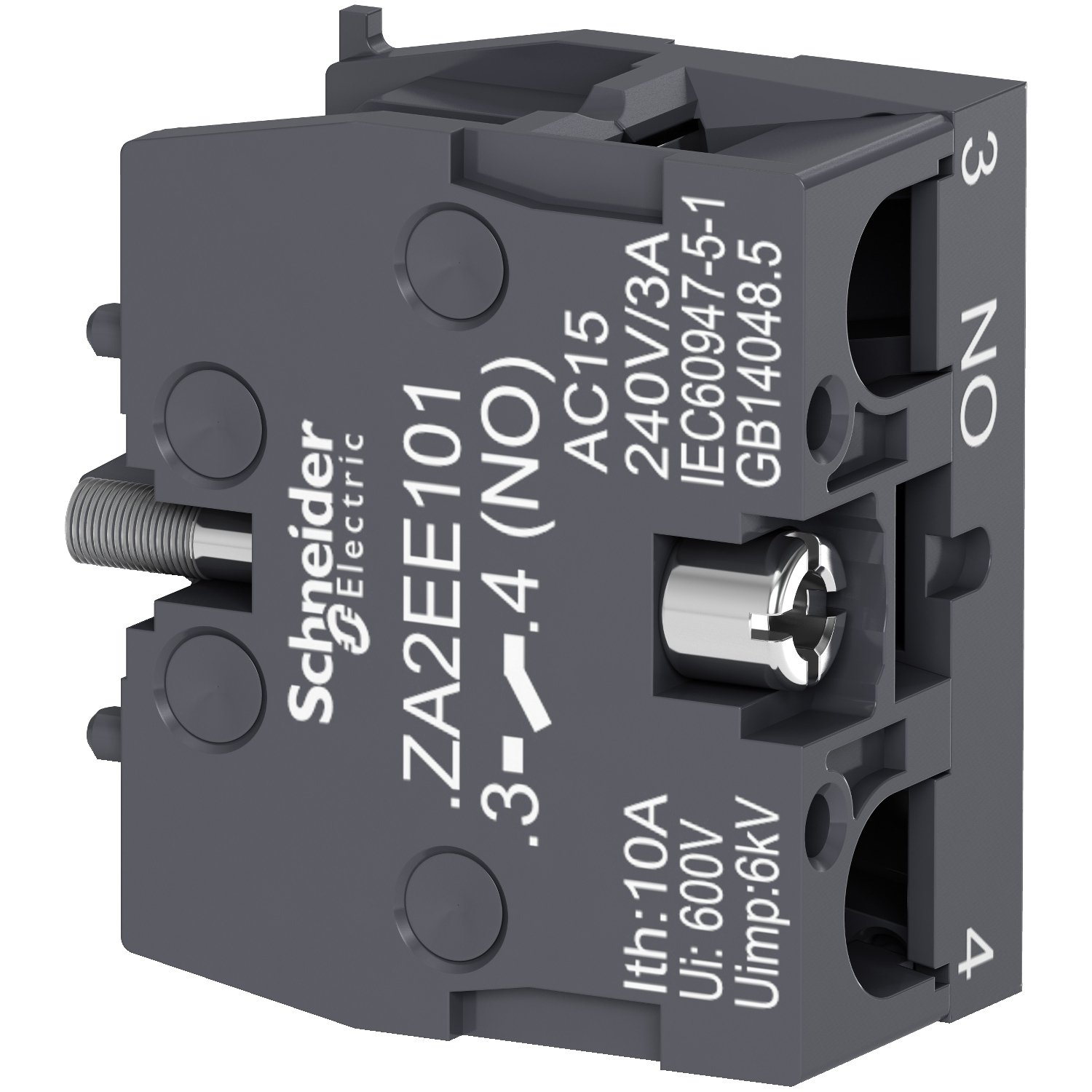

Schneider ZA2EE101 Harmony | Single contact block for head Ø22, 1 NO
Schneider ZA2EE101 Harmony
Original price was: EGP 1,078.00.EGP 625.00Current price is: EGP 625.00.
Description
Schneider ZA2EE101 Harmony | Single Contact Block for Ø22mm Head – 1NO
1. Overview
The Schneider ZA2EE101 is a single contact block designed for Ø22mm push-button heads in the Harmony XA2 series. It features 1 Normally Open (NO) contact, making it ideal for industrial and automation applications requiring reliable electrical connections when the button is pressed.
2. Key Features
- Model: ZA2EE101
- Series: Harmony
- Type: Single contact block
- Contact Configuration: 1NO (Normally Open)
- Mounting Compatibility: Suitable for Ø22mm push-button heads
- Electrical Durability: High-performance design for industrial environments
- Material: High-quality plastic housing
- Connection Type: Screw clamp terminals for secure and easy wiring
3. Technical Specifications
- Contact Type: Slow break
- Voltage Rating: Up to 600V
- Current Rating: Typically 10A at 600V (varies by application)
- Operating Temperature Range: -25°C to +70°C
- Mechanical Durability: Designed for long-term use
- Protection Rating: IP65 (when used with compatible push-button heads)
- Certifications & Compliance: CE, RoHS, IEC standards
4. Applications
- Industrial control panels
- Machine and equipment control stations
- Process automation and monitoring
- Electrical and mechanical safety circuits
5. Benefits
- Reliable Contact Performance: Ensures a secure and stable electrical connection
- Easy Installation: Compatible with Ø22mm push-button heads from the Harmony series
- Durable and Safe: Built for industrial automation and control environments
- Simple Wiring: Screw clamp terminals for quick and secure setup
6. Conclusion
The Schneider ZA2EE101 Harmony single contact block (1NO) is an essential component for industrial control systems. It provides efficient electrical switching, easy integration, and long-lasting durability, making it a reliable choice for automation and safety applications.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Easy Harmony XA2 |
|---|---|
| Product or component type | Contact block |
| Device short name | ZA2E |
| Contact operation | Slow-break |
|---|---|
| Contact block type | Single |
| Contacts usage | Standard contacts |
| Positive opening | Without |
| Mechanical durability | 1500000 cycles |
| Connections - terminals | , <= 2 x 1.5 mm² conforming to IEC 60947-1 , <= 1 x 2.5 mm² conforming to IEC 60947-1 , >= 1 x 0.5 mm² conforming to IEC 60947-1 Faston terminals, connection size: 6.3 mm conforming to IEC 60947-1 |
| Tightening torque | 0.8 N.m |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A fuse type gL conforming to IEC 60269-1 |
| [Ith] conventional free air thermal current | 10 A conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 2 A at 230 V, AC-15, A600 conforming to IEC 60947-5-1 0.2 A at 110 V, DC-13, Q600 conforming to IEC 60947-5-1 |
| Electrical durability | 500000 cycles, AC-15, 2 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 |
| Contacts type and composition | 1 NO |
| Protective treatment | TC |
|---|---|
| IP degree of protection | IP20 conforming to IEC 60529 |
| Standards | IEC 60947-1 IEC 60947-5-4 IEC 60529 IEC 60947-5-1 |
| Product certifications | CE CCC |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…55 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.1 cm |
| Package 1 Width | 8.2 cm |
| Package 1 Length | 10.0 cm |
| Package 1 Weight | 14 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 200 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 3.481 kg |
| Unit Type of Package 3 | PAL |
| Number of Units in Package 3 | 4000 |
| Package 3 Height | 60.0 cm |
| Package 3 Width | 80.0 cm |
| Package 3 Length | 90.0 cm |
| Package 3 Weight | 66.400 kg |
