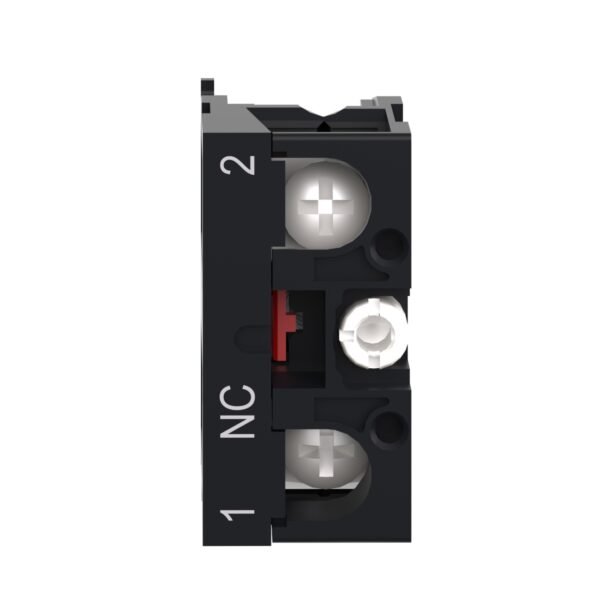

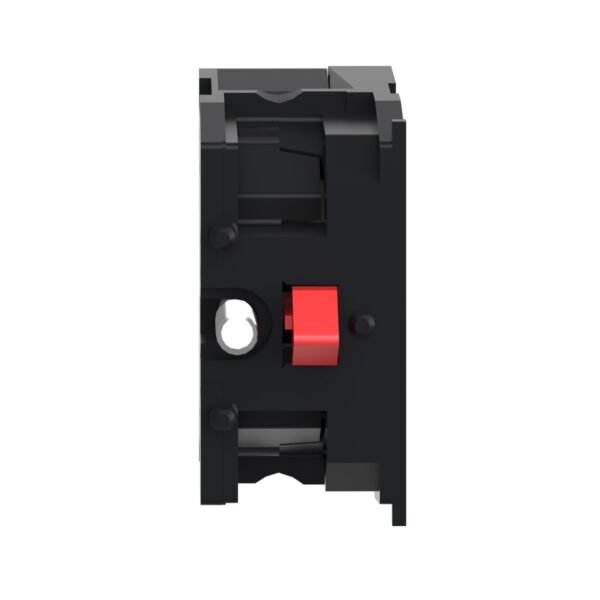

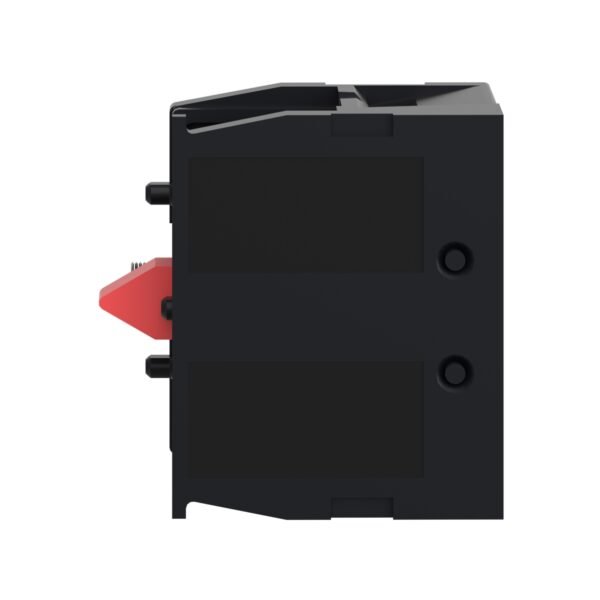

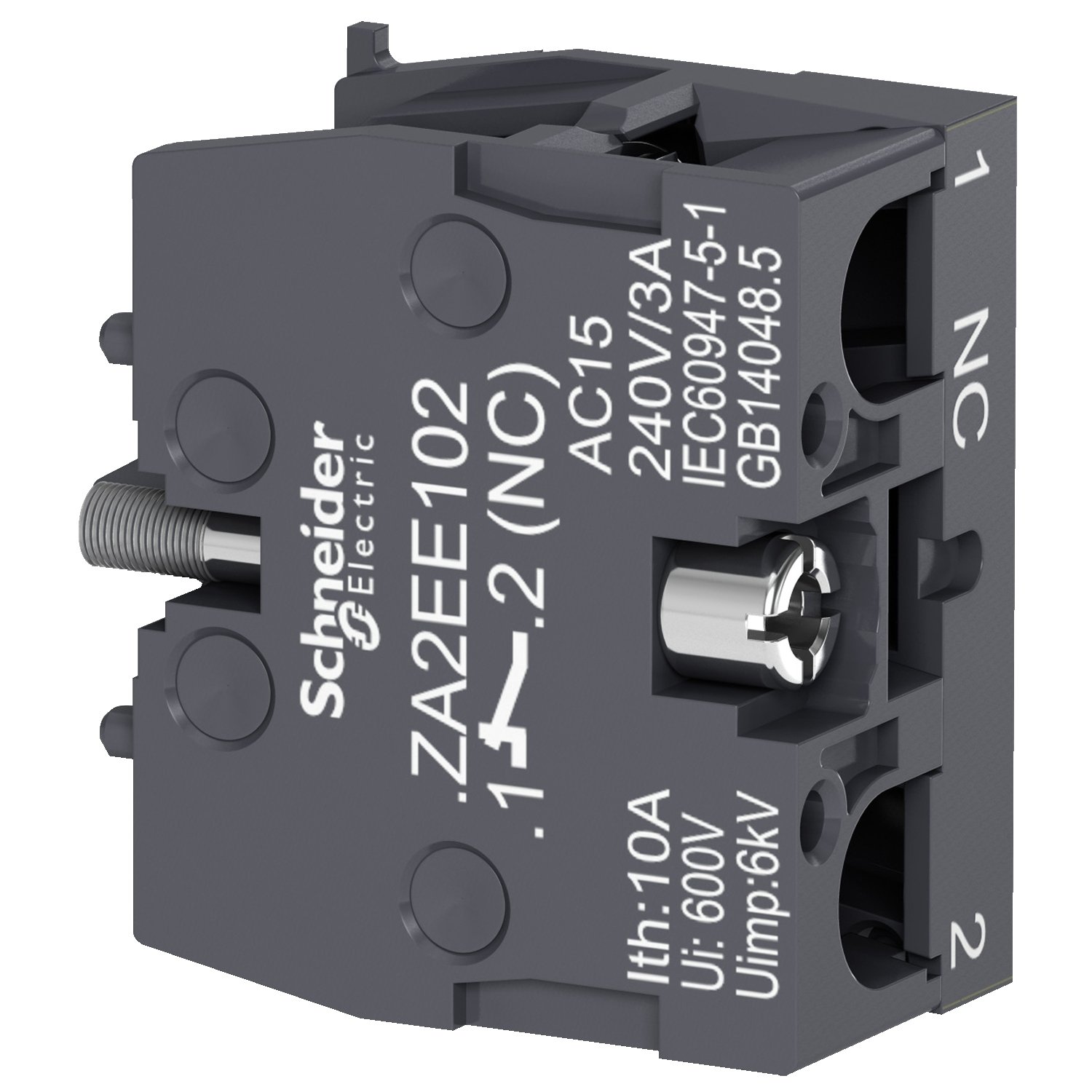

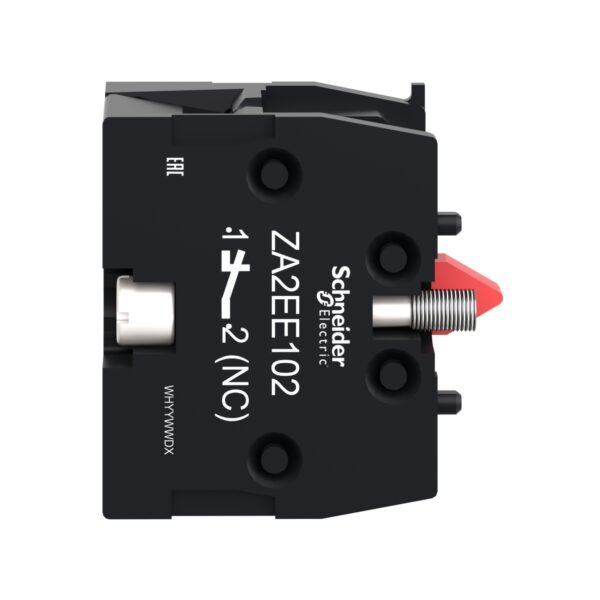

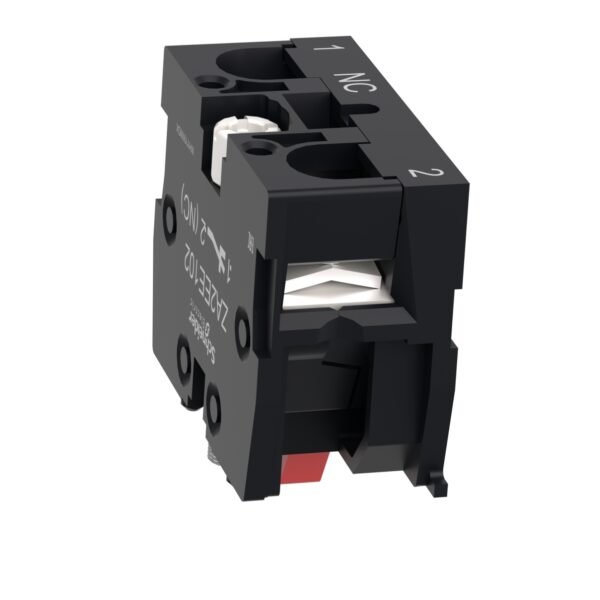

Schneider ZA2EE102 Harmony | Single Contact Block for Ø22mm Head – 1NC

1. Overview

The Schneider ZA2EE102 is a single contact block designed for use with Ø22mm Harmony push-button heads. It features 1 Normally Closed (NC) contact, making it ideal for applications requiring reliable electrical disconnection when the button is pressed.

2. Key Features

• Model: ZA2EE102
• Series: Harmony
• Type: Single contact block
• Contact Configuration: 1NC (Normally Closed)
• Mounting Compatibility: Suitable for Ø22mm push-button heads
• Electrical Durability: Designed for industrial use
• Material: High-quality plastic housing
• Connection Type: Screw clamp terminals for secure and easy wiring

3. Technical Specifications

• Contact Type: Slow break
• Voltage Rating: Up to 600V
• Current Rating: Typically 10A at 600V (varies by application)
• Operating Temperature Range: -25°C to +70°C
• Mechanical Durability: High reliability for long-term use
• Protection Rating: IP65 (when used with compatible push-button heads)
• Certifications & Compliance: CE, RoHS, IEC standards

4. Applications

• Industrial control panels
• Emergency stop systems
• Machine and equipment control stations
• Process automation and monitoring
• Electrical and mechanical safety circuits

5. Benefits

• Reliable Contact Performance: Ensures secure and stable electrical disconnection
• Easy Integration: Compatible with Ø22mm push-button heads from the Harmony series
• Durable and Safe: Designed for industrial and automation environments
• Simple Installation: Screw clamp terminals allow for quick and secure wiring

6. Conclusion

The Schneider ZA2EE102 Harmony single contact block (1NC) is an essential component for industrial control systems. It provides reliable electrical switching, easy installation, and durability, making it ideal for automation and safety applications.
