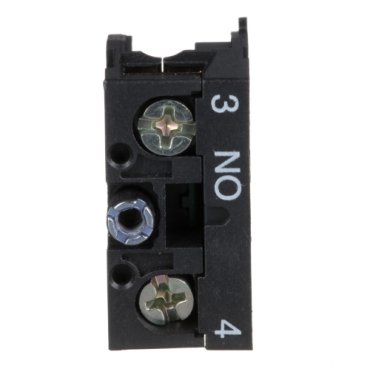

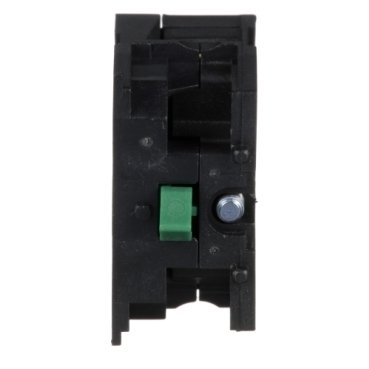

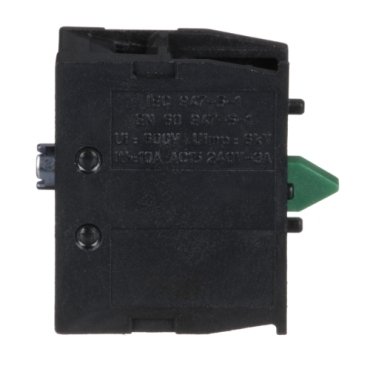

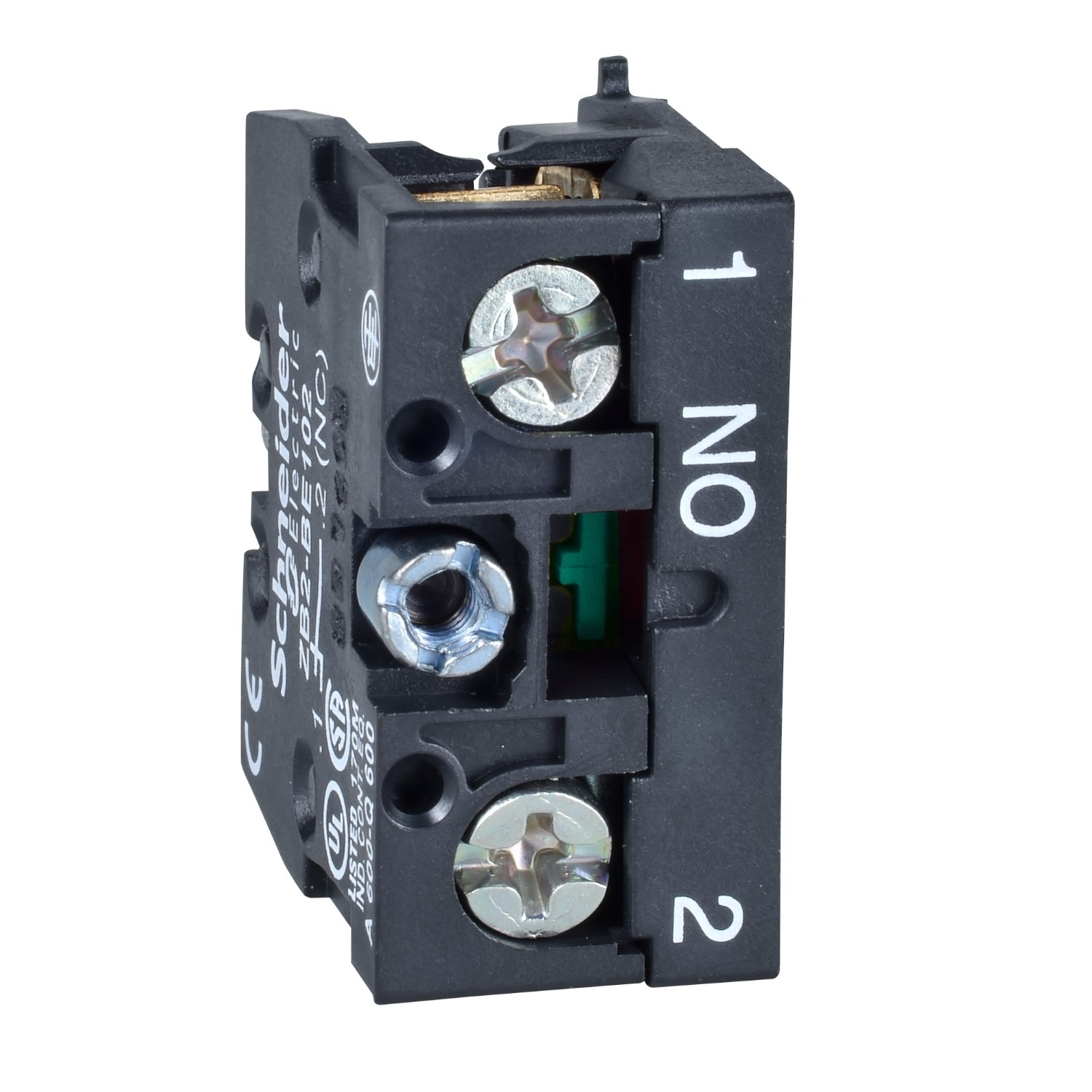

Schneider zb2be101 | Single contact block, 1 NO
Schneider zb2be101 | Single contact block, 1 NO
Original price was: EGP 4,314.00.EGP 2,502.00Current price is: EGP 2,502.00.
Description
Schneider zb2be101 | Single contact block, 1 NO
Technical Specifications
-
Model: Schneider ZB2BE101
-
Type: Single Contact Block
-
Contact Configuration: 1 NO (Normally Open)
-
Mounting Type: Snap-on mounting for easy integration with control devices.
-
Rated Voltage: Typically 230V (depending on the version; may vary based on the installation and application).
-
Rated Current: 10A (typically for general-purpose applications).
-
Material: High-quality thermoplastic for durability.
-
Standard Compliance: Complies with IEC 60947-5-1, ensuring it meets international standards for control circuit devices.
-
Operating Temperature Range: Typically -5°C to 55°C, but may vary depending on the specific version.
Key Features
-
Single Contact Block with 1 NO Configuration: The ZB2BE101 features a 1 NO (Normally Open) contact configuration, meaning it remains open until the switch or actuator is activated. This configuration is suitable for applications where you need to complete a circuit on demand (e.g., when pressing a button or engaging a control switch).
-
Durable and Reliable Construction: Made from high-quality thermoplastic material, the ZB2BE101 is designed to withstand the wear and tear of industrial environments. Its rugged design ensures a long service life, even in demanding applications.
-
Snap-On Mounting: The contact block can be easily snapped onto compatible Schneider Electric control devices such as push buttons, making installation fast and convenient without the need for special tools.
-
Versatile Use in Control Systems: The 1 NO contact block is ideal for controlling electrical circuits in industrial machinery, automation systems, and electrical panels. It provides a reliable and simple solution for integrating control functions into various devices.
-
Safe and Compliant: The ZB2BE101 complies with IEC 60947-5-1 standards, ensuring safety, reliability, and compatibility with international electrical systems.
Applications
-
Industrial Control Systems: The ZB2BE101 contact block is used in various industrial control systems to manage the operation of machines and equipment. It can be used in applications where a simple on/off switch or momentary contact is needed.
-
Push Button Switches: Commonly used in push-button control stations, the ZB2BE101 integrates with push-button switches to activate or deactivate machines, circuits, or other electrical devices.
-
Automation Systems: The contact block is perfect for use in automated systems where operators need to control different functions by pressing buttons or other actuators.
-
Control Panels: The ZB2BE101 can be used in control panels to create simple switching mechanisms for circuits, enabling operators to control electrical components easily and safely.
-
Elevator and Door Controls: The 1 NO contact block is often used in applications like elevator control systems or automated door controls, where a momentary contact is needed to initiate a process or movement.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Harmony XAC |
|---|---|
| product or component type | Contact block |
| Component name | ZB2 |
| Electrical circuit type | Control circuit |
| Contact block application | Single speed |
| Contact block type | Single |
| Type of operator | Spring return |
| Product compatibility | XB4 XAPS2 XACA XB5 |
| Contacts type and composition | 1 NO |
| Mounting of block | Front mounting |
| Contact operation | Slow-break |
| Mechanical durability | 1000000 cycles |
|---|---|
| Contact code designation | A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 947-5-1 appendix A A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 947-5-1 appendix A Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 947-5-1 appendix A Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 947-5-1 appendix A |
| [Ithe] conventional enclosed thermal current | 10 A |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Maximum resistance across terminals | 25 MOhm |
| operating force | 13…15 N |
| Short-circuit protection | 10 A fuse protection by cartridge fuse type gG (gl) |
| Rated operational power in W | 40 W DC-13 for 1000000 cycles, operating rate <3600 cyc/h at 120 V, load factor = 0.5 conforming to IEC 60947-5-1 48 W DC-13 for 1000000 cycles, operating rate <3600 cyc/h at 48 V, load factor = 0.5 conforming to IEC 60947-5-1 65 W DC-13 for 1000000 cycles, operating rate <3600 cyc/h at 24 V, load factor = 0.5 conforming to IEC 60947-5-1 |
| Terminals description ISO n°1 | (13-14)NO |
| net weight | 0.02 kg |
| Connections - terminals | Screw clamps terminals, 1 x 2.5 mm² with or without cable end Screw clamps terminals, 2 x 1.5 mm² with or without cable end |
| Ambient air temperature for operation | -25…70 °C |
|---|---|
| ambient air temperature for storage | -40…70 °C |
| Vibration resistance | 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
| Electrical shock protection class | Class II conforming to IEC 61140 |
| Standards | EN/IEC 60947-5-1 UL 508 EN/IEC 60204-32 CSA C22.2 No 14 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.000 cm |
| Package 1 Width | 4.000 cm |
| Package 1 Length | 4.000 cm |
| Package 1 Weight | 14.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 4.000 cm |
| Package 2 Width | 10.000 cm |
| Package 2 Length | 15.000 cm |
| Package 2 Weight | 147.000 g |
| Unit Type of Package 3 | S01 |
| Number of Units in Package 3 | 200 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 15.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 3.225 kg |
| Warranty | 18 months |
|---|
