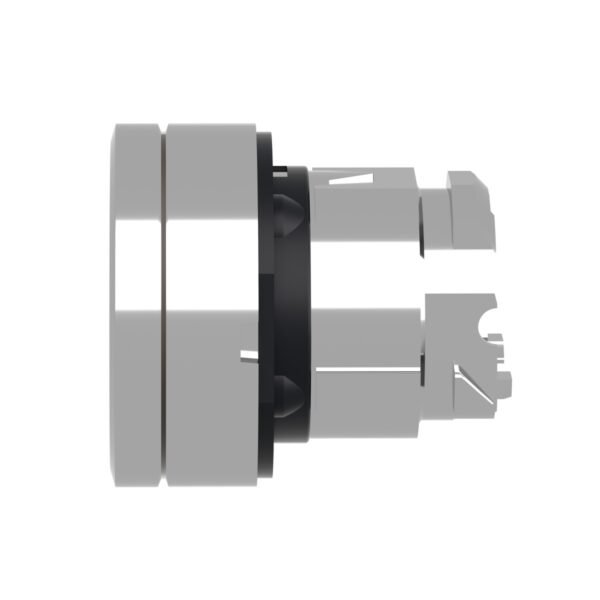

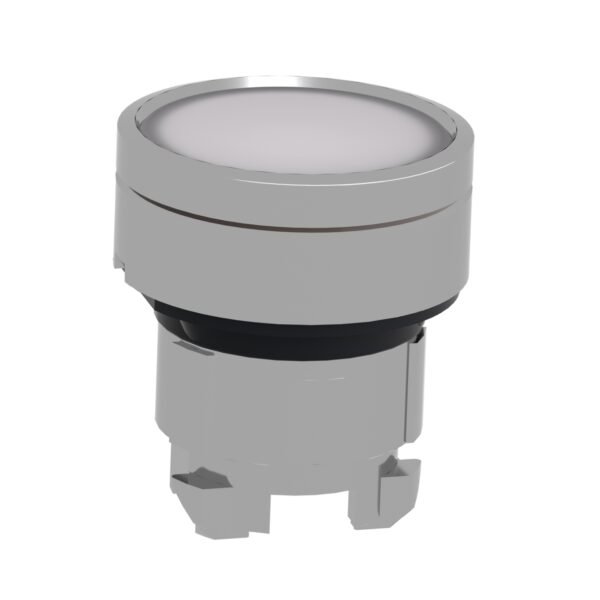

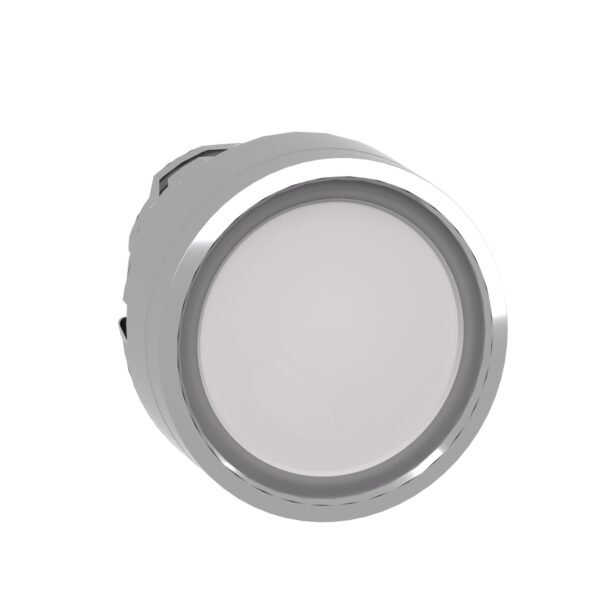

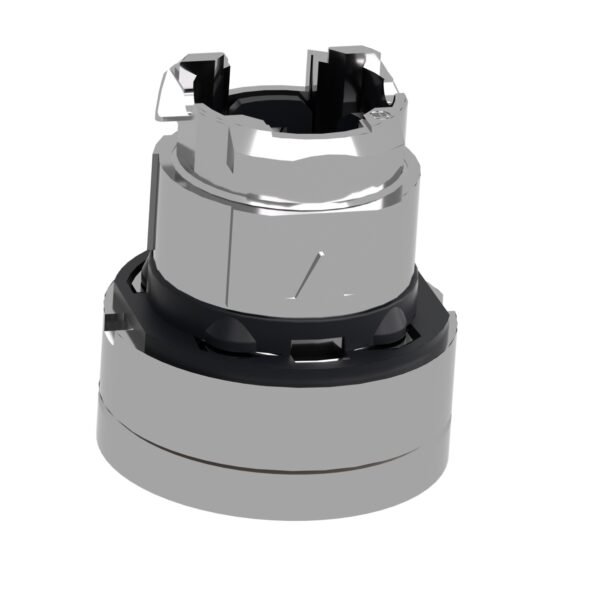

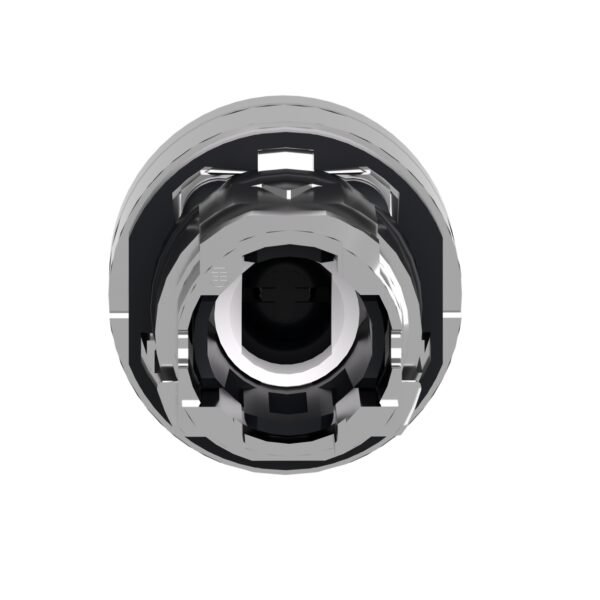

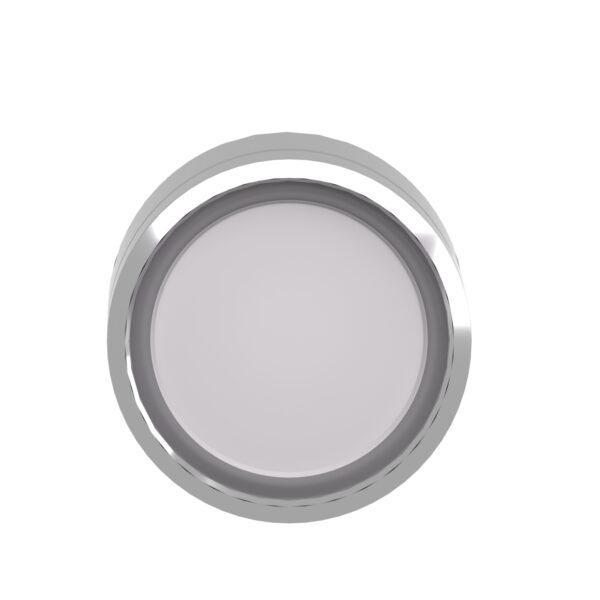

Schneider ZB4BA18 | Illuminated push button head, metal, flush, white, Ø22, spring return, integral LED, for insertion legend, unmarked
Schneider ZB4BA18
Original price was: EGP 11,813.00.EGP 6,852.00Current price is: EGP 6,852.00.
Description
Introduction to Schneider ZB4BA18
This guide is designed to provide you with everything you need to know about this essential component. Whether you’re a seasoned professional or just starting, you’ll find valuable information here about the Schneider ZB4BA18.
What is the Schneider ZB4BA18?
it is a high-quality, push-button switch designed for a variety of control applications. Known for its durability and reliability, it’s a key element in many industrial and commercial systems.
Key Features
it comes packed with features that set it apart:
- Robust Design: Engineered to withstand tough industrial environments.
- User-Friendly: Easy to install and operate.
- High Compatibility: Integrates seamlessly with other Schneider components.
- Safety Standards: Compliant with international safety regulations.
Specifications
Here are the essential specifications for the it:
- Material: Durable plastic and metal construction.
- Dimensions: Compact size for versatile application.
- Operating Temperature: Performs well under a wide range of temperatures.
- Electrical Rating: Meets global electrical standards for safety and performance.
Applications of Schneider ZB4BA18
it is versatile and can be used in numerous settings.
Industrial Use
In industrial settings, it is often used in control panels, machinery interfaces, and automation systems. Its durability ensures that it can handle the demanding conditions of industrial environments.
Commercial Use
Commercial applications include use in building management systems, HVAC controls, and security systems. Its ease of use and reliability make it a popular choice for commercial use.
Benefits of Using Schneider ZB4BA18
There are several benefits to choosing it for your control systems.
Durability
it is built to last. Its robust construction means it can withstand harsh conditions, reducing the need for frequent replacements.
Efficiency
This push-button switch is designed to operate efficiently, ensuring that your systems run smoothly and with minimal downtime.
Installation Guide for Schneider ZB4BA18
Proper installation is crucial for optimal performance.
Step-by-Step Installation
- Prepare the Installation Site: Ensure the site is clean and properly prepared.
- Mount the Switch: Securely install the Schneider ZB4BA18 in its designated location.
- Connect Wiring: Follow the provided wiring diagram for correct connections.
- Test the System: Conduct a thorough test to ensure everything is functioning correctly.
Common Installation Mistakes
Avoid these common mistakes to ensure a smooth installation:
- Incorrect Wiring: Double-check connections to prevent electrical issues.
- Poor Mounting: Ensure the unit is securely mounted to avoid vibration and potential damage.
- Skipping Tests: Always test the installation to catch any issues early.
Maintenance Tips
Regular maintenance can extend the life of your Schneider ZB4BA18.
Regular Inspections
Perform regular inspections to check for wear and tear. Look for signs of damage or corrosion and address them promptly.
Troubleshooting Common Issues
Some common issues and their solutions include:
- Loose Connections: Tighten any loose connections to prevent electrical failures.
- Component Failure: Replace any faulty components to maintain system integrity.
- Environmental Damage: Protect the unit from environmental factors like moisture and dust.
Comparing Schneider ZB4BA18 to Competitors
When investing in a control unit, it’s important to compare it with other options on the market.
Cost Comparison
it is competitively priced. While there may be cheaper options, the durability and efficiency of this unit often result in lower long-term costs.
Performance Comparison
In terms of performance, it excels with its high compatibility and robust construction. Many competitors fall short in these areas, making the Schneider unit a more reliable choice.
Customer Reviews and Feedback
Hearing from other users can provide valuable insights into the Schneider ZB4BA18.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of Product | Harmony XB4 |
|---|---|
| Product or Component Type | Head for illuminated push-button |
| Device short name | ZB4 |
| Product Compatibility | Universal LED |
| Bezel material | Chromium plated metal |
| Head type | Standard |
| Mounting diameter | 0.9 in (22.5 mm) |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round |
| Type of operator | spring return |
| Operator profile | White flush, unmarked |
| Operator additional information | For insertion of legend |
| Cap/operator or lens colour | White |
| CAD overall width | 1.1 in (29 mm) |
|---|---|
| CAD overall height | 1.1 in (29 mm) |
| CAD overall depth | 1.2 in (30 mm) |
| Net Weight | 0.062 lb(US) (0.028 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Mechanical durability | 10000000 cycles |
| Electrical composition code | M1 6 single front mounting integral LED M2 6 single and double front mounting integral LED M6 2 single front mounting integral LED and transformer M10 2 single front mounting integral LED C3 6 single front mounting C4 6 single and double front mounting C14 2 single front mounting |
| Device presentation | Basic element |
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient air temperature for operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class I conforming to IEC 60536 |
| IP degree of protection | IP66 IEC 60529 IP67 IP69 IP69K |
| NEMA degree of protection | NEMA 13 NEMA 4X |
| IK degree of protection | IK06 conforming to IEC 62262 |
| Standards | IEC 60947-1 UL 508 IEC 60947-5-1 CSA C22.2 No 14 IEC 60947-5-5 IEC 60947-5-4 JIS C8201-5-1 JIS C8201-1 |
| Product Certifications | BV CSA DNV LROS (Lloyds register of shipping) UL Listed |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Category | US10CS222468 |
|---|---|
| Discount Schedule | 0CS2 |
| GTIN | 3389110887716 |
| Returnability | Yes |
| Country of origin | FR |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.24 in (5.700 cm) |
| Package 1 Width | 1.34 in (3.400 cm) |
| Package 1 Length | 2.24 in (5.700 cm) |
| Package 1 Weight | 1.093 oz (31.000 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 150 |
| Package 2 Height | 11.81 in (30.000 cm) |
| Package 2 Width | 11.81 in (30.000 cm) |
| Package 2 Length | 15.75 in (40.000 cm) |
| Package 2 Weight | 10.935 lb(US) (4.960 kg) |
| Warranty | 18 months |
|---|
