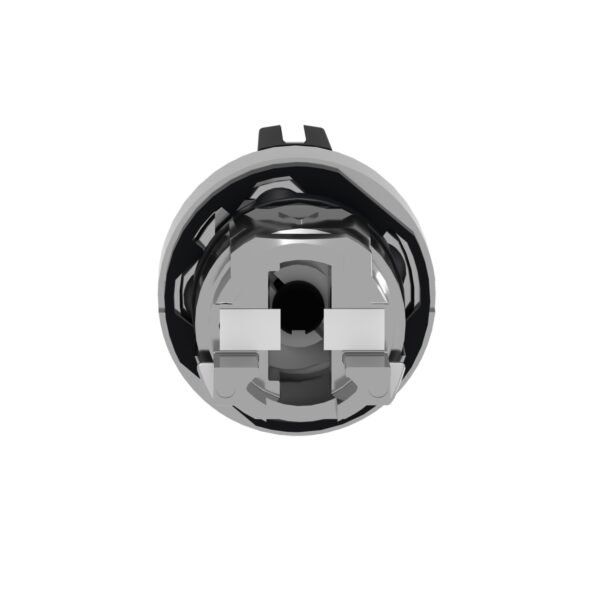

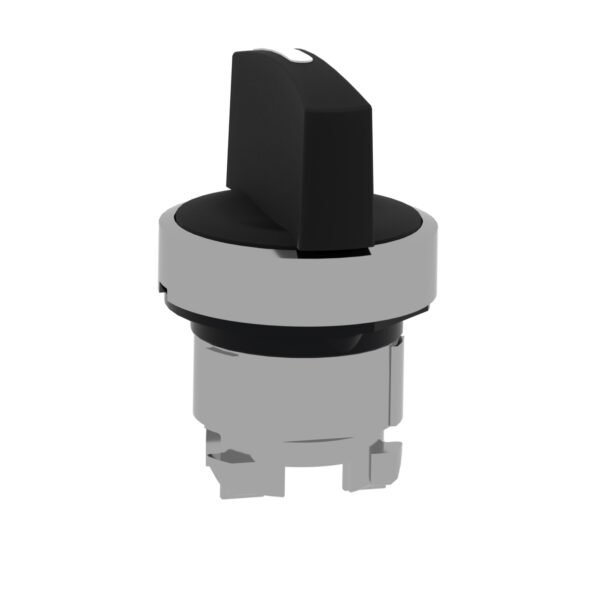

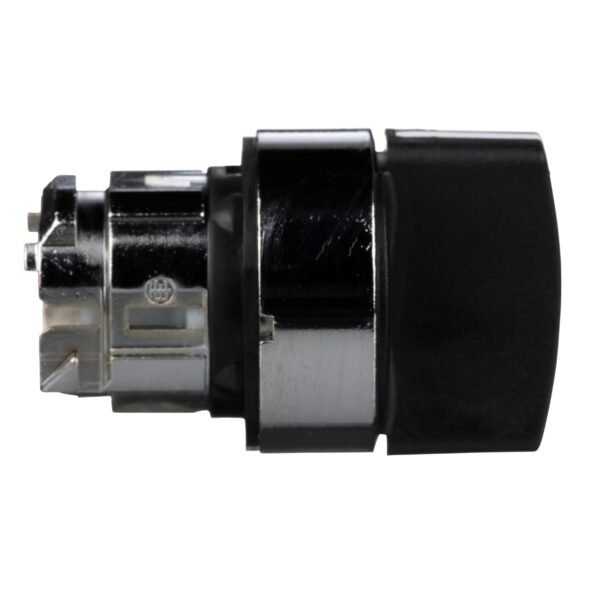

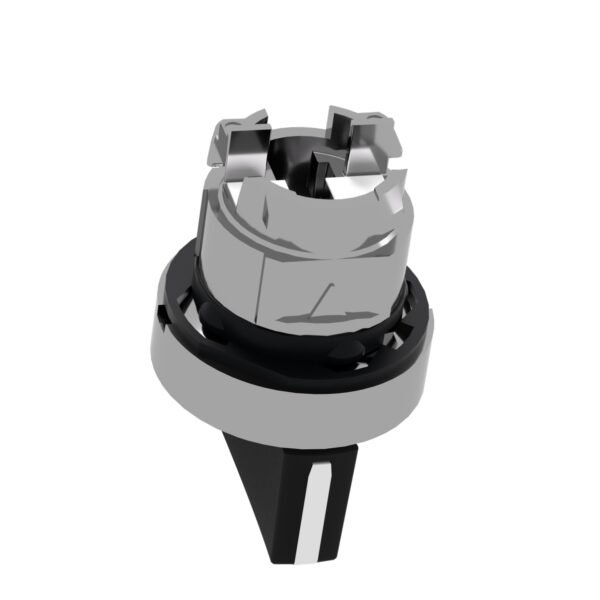

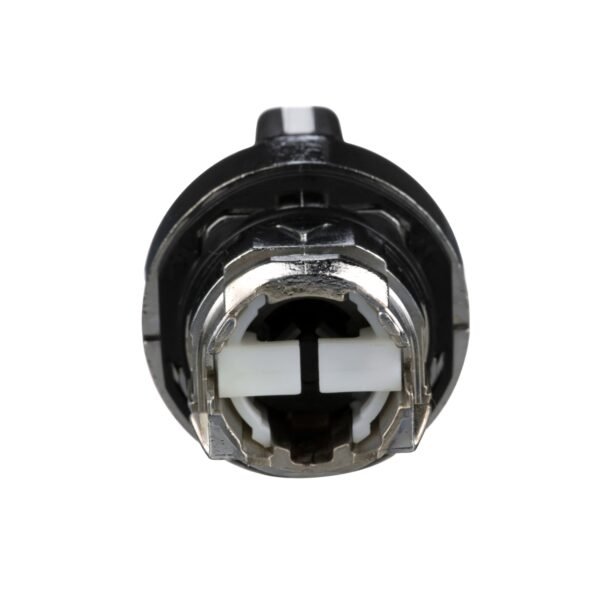

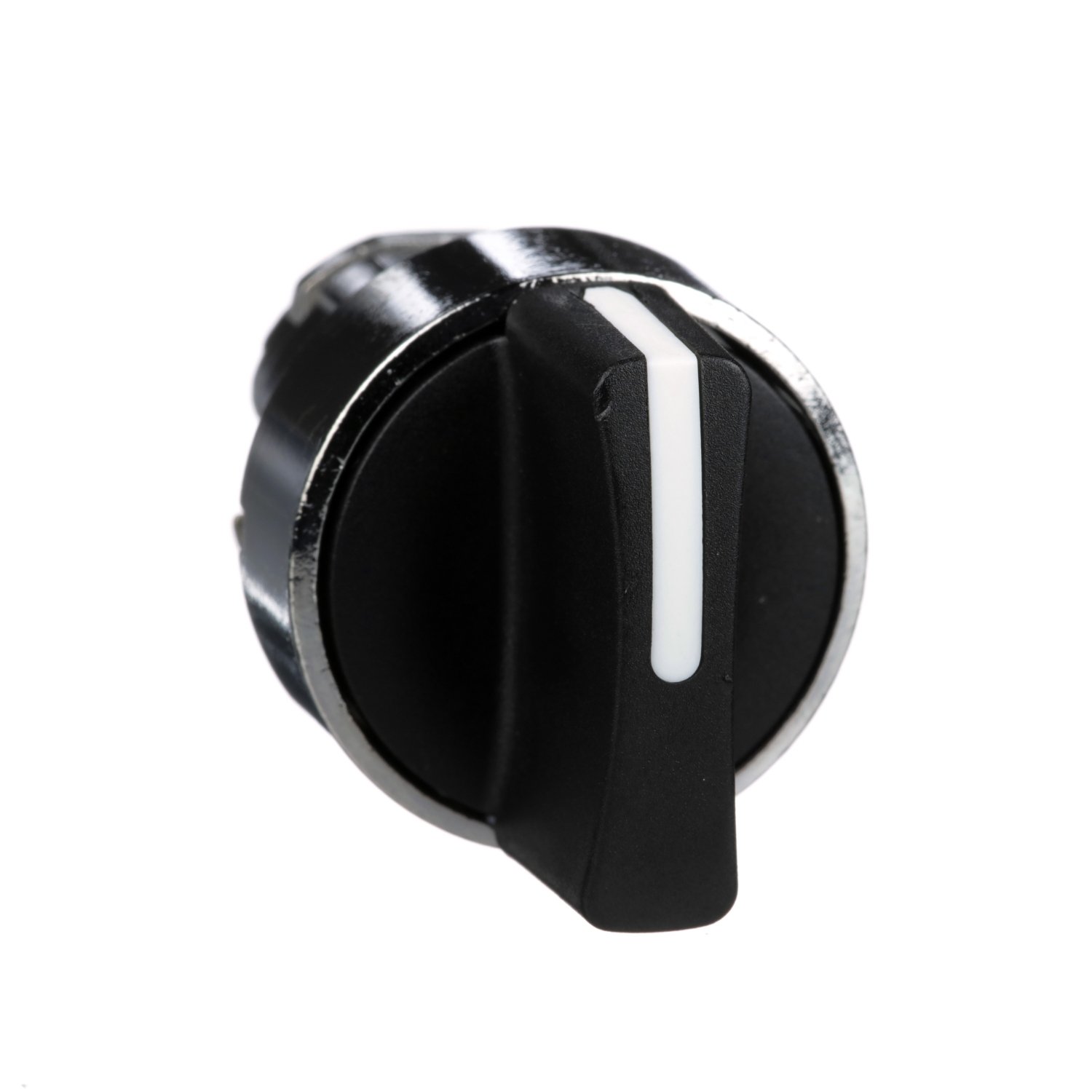

Schneider ZB4BD3 | Selector switch head, metal, black, Ø22, 3 positions, stay put

Schneider ZB4BD3 | Selector Switch Head

1. Overview

The Schneider ZB4BD3 is a metal selector switch head from the Harmony XB4 series, designed for Ø22mm panel mounting. It features three stay-put positions, allowing users to manually select between different operational states. This component is compatible with modular push-button assemblies, making it a versatile choice for industrial control applications.

2. Key Features

• Type: Selector switch head (requires a contact block and mounting collar).

• Material: Metal, providing durability for industrial environments.

• Color: Black, ensuring clear contrast and easy identification.

• Positions: Three-position stay-put mechanism, allowing precise manual selection.

• Mounting Size: Ø22mm, fitting standard control panels.

• Compatibility: Works with Harmony ZB4 series contact blocks and enclosures.

3. Applications

• Industrial automation, enabling manual mode selection.

• Machine control panels, for operational state switching.

• Process control systems, allowing users to choose different machine settings.

• Electrical distribution panels, providing secure and reliable switching.

4. Benefits

• Robust metal construction, ensuring long-lasting performance.

• Three-position control, enhancing system flexibility.

• Stay-put mechanism, maintaining selected positions without automatic return.

• Modular design, allowing easy customization with compatible components.

• Standard Ø22mm size, ensuring quick installation in industrial setups.

5. Conclusion

The Schneider ZB4BD3 selector switch head is a highly reliable and durable control component, ideal for industrial machinery and automation applications. Its three-position stay-put functionality, metal construction, and modular compatibility make it a valuable addition to any control panel requiring manual selection options.
