Schneider ZB4BV043 | Pilot light head, metal, red, Ø22, plain lens for integral LED

Schneider ZB4BV043 | Pilot Light Head

1. Overview

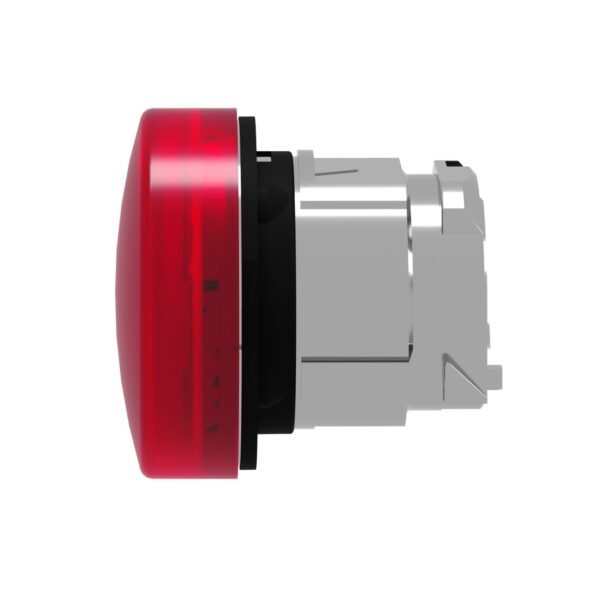

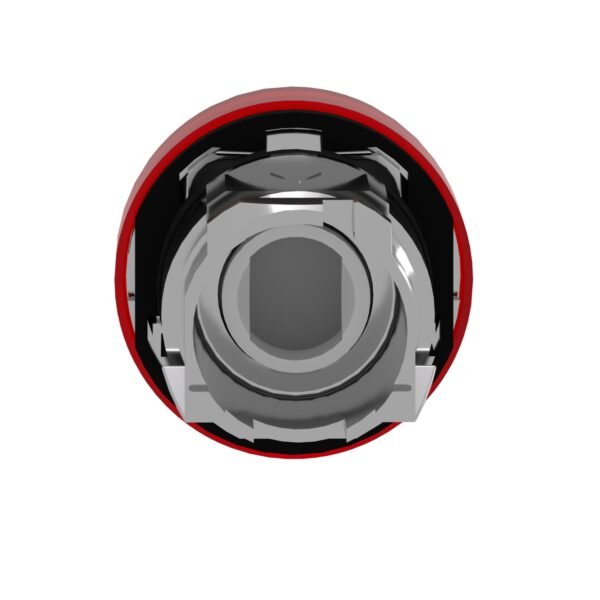

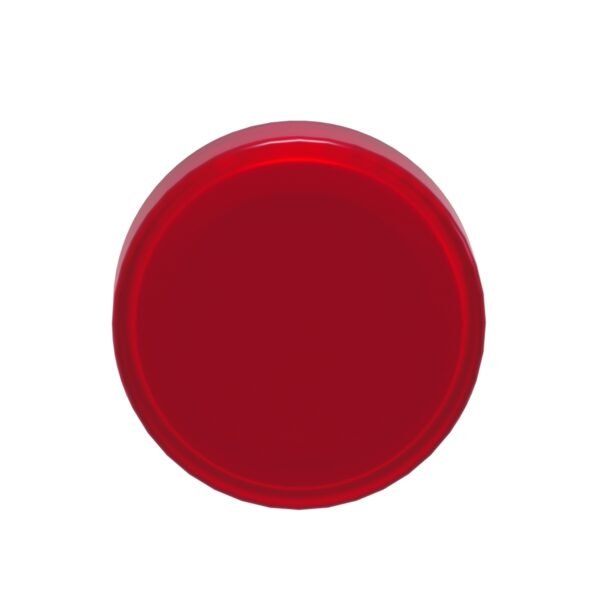

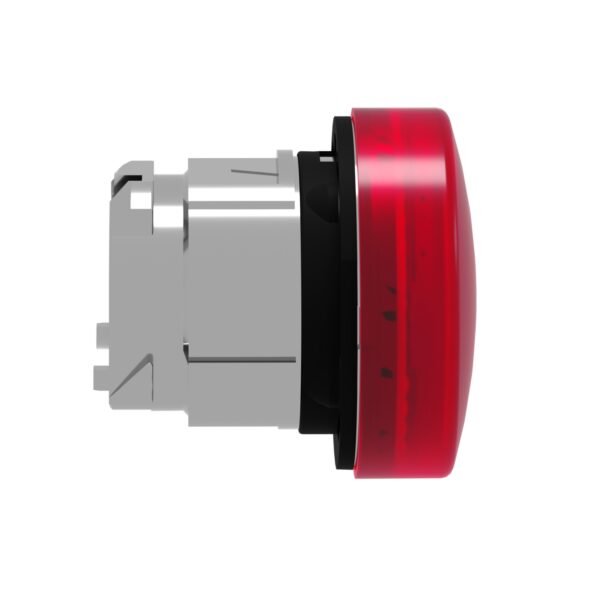

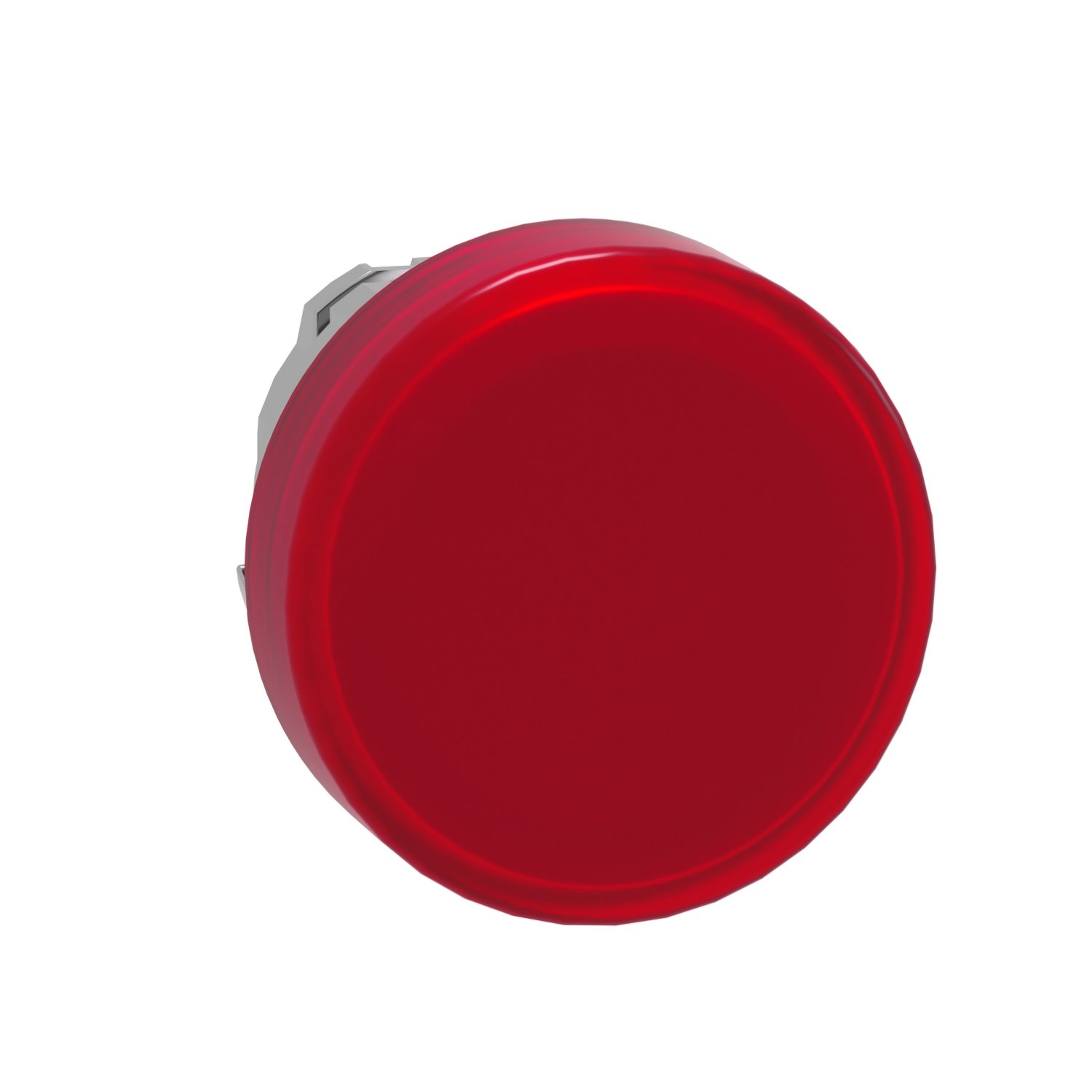

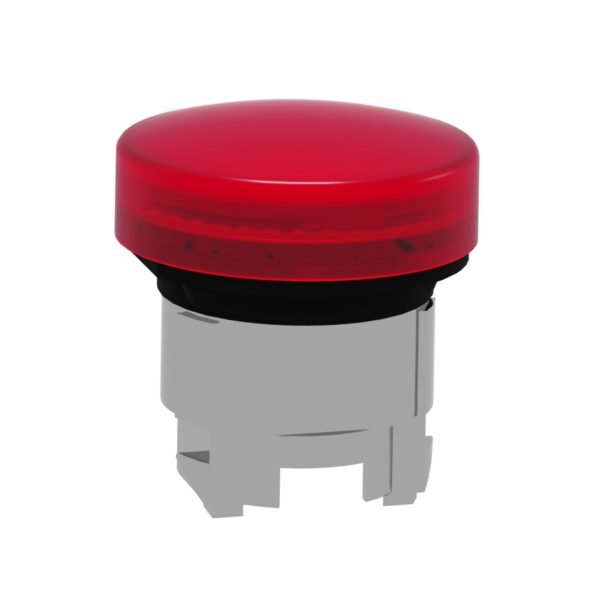

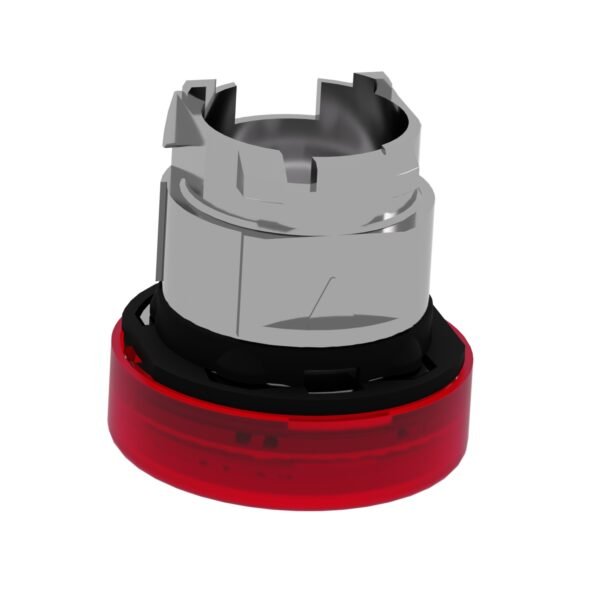

The Schneider ZB4BV043 is a metal pilot light head from the Harmony XB4 series, designed for Ø22mm panel mounting. It features a red plain lens and is intended to be used with an integral LED. This component is ideal for visual indication in industrial and automation systems where a red light is required to signal alerts, faults, or critical statuses.

2. Key Features

• Type: Pilot light head (requires a compatible LED or light source).

• Material: Metal, ensuring durability and resistance in industrial environments.

• Color: Red, commonly used for indicating warning or alarm statuses.

• Lens Type: Plain lens, providing bright and clear illumination for easy visibility.

• Mounting Size: Ø22mm, suitable for standard control panel cutouts.

• Compatibility: Designed to work with integral LED light sources, streamlining installation and maintenance.

3. Applications

• Control panels for signaling machine or process statuses.

• Industrial systems to indicate faults, alarms, or critical warnings.

• Automation processes to alert operators of system errors or issues.

• Safety systems where immediate visual identification is necessary.

4. Benefits

• Robust metal construction, providing long-lasting performance in demanding environments.

• Red color to signify warning, errors, or faults, ensuring immediate attention.

• Plain lens design for consistent and clear illumination.

• Easy installation with integral LED compatibility, minimizing setup time.

• Standard Ø22mm size, ensuring compatibility with common control panels.

5. Conclusion

The Schneider ZB4BV043 pilot light head is a highly effective signaling component, ideal for indicating warnings, faults, or alerts in industrial and automation systems. With its red plain lens, metal build, and LED compatibility, it provides clear visual cues to operators, enhancing safety and operational efficiency.
