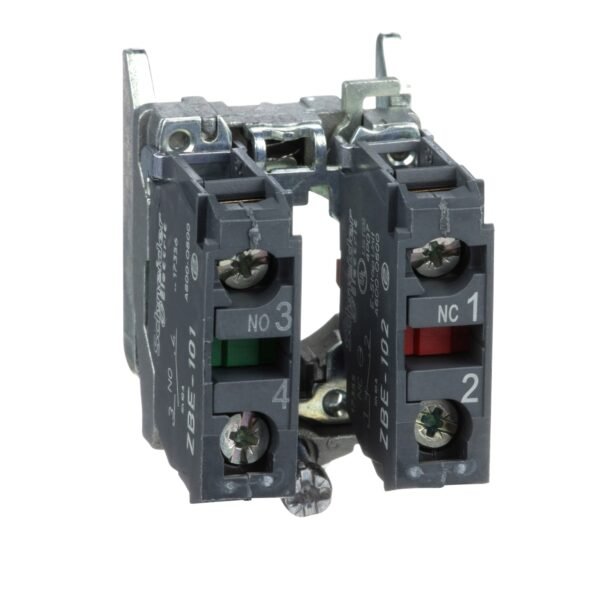

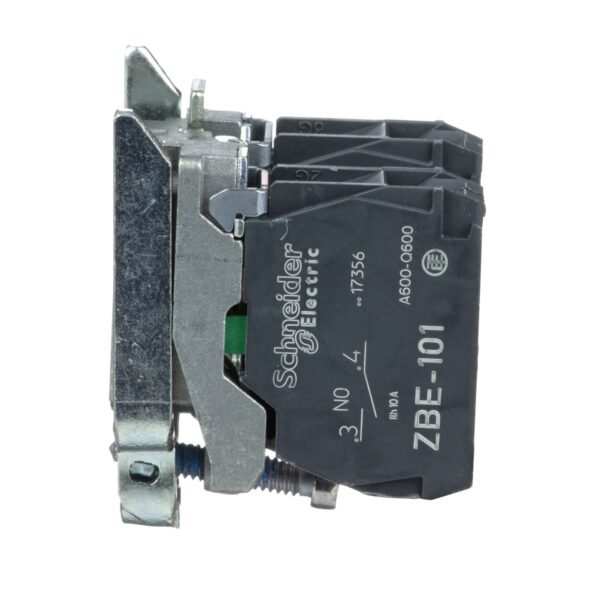

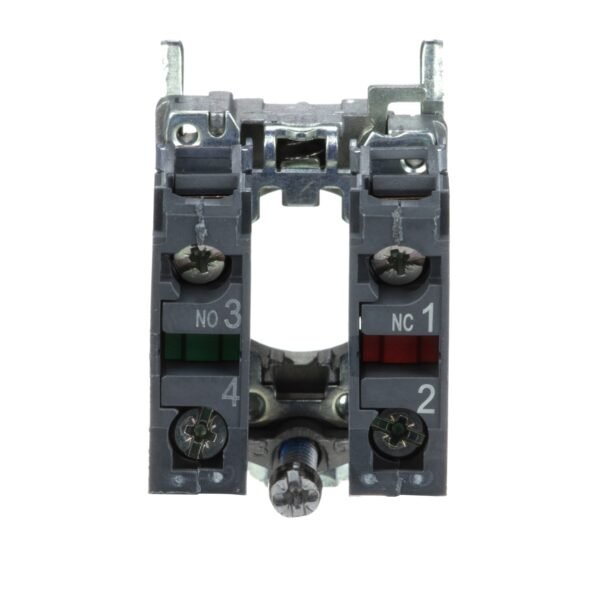

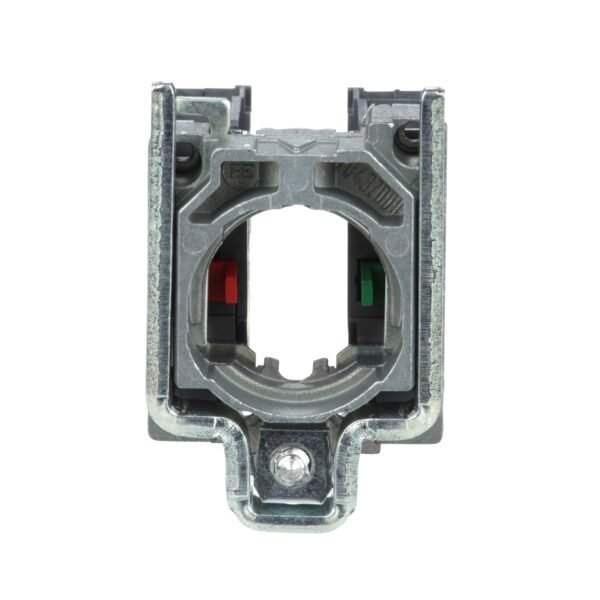

Schneider ZB4BZ105 | Single contact block with body/fixing collar, metal, screw clamp terminal, 1 NO + 1 NC

Schneider ZB4BZ105 | Single Contact Block with Body & Fixing Collar

1. Overview

The Schneider ZB4BZ105 is a single contact block with an integrated body and fixing collar, designed for use with Schneider’s Ø22mm Harmony push buttons and selector switches. It features 1 normally open (1 NO) and 1 normally closed (1 NC) contact, providing a reliable switching mechanism for industrial control applications.

2. Key Features

• Type: Single contact block with body and fixing collar.

• Contact Configuration: 1 NO + 1 NC (Normally Open + Normally Closed).

• Terminal Type: Screw clamp terminals, ensuring secure wiring connections.

• Material: Durable metal construction, built for harsh environments.

• Mounting Compatibility: Designed for Schneider Ø22mm Harmony series control devices.

• Compact Design: Space-saving and easy to install in control panels.

3. Applications

• Industrial control systems, for switching and status signaling.

• Machine operation panels, providing start/stop functionality.

• Electrical distribution panels, for manual control of circuits.

• Automation and process control, integrating with push buttons and selector switches.

4. Benefits

• Pre-assembled with body and fixing collar, simplifying installation.

• Durable metal construction, ensuring longevity and reliability.

• Secure screw clamp terminals, providing firm and stable wiring connections.

• 1 NO + 1 NC contacts, offering both open and closed circuit options.

5. Conclusion

The Schneider ZB4BZ105 is a versatile and durable contact block that enhances control panel functionality. Its robust metal design, secure wiring terminals, and compatibility with Schneider’s Ø22mm Harmony range make it an ideal choice for industrial and automation applications.
