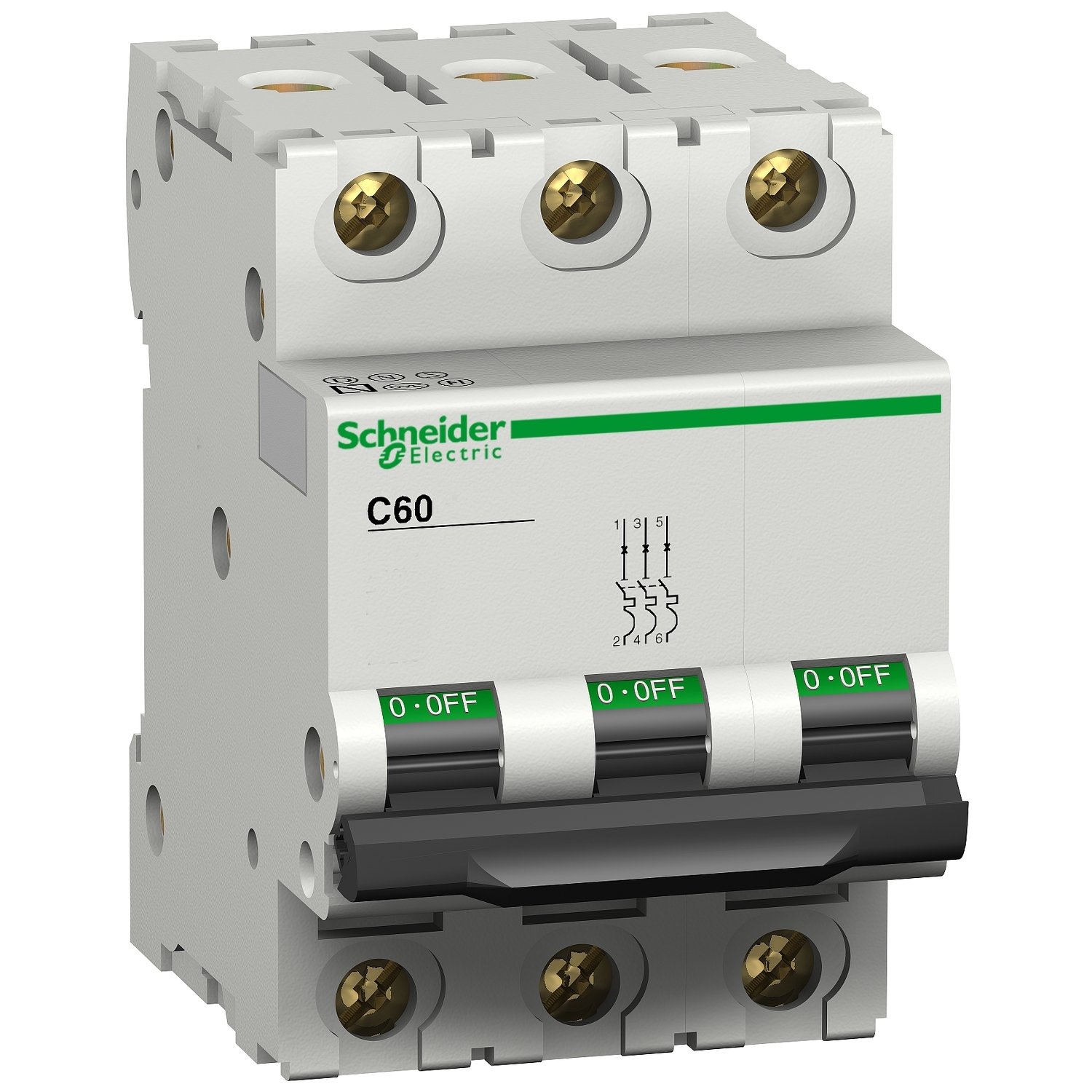

Schneider 25439 | C60 – circuit breaker – C60L – 3P – 25A – C curve
Schneider 25439 | C60 – circuit breaker – C60L – 3P – 25A – C curve
Original price was: EGP 401,782.00.EGP 263,167.00Current price is: EGP 263,167.00.
Description
Schneider 25439 | C60 – circuit breaker – C60L – 3P – 25A – C curve
1. Technical Specifications
- Model: 25439 C60L
- Type: Miniature Circuit Breaker (MCB)
- Number of Poles: 3P (Three Poles)
- Rated Current: 25A
- Tripping Curve: C Curve (Trips at 5 to 10 times the rated current)
- Operating Voltage: 400V AC
- Breaking Capacity: 10kA
- Tripping Mechanism: Thermal-Magnetic
- Frequency: 50/60Hz
- Protection Rating: IP20 (Suitable for panel installation)
- Mounting: DIN Rail (35mm standard rail)
2. Key Features
A. Reliable Overload and Short Circuit Protection
- Uses a thermal-magnetic mechanism that responds to both overcurrent conditions and short circuits, ensuring fast and efficient circuit protection.
B. C Curve Tripping Characteristic
- Designed to handle moderate inrush currents from lighting circuits, small motors, and resistive loads. It trips when current exceeds 5 to 10 times the rated value, reducing the risk of nuisance tripping.
C. High Breaking Capacity (10kA)
- Can safely interrupt high fault currents, preventing damage to electrical systems and ensuring system reliability.
D. Compact and Easy to Install
- Designed for quick and secure mounting on a DIN rail, allowing for efficient installation and maintenance.
E. Compliance with International Standards
- Meets IEC 60898-1 and IEC 60947-2 standards, ensuring compatibility with a wide range of electrical applications.
3. Applications and Uses
The Schneider 25439 C60L is widely used in various applications, including:
A. Industrial and Commercial Electrical Protection
- Provides reliable circuit protection in factories, warehouses, and office buildings.
B. Control and Distribution Panels
- Essential for protecting main distribution panels and electrical control boards.
C. General Electrical Loads
- Ideal for protecting circuits that supply lighting, outlets, and other electrical devices.
D. Renewable Energy Systems
- Can be integrated into solar and wind power systems for added circuit safety.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | C60 |
|---|---|
| Range | Multi9 |
| product name | C60 |
| Product or component type | Miniature circuit-breaker |
| Device short name | C60L |
| Device application | Distribution |
| Poles description | 3P |
| Number of protected poles | 3 |
| [In] rated current | 25 A at 40 °C |
| network type | DC AC |
| Trip unit technology | Thermal-magnetic |
| Curve code | C |
| Breaking capacity | 20 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2 50 kA Icu at 230...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 25 kA Icu at 400...415 V AC 50/60 Hz conforming to EN/IEC 60947-2 30 kA Icu at 125 V DC 2P conforming to EN/IEC 60947-2 50 kA Icu at 125 V DC 3P conforming to EN/IEC 60947-2 60 kA Icu at <= 250 V DC 4P conforming to EN/IEC 60947-2 |
| Suitability for isolation | Yes conforming to IEC 60947-2 |
| Network frequency | 50/60 Hz |
|---|---|
| [Ue] rated operational voltage | 440 V AC 50/60 Hz 230...240 V AC 50/60 Hz 400...415 V AC 50/60 Hz <= 250 V DC |
| Magnetic tripping limit | 7...10 x In |
| [Ics] rated service breaking capacity | 10 kA conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz 25 kA conforming to EN/IEC 60947-2 - 230...240 V AC 50/60 Hz 12.5 kA conforming to EN/IEC 60947-2 - 400...415 V AC 50/60 Hz |
| Limitation class | 3 conforming to EN/IEC 60947-2 |
| Contact position indicator | Yes |
| Control type | Toggle |
| Local signalling | ON/OFF indication |
| Mounting mode | Clip-on |
| Mounting support | 35 mm symmetrical DIN rail |
| Comb busbar and distribution block compatibility | NO |
| 9 mm pitches | 6 |
| Height | 81 mm |
| Width | 54 mm |
| Depth | 73 mm |
| Product weight | 0.36 kg |
| Mechanical durability | 20000 cycles |
| Connections - terminals | Tunnel type terminals16 mm² flexible Tunnel type terminals25 mm² rigid |
| Tightening torque | Power circuit: 2 N.m upside 2 N.m downside |
| Earth-leakage protection | Separate block |
| Product compatibility | C60 accessories C60 auxiliary |
| Standards | EN/IEC 60947-2 EN 60898 |
|---|---|
| Tropicalisation | 2 conforming to IEC 60068-1 |
| Relative humidity | 95 % at 55 °C |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | -25…60 °C |
| Ambient air temperature for storage | -40…70 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.5 cm |
| Package 1 Width | 5.4 cm |
| Package 1 Length | 7.3 cm |
| Package 1 Weight | 0.333 kg |
| Warranty | 18 months |
|---|
