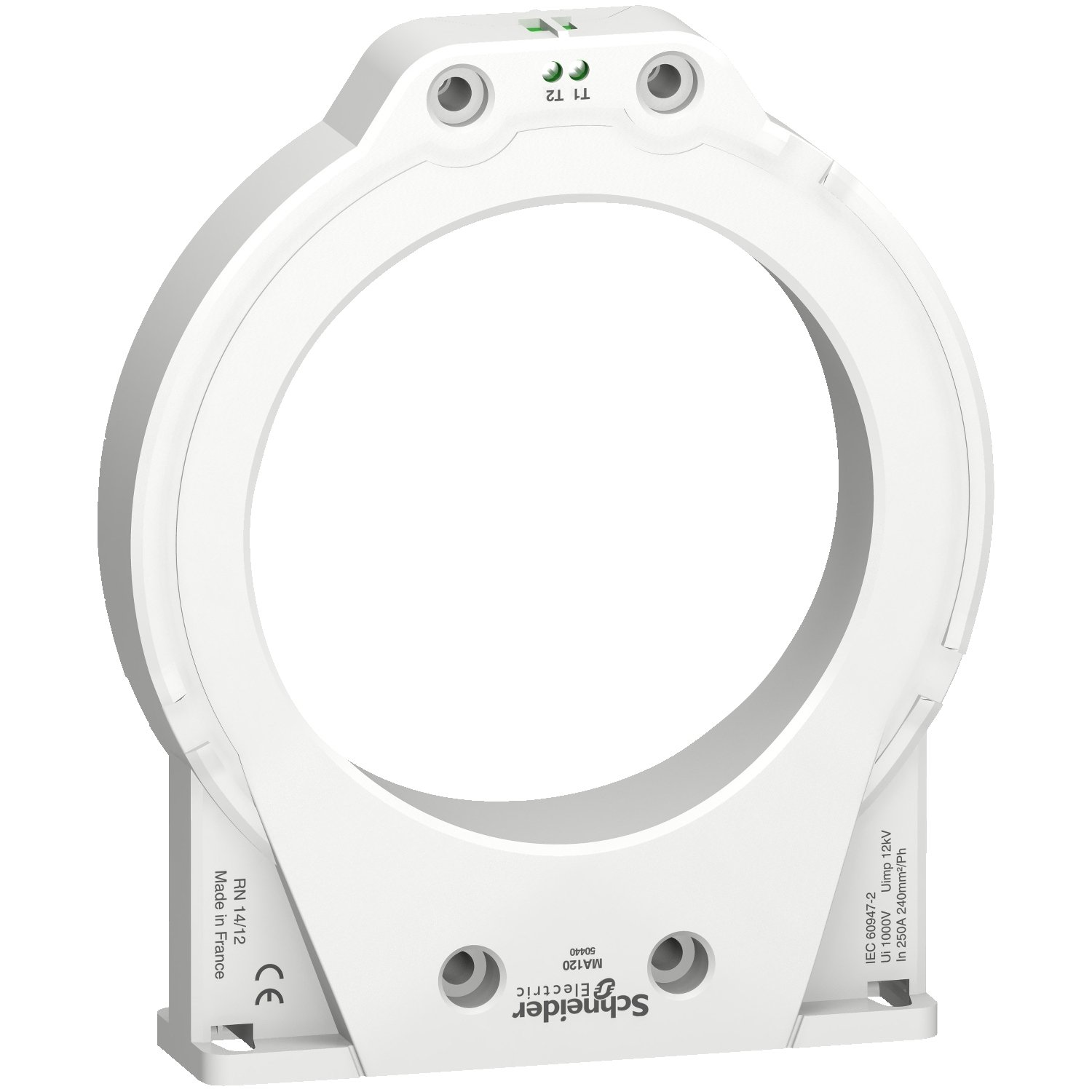

Schneider 50440 | Closed toroid A type, VigiPacT, Vigilohm, MA120, inner diameter 120mm, rated current 250A

Technical Specifications

• Manufacturer: Schneider Electric

• Product Reference: 50440

• Product Type: Closed Toroid A Type

• Series: VigiPacT

• Model: Vigilohm MA120

• Inner Diameter: 120 mm

• Rated Current (In): 250 A

• Leakage Current Detection: Designed to detect earth leakage currents in the range of milliamps to amperes

• Material: High-quality magnetic core material designed for accurate current sensing

• Application: Used with VigiPacT earth leakage relays for protection in electrical installations

• Mounting Type: Closed-loop design for easy installation around the conductor

• Insulation Class: Suitable for use in low-voltage applications

• Compatibility: Compatible with VigiPacT relays and other earth leakage protection systems

• Electrical Conductor Type: Ideal for applications with conductors up to 250A rated current

Key Features

• Closed Toroid Design
  The closed-loop design allows for quick and easy installation without the need for splitting cables, reducing installation time and effort. It ensures effective leakage current detection around the conductor.

• Precise Earth Leakage Detection
  Provides accurate detection of leakage currents, ensuring reliable operation of the associated VigiPacT earth leakage protection system.

• Compact and Robust
  With an inner diameter of 120mm, this toroid is compact yet robust, making it suitable for a wide range of applications while offering durability for long-term use.

• High Rated Current Capacity
  Rated for 250A, this toroid can handle substantial currents in commercial and industrial applications, ensuring flexibility in its use.

• Vigilohm Technology Compatibility
  Designed to be used with the Vigilohm MA120 system for earth leakage protection, it integrates seamlessly into Schneider Electric’s safety and monitoring solutions.

• Easy Integration with Protection Devices
  Compatible with Schneider Electric’s VigiPacT relays and other associated equipment for easy integration into existing systems, making it an ideal choice for upgrading or building new installations.

• Wide Application Range
  Suitable for use in both commercial and industrial installations, where effective earth leakage monitoring is essential for safety and fault detection.

Applications

• Earth Leakage Protection Systems
  Perfect for installations that require continuous monitoring of earth leakage currents to prevent faults and ensure the safety of electrical systems.

• Industrial and Commercial Electrical Installations
  Used in environments where high-rated current conductors require reliable leakage protection to ensure personnel safety and equipment integrity.

• Renewable Energy Systems
  Ideal for solar, wind, and battery-based systems where leakage current detection is essential for system protection and operational safety.

• Panel Builders and System Integrators
  This closed toroid is a key component in creating complete protection systems, often used by panel builders and system integrators to ensure fault-free operation.

• Critical Infrastructure
  Provides essential protection for electrical circuits in critical infrastructure projects, such as hospitals, data centers, and public utilities, where safety and system reliability are paramount.
