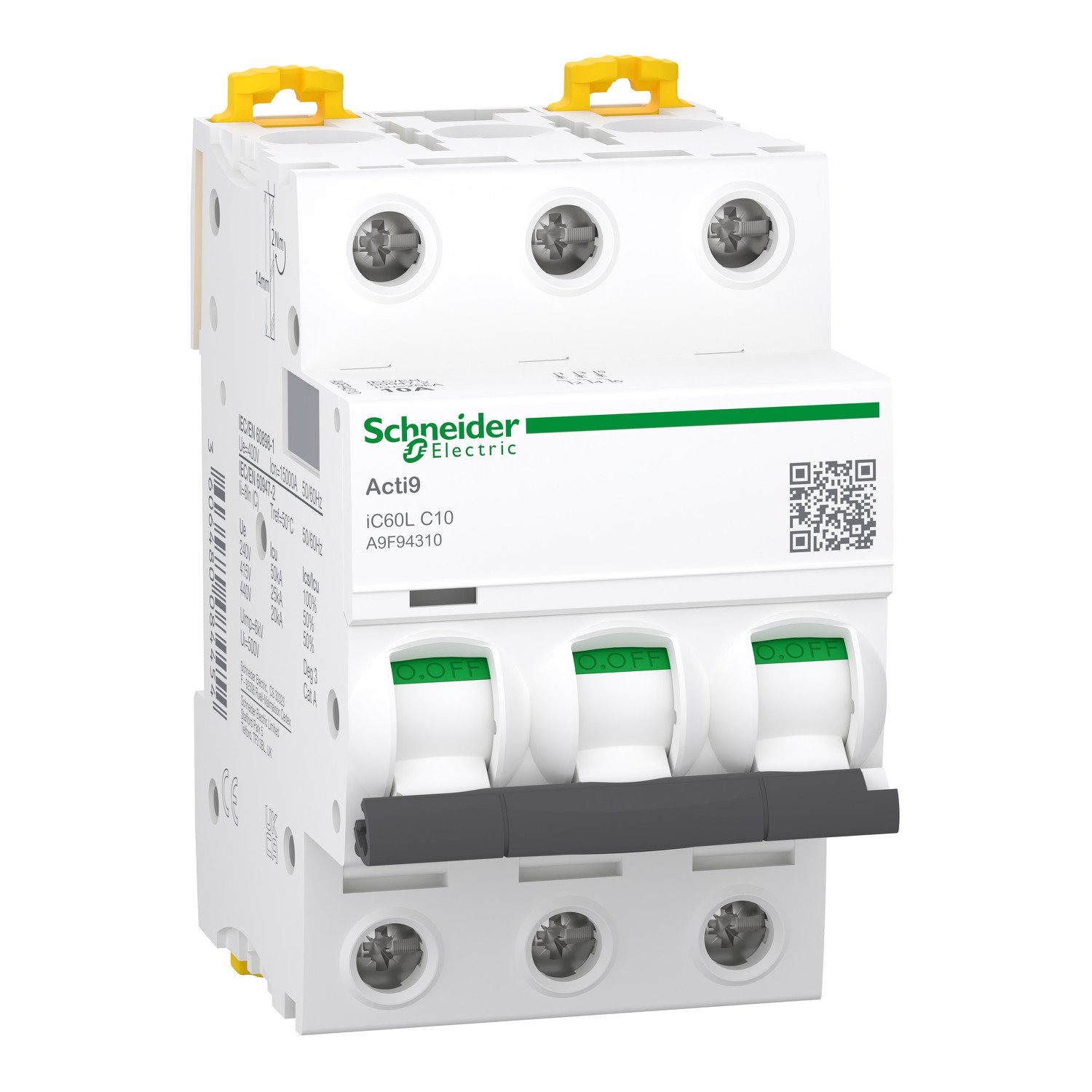

Schneider A9F94310 | Miniature circuit-breaker, Acti9 iC60L, 3P, 10 A, C curve, 15000 A (IEC 60898-1), 25 kA (IEC 60947-2)
Schneider A9F94310 |Miniature circuit-breaker, Acti9 iC60L, 3P, 10 A, C curve, 15000 A (IEC 60898-1), 25 kA (IEC 60947-2)
Original price was: EGP 40,179.00.EGP 26,317.00Current price is: EGP 26,317.00.
Description
Schneider A9F94310 |Miniature circuit-breaker, Acti9 iC60L, 3P, 10 A, C curve, 15000 A (IEC 60898-1), 25 kA (IEC 60947-2)
Technical Specifications
The A9F94310 operates with three poles (3P), making it suitable for three-phase systems. It is rated at 10 amps and is designed with a C curve, which allows it to trip between 5 to 10 times its rated current. This makes it suitable for circuits with general-purpose loads such as lighting, sockets, or equipment with limited starting current surges.
The breaker has a breaking capacity of 15,000 A according to IEC 60898-1, and 25,000 A according to IEC 60947-2, making it highly reliable even in environments with high short-circuit risk. It is installed on DIN rails and fits into modern electrical distribution panels with ease.
The rated voltage is up to 400/415V AC, which is standard for many three-phase systems in industrial and commercial setups.
Key Features
One of the standout features of the Schneider A9F94310 is its high breaking capacity, which ensures robust protection against overloads and short circuits even under demanding conditions.
The C-curve tripping characteristic makes it suitable for general-purpose applications, striking a balance between protection and tolerance to temporary surges that occur during normal equipment startup.
The device is designed for quick and secure DIN rail mounting, allowing for efficient installation and easy maintenance. It is also fully compatible with Schneider’s Acti9 range of accessories, including auxiliary contacts, shunt trips, and alarm units, allowing for greater flexibility and remote control options.
VisiSafe technology, available in the Acti9 series, provides a visual indicator of circuit disconnection, ensuring added safety during maintenance activities.
Built with high-quality materials, the breaker is engineered to withstand harsh electrical and environmental conditions, ensuring long mechanical and electrical life.
Applications
The Schneider A9F94310 is used in a wide range of low-voltage distribution systems where three-phase protection is required with low amperage and high fault current capability.
Key applications include:
-
Main and sub-distribution boards in commercial and industrial buildings
-
Lighting and socket protection in multi-phase environments
-
Motor and pump control circuits with moderate inrush currents
-
Power distribution in office buildings, shopping centers, and manufacturing facilities
-
Energy management and protection in smart and solar electrical systems
-
Control panels and automation systems where precise, high-integrity protection is essential
Because of its full compliance with IEC 60898-1 and IEC 60947-2, the A9F94310 is especially recommended for projects where adherence to international safety and performance standards is required.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Device application | Distribution |
|---|---|
| Range | Acti9 |
| Product name | Acti9 iC60 |
| Product or component type | Miniature circuit-breaker |
| Device short name | iC60L |
| Poles description | 3P |
| Number of protected poles | 3 |
| [In] rated current | 10 A |
| Network type | AC DC |
| Trip unit technology | Thermal-magnetic |
| Curve code | C |
| Breaking capacity | 15000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1 50 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 70 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2 70 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2 20 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2 25 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2 20 kA Icu at <= 180 V DC conforming to EN/IEC 60947-2 |
| Utilisation category | Category A conforming to EN 60947-2 Category A conforming to IEC 60947-2 |
| Suitability for isolation | Yes conforming to EN 60898-1 Yes conforming to EN 60947-2 Yes conforming to IEC 60898-1 Yes conforming to IEC 60947-2 |
| Standards | EN 60898-1 IEC 60947-2 EN 60947-2 IEC 60898-1 |
| Network frequency | 50/60 Hz |
|---|---|
| Magnetic tripping limit | 8 x In +/- 20 % |
| [Ics] rated service breaking capacity | 12.5 kA 50 % conforming to EN 60947-2 - 380...415 V AC 50/60 Hz 10 kA 50 % conforming to EN 60947-2 - 440 V AC 50/60 Hz 12.5 kA 50 % conforming to IEC 60947-2 - 380...415 V AC 50/60 Hz 10 kA 50 % conforming to IEC 60947-2 - 440 V AC 50/60 Hz 25 kA 50 % conforming to EN 60947-2 - 220...240 V AC 50/60 Hz 25 kA 50 % conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz 35 kA 50 % conforming to EN 60947-2 - 12...133 V AC 50/60 Hz 35 kA 50 % conforming to IEC 60947-2 - 12...133 V AC 50/60 Hz 7500 A 50 % conforming to EN 60898-1 - 400 V AC 50/60 Hz 7500 A 50 % conforming to IEC 60898-1 - 400 V AC 50/60 Hz 20 kA 100 % conforming to EN 60947-2 - 125...180 V DC 20 kA 100 % conforming to IEC 60947-2 - 125...180 V DC |
| Limitation class | 3 conforming to EN 60898-1 3 conforming to IEC 60898-1 |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz conforming to EN 60947-2 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN 60947-2 6 kV conforming to IEC 60947-2 |
| Contact position indicator | Yes |
| control type | Toggle |
| local signalling | Trip indicator |
| Mounting mode | Fixed |
| mounting support | DIN rail |
| Comb busbar and distribution block compatibility | Top or bottom: YES |
| 9 mm pitches | 6 |
| height | 85 mm |
| Width | 54 mm |
| Depth | 78.5 mm |
| Net weight | 0.375 kg |
| Colour | White |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles |
| Connections - terminals | Single terminal (top or bottom) 1…25 mm² rigid Single terminal (top or bottom) 1…16 mm² flexible |
| Wire stripping length | 14 mm for top or bottom connection |
| Tightening torque | 2 N.m top or bottom |
| earth-leakage protection | Separate block |
| IP degree of protection | IP20 conforming to IEC 60529 IP20 conforming to EN 60529 |
|---|---|
| Pollution degree | 3 conforming to EN 60947-2 3 conforming to IEC 60947-2 |
| Overvoltage category | IV |
| Tropicalisation | 2 conforming to IEC 60068-1 |
| Relative humidity | 95 % at 55 °C |
| Operating altitude | 0...2000 m |
| ambient air temperature for operation | -35…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.5 cm |
| Package 1 Width | 7.5 cm |
| Package 1 Length | 9.5 cm |
| Package 1 Weight | 331 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 8 cm |
| Package 2 Width | 10 cm |
| Package 2 Length | 22.5 cm |
| Package 2 Weight | 1.388 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 44 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 15.654 kg |
| Warranty | 18 months |
|---|
