Schneider A9F95102 | Miniature circuit breaker (MCB), Acti9 iC60L, 1P, 2A, K curve, 15000A (IEC/EN 60898-1), 100kA (IEC/EN 60947-2)
Schneider A9F95102 | Miniature circuit breaker (MCB), Acti9 iC60L, 1P, 2A, K curve, 15000A (IEC/EN 60898-1), 100kA (IEC/EN 60947-2)
Original price was: EGP 65,254.00.EGP 42,741.00Current price is: EGP 42,741.00.
Description

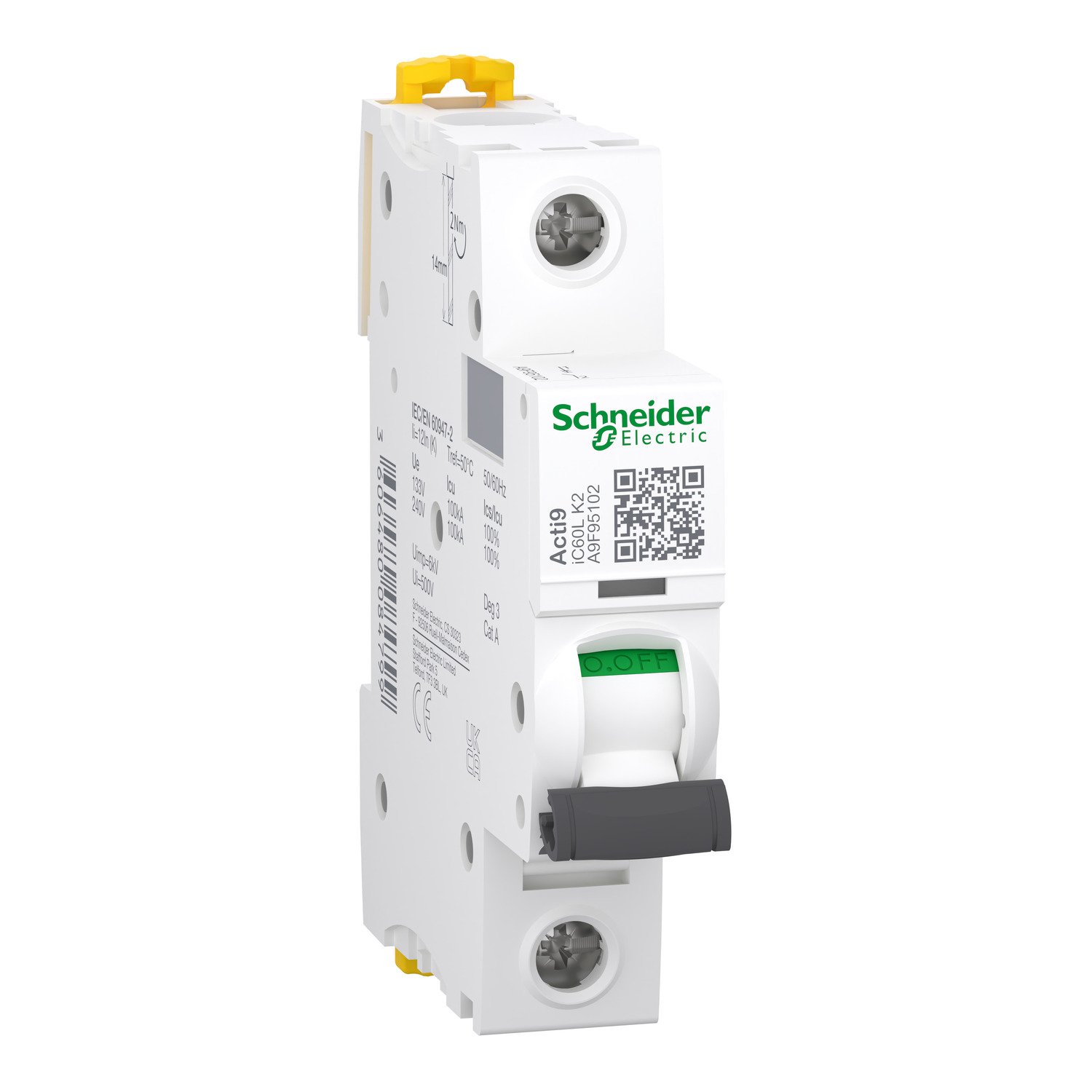

Schneider A9F95102 | Miniature circuit breaker (MCB), Acti9 iC60L, 1P, 2A, K curve, 15000A (IEC/EN 60898-1), 100kA (IEC/EN 60947-2)
Technical Specifications
- Model Number: A9F95102
- Series: Acti9 iC60L
- Breaker Type: Miniature Circuit Breaker (MCB)
- Number of Poles: 1P (Single-Pole)
- Rated Current: 2A
- Tripping Curve: K Curve (for high inrush current loads)
- Breaking Capacity:
- 15kA (IEC/EN 60898-1 – Residential & Commercial Applications)
- 100kA (IEC/EN 60947-2 – Industrial & High Fault Level Applications)
- Voltage Rating: 230/400V AC
- Frequency: 50/60 Hz
- Mounting Type: DIN Rail Mounting
- Ingress Protection: IP20 (when installed in an enclosure)
- Compliance & Certifications:
- IEC/EN 60898-1 (for residential & commercial electrical systems)
- IEC/EN 60947-2 (for industrial & heavy-duty electrical systems)
Key Features
-
K-Curve Tripping for High Inrush Current Loads
- Specially designed to withstand high starting currents from inductive loads like motors, transformers, and solenoids without nuisance tripping.
- Trips within 8 to 12 times the rated current, ensuring stable operation in demanding applications.
-
Ultra-High Breaking Capacity (100kA)
- Offers exceptional protection against short circuits, making it suitable for high-fault environments such as industrial plants and power stations.
-
Single-Pole (1P) Design for Compact Installation
- Ideal for protecting individual circuits, providing space-efficient integration into electrical panels.
-
Advanced Safety Features with Acti9 Technology
- VisiTrip Indicator for quick fault detection.
- VisiSafe Technology ensures complete disconnection of the circuit for enhanced operator safety.
-
Compact & Modular DIN Rail Mounting
- Designed for quick installation in both new installations and retrofitting projects.
-
Reliable Performance in Harsh Conditions
- Built to withstand voltage fluctuations and harsh industrial conditions, ensuring long-term durability.
-
Full Compliance with Global Standards
- Meets both IEC 60898-1 (for residential & commercial use) and IEC 60947-2 (for industrial applications), ensuring wide usability.
Applications
- Industrial Machinery Protection: Ideal for motors, transformers, and industrial control systems.
- Power Distribution Panels: Used in commercial and industrial power networks for circuit protection.
- Heavy-Duty Equipment: Protects equipment with high inrush currents without nuisance tripping.
- Renewable Energy Systems: Suitable for solar power and battery storage applications.
- Critical Infrastructure: Applied in data centers, medical facilities, and high-risk electrical environments.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Device application | Distribution |
|---|---|
| Range | Acti9 |
| Product name | Acti9 iC60 |
| Product or component type | Miniature circuit-breaker |
| Device short name | iC60L |
| poles description | 1P |
| Number of protected poles | 1 |
| [In] rated current | 2 A |
| network type | AC DC |
| Trip unit technology | Thermal-magnetic |
| Curve code | K |
| Breaking capacity | 15000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1 100 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2 100 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 100 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2 20 kA Icu at 60...72 V DC conforming to EN/IEC 60947-2 25 kA Icu at 12...60 V DC conforming to EN/IEC 60947-2 |
| Utilisation category | Category A conforming to EN 60947-2 Category A conforming to IEC 60947-2 |
| Suitability for isolation | Yes conforming to EN 60947-2 Yes conforming to IEC 60947-2 |
| Standards | IEC 60947-2 EN 60947-2 |
| Network frequency | 50/60 Hz |
|---|---|
| Magnetic tripping limit | 12 x In +/- 20 % |
| [Ics] rated service breaking capacity | 100 kA 100 % conforming to EN 60947-2 - 12...60 V AC 50/60 Hz 100 kA 100 % conforming to EN 60947-2 - 220...240 V AC 50/60 Hz 100 kA 100 % conforming to IEC 60947-2 - 12...60 V AC 50/60 Hz 100 kA 100 % conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz 100 kA 100 % conforming to EN 60947-2 - 100...133 V AC 50/60 Hz 100 kA 100 % conforming to IEC 60947-2 - 100...133 V AC 50/60 Hz 20 kA 100 % conforming to EN 60947-2 - 72 V DC 20 kA 100 % conforming to IEC 60947-2 - 72 V DC 25 kA 100 % conforming to EN 60947-2 - 12...60 V DC 25 kA 100 % conforming to IEC 60947-2 - 12...60 V DC |
| Limitation class | 3 conforming to EN 60898-1 3 conforming to IEC 60898-1 |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz conforming to EN 60947-2 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN 60947-2 6 kV conforming to IEC 60947-2 |
| Contact position indicator | Yes |
| Control type | Toggle |
| local signalling | Trip indicator |
| Mounting mode | Fixed |
| Mounting support | DIN rail |
| Comb busbar and distribution block compatibility | Top or bottom: YES |
| 9 mm pitches | 2 |
| Height | 85 mm |
| Width | 18 mm |
| Depth | 78.5 mm |
| Net weight | 0.215 kg |
| Colour | White |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles |
| Connections - terminals | Single terminal (top or bottom) 1…25 mm² rigid Single terminal (top or bottom) 1…16 mm² flexible |
| Wire stripping length | 14 mm for top or bottom connection |
| Tightening torque | 2 N.m top or bottom |
| Earth-leakage protection | Without |
| IP degree of protection | IP20 conforming to IEC 60529 IP20 conforming to EN 60529 |
|---|---|
| Pollution degree | 3 conforming to EN 60947-2 3 conforming to IEC 60947-2 |
| Overvoltage category | IV |
| Tropicalisation | 2 conforming to IEC 60068-1 |
| Relative humidity | 95 % at 55 °C |
| Operating altitude | 0...2000 m |
| Ambient air temperature for operation | -35…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.8 cm |
| Package 1 Width | 7.5 cm |
| Package 1 Length | 9.5 cm |
| Package 1 Weight | 113.0 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 8.0 cm |
| Package 2 Width | 9.8 cm |
| Package 2 Length | 22.5 cm |
| Package 2 Weight | 1.412 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 132 |
| Package 3 Height | 30.0 cm |
| Package 3 Width | 30.0 cm |
| Package 3 Length | 40.0 cm |
| Package 3 Weight | 16.019 kg |
| Warranty | 18 months |
|---|
