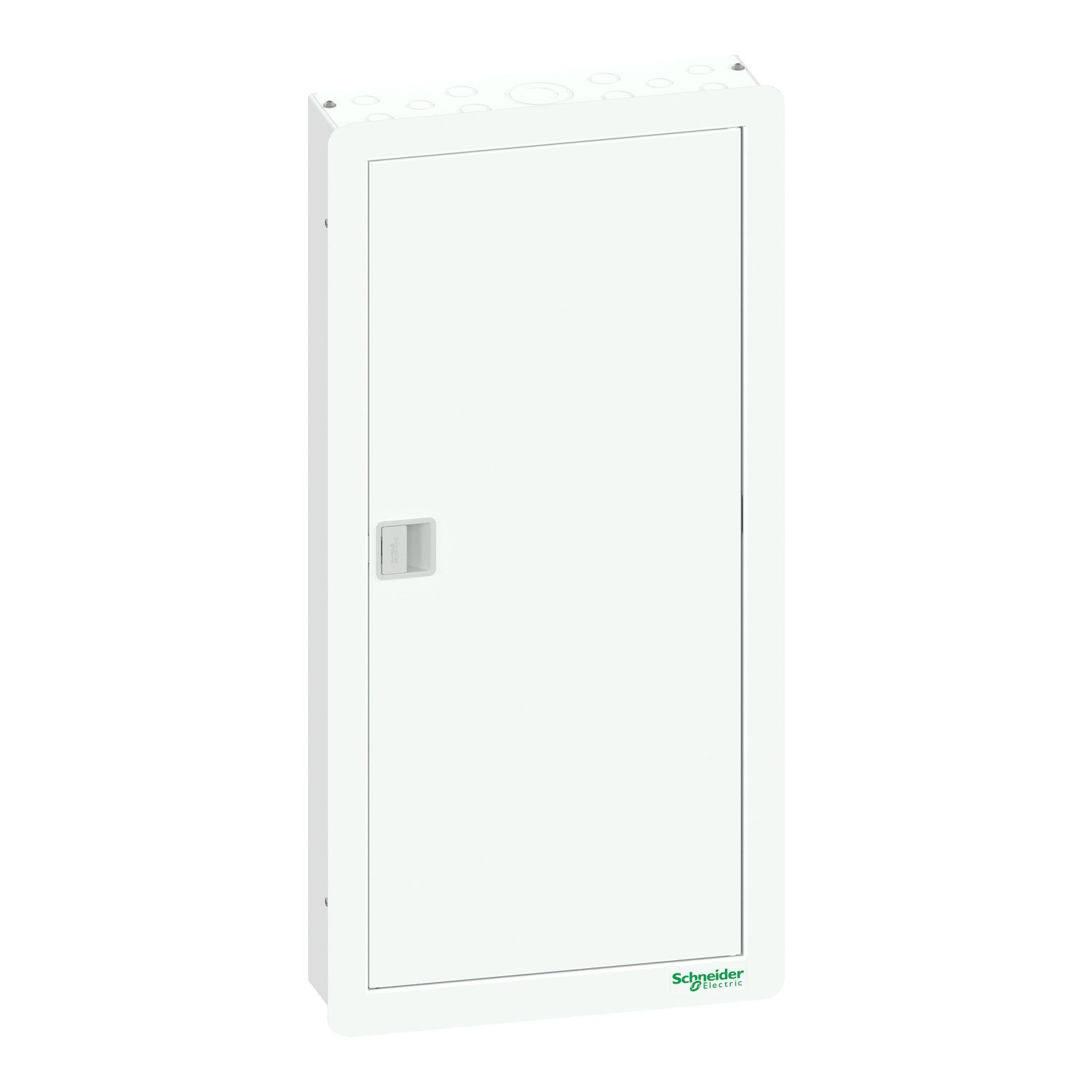

Schneider A9HV348XI125 | Acti 9 Vertical TPN 48way with 3P isolator 125A incomer provision

Technical Specifications

• Distribution Type: Vertical TPN (Three-Phase + Neutral)

• Outgoing Ways: 48

• Main Incomer: 3P 125A isolator (included)

• Rated Operational Voltage: 230/400 V AC

• Frequency: 50/60 Hz

• Maximum Incomer Rating: 125 Amps

• Mounting: Wall-mounted installation

• Enclosure: Galvanized steel, powder-coated

• Enclosure Color: Light grey (RAL 7035)

• Degree of Protection: IP43 (enhanceable with optional kits)

• Cable Entry: Top and bottom cable entry provisions

• Busbar: Fully insulated copper busbars

• Operating Temperature Range: -20°C to +60°C

• Compliance Standards: IEC 61439-3, IEC 60947-3

Key Features

• 48 outgoing ways, offering extensive branching for various load types across multiple areas within a facility.

• Equipped with a 125A 3P isolator as the main incomer, allowing safe manual disconnection of the entire board for maintenance or emergencies.

• Fully compatible with Acti 9 devices including miniature circuit breakers (MCBs), residual current circuit breakers with overcurrent protection (RCBOs), surge protection devices (SPDs), and energy meters.

• Touch-safe design with fully shrouded busbars and phase separation for operator safety and compliance with stringent electrical standards.

• Vertical internal arrangement optimizes wiring space and improves accessibility for device installation and servicing.

• Robust steel construction with powder-coated finish ensures durability and resistance to corrosion in harsh electrical environments.

• Pre-fabricated knockouts for easy cable access from top or bottom sides.

Applications

This distribution board is ideal for centralized power distribution in installations that require numerous protected circuits. Key application sectors include:

• Commercial buildings (shopping centers, office complexes, hotels)

• Industrial and light manufacturing facilities

• Healthcare institutions (hospitals, clinics, labs)

• Educational campuses (universities, technical schools)

• Government and public sector buildings

• Residential towers and gated communities

• Utility and infrastructure projects (stations, airports)
