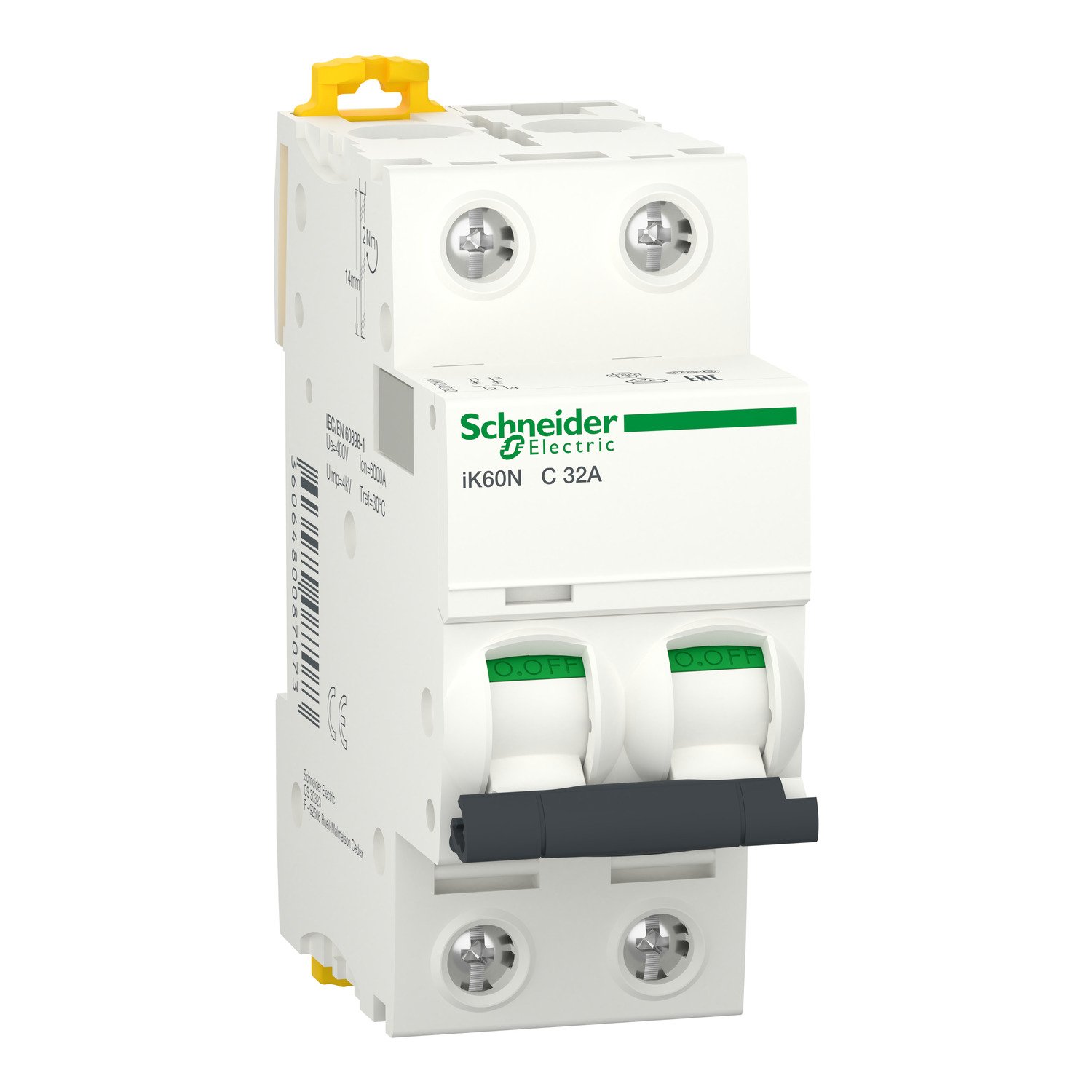

Schneider A9K24232 | Miniature circuit-breaker, Acti9 iK60N, 2P, 32 A, C curve, 6000 A (IEC60898-1)

1. Technical Specifications A9K24232

• Rated Operational Voltage (Ue): Up to 240/415 V AC

• Number of Poles: 2 (double-pole protection for two-phase or single-phase circuits)

• Rated Current (In): 32 Amperes

• Tripping Characteristic: Type C — designed for circuits with moderate inrush currents, such as small motors, lighting, and general-purpose circuits

• Breaking Capacity: 6000 A (according to IEC 60898-1)

• Mounting Method: Standard 35 mm DIN rail

• Degree of Protection: IP20 (IP40 with proper enclosure)

• Insulation Class: Class II (double/reinforced insulation for safety)

• Electrical Endurance: Up to 20,000 load operations

• Mechanical Endurance: Up to 20,000 manual operations

• Operating Temperature Range: -25°C to +70°C

• Compliance Standards: IEC 60898-1

2. Key Features

1. Double-Pole Protection: Provides simultaneous disconnection of two phases or one phase and neutral in dual-phase applications, ensuring full protection and isolation

2. C Curve Tripping Characteristic: Ideal for circuits with moderate inrush currents, typically used for lighting systems, small motors, and household appliances

3. Compact and Efficient Design: Slim and space-saving, making it suitable for crowded distribution boards and panels

4. High Breaking Capacity: Handles up to 6000 A of fault current for reliable protection against electrical faults

5. Simple and Safe Installation: Quick installation with finger-safe terminals and easy-to-mount on a DIN rail

6. Durability: High electrical and mechanical endurance, suitable for long-term use in demanding applications

7. Visual ON/OFF Indicator: Clearly shows the operational status of the breaker for easier monitoring

8. Eco-Friendly: Built with recyclable materials and in compliance with RoHS environmental standards

3. Typical Applications

The A9K24232 miniature circuit breaker is suitable for use in a wide range of residential, commercial, and light industrial applications, particularly those requiring dual-phase or single-phase protection:

• Residential Electrical Installations: Protects circuits such as lighting, sockets, and small appliances

• Small Commercial Installations: Ideal for general-purpose circuits, small offices, and retail outlets

• Motor Circuits and HVAC: Suitable for protecting small motors, HVAC systems, and pumps with moderate inrush current

• Control Panels: Effective for protecting auxiliary control circuits or small machinery

• Data Centers and Communication Rooms: Protection for sensitive low-voltage circuits and equipment

• Educational and Institutional Buildings: For circuits in classrooms, labs, and administrative offices
