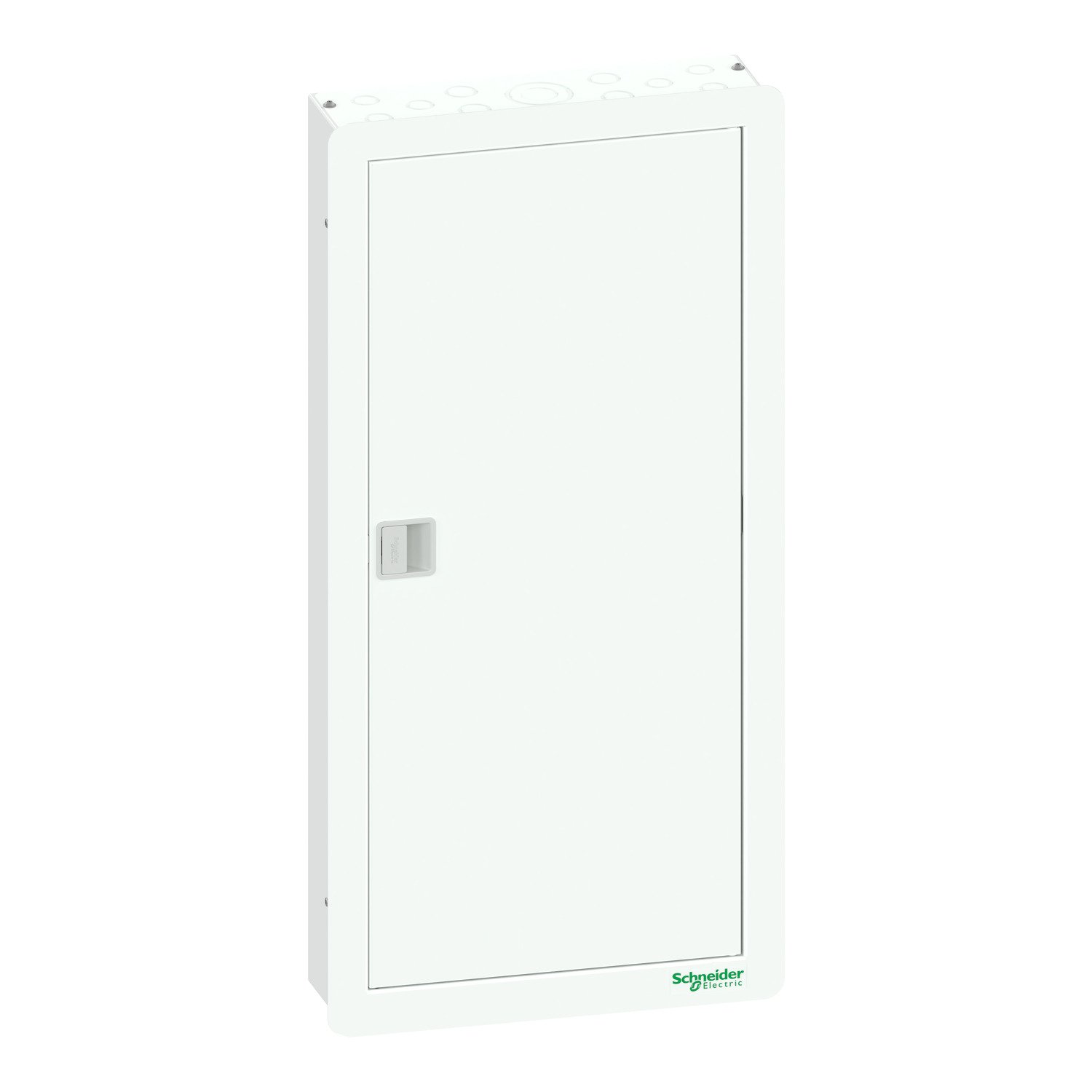

Schneider A9HV354XI125 | Acti 9 Vertical TPN 54way with 3P isolator 125A incomer provision

Technical Specifications A9HV354XI125

• Product Code: A9HV354XI125

• Series: Acti 9

• Type: Vertical TPN (Three-phase + Neutral)

• Number of Outgoing Ways: 54

• Main Incomer Device: 3P 125A Isolator (included)

• Rated Operational Voltage: 230/400 V AC

• Frequency: 50/60 Hz

• Maximum Current Rating: 125 Amps

• Mounting Type: Wall-mounted

• Enclosure Material: Galvanized steel, epoxy powder-coated

• Enclosure Color: Light grey (RAL 7035)

• Protection Degree: IP43 (can be upgraded with accessories)

• Busbar System: Fully insulated copper busbars

• Cable Entry: Top and bottom knockouts provided

• Operating Temperature: -20°C to +60°C

• Standards Compliance: IEC 61439-3 and IEC 60947-3

Key Features

• Includes a 125A, 3-pole isolator for manual disconnection of the power supply to the board, ensuring safe maintenance and servicing.

• 54 outgoing ways allow for the connection of a large number of final circuits, making the board suitable for high-density electrical systems.

• Acti 9 compatibility ensures seamless integration with Schneider protection devices including MCBs, RCBOs, SPDs, and metering modules.

• Enhanced electrical safety with touch-safe design, insulated busbars, and phase separation barriers.

• Spacious vertical layout improves wiring efficiency, accessibility, and overall aesthetics during installation and upgrades.

• Durable steel construction with a corrosion-resistant coating for long service life in demanding environments.

• Flexible cable management with ample space for top and bottom entry and secure cable routing.

Applications

The Schneider A9HV354XI125 is designed for use in electrical systems that require a central point of power distribution with a large number of sub-circuits. Ideal applications include:

• Large commercial buildings and office towers

• Industrial and manufacturing sites

• Hospitals and healthcare centers

• Schools, universities, and training institutes

• Government and public sector facilities

• High-rise residential developments

• Infrastructure and transport facilities (airports, stations, etc.)
