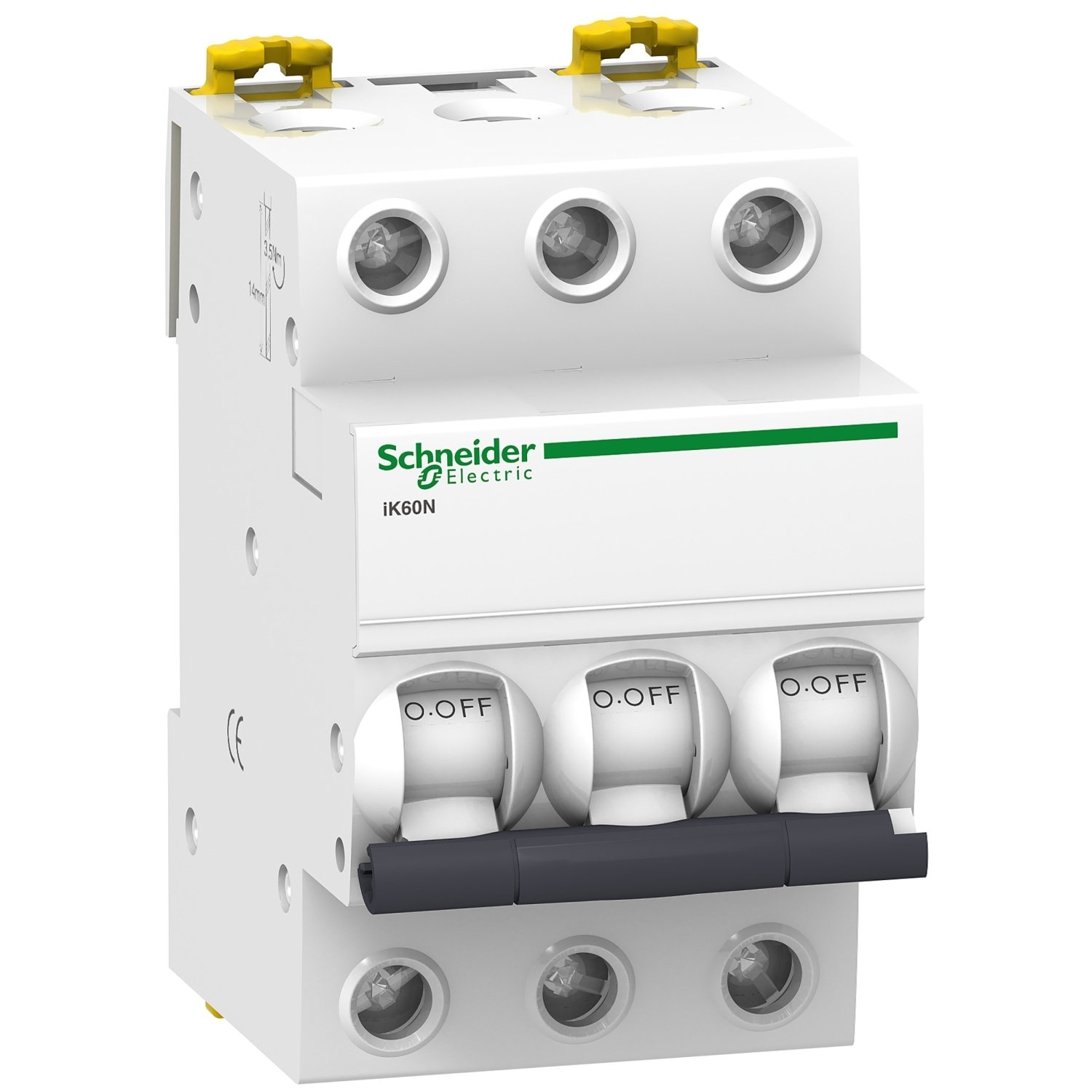

Schneider A9K24363 | Miniature circuit-breaker, Acti9 iK60N, 3P, 63 A, C curve, 6000 A (IEC 60898-1)

Specifications and Features:

1. Type of Breaker:

   • The Miniature Circuit-Breaker (MCB) is designed to protect electrical circuits from overload and short circuits.

2. Model:

   • The breaker belongs to the Acti9 iK60N series.

   • A9K24363 is the specific model number.

3. Number of Poles:

   • 3P indicates the breaker is a three-phase type, providing protection for three-phase circuits.

4. Nominal Current:

   • The breaker has a nominal current rating of 63 Amps, making it suitable for various industrial and commercial applications.

5. Curve Type:

   • C Curve refers to the type of time-current characteristic. The C curve breaker is ideal for protecting circuits with loads that have high inrush currents, like motors.

6. Short-Circuit Breaking Capacity:

   • This breaker is rated to withstand short-circuit currents up to 6000 Amps, ensuring effective protection against dangerous electrical faults.

7. Compliance with Standards:

   • It complies with IEC 60898-1, an international standard for miniature circuit breakers, ensuring reliability and safety in various electrical installations.

Key Features:

1. Safety Control:

   • The breaker provides protection against overload and short circuits, preventing electrical damage to devices and wiring.

2. Ease of Installation:

   • It is designed for easy installation in distribution boards, allowing users to quickly set up and secure the system.

3. Fast Response:

   • Thanks to the C curve, the breaker reacts quickly to sudden changes in current, improving protection efficiency.

4. Compatibility with Modern Systems:

   • This breaker works well in both residential and industrial electrical systems, where efficient protection is critical.

5. Long Lifespan:

   • The breaker is designed for a long operational life, reducing the need for frequent replacements and lowering maintenance costs.

Applications:

1. Industrial Protection:

   • It is widely used in industrial systems to protect circuits from overloads and electrical faults.

2. Renewable Energy Systems:

   • It can be used in solar or wind energy systems, ensuring the safety and performance of renewable energy installations.

3. Household Electrical Appliances:

   • The breaker is also useful for protecting home appliances like washing machines, air conditioners, and more.

4. Electrical Distribution Systems:

   • It is commonly installed in distribution boards to protect the electrical circuits in commercial and residential buildings.

5. Lighting Systems:

   • The breaker can protect lighting circuits in commercial and industrial settings.
