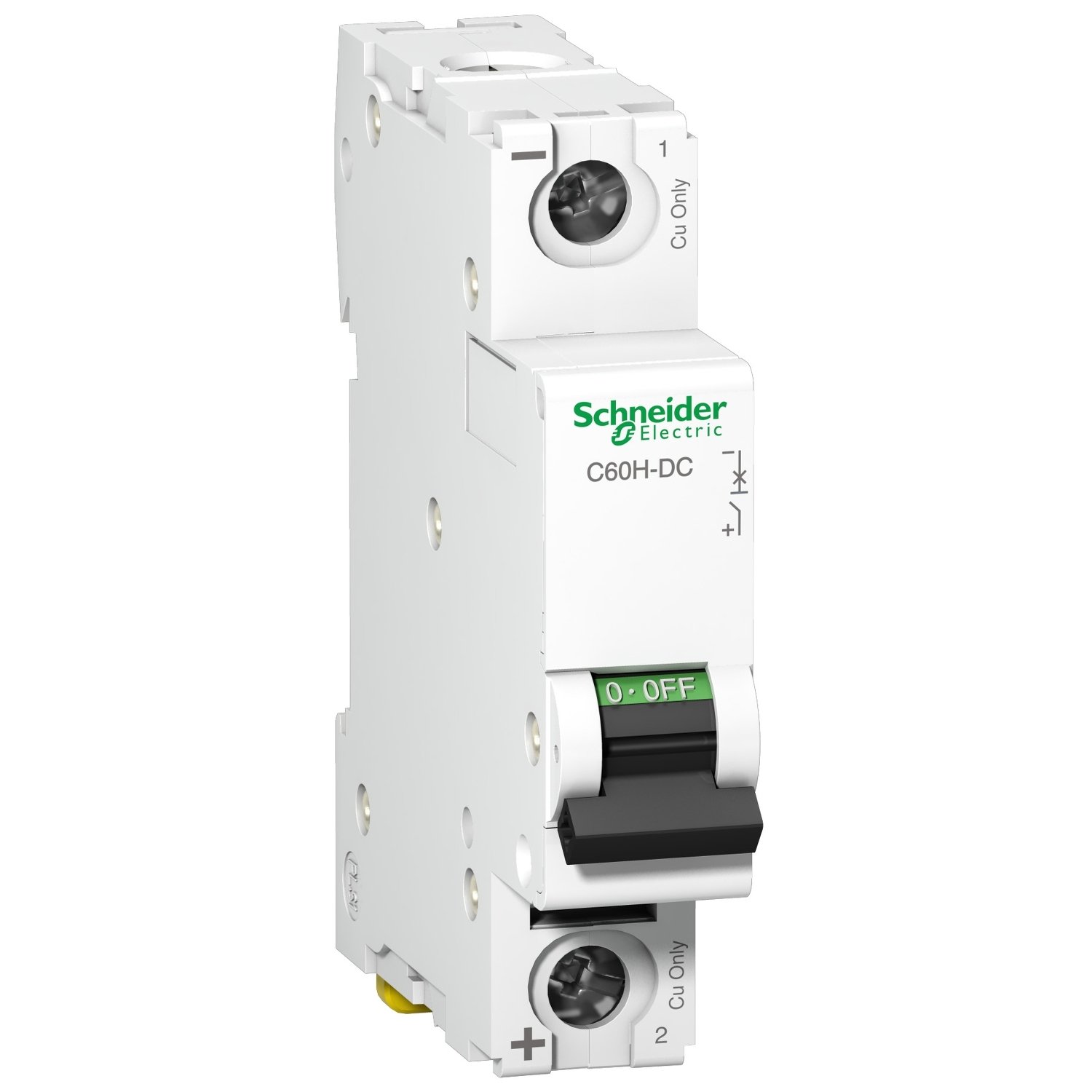

Schneider A9N61511 | miniature circuit breaker – C60H – 1 pole – 16 A – C curve

Technical Specifications:

• Brand: Schneider Electric

• Product Reference: A9N61511

• Series: Acti9 C60H

• Device Type: Miniature Circuit Breaker (MCB)

• Number of Poles: 1 Pole

• Rated Current (In): 16 A

• Tripping Curve: Type C (Trips at 5 to 10 times rated current)

• Rated Voltage: 230/400 V AC

• Frequency: 50/60 Hz

• Breaking Capacity:

  • 6 kA according to IEC/EN 60898-1

  • Compliant also with IEC/EN 60947-2

• Mounting: DIN rail (standard 35 mm rail)

• Connection Type: Screw terminals (top and bottom)

• Mechanical Durability: > 20,000 operations

• Electrical Durability: > 10,000 operations

• Degree of Protection: IP20 (with enclosure)

• Ambient Temperature Range: -25°C to +60°C

• Standards:

  • IEC 60898-1

  • IEC 60947-2

  • EN 61009

Key Features:

• Efficient Protection: Automatically disconnects the circuit in the event of overloads or short circuits to prevent equipment damage and fire hazards.

• C Curve Tripping: Suitable for general-purpose loads with normal inrush currents (such as lighting, heating, and socket circuits).

• Compact Modular Design: Designed for use in compact distribution boards, maximizing space efficiency.

• High Breaking Capacity: Capable of safely interrupting fault currents up to 6 kA.

• Tool-Free Mounting: Quick and easy to install on DIN rails, ideal for panel builders and maintenance professionals.

• Long Lifespan: Offers excellent mechanical and electrical endurance, reducing maintenance needs.

• Safety-Oriented Design: Features insulation and design elements that protect against accidental contact and provide enhanced safety.

Applications:

The Schneider A9N61511 MCB is versatile and can be used in many types of installations and circuits:

1. Residential Applications:

• Protecting individual room circuits in apartments and houses.

• Securing lighting and socket outlets.

• Integration into household distribution boards.

2. Commercial Use:

• Office lighting and plug circuits.

• Protecting commercial HVAC and air-conditioning control circuits.

• Integration into control panels for elevators, signage, and access control systems.

3. Light Industrial Installations:

• Auxiliary equipment protection in factories.

• Backup protection for motor starters and small machinery.

• Monitoring and safeguarding automation control circuits.

4. Public Infrastructure:

• Schools, hospitals, malls, and data centers.

• Emergency lighting circuits.

• Low-power supply to sensitive medical or communication equipment.
