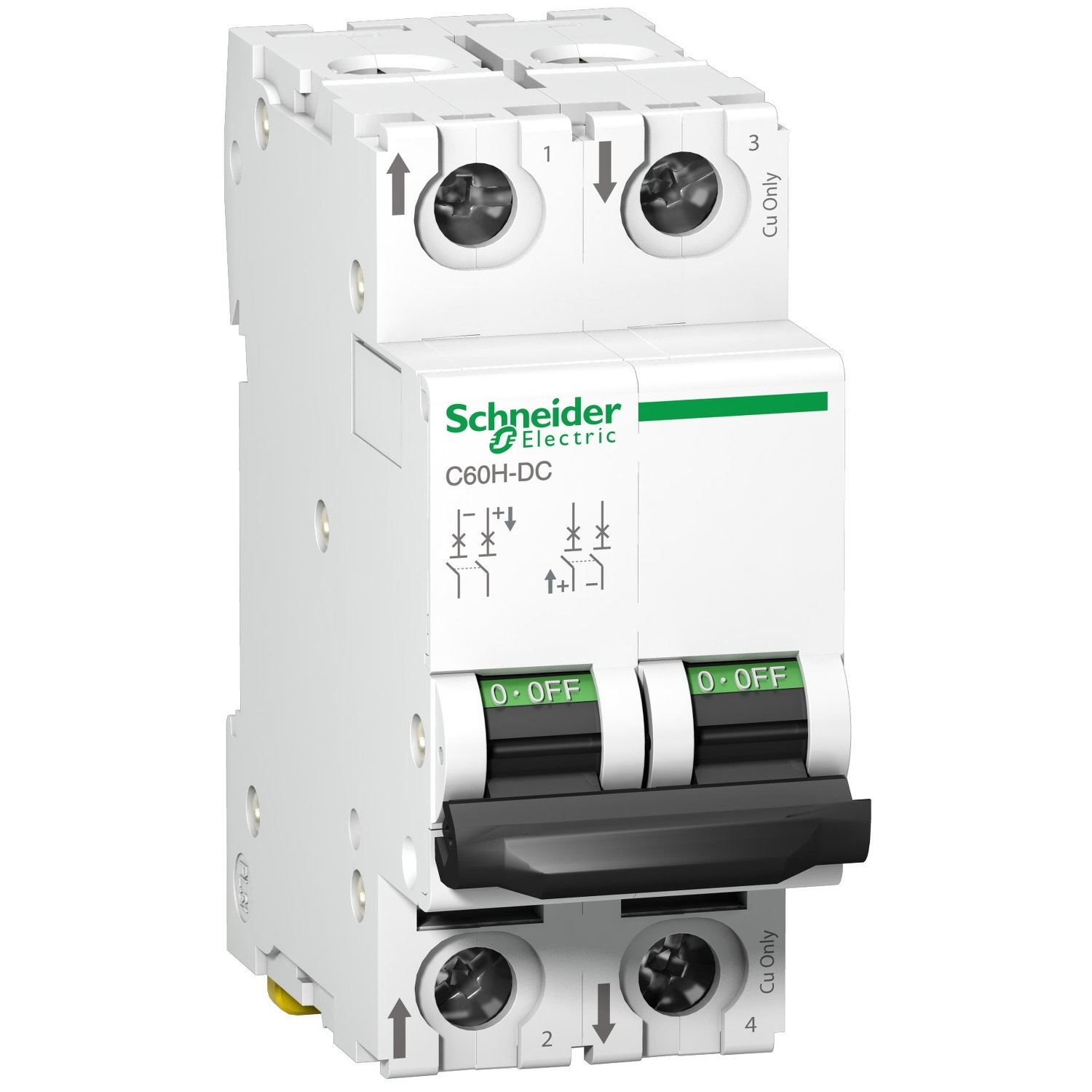

Schneider A9N61533 | miniature circuit breaker – C60H – 2 poles – 25 A – C curve

Technical Specifications A9N61533

• Model: A9N61533

• Product Series: C60H

• Type: Miniature Circuit Breaker (MCB)

• Number of Poles: 2 Poles (2P)

• Rated Current: 25 Amps

• Curve Type: C Curve

• Rated Voltage: 230/400 V AC

• Breaking Capacity: Up to 6 kA (depending on installation conditions)

• Frequency: 50/60 Hz

• Mounting: DIN rail

• Standards Compliance: IEC 60898-1

• Protection Degree: IP20 (with enclosure)

Key Features

1. Overload and Short Circuit Protection: Protects wiring and devices from electrical faults.

2. C-Curve Trip Profile: Ideal for applications with moderate inrush current such as inductive loads (e.g., motors, pumps).

3. Dual Pole Configuration: Provides protection for both phase and neutral or two live conductors.

4. Durable Design: Made using high-quality materials for long service life and reliability.

5. Compact and Space-Saving: Slim design fits easily into standard distribution boards.

6. Manual ON/OFF Control: Allows for easy isolation of circuits for maintenance or emergency.

7. Visible Trip Indicator: Provides clear status of the breaker (ON, OFF, or TRIPPED).

8. High Breaking Capacity: Safely interrupts high fault currents without damage.

Applications

• Residential: Protection of high-load household appliances like water heaters, air conditioners, and electric ovens.

• Commercial: Used in small commercial buildings for lighting, HVAC systems, and power outlets.

• Industrial: Suitable for machinery, motors, and workshop tools with moderate startup currents.

• Sub-panels: Often used in distribution boards to protect sub-circuits.

• UPS and Generator Outputs: Ideal for protecting circuits powered by backup systems.
