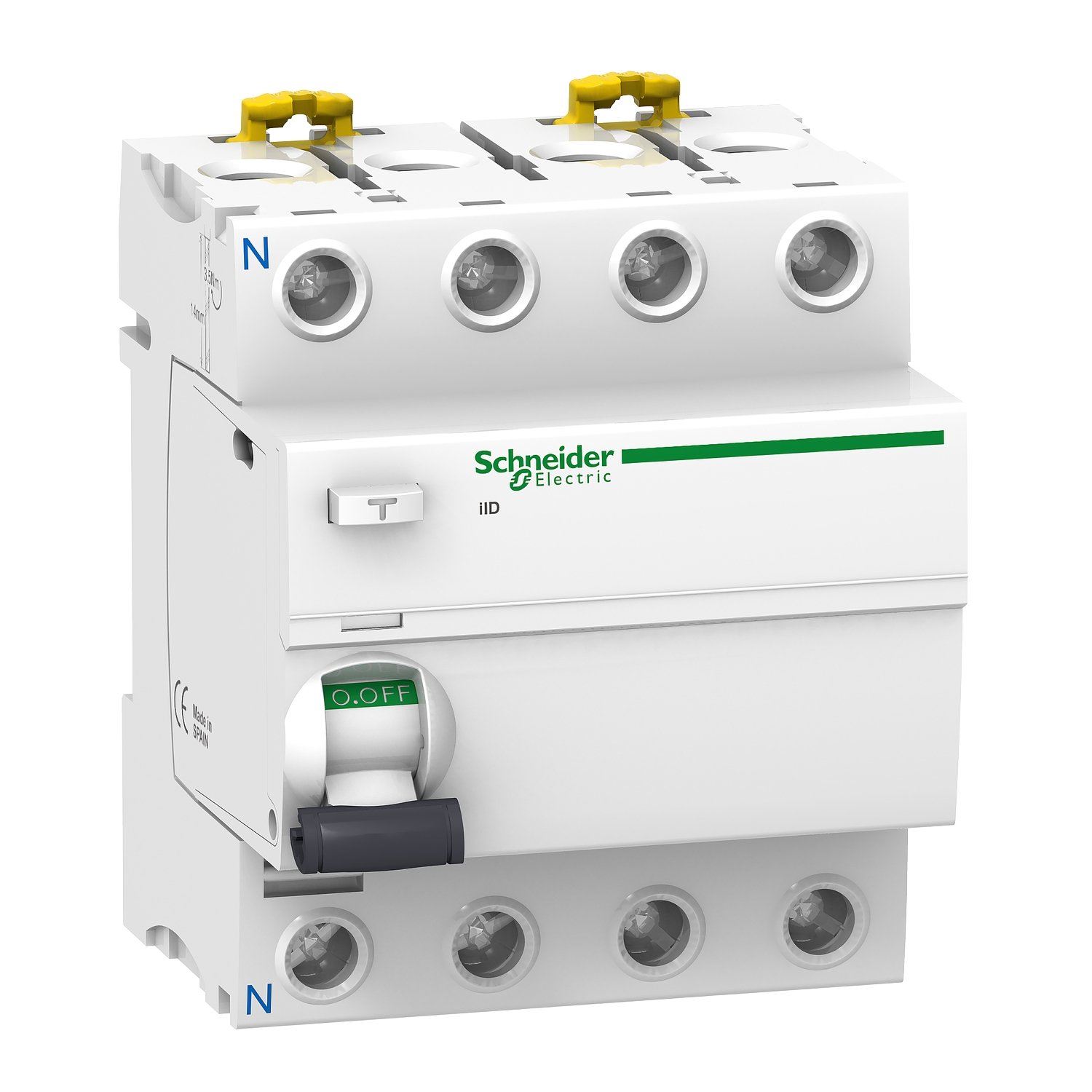

Schneider A9R44425 | Acti 9 iID – RCCB – 4P – 25A – 300mA – type AC

Technical Specifications A9R44425

• Product Code: A9R44425

• Product Range: Acti 9 iID

• Device Type: Residual Current Circuit Breaker (RCCB)

• Number of Poles: 4 (Three-phase + Neutral)

• Rated Current (In): 25 A

• Rated Residual Operating Current (IΔn): 300 mA

• Type: Type AC (detects sinusoidal alternating residual currents)

• Rated Voltage: 400V AC (for three-phase systems)

• Rated Frequency: 50/60 Hz

• Tripping Characteristic: Instantaneous

• Mounting Type: DIN rail

• Degree of Protection: IP20 (protection against accidental contact)

• Standards Compliance: IEC 61008-1

• Test Button: Yes (for manual testing)

• Mechanical Durability: > 5000 operations

• Electrical Durability: > 2000 operations at rated load

Key Features

• 25A Rated Current: Suitable for low-power circuits that require protection against earth leakage currents.

• 300mA Sensitivity: Designed for fire protection, it detects larger residual currents that may not present an immediate shock risk but could lead to overheating or fire in electrical systems.

• Type AC Detection: Capable of detecting sinusoidal AC leakage currents, making it suitable for typical residential and commercial installations.

• 4-Pole Protection: Provides complete protection for all conductors in three-phase systems, ensuring that all phases and neutral are disconnected in the event of a fault.

• Instantaneous Tripping: The RCCB reacts immediately when the leakage current exceeds the rated threshold, minimizing the risk of damage or fire.

• Test Button: Allows easy testing of the RCCB to verify its operation, ensuring the system remains safe and functional.

• DIN Rail Mounting: Designed for easy integration into electrical distribution panels, saving space and simplifying installation.

• Compliance with IEC Standards: Conforms to IEC 61008-1, ensuring global safety and performance standards.

Applications

The A9R44425 RCCB is intended for use in applications where fire protection is a primary concern due to earth leakage currents, especially in three-phase systems. It is suitable for:

Industrial Installations

• Protects circuits in factories, manufacturing plants, and other industrial facilities that use three-phase electrical systems.

Commercial Buildings

• Provides protection for electrical circuits in offices, shops, and warehouses, where extended leakage currents could present fire risks, especially in older or poorly maintained systems.

Residential Applications (Three-Phase Systems)

• Suitable for large residential complexes or buildings with three-phase power systems, offering protection against potential fire risks due to earth leakage currents.

Electrical Distribution Panels

• Ideal for installation in distribution boards or control panels, offering protection to circuits in larger or more complex electrical installations.
