Altistart 22

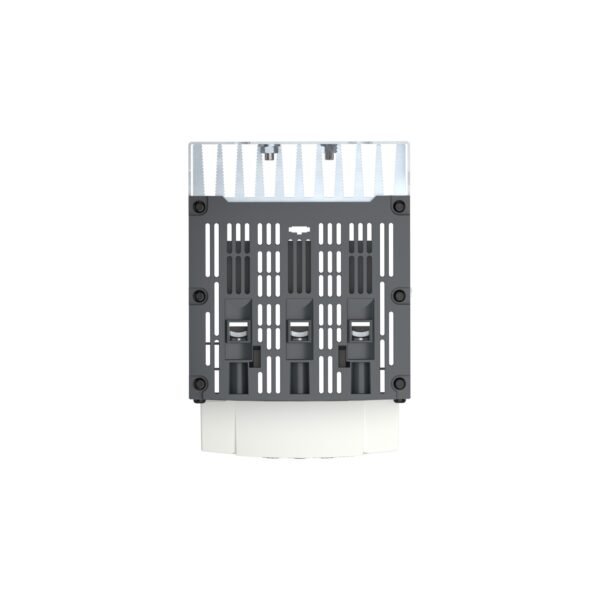

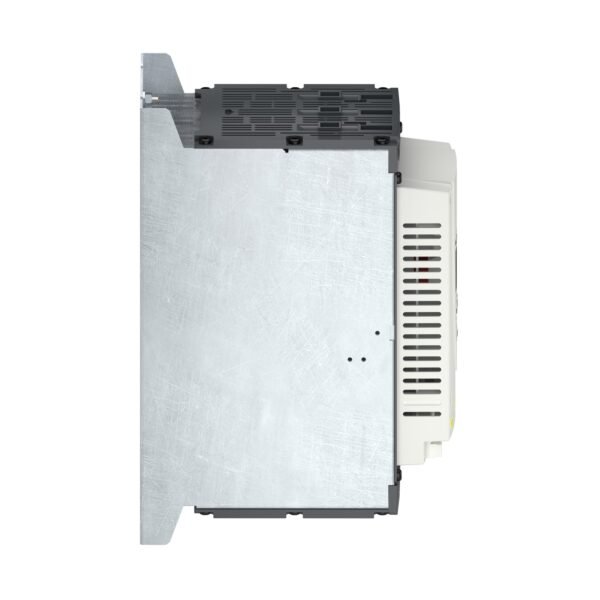

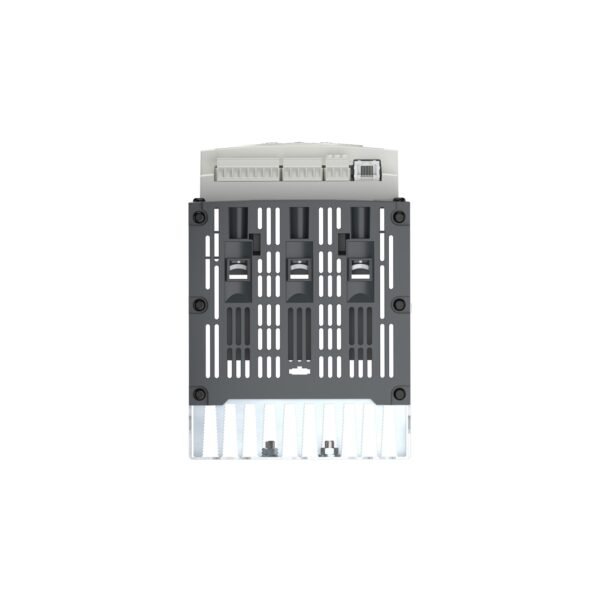

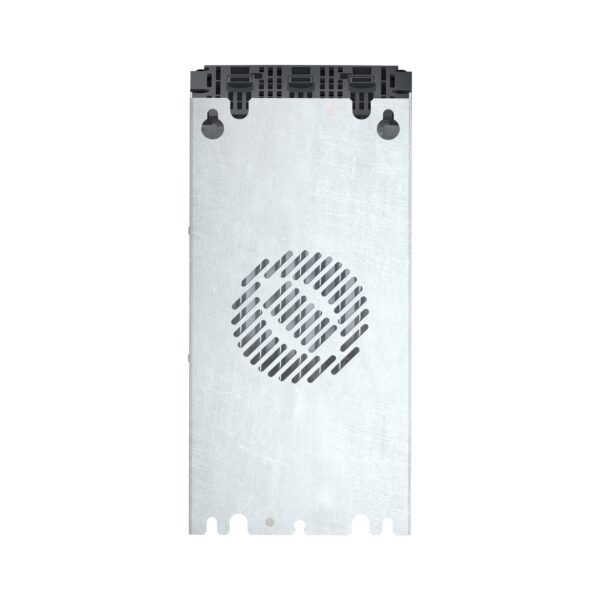

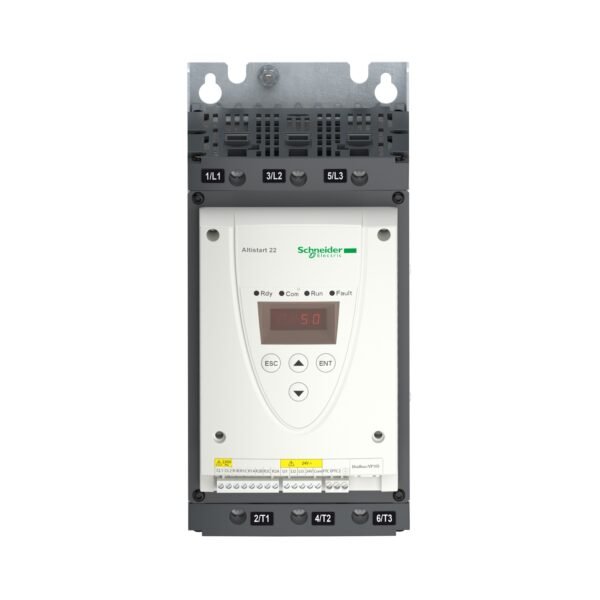

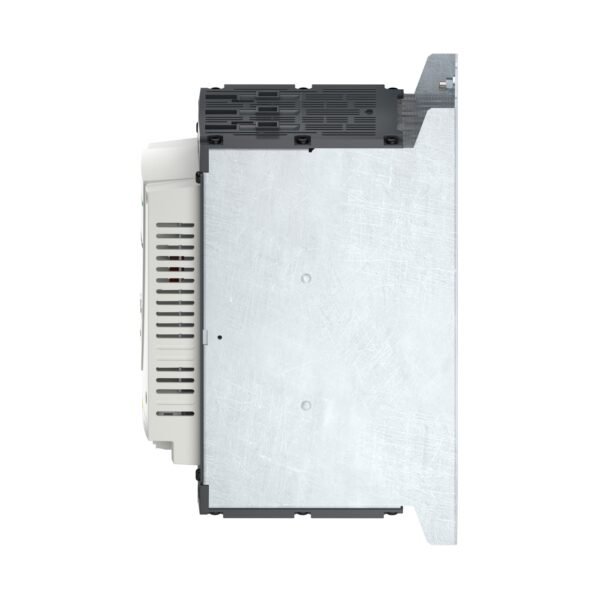

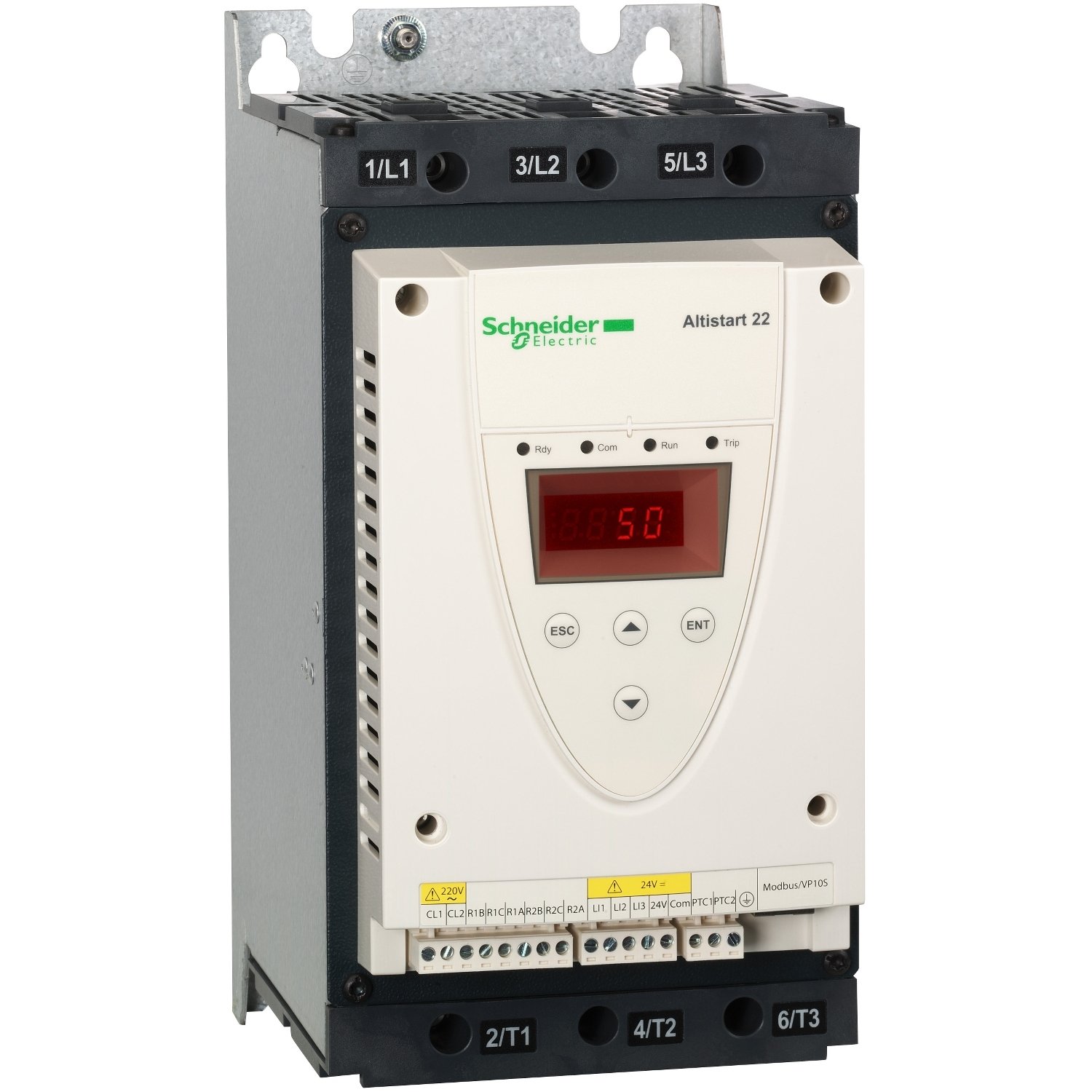

Schneider ATS22D75Q | Soft starter for asynchronous motor, Altistart 22, control 230V, 230 to 440V, 18.5 to 37kW

Compare

Product Code:

ATS22D75Q

Tags:

18.5 to 37kW, 230 to 440V, Altistart 22, control 230V, Soft starter for asynchronous motor

Brand: Schneider Electric

Schneider ATS22D75Q| Soft starter for asynchronous motor, Altistart 22, control 230V, 230 to 440V, 18.5 to 37kW

Name: Schneider ATS22D75Q | Soft starter for asynchronous motor, Altistart 22, control 230V, 230 to 440V, 18.5 to 37kW
Brand: Schneider Electric
SKU: ATS22D75Q
Availability: OutOfStock

Schneider ATS22D75Q | Soft Starter Overview

The Schneider ATS22D75Q is a soft starter from the Altistart 22 series, designed to provide smooth and controlled startup for asynchronous motors. It helps reduce mechanical and electrical stress, ensuring longer motor life and improved efficiency.

1. General Specifications

Product Name: Schneider ATS22D75Q
Series: Altistart 22
Function: Soft Starter for Asynchronous Motors
Power Rating: 18.5 to 37kW
Operating Voltage: 230V to 440V AC
Control Supply Voltage: 230V AC
Application: Industrial motor control for pumps, conveyors, fans, and compressors

2. Key Features & Benefits

Smooth Motor Start & Stop – Reduces mechanical shocks and electrical surges.
Wide Power Range – Supports motors from 18.5kW to 37kW for various applications.
Advanced Motor Protection – Includes overload, overtemperature, and short-circuit protection.
Energy Efficiency – Minimizes power consumption during startup.
User-Friendly Interface – Digital display with programmable settings.
Compact & Space-Saving Design – Suitable for industrial control panels.

3. Applications

Pumps & Compressors – Prevents hydraulic surges and extends motor lifespan.
HVAC Systems & Fans – Ensures stable operation without electrical spikes.
Conveyors & Material Handling – Provides smooth acceleration and prevents jerky movements.
Industrial Machines & Crushers – Supports high-load operations.
Water Treatment Plants – Controls water pumps efficiently.

4. Protection & Safety Features

Overload Protection – Prevents excessive current draw.
Short Circuit Protection – Enhances safety and prevents damage.
Overtemperature Protection – Maintains safe operating conditions.
Phase Loss & Imbalance Detection – Ensures reliable motor operation.
Built-in Bypass Contactors – Improves efficiency and reduces power dissipation.

5. Installation & Maintenance

Simple Installation & Wiring – Designed for quick integration.
Real-Time Monitoring & Diagnostics – Enables fault detection.
Durable & Robust Design – Suitable for industrial environments.

brands	Schneider Electric

Main
Range of product	Altistart 22
Product or component type	Soft starter
Product destination	Asynchronous motors
Product specific application	Pumps and fans
Component name	ATS22
Network number of phases	3 phases
[Us] rated supply voltage	230...440 V - 15...10 %
Motor power kW	37 kW 400 V 37 kW 440 V 18.5 kW 230 V
Factory setting current	69 A
Power dissipation in W	63 W for standard applications
Utilisation category	AC-53A
Type of start	Start with torque control (current limited to 3.5 In)
IcL starter rating	75 A for connection in the motor supply line for standard applications
IP degree of protection	IP20

Complementary
Assembly style	With heat sink
Function available	Internal bypass
Supply voltage limits	195…484 V
Supply frequency	50...60 Hz - 10...10 %
Network frequency	45...66 Hz
Device connection	In the motor supply line To the motor delta terminals
[Uc] control circuit voltage	230 V - 15...10 % 50/60 Hz
Control circuit consumption	20 W
Discrete output number	2
Discrete output type	Relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O Relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
Minimum switching current	100 mA at 12 V DC (relay outputs)
Maximum switching current	5 A 250 V AC resistive 1 relay outputs 5 A 30 V DC resistive 1 relay outputs 2 A 250 V AC inductive 0.4 20 ms relay outputs 2 A 30 V DC inductive 7 ms relay outputs
Discrete input number	3
Discrete input type	(LI1, LI2, LI3) logic, 5 mA 4.3 kOhm
Discrete input voltage	24 V <= 30 V
Discrete input logic	Positive logic LI1, LI2, LI3 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA
Output current	0.4...1 Icl adjustable
PTC probe input	750 Ohm
Communication port protocol	Modbus
Connector type	1 RJ45
Communication data link	Serial
Physical interface	RS485 multidrop
Transmission rate	4800, 9600 or 19200 bps
Installed device	31
Protection type	Phase failure: line Thermal protection: motor Thermal protection: starter
Marking	CE
type of cooling	Forced convection
Operating position	Vertical +/- 10 degree
Height	295 mm
Width	145 mm
Depth	207 mm
Net weight	12 kg
Motor power range AC-3	15…25 kW at 200…240 V 3 phases 30…50 kW at 380…440 V 3 phases
Motor starter type	Soft starter

Environment
Electromagnetic compatibility	Conducted and radiated emissions level A conforming to IEC 60947-4-2 Damped oscillating waves level 3 conforming to IEC 61000-4-12 Electrostatic discharge level 3 conforming to IEC 61000-4-2 Immunity to electrical transients level 4 conforming to IEC 61000-4-4 Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3 Voltage/current impulse level 3 conforming to IEC 61000-4-5
Standards	IEC 60947-4-2
Product certifications	CSA UL GOST CCC C-Tick
Vibration resistance	1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6 1.5 mm (f= 2…13 Hz) conforming to IEC 60068-2-6
Shock resistance	15 gn for 11 ms conforming to IEC 60068-2-27
Noise level	45 dB
Pollution degree	Level 2 conforming to IEC 60664-1
Relative humidity	0…95 % without condensation or dripping water conforming to IEC 60068-2-3
Ambient air temperature for operation	-10…40 °C (without derating) 40…60 °C (with current derating 2.2 % per °C)
Ambient air temperature for storage	-25…70 °C
Operating altitude	<= 1000 m without derating > 1000...< 2000 m with current derating of 2.2 % per additional 100 m

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	31.0 cm
Package 1 Width	23.5 cm
Package 1 Length	36.0 cm
Package 1 Weight	8.221 kg
Unit Type of Package 2	P06
Number of Units in Package 2	6
Package 2 Height	73.5 cm
Package 2 Width	80.0 cm
Package 2 Length	60.0 cm
Package 2 Weight	63.136 kg

Contractual warranty
Warranty	18 months
