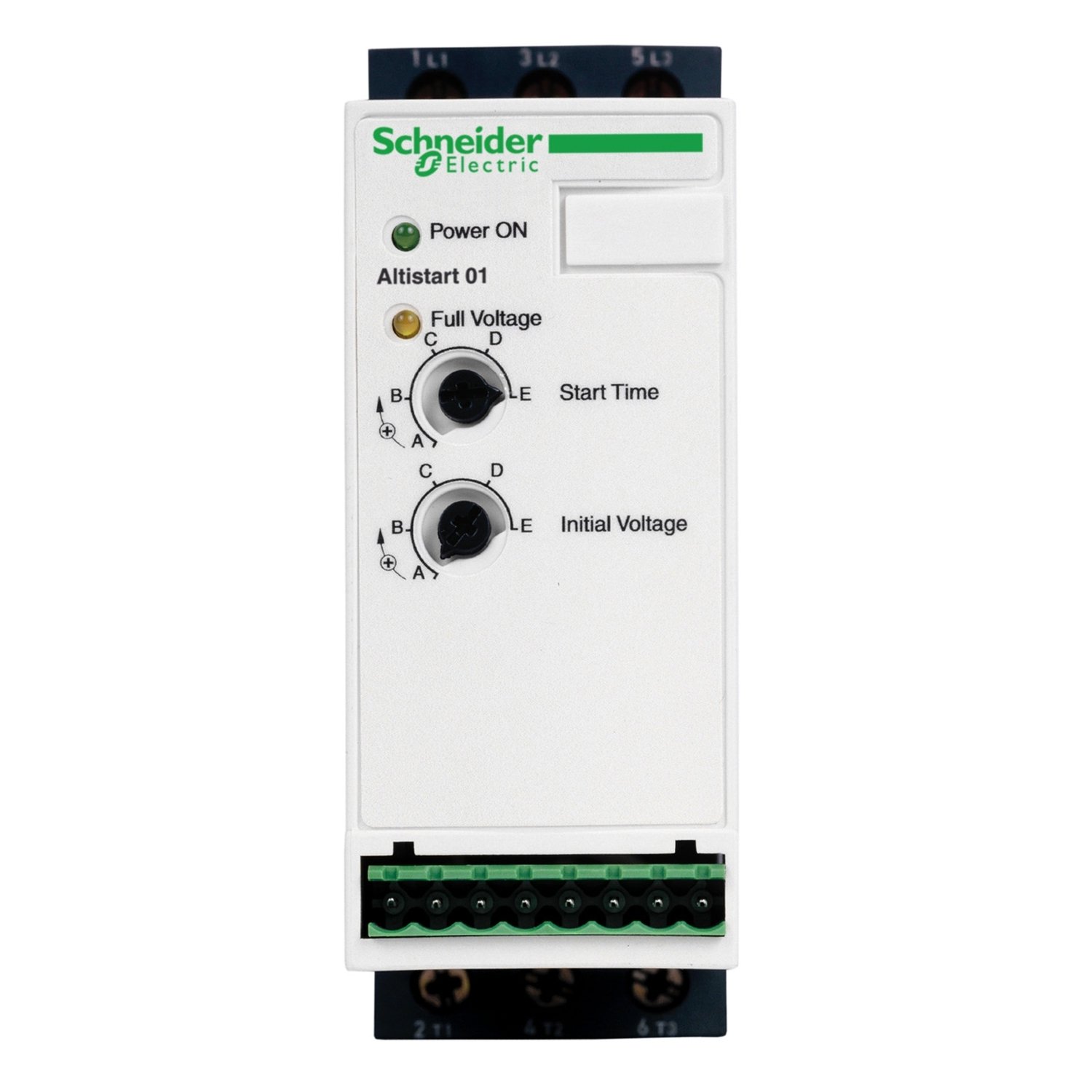

Schneider ATS01N112FT | Soft Starter Overview

The Schneider ATS01N112FT is a soft starter from the Altistart 01 series, designed for small to medium-sized asynchronous motors. It provides a smooth startup and stopping process, reducing mechanical stress and enhancing motor lifespan.

1. General Specifications

Product Name: Schneider ATS01N112FT
Series: Altistart 01 (ATS01)
Type: Soft Starter for Asynchronous Motors
Rated Current: 12A
Power Rating: 1.5 to 5.5 kW
Operating Voltage: 110V to 480V AC
Control Type: Voltage Ramp Control
Motor Compatibility: Three-phase asynchronous motors

2. Key Features & Benefits

Smooth Motor Start & Stop – Prevents sudden mechanical shocks and extends motor life.
Compact & Space-Saving Design – Ideal for small control panels and machines.
Energy Efficiency – Reduces power surges and mechanical wear.
Integrated Motor Protection – Guards against overloads and overheating.
Quick & Easy Installation – Simple wiring and setup process.

3. Applications

🔹 Pumps & Compressors – Minimizes water hammer and pressure surges.
🔹 Fans & Blowers – Provides gradual acceleration for smoother airflow.
🔹 Conveyors & Belt Systems – Ensures controlled movement and reduced wear.
🔹 Small Industrial Machines – Suitable for automation and manufacturing processes.

4. Protection & Safety Features

Overload & Overtemperature Protection – Ensures motor safety.
Phase Loss Detection – Protects against phase imbalances.
Voltage Ramp Control – Allows stable motor startup.
Built-in Fault Diagnostics – Simplifies troubleshooting and maintenance.

5. Installation & Maintenance

DIN Rail or Panel Mounting – Flexible installation options.
Quick & Easy Wiring – Reduces setup time.
Minimal Maintenance – Reliable and durable for long-term use.

brands	Schneider Electric

Main
Range of product	Altistart 01
Product or component type	Soft starter
Product destination	Asynchronous motors
Product specific application	Simple machine
Device short name	ATS01
Network number of phases	1 phase
[Us] rated supply voltage	110...480 V - 10...10 %
Motor power kW	2.2 kW, 3 phases at 230 V 5.5 kW, 3 phases at 400 V 1.5 kW, 1 phase at 230 V
Motor power hp	3 hp, 3 phases at 230 V 1.5 hp, 3 phases at 210 V 7.5 hp, 3 phases at 460 V
IcL starter rating	12 A
Utilisation category	AC-53B conforming to EN/IEC 60947-4-2
Current consumption	60 A at nominal load
Type of start	Start with voltage ramp
Power dissipation in W	1 W at full load and at end of starting 61 W in transient state

Complementary
Assembly style	With heat sink
Function available	Integrated bypass
Supply voltage limits	99…528 V
Supply frequency	50...60 Hz - 5...5 %
Network frequency	47.5...63 Hz
Output voltage	<= power supply voltage
[Uc] control circuit voltage	110 V AC +/- 10 % at 35 mA 24 V AC/DC +/- 10 % at 30 mA 240 V AC +/- 10 % at 80 mA
Starting time	1 s / 100 5 s / 20 Adjustable from 1 to 5 s
Starting torque	30...80 % of starting torque of motor connected directly on the line supply
Discrete output current	2 A DC-13 3 A AC-15
Tightening torque	1.9…2.5 N.m 0.5 N.m
Electrical connection	4 mm screw clamp terminal - rigid 1 1...10 mm² AWG 8 power circuit Screw connector - rigid without cable end 1 0.5...2.5 mm² AWG 14 control circuit 4 mm screw clamp terminal - rigid 2 1...6 mm² AWG 10 power circuit Screw connector - rigid 2 0.5...1 mm² AWG 17 control circuit Screw connector - flexible with cable end 1 0.5...1.5 mm² AWG 16 control circuit 4 mm screw clamp terminal - flexible without cable end 1 1.5...10 mm² AWG 8 power circuit Screw connector - flexible without cable end 1 0.5...2.5 mm² AWG 14 control circuit 4 mm screw clamp terminal - flexible with cable end 2 1...6 mm² AWG 10 power circuit 4 mm screw clamp terminal - flexible without cable end 2 1.5...6 mm² AWG 10 power circuit Screw connector - flexible without cable end 2 0.5...1.5 mm² AWG 16 control circuit
Marking	CE
Operating position	Vertical +/- 10 degree
Height	124 mm
Width	45 mm
Depth	131 mm
Net weight	0.28 kg
Compatibility code	ATS01N1
Motor power range AC-3	1.1…2 kW at 200…240 V 1 phase 2.2…3 kW at 200…240 V 3 phases 4…6 kW at 380…440 V 3 phases
Motor starter type	Soft starter

Environment
Electromagnetic compatibility	Conducted and radiated emissions level B conforming to CISPR 11 Conducted and radiated emissions level B conforming to IEC 60947-4-2 Damped oscillating waves level 3 conforming to IEC 61000-4-12 Electrostatic discharge level 3 conforming to IEC 61000-4-2 EMC immunity level 3 conforming to EN 50082-1 EMC immunity level B conforming to EN 50082-2 Harmonics level 3 conforming to IEC 1000-3-2 Harmonics level 3 conforming to IEC 1000-3-4 Immunity to conducted interference caused by radio-electrical fields level 3 conforming to IEC 61000-4-6 Immunity to electrical transients level 4 conforming to IEC 61000-4-4 Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3 Micro-cuts and voltage fluctuation conforming to IEC 61000-4-11 Voltage/current impulse level 3 conforming to IEC 61000-4-5
Standards	EN/IEC 60947-4-2
Product certifications	C-Tick CCC UL CSA GOST
IP degree of protection	IP20
Pollution degree	2 conforming to EN/IEC 60947-4-2
Vibration resistance	1 gn (f= 13…150 Hz) conforming to EN/IEC 60068-2-6 1.5 mm peak to peak (f= 3…13 Hz) conforming to EN/IEC 60068-2-6
Shock resistance	15 gn for 11 ms conforming to EN/IEC 60068-2-27
Relative humidity	5…95 % without condensation or dripping water conforming to EN/IEC 60068-2-3
Ambient air temperature for operation	-10…40 °C (without derating) 40…50 °C (with current derating of 2 % per °C)
Ambient air temperature for storage	-25…70 °C conforming to EN/IEC 60947-4-2
Operating altitude	<= 1000 m without derating > 1000 m with current derating of 2.2 % per additional 100 m

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	5.200 cm
Package 1 Width	15.500 cm
Package 1 Length	17.500 cm
Package 1 Weight	343.000 g
Unit Type of Package 2	S03
Number of Units in Package 2	14
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	5.353 kg
Unit Type of Package 3	P06
Number of Units in Package 3	112
Package 3 Height	75.000 cm
Package 3 Width	60.000 cm
Package 3 Length	80.000 cm
Package 3 Weight	53.940 kg

Contractual warranty
Warranty	18 months

Main documents

Datasheet	Download Datasheet
Product datasheet	ATS01N112FT
Instruction sheet	Download
Catalog	Download
Technical Drawing	Download
CAD Files	Download

Datasheet	Download Datasheet
Product datasheet	ATS01N112FT
Instruction sheet	Download
Catalog	Download
Technical Drawing	Download
CAD Files	Download
