Schneider ATS22D47Q | Soft starter for asynchronous motor, Altistart 22, control 230V, 230 to 440V, 11 to 22kW

Name: Schneider ATS22D47Q | Soft starter for asynchronous motor, Altistart 22, control 230V, 230 to 440V, 11 to 22kW
Brand: Schneider Electric
SKU: ATS22D47Q
Availability: InStock

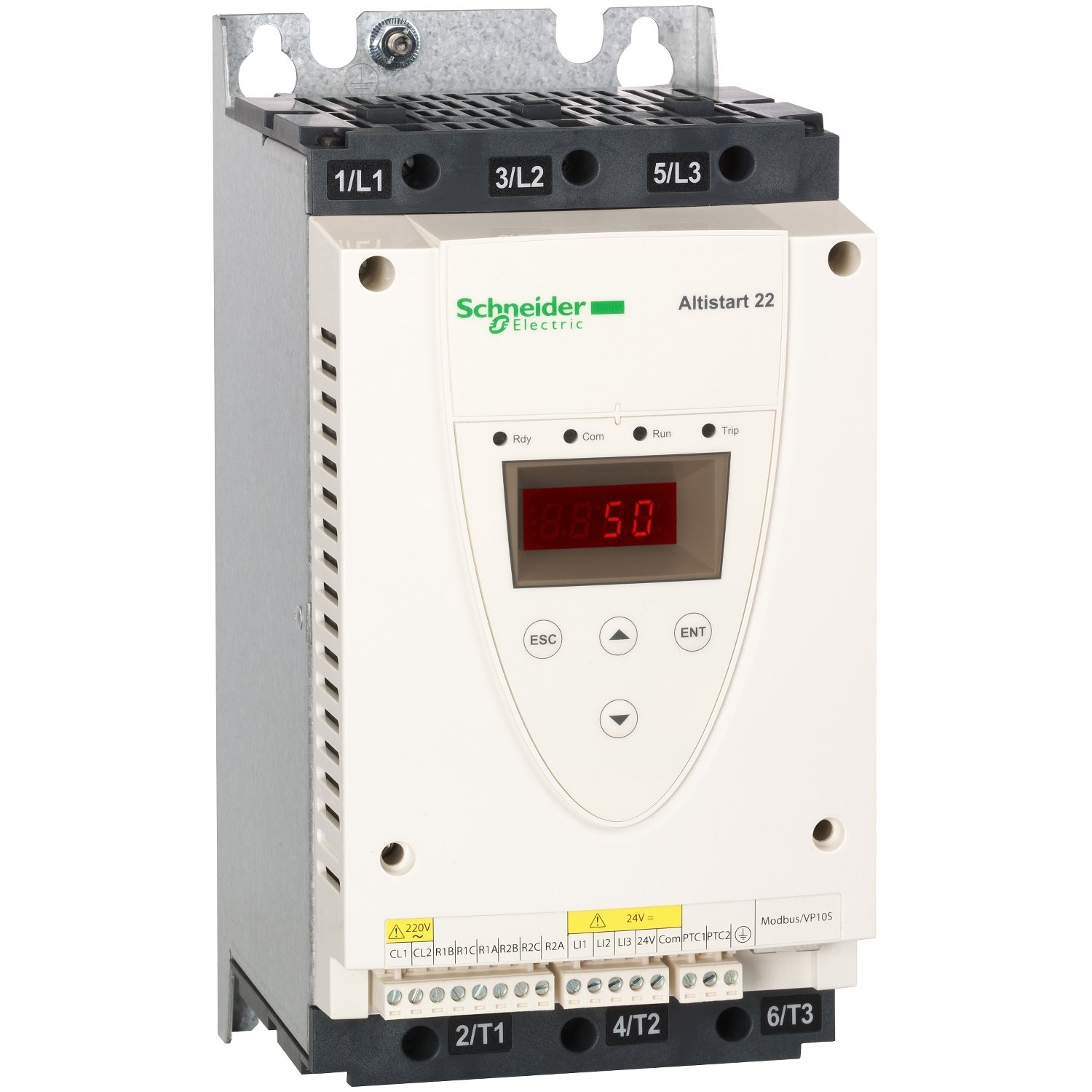

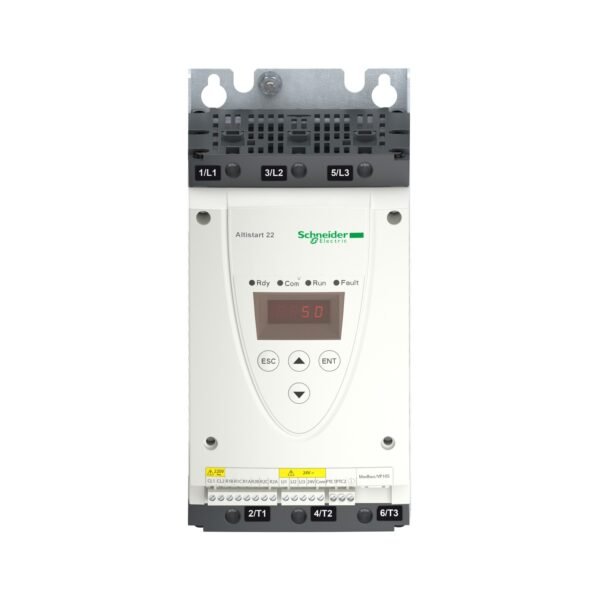

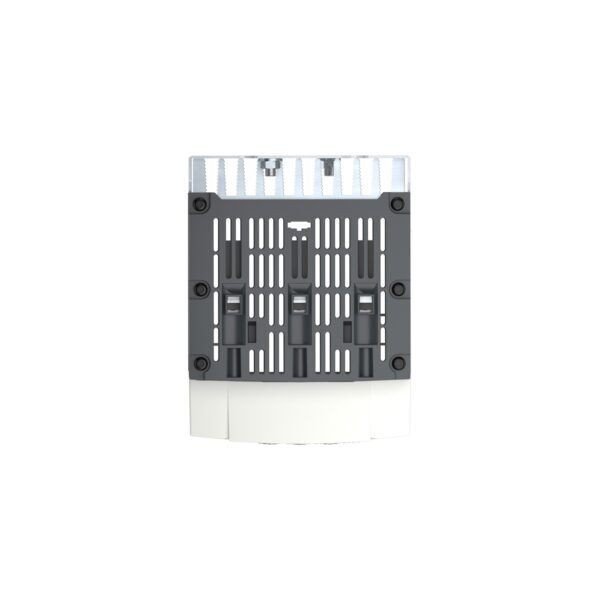

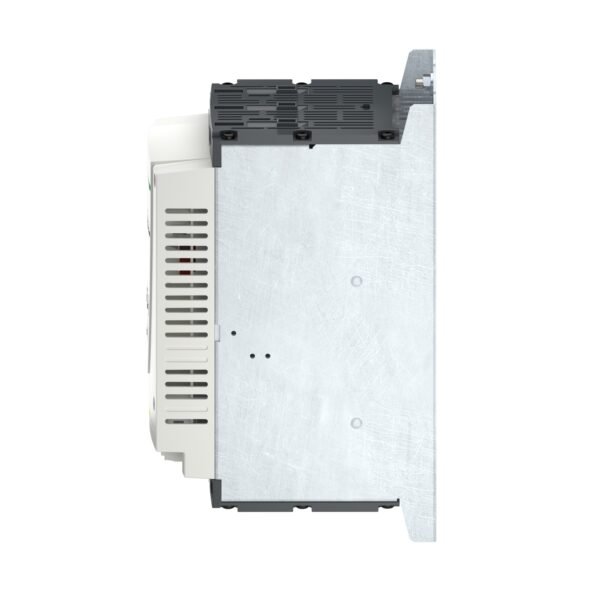

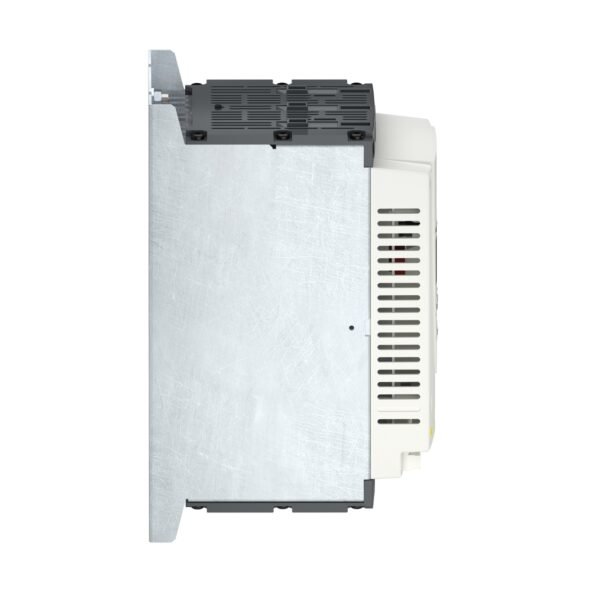

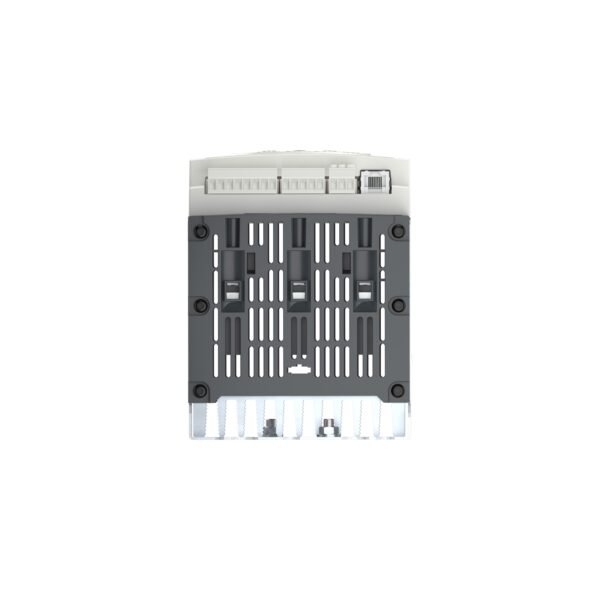

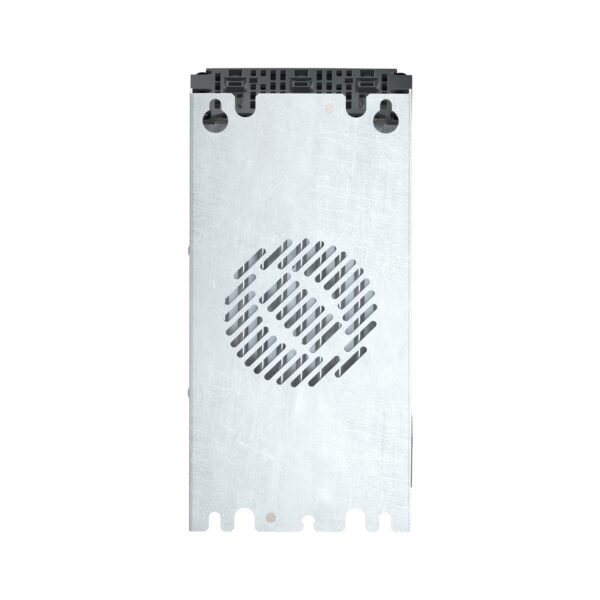

Schneider ATS22D47Q | Soft Starter Overview

The Schneider ATS22D47Q is a soft starter from the Altistart 22 series, designed to enable smooth and controlled startup of asynchronous motors. It helps minimize electrical and mechanical stress, extending motor life while improving operational efficiency.

1. General Specifications

Product Name: Schneider ATS22D47Q
Series: Altistart 22
Function: Soft Starter for Asynchronous Motors
Power Rating: 11 to 22kW
Operating Voltage: 230V to 440V AC
Control Supply Voltage: 230V AC
Application: Industrial motor control for pumps, fans, conveyors, and compressors

2. Key Features & Benefits

Soft Start & Stop – Reduces inrush current and mechanical stress.
Motor Protection Functions – Includes overload, overtemperature, and phase imbalance protection.
Compact & Space-Saving Design – Fits easily into control panels.
Energy-Efficient Operation – Reduces power consumption during startup.
Integrated Bypass Contactors – Enhances efficiency and reduces heat dissipation.
User-Friendly Interface – Provides digital control and monitoring.

3. Applications

Pumps & Compressors – Prevents water hammer and pressure surges.
Fans & HVAC Systems – Ensures smooth acceleration and deceleration.
Conveyors & Material Handling – Provides controlled motor ramp-up.
Industrial Machinery – Suitable for high-load applications.
Water Treatment Systems – Optimizes motor performance.

4. Protection & Safety Features

Overload Protection – Prevents excessive current draw.
Overtemperature Protection – Avoids overheating issues.
Short Circuit & Phase Imbalance Detection – Enhances motor safety.
Automatic Fault Diagnostics – Facilitates troubleshooting and maintenance.

5. Installation & Maintenance

Quick & Easy Installation – Simplified wiring and integration.
Built-in Monitoring System – Provides real-time diagnostics.
Durable Industrial Design – Ensures longevity in demanding environments.

brands	Schneider Electric

Main
Range of product	Altistart 22
Product or component type	Soft starter
Product destination	Asynchronous motors
Product specific application	Pumps and fans
Component name	ATS22
Network number of phases	3 phases
[Us] rated supply voltage	230...440 V - 15...10 %
Motor power kW	11 kW 230 V 22 kW 400 V 22 kW 440 V
Factory setting current	42 A
Power dissipation in W	48 W for standard applications
Utilisation category	AC-53A
Type of start	Start with torque control (current limited to 3.5 In)
IcL starter rating	47 A for connection in the motor supply line for standard applications
IP degree of protection	IP20

Complementary
Assembly style	With heat sink
Function available	Internal bypass
Supply voltage limits	195…484 V
Supply frequency	50...60 Hz - 10...10 %
Network frequency	45...66 Hz
Device connection	To the motor delta terminals In the motor supply line
[Uc] control circuit voltage	230 V - 15...10 % 50/60 Hz
Control circuit consumption	20 W
Discrete output number	2
Discrete output type	Relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O Relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
Minimum switching current	100 mA at 12 V DC (relay outputs)
Maximum switching current	5 A 250 V AC resistive 1 relay outputs 5 A 30 V DC resistive 1 relay outputs 2 A 250 V AC inductive 0.4 20 ms relay outputs 2 A 30 V DC inductive 7 ms relay outputs
Discrete input number	3
Discrete input type	(LI1, LI2, LI3) logic, 5 mA 4.3 kOhm
Discrete input voltage	24 V <= 30 V
Discrete input logic	Positive logic LI1, LI2, LI3 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA
Output current	0.4...1 Icl adjustable
PTC probe input	750 Ohm
Communication port protocol	Modbus
Connector type	1 RJ45
Communication data link	Serial
Physical interface	RS485 multidrop
Transmission rate	4800, 9600 or 19200 bps
Installed device	31
Protection type	Phase failure: line Thermal protection: motor Thermal protection: starter
Marking	CE
type of cooling	Forced convection
Operating position	Vertical +/- 10 degree
Height	265 mm
Width	130 mm
Depth	169 mm
Net weight	7 kg
Motor power range AC-3	7…11 kW at 200…240 V 3 phases 15…25 kW at 380…440 V 3 phases
Motor starter type	Soft starter

Environment
Electromagnetic compatibility	Conducted and radiated emissions level A conforming to IEC 60947-4-2 Damped oscillating waves level 3 conforming to IEC 61000-4-12 Electrostatic discharge level 3 conforming to IEC 61000-4-2 Immunity to electrical transients level 4 conforming to IEC 61000-4-4 Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3 Voltage/current impulse level 3 conforming to IEC 61000-4-5
Standards	IEC 60947-4-2
Product certifications	CCC C-Tick UL GOST CSA
Vibration resistance	1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6 1.5 mm (f= 2…13 Hz) conforming to IEC 60068-2-6
Shock resistance	15 gn for 11 ms conforming to IEC 60068-2-27
Noise level	45 dB
Pollution degree	Level 2 conforming to IEC 60664-1
Relative humidity	0…95 % without condensation or dripping water conforming to IEC 60068-2-3
Ambient air temperature for operation	-10…40 °C (without derating) 40…60 °C (with current derating 2.2 % per °C)
Ambient air temperature for storage	-25…70 °C
Operating altitude	<= 1000 m without derating > 1000...< 2000 m with current derating of 2.2 % per additional 100 m

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	26.924 cm
Package 1 Width	22.098 cm
Package 1 Length	33.274 cm
Package 1 Weight	5.606 kg
Unit Type of Package 2	P06
Number of Units in Package 2	10
Package 2 Height	73.5 cm
Package 2 Width	80 cm
Package 2 Length	60 cm
Package 2 Weight	69.76 kg

Contractual warranty
Warranty	18 months
