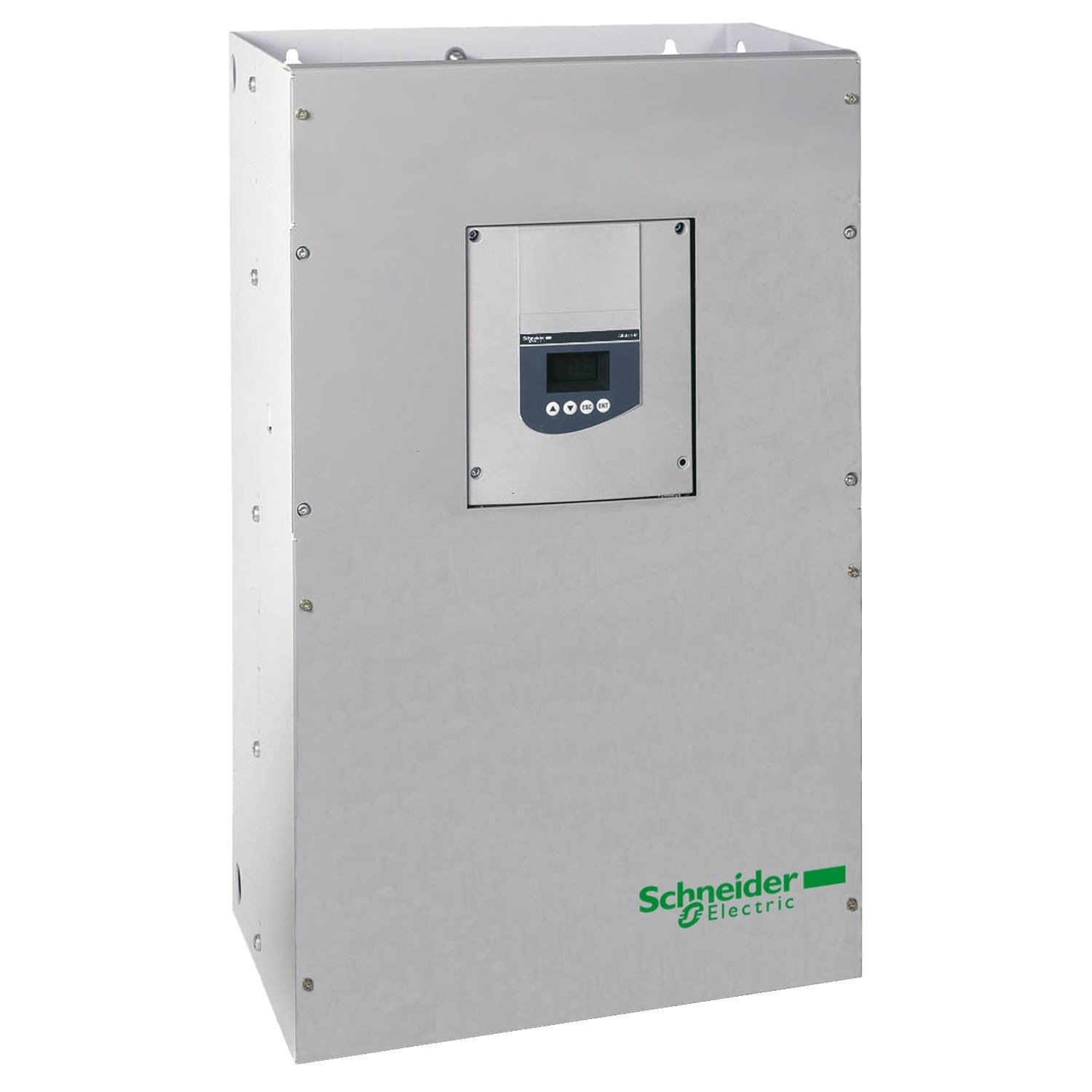

Schneider ATS48C59Q | Soft starter for asynchronous motor – ATS48 – 560 A – 230..415 V – 132..400 KW
ATS48C59Q | Soft starter for asynchronous motor – ATS48 – 560 A – 230..415 V – 132..400 KW
Original price was: EGP 8,122,227.00.EGP 4,710,892.00Current price is: EGP 4,710,892.00.
Description
Schneider ATS48C59Q | Soft Starter for Asynchronous Motor
Introduction
it is a high-performance soft starter designed for asynchronous motors, offering precise control and protection for industrial applications. This article dives into its features, functionality, and advantages in detail.
ATS48 Overview
it soft starter is renowned for its reliability and efficiency in starting and stopping asynchronous motors. It provides smooth acceleration and deceleration, reducing mechanical stress on the motor and connected equipment.
Working Principle
it soft starter operates by controlling the voltage applied to the motor during start-up, ensuring a gradual increase to avoid sudden surges. This protects the motor from overcurrent and overheating, extending its lifespan.
Technical Specifications
- Voltage Range: 230V to 415V
- Power Range: 132KW to 400KW
- Current Rating: 560A
- Suitable for asynchronous motors
Applications
This soft starter is widely used in various industries such as manufacturing, mining, water treatment, and HVAC systems. It’s ideal for applications requiring controlled acceleration and deceleration.
Benefits
- Reduced mechanical stress on motors and equipment
- Energy savings due to controlled starts and stops
- Enhanced motor lifespan and reliability
- Improved process efficiency and productivity
Installation Guide
Installing the ATS48C59Q involves connecting it to the motor’s power supply and configuring the control settings as per the application requirements. Refer to the product manual for detailed installation instructions.
Maintenance
Regular maintenance of the ATS48C59Q includes checking for loose connections, monitoring motor performance, and ensuring adequate ventilation for heat dissipation. Follow the manufacturer’s guidelines for optimal performance.
Comparison
Compared to traditional motor starters, the ATS48C59Q offers superior control, protection, and energy efficiency, making it a preferred choice for demanding industrial applications.
Customer Reviews
Customers appreciate the reliable performance and ease of use provided by the ATS48C59Q soft starter. Many report significant improvements in motor operation and reduced downtime.
Conclusion
In conclusion, the Schneider ATS48C59Q soft starter stands out for its advanced features, robust design, and application versatility. It’s a valuable asset for industries seeking efficient motor control solutions.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Altistart 48 |
|---|---|
| Product or component type | Soft starter |
| product destination | Asynchronous motors |
| Product specific application | Heavy duty industry and pumps |
| Device short name | ATS48 |
| Utilisation category | AC-53A |
| Ue power supply voltage | 230...415 V - 15...10 % |
| power supply frequency | 50...60 Hz - 5...5 % |
| Motor power kW | 132 kW at 230 V connection in the motor supply line for severe applications 160 kW at 230 V connection in the motor supply line for standard applications 250 kW at 230 V connection to the motor delta terminals for severe applications 250 kW at 400 V connection in the motor supply line for severe applications 315 kW at 400 V connection in the motor supply line for standard applications 355 kW at 400 V connection to the motor delta terminals for severe applications 400 kW at 400 V connection to the motor delta terminals for standard applications |
| Device connection | To the motor delta terminals In the motor supply line |
|---|---|
| Protection type | Phase failure: line Thermal protection: motor Thermal protection: starter |
| Standards | EN/IEC 60947-4-2 |
| Product certifications | TCF DNV UL CCC CSA NOM 117 SEPRO GOST C-Tick |
| Marking | CE |
| Discrete input number | 5 |
| Discrete input type | PTC, 750 Ohm at 25 °C (Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm |
| Discrete input logic | Positive logic Stop, Run, LI3, LI4 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA |
| Minimum switching current | 10 mA at 6 V DC for relay outputs |
| Discrete output number | 2 |
| Discrete output type | (LO1) logic output 0 V common configurable (LO2) logic output 0 V common configurable (R1) relay outputs fault relay NO (R2) relay outputs end of starting relay NO (R3) relay outputs motor powered NO |
| Analogue output type | Current output AO: 0-20 mA or 4-20 mA, impedance <500 Ohm |
| Communication port protocol | Modbus |
| Connector type | 1 RJ45 |
| Communication data link | Serial |
| Physical interface | RS485 multidrop |
| Transmission rate | 4800, 9600 or 19200 bps |
| Function available | External bypass (optional) |
| Operating position | Vertical +/- 10 degree |
| Height | 670 mm |
| Width | 400 mm |
| Depth | 300 mm |
| Net weight | 51.4 kg |
| Electromagnetic compatibility | Conducted and radiated emissions level A conforming to IEC 60947-4-2 Damped oscillating waves level 3 conforming to IEC 61000-4-12 Electrostatic discharge level 3 conforming to IEC 61000-4-2 Immunity to electrical transients level 4 conforming to IEC 61000-4-4 Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3 Voltage/current impulse level 3 conforming to IEC 61000-4-5 |
|---|---|
| Relative humidity | 0…95 % without condensation or dripping water conforming to EN/IEC 60068-2-3 |
| Ambient air temperature for operation | 40…60 °C (with current derating of 2 % per °C) -10…40 °C (without derating) |
| ambient air temperature for storage | -25…70 °C |
| Operating altitude | <= 1000 m without derating > 1000...2000 m with current derating of 2.2 % per additional 100 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 39.0 cm |
| Package 1 Width | 58.5 cm |
| Package 1 Length | 78.0 cm |
| Package 1 Weight | 53.025 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 1 |
| Package 2 Height | 52.0 cm |
| Package 2 Width | 54.0 cm |
| Package 2 Length | 82.0 cm |
| Package 2 Weight | 62.94 kg |
| Warranty | 18 months |
|---|
