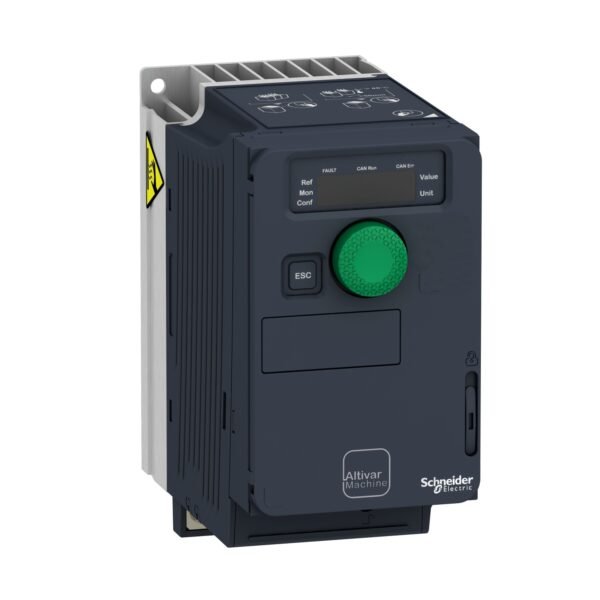

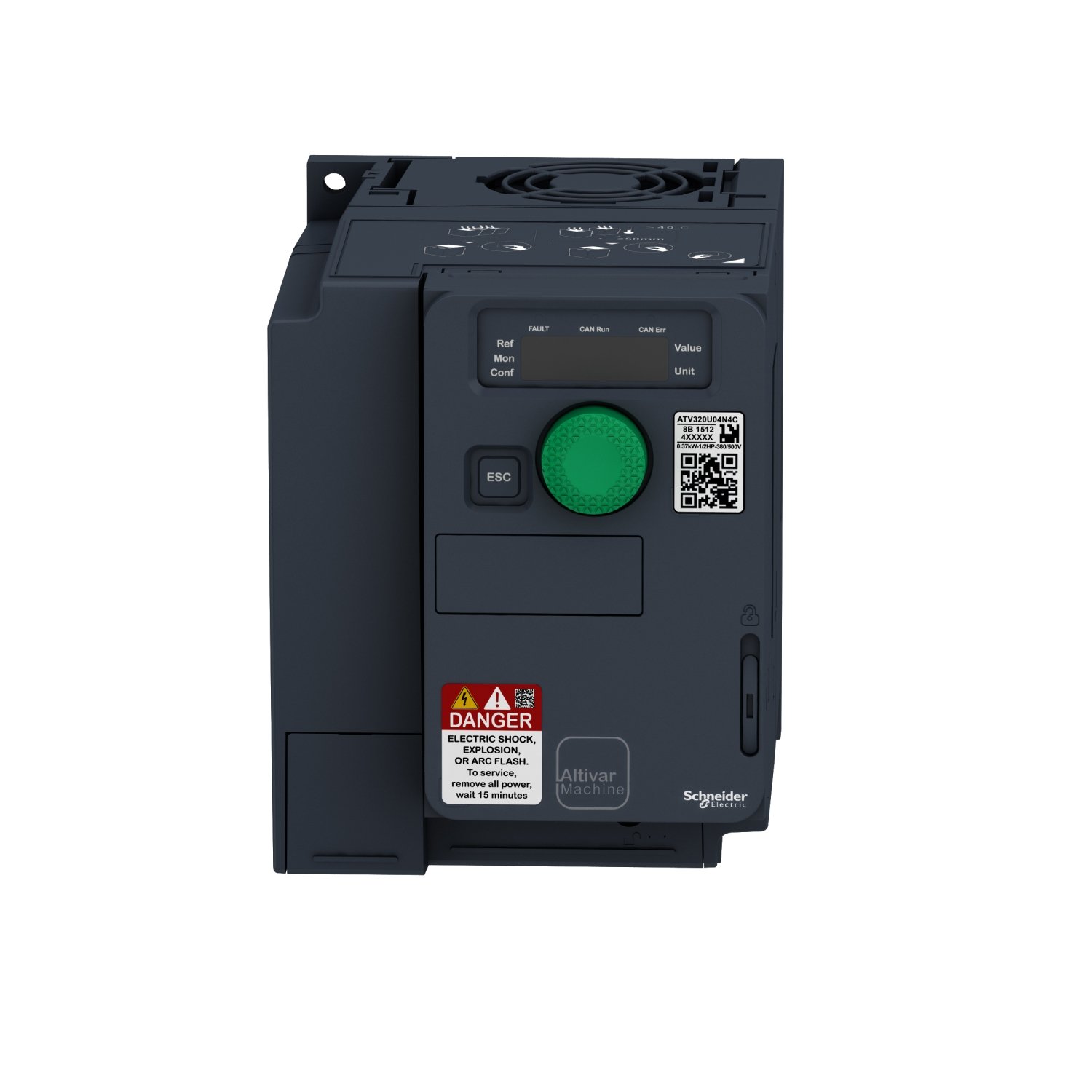

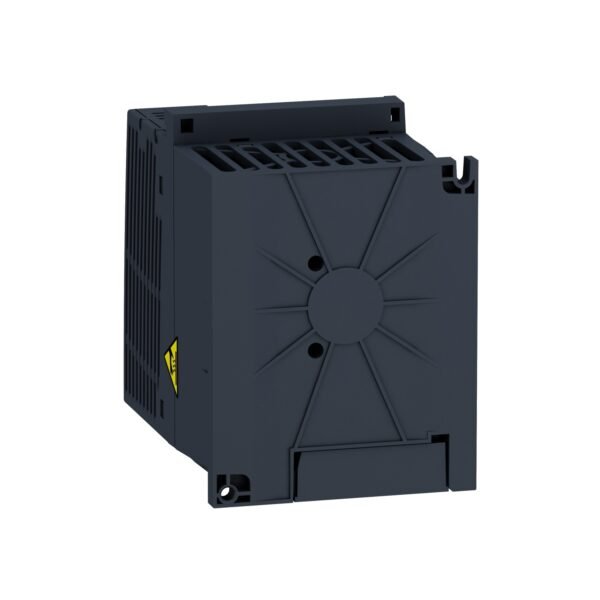

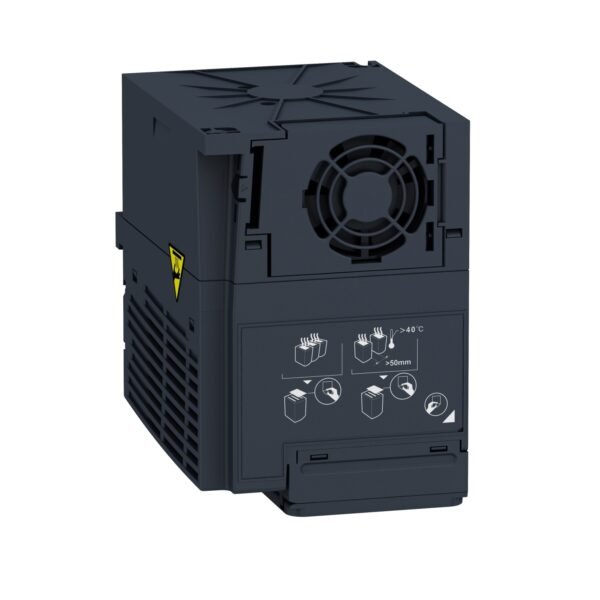

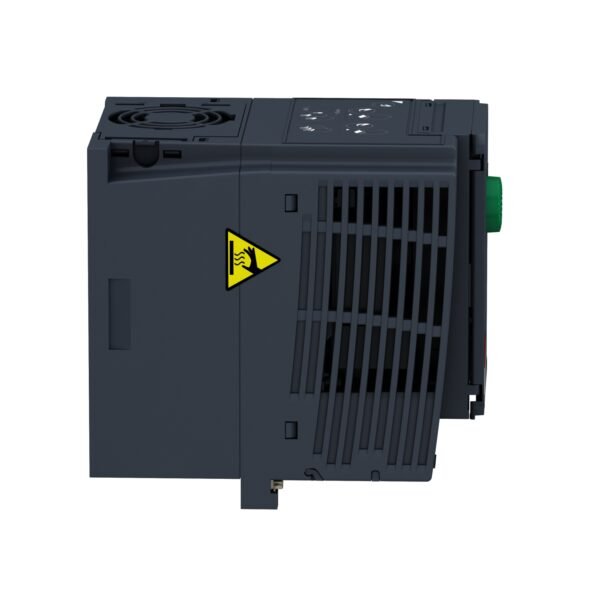

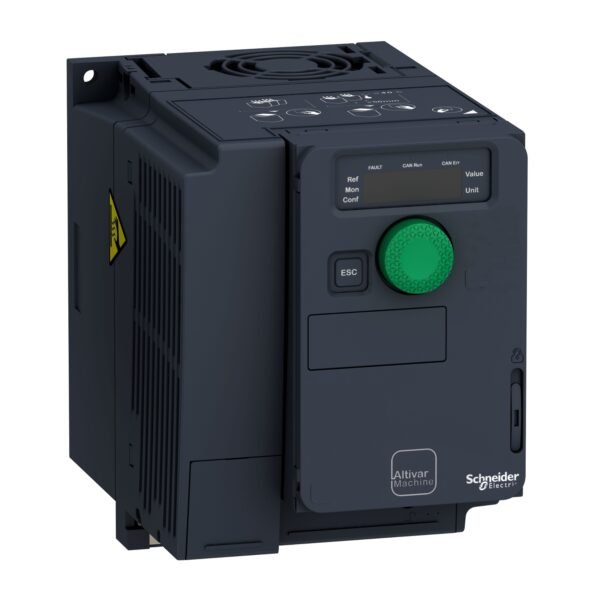

Schneider ATV320U15N4C ATV | Variable speed drive, ATV320, 1.5 kW, 380…500 V, 3 phases, compact
Schneider ATV320U15N4C ATV
Original price was: EGP 310,878.00.EGP 170,983.00Current price is: EGP 170,983.00.
Description
Schneider ATV320U15N4C ATV: A Comprehensive Guide
it is a versatile and efficient variable frequency drive designed to meet the demands of various industrial applications. Whether you’re in the manufacturing sector, HVAC industry, or water management field, this ATV offers advanced features and reliable performance. Let’s delve deeper into what makes this product stand out.
Understanding the Features and Specifications
Power Rating
it comes with a power rating of 15 kW, making it suitable for driving motors in a wide range of applications.
Input Voltage
With a voltage range from 380 to 500 volts, this ATV ensures compatibility with different power systems commonly found in industrial settings.
Output Voltage
The output voltage of it can be adjusted to match the requirements of specific motors, providing precise control over speed and torque.
Control Features
Equipped with advanced control algorithms, this ATV offers smooth acceleration and deceleration, as well as accurate speed regulation for enhanced performance.
Communication Ports
The ATV320U15N4C comes with multiple communication ports, including Modbus and CANopen, enabling seamless integration with existing automation systems.
Applications and Industries
Industrial Automation
In industrial automation, it plays a crucial role in controlling conveyor belts, pumps, and fans, optimizing energy consumption and enhancing productivity.
HVAC Systems
For HVAC systems, this ATV ensures precise control over the speed of motors driving air handlers, chillers, and pumps, leading to improved comfort and energy efficiency.
Water and Wastewater Management
In water and wastewater management applications, it helps regulate the flow rates of pumps and valves, ensuring efficient operation and environmental compliance.
Installation and Setup Guide
Mounting and Wiring
Installing it is straightforward, thanks to its compact design and user-friendly terminals. Proper grounding and insulation are essential to ensure safe and reliable operation.
Configuration Software
The ATV comes with intuitive configuration software that allows users to customize parameters such as acceleration/deceleration rates, voltage/frequency settings, and control modes according to specific application requirements.
Safety Precautions
Before powering up the ATV, it’s essential to follow all safety precautions outlined in the user manual, including proper grounding, electrical isolation, and protective measures against overcurrent and overvoltage conditions.
Advantages of Schneider ATV320U15N4C ATV
Energy Efficiency
By optimizing motor speed and reducing energy losses, it helps lower overall energy consumption and operating costs, contributing to sustainability goals.
Durability
Built to withstand harsh industrial environments, this ATV features rugged construction and advanced thermal management systems, ensuring reliable performance even in demanding conditions.
Customization Options
With a wide range of programmable parameters and optional accessories, users can tailor the ATV to meet specific application requirements, whether it’s speed control, torque regulation, or communication protocols.
Comparison with Other Models
When compared to similar models from other manufacturers, it stands out for its robust design, versatile features, and user-friendly interface, making it a preferred choice among engineers and system integrators.
Troubleshooting and Maintenance Tips
Common Issues
Some common issues that users may encounter with it include parameter misconfiguration, electrical faults, and communication errors. Refer to the troubleshooting section of the user manual for guidance on diagnosing and resolving these issues.
Preventive Maintenance
To ensure long-term reliability and performance, regular maintenance tasks such as cleaning, inspection, and firmware updates are recommended. Periodic checks of critical components such as cooling fans, capacitors, and connectors can help identify potential issues before they escalate.
Customer Reviews and Testimonials
Customers who have used it praise its reliability, ease of installation, and performance consistency. Many highlight its contribution to energy savings and operational efficiency in their facilities.
Conclusion
In conclusion, it is a top choice for engineers and facility managers seeking reliable and efficient motor control solutions. With its advanced features, rugged construction, and versatile applications, this ATV delivers superior performance and value across various industries.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| range of product | Altivar Machine ATV320 |
|---|---|
| product or component type | Variable speed drive |
| Product specific application | Complex machines |
| Variant | Standard version |
| Format of the drive | Compact |
| mounting mode | Wall mount |
| communication port protocol | Modbus serial CANopen |
| Option card | Communication module, CANopen Communication module, EtherCAT Communication module, Profibus DP V1 Communication module, PROFINET Communication module, Ethernet Powerlink Communication module, EtherNet/IP Communication module, DeviceNet |
| [Us] rated supply voltage | 380...500 V - 15...10 % |
| Nominal output current | 4.1 A |
| Motor power kW | 1.5 kW for heavy duty |
| EMC filter | Class C2 EMC filter integrated |
| IP degree of protection | IP20 |
| Discrete input number | 7 |
|---|---|
| Discrete input type | STO safe torque off, 24 V DC, impedance: 1.5 kOhm DI1...DI6 logic inputs, 24 V DC (30 V) DI5 programmable as pulse input: 0…30 kHz, 24 V DC (30 V) |
| Discrete input logic | Positive logic (source) Negative logic (sink) |
| Discrete output number | 3 |
| Discrete output type | Open collector DQ+ 0…1 kHz 30 V DC 100 mA Open collector DQ- 0…1 kHz 30 V DC 100 mA |
| Analogue input number | 3 |
| Analogue input type | AI1 voltage: 0...10 V DC, impedance: 30 kOhm, resolution 10 bits AI2 bipolar differential voltage: +/- 10 V DC, impedance: 30 kOhm, resolution 10 bits AI3 current: 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration), impedance: 250 Ohm, resolution 10 bits |
| Analogue output number | 1 |
| Analogue output type | Software-configurable current AQ1: 0...20 mA impedance 800 Ohm, resolution 10 bits Software-configurable voltage AQ1: 0...10 V DC impedance 470 Ohm, resolution 10 bits |
| Relay output type | Configurable relay logic R1A 1 NO electrical durability 100000 cycles Configurable relay logic R1B 1 NC electrical durability 100000 cycles Configurable relay logic R1C Configurable relay logic R2A 1 NO electrical durability 100000 cycles Configurable relay logic R2C |
| Maximum switching current | Relay output R1A, R1B, R1C on resistive load, cos phi = 1: 3 A at 250 V AC Relay output R1A, R1B, R1C on resistive load, cos phi = 1: 3 A at 30 V DC Relay output R1A, R1B, R1C, R2A, R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC Relay output R1A, R1B, R1C, R2A, R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC Relay output R2A, R2C on resistive load, cos phi = 1: 5 A at 250 V AC Relay output R2A, R2C on resistive load, cos phi = 1: 5 A at 30 V DC |
| Minimum switching current | Relay output R1A, R1B, R1C, R2A, R2C: 5 mA at 24 V DC |
| Method of access | Slave CANopen |
| 4 quadrant operation possible | True |
| Asynchronous motor control profile | Voltage/frequency ratio, 5 points Flux vector control without sensor, standard Voltage/frequency ratio - Energy Saving, quadratic U/f Flux vector control without sensor - Energy Saving Voltage/frequency ratio, 2 points |
| Synchronous motor control profile | Vector control without sensor |
| Transient overtorque | 170…200 % of nominal motor torque |
| Maximum output frequency | 0.599 kHz |
| Acceleration and deceleration ramps | Linear U S CUS Ramp switching Acceleration/deceleration ramp adaptation Acceleration/deceleration automatic stop with DC injection |
| Motor slip compensation | Automatic whatever the load Adjustable 0...300 % Not available in voltage/frequency ratio (2 or 5 points) |
| Switching frequency | 2...16 kHz adjustable 4...16 kHz with derating factor |
| Nominal switching frequency | 4 kHz |
| Braking to standstill | By DC injection |
| Brake chopper integrated | True |
| Line current | 6.4 A at 380 V (heavy duty) 4.9 A at 500 V (heavy duty) |
| Maximum input current | 6.4 A |
| Maximum output voltage | 500 V |
| Apparent power | 4.2 kVA at 500 V (heavy duty) |
| Network frequency | 50...60 Hz |
| Relative symmetric network frequency tolerance | 5 % |
| Prospective line Isc | 5 kA |
| Base load current at high overload | 3.0 A |
| Power dissipation in W | Fan: 56.0 W at 380 V, switching frequency 4 kHz |
| With safety function Safely Limited Speed (SLS) | True |
| With safety function Safe brake management (SBC/SBT) | False |
| With safety function Safe Operating Stop (SOS) | False |
| With safety function Safe Position (SP) | False |
| With safety function Safe programmable logic | False |
| With safety function Safe Speed Monitor (SSM) | False |
| With safety function Safe Stop 1 (SS1) | True |
| With sft fct Safe Stop 2 (SS2) | False |
| With safety function Safe torque off (STO) | True |
| With safety function Safely Limited Position (SLP) | False |
| With safety function Safe Direction (SDI) | False |
| Protection type | Input phase breaks: drive Overcurrent between output phases and earth: drive Overheating protection: drive Short-circuit between motor phases: drive Thermal protection: drive |
| Width | 105.0 mm |
| Height | 142.0 mm |
| Depth | 158.0 mm |
| net weight | 1.3 kg |
| Operating position | Vertical +/- 10 degree |
|---|---|
| Product certifications | CE ATEX NOM GOST EAC RCM KC |
| marking | CE ATEX UL CSA EAC RCM |
| Standards | IEC 61800-5-1 |
| Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 |
| Environmental class (during operation) | Class 3C3 according to IEC 60721-3-3 Class 3S2 according to IEC 60721-3-3 |
| Maximum acceleration under shock impact (during operation) | 150 m/s² at 11 ms |
| Maximum acceleration under vibrational stress (during operation) | 10 m/s² at 13...200 Hz |
| Maximum deflection under vibratory load (during operation) | 1.5 mm at 2...13 Hz |
| Permitted relative humidity (during operation) | Class 3K5 according to EN 60721-3 |
| Volume of cooling air | 18.0 m3/h |
| Overvoltage category | III |
| Regulation loop | Adjustable PID regulator |
| Speed accuracy | +/- 10 % of nominal slip 0.2 Tn to Tn |
| Pollution degree | 2 |
| Ambient air transport temperature | -25…70 °C |
| Ambient air temperature for operation | -10…50 °C without derating 50…60 °C with derating factor |
| Ambient air temperature for storage | -25…70 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 18.000 cm |
| Package 1 Width | 18.500 cm |
| Package 1 Length | 18.700 cm |
| Package 1 Weight | 1.693 kg |
| Unit Type of Package 2 | S06 |
| Number of Units in Package 2 | 30 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 64.360 kg |
