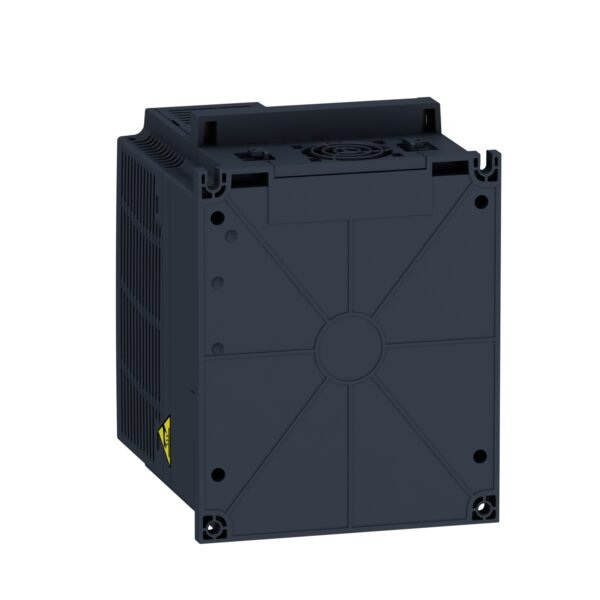

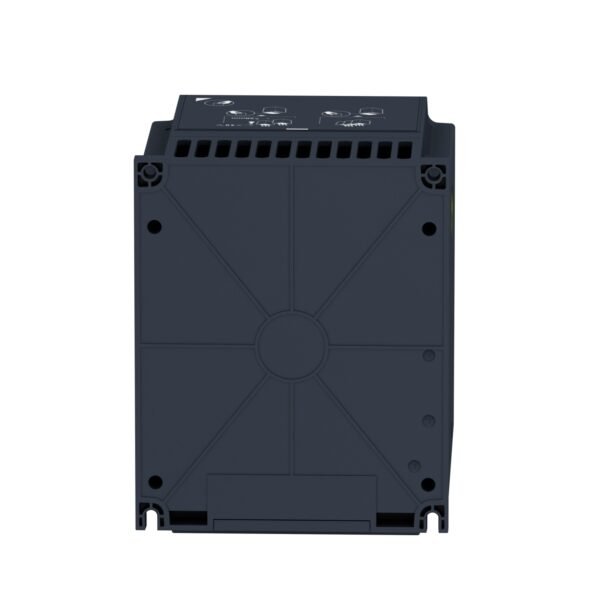

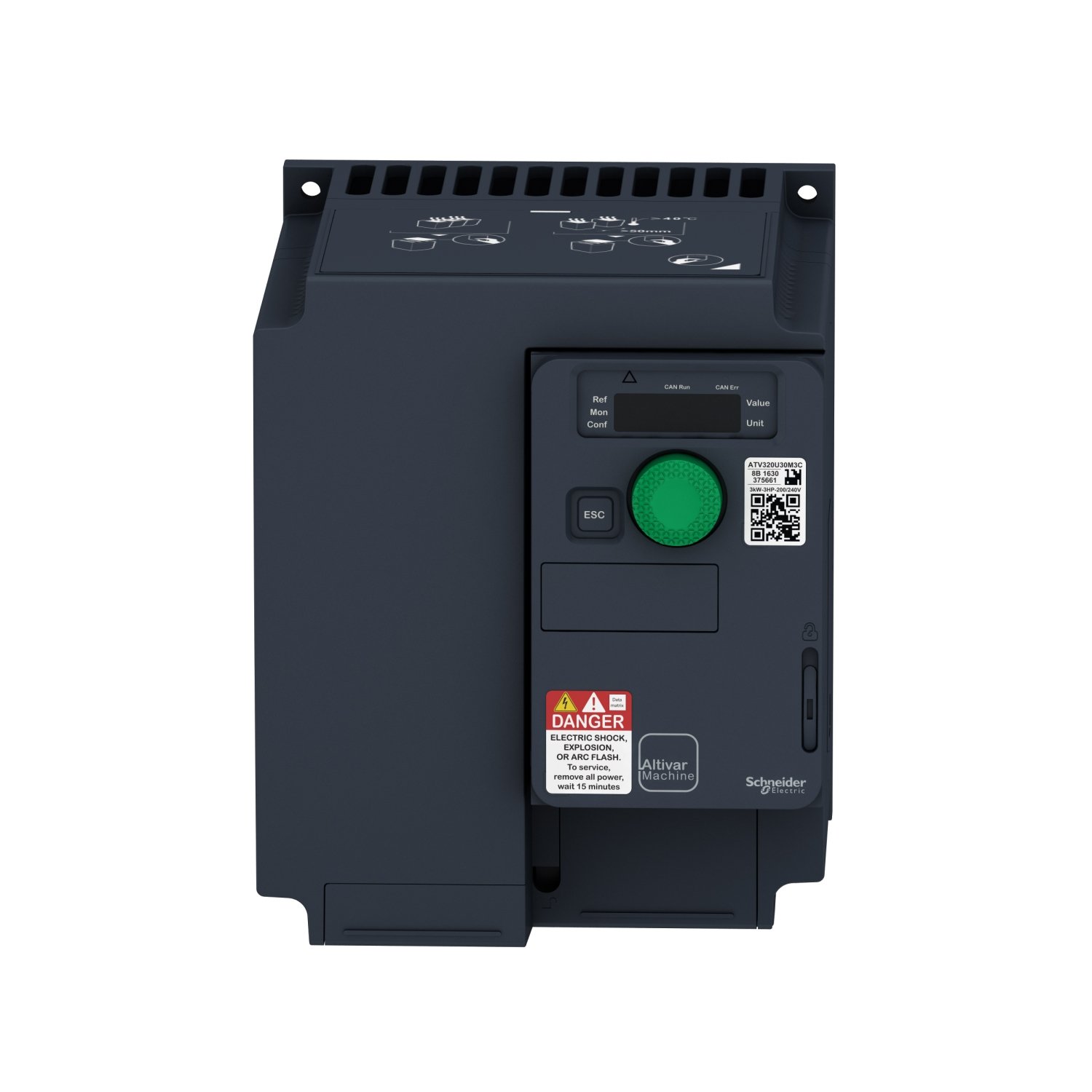

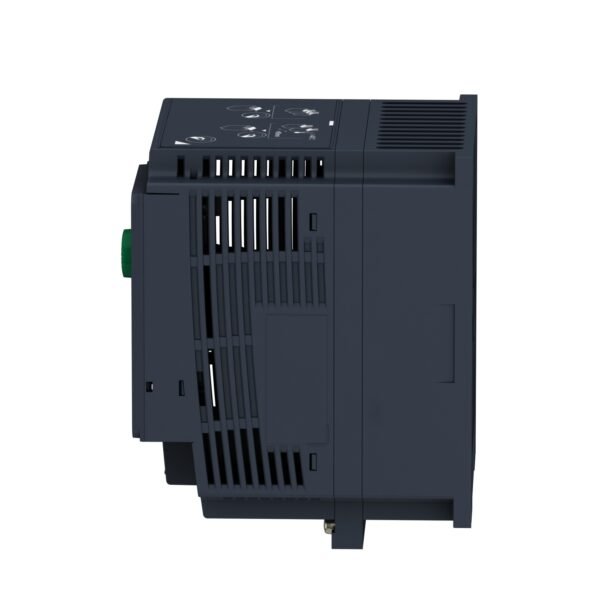

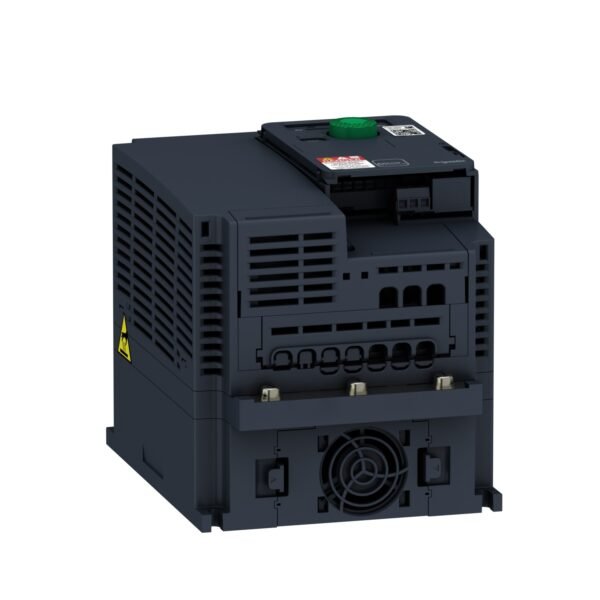

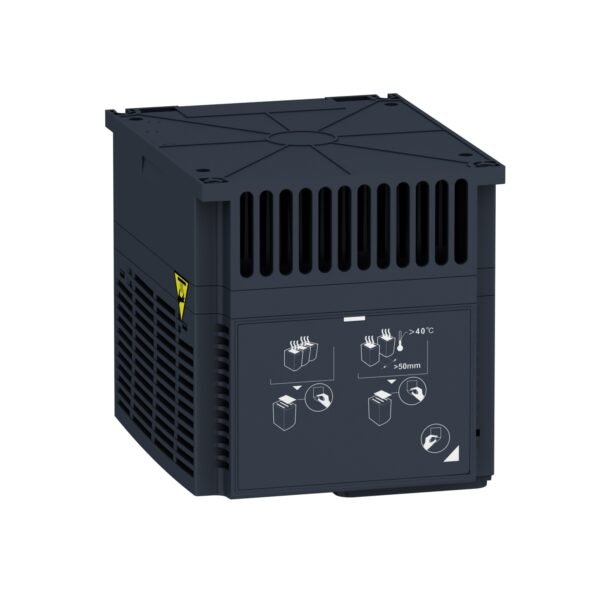

Schneider ATV320U40M3C ATV | Variable speed drive, Altivar Machine ATV320, 4 kW, 200…240 V, 3 phases, compact
Schneider ATV320U40M3C ATV
EGP 44,175.00
Description
Schneider ATV320U40M3C ATV: Revolutionizing Industrial Automation
In the realm of industrial automation, it stands out as a formidable solution for businesses seeking efficiency, reliability, and innovation. This advanced Variable Frequency Drive (VFD) from Schneider Electric boasts a range of features and capabilities designed to streamline operations across various industries.
Key Features
At the heart of it lies a host of cutting-edge features that elevate its performance and functionality. From precise motor control to energy efficiency enhancements, here are some key highlights:
- Precise Motor Control: it offers precise control over motor speed and torque, allowing for optimal performance in diverse applications.
- Energy Efficiency: With built-in energy-saving algorithms and advanced control mechanisms, this ATV helps businesses reduce energy consumption and lower operational costs.
- Compact Design: Despite its powerful capabilities, it maintains a compact footprint, making it suitable for installations where space is limited.
- Intuitive Interface: The intuitive user interface simplifies setup and operation, ensuring a seamless user experience for operators and maintenance personnel.
Technical Specifications
Power and Voltage Ratings
- Input Voltage: 380-500V, 50/60 Hz
- Output Power: 4 kW
- Output Voltage: 0-500V
Dimensions and Weight
- Dimensions (H x W x D): 246 mm x 129 mm x 195 mm
- Weight: 2.7 kg
Environmental Specifications
- Operating Temperature: -10°C to 50°C
- Storage Temperature: -25°C to 70°C
- Protection Rating: IP20
Applications and Industries
The versatility of it makes it suitable for a wide range of applications and industries, including:
- Manufacturing: Enhance production efficiency and process control in manufacturing plants.
- HVAC: Optimize energy usage and maintain precise environmental conditions in heating, ventilation, and air conditioning systems.
- Water and Wastewater: Improve pumping and filtration processes in water and wastewater treatment facilities.
Advantages of Using
- Improved Performance: it enhances equipment performance and reliability, reducing downtime and increasing productivity.
- Energy Savings: By optimizing motor speed and power consumption, businesses can achieve significant energy savings over time.
- Easy Integration: Seamless integration with existing automation systems simplifies installation and reduces implementation costs.
Installation and Setup Guide
To ensure optimal performance and safety, it is essential to follow the installation and setup guidelines provided by Schneider Electric. Here are some essential steps:
- Preparation: Gather all necessary tools and equipment before starting the installation process.
- Mounting: Securely mount it in a suitable location, ensuring proper ventilation and access for maintenance.
- Wiring: Connect the input and output power cables according to the provided wiring diagram, taking care to follow all safety precautions.
- Configuration: Use the intuitive interface to configure motor parameters and operating settings based on the specific requirements of your application.
Maintenance and Troubleshooting
Regular maintenance is essential to ensure the continued performance and reliability of it. Here are some maintenance tasks:
- Inspection: Regularly inspect it for any signs of damage or wear, and address any issues promptly.
- Cleaning: Keep the device clean and free of debris to prevent overheating and performance degradation.
- Software Updates: Stay up to date with the latest firmware updates and software patches to ensure optimal performance and security.
In the event of any issues or malfunctions, refer to the troubleshooting guide provided by Schneider Electric or consult with their technical support team for assistance.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| range of product | Altivar Machine ATV320 |
|---|---|
| product or component type | Variable speed drive |
| Product specific application | Complex machines |
| Variant | Standard version |
| Format of the drive | Compact |
| mounting mode | Wall mount |
| communication port protocol | Modbus serial CANopen |
| Option card | Communication module, CANopen Communication module, EtherCAT Communication module, Profibus DP V1 Communication module, PROFINET Communication module, Ethernet Powerlink Communication module, EtherNet/IP Communication module, DeviceNet |
| [Us] rated supply voltage | 200...240 V - 15...10 % |
| Nominal output current | 17.5 A |
| Motor power kW | 4.0 kW for heavy duty |
| EMC filter | Without EMC filter |
| IP degree of protection | IP20 |
| Discrete input number | 7 |
|---|---|
| Discrete input type | STO safe torque off, 24 V DC, impedance: 1.5 kOhm DI1...DI6 logic inputs, 24 V DC (30 V) DI5 programmable as pulse input: 0…30 kHz, 24 V DC (30 V) |
| Discrete input logic | Positive logic (source) Negative logic (sink) |
| Discrete output number | 3 |
| Discrete output type | Open collector DQ+ 0…1 kHz 30 V DC 100 mA Open collector DQ- 0…1 kHz 30 V DC 100 mA |
| Analogue input number | 3 |
| Analogue input type | AI1 voltage: 0...10 V DC, impedance: 30 kOhm, resolution 10 bits AI2 bipolar differential voltage: +/- 10 V DC, impedance: 30 kOhm, resolution 10 bits AI3 current: 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration), impedance: 250 Ohm, resolution 10 bits |
| Analogue output number | 1 |
| Analogue output type | Software-configurable current AQ1: 0...20 mA impedance 800 Ohm, resolution 10 bits Software-configurable voltage AQ1: 0...10 V DC impedance 470 Ohm, resolution 10 bits |
| Relay output type | Configurable relay logic R1A 1 NO electrical durability 100000 cycles Configurable relay logic R1B 1 NC electrical durability 100000 cycles Configurable relay logic R1C Configurable relay logic R2A 1 NO electrical durability 100000 cycles Configurable relay logic R2C |
| Maximum switching current | Relay output R1A, R1B, R1C on resistive load, cos phi = 1: 3 A at 250 V AC Relay output R1A, R1B, R1C on resistive load, cos phi = 1: 3 A at 30 V DC Relay output R1A, R1B, R1C, R2A, R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC Relay output R1A, R1B, R1C, R2A, R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC Relay output R2A, R2C on resistive load, cos phi = 1: 5 A at 250 V AC Relay output R2A, R2C on resistive load, cos phi = 1: 5 A at 30 V DC |
| Minimum switching current | Relay output R1A, R1B, R1C, R2A, R2C: 5 mA at 24 V DC |
| Method of access | Slave CANopen |
| 4 quadrant operation possible | True |
| Asynchronous motor control profile | Voltage/frequency ratio, 5 points Flux vector control without sensor, standard Voltage/frequency ratio - Energy Saving, quadratic U/f Flux vector control without sensor - Energy Saving Voltage/frequency ratio, 2 points |
| Synchronous motor control profile | Vector control without sensor |
| Transient overtorque | 170…200 % of nominal motor torque |
| Maximum output frequency | 0.599 kHz |
| Acceleration and deceleration ramps | Linear U S CUS Ramp switching Acceleration/deceleration ramp adaptation Acceleration/deceleration automatic stop with DC injection |
| Motor slip compensation | Automatic whatever the load Adjustable 0...300 % Not available in voltage/frequency ratio (2 or 5 points) |
| Switching frequency | 2...16 kHz adjustable 4...16 kHz with derating factor |
| Nominal switching frequency | 4 kHz |
| Braking to standstill | By DC injection |
| Brake chopper integrated | True |
| Line current | 23.8 A at 200 V (heavy duty) 19.9 A at 240 V (heavy duty) |
| Maximum input current | 23.8 A |
| Maximum output voltage | 240 V |
| Apparent power | 8.3 kVA at 240 V (heavy duty) |
| Network frequency | 50...60 Hz |
| Relative symmetric network frequency tolerance | 5 % |
| Prospective line Isc | 5 kA |
| Base load current at high overload | 17.0 A |
| Power dissipation in W | Fan: 140 W at 200 V, switching frequency 4 kHz |
| With safety function Safely Limited Speed (SLS) | True |
| With safety function Safe brake management (SBC/SBT) | False |
| With safety function Safe Operating Stop (SOS) | False |
| With safety function Safe Position (SP) | False |
| With safety function Safe programmable logic | False |
| With safety function Safe Speed Monitor (SSM) | False |
| With safety function Safe Stop 1 (SS1) | True |
| With sft fct Safe Stop 2 (SS2) | False |
| With safety function Safe torque off (STO) | True |
| With safety function Safely Limited Position (SLP) | False |
| With safety function Safe Direction (SDI) | False |
| Protection type | Input phase breaks: drive Overcurrent between output phases and earth: drive Overheating protection: drive Short-circuit between motor phases: drive Thermal protection: drive |
| Width | 140 mm |
| Height | 184.0 mm |
| Depth | 158.0 mm |
| net weight | 2.2 kg |
| Operating position | Vertical +/- 10 degree |
|---|---|
| Product certifications | CE ATEX NOM GOST EAC RCM KC |
| marking | CE ATEX UL CSA EAC RCM |
| Standards | IEC 61800-5-1 |
| Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 |
| Environmental class (during operation) | Class 3C3 according to IEC 60721-3-3 Class 3S2 according to IEC 60721-3-3 |
| Maximum acceleration under shock impact (during operation) | 150 m/s² at 11 ms |
| Maximum acceleration under vibrational stress (during operation) | 10 m/s² at 13...200 Hz |
| Maximum deflection under vibratory load (during operation) | 1.5 mm at 2...13 Hz |
| Permitted relative humidity (during operation) | Class 3K5 according to EN 60721-3 |
| Volume of cooling air | 16.4 m3/h |
| Overvoltage category | III |
| Regulation loop | Adjustable PID regulator |
| Speed accuracy | +/- 10 % of nominal slip 0.2 Tn to Tn |
| Pollution degree | 2 |
| Ambient air transport temperature | -25…70 °C |
| Ambient air temperature for operation | -10…50 °C without derating 50…60 °C with derating factor |
| Ambient air temperature for storage | -25…70 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 24.500 cm |
| Package 1 Width | 19.000 cm |
| Package 1 Length | 26.800 cm |
| Package 1 Weight | 2.605 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 44.260 kg |
