Schneider ATV320D11N4C: The Ultimate Guide

Introduction

When it comes to industrial automation and energy management, Schneider Electric is a name that stands out. Known for its innovative solutions and reliable products, Schneider Electric has been a leader in the field for years. One of their standout products is the Schneider ATV320D11N4C, a versatile and efficient variable speed drive designed to meet the demands of modern industrial applications.

What is the Schneider ATV320D11N4C?

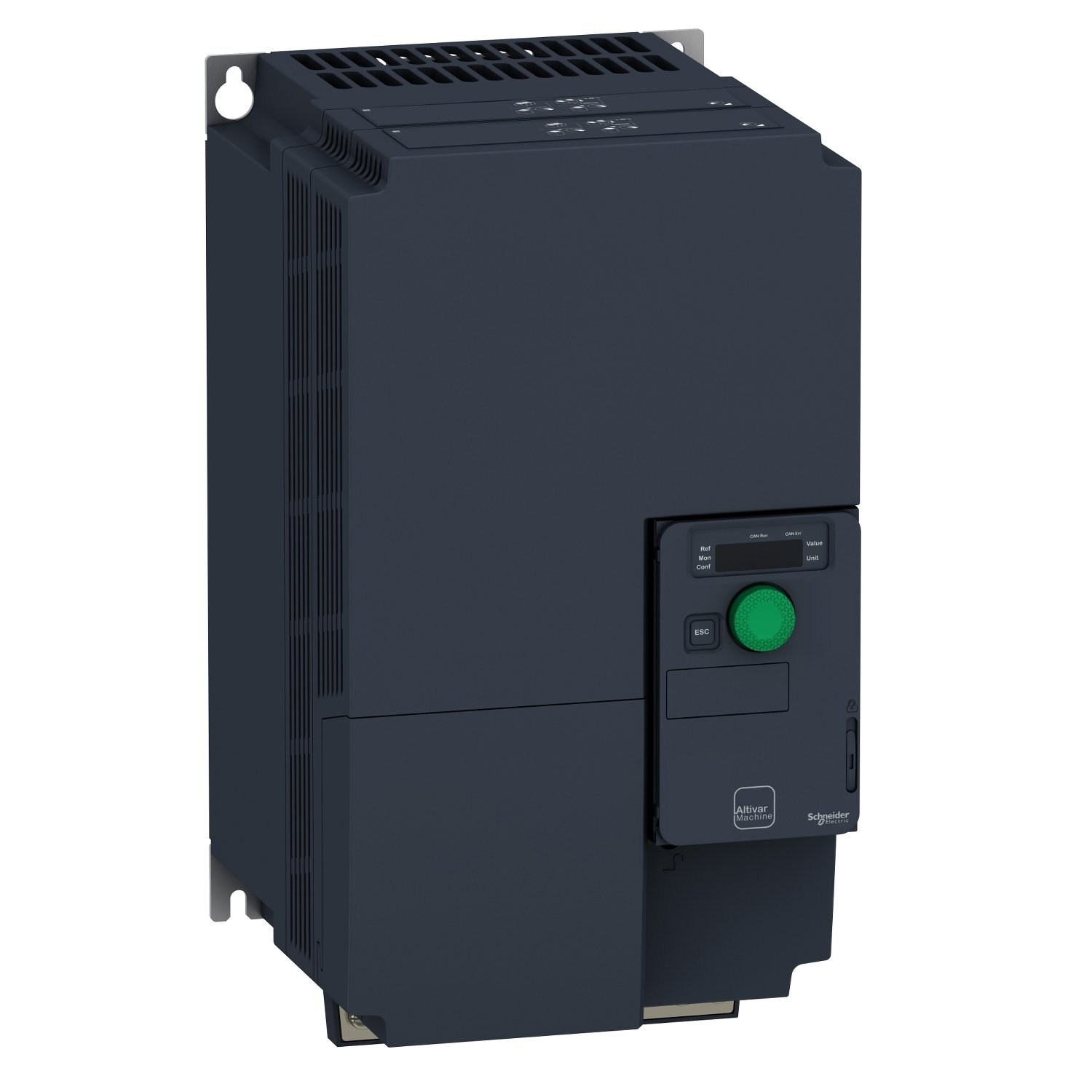

The Schneider ATV320D11N4C is a variable speed drive (VSD) from the Altivar 320 series. This model is specifically designed to control the speed and torque of electric motors, offering precise control for a wide range of applications. The ATV320D11N4C is known for its compact size, robust performance, and energy efficiency, making it a popular choice in various industries.

Key Features of the Schneider ATV320D11N4C

Compact Design

One of the standout features of it is its compact design. This makes it ideal for installations where space is limited. Despite its small footprint, it doesn’t compromise on performance or functionality.

Robust Performance

it is built to withstand the rigors of industrial environments. It offers reliable performance even in harsh conditions, ensuring continuous operation and minimal downtime.

Energy Efficiency

Energy efficiency is a crucial consideration in today’s industrial landscape. The ATV320D11N4C is designed to optimize energy consumption, helping businesses reduce their energy costs and carbon footprint.

Technical Specifications

Voltage and Power Ratings

The Schneider ATV320D11N4C operates on a voltage range of 380-500V and can handle a power rating of up to 11kW. This makes it suitable for a variety of medium-sized industrial applications.

Dimensions and Weight

With dimensions of 184 x 143 x 204 mm and a weight of 3.4 kg, it is compact and easy to handle. Its size allows for easy integration into existing systems without requiring significant modifications.

Environmental Ratings

The ATV320D11N4C is designed to operate in a wide range of environmental conditions. It has an operating temperature range of -10°C to +50°C and is rated for IP20 protection, ensuring it can withstand dust and other contaminants.

Applications of the Schneider ATV320D11N4C

Manufacturing

In manufacturing, the ATV320D11N4C is used to control the speed of motors in various processes. This includes machinery used for cutting, grinding, and other operations where precise control is essential.

HVAC Systems

HVAC systems benefit from the energy efficiency and control offered by the ATV320D11N4C. It helps optimize the performance of fans, pumps, and compressors, leading to better temperature regulation and reduced energy consumption.

Conveyors and Material Handling

For conveyors and material handling systems, the ATV320D11N4C provides smooth and precise motor control. This ensures the efficient and safe movement of materials, enhancing overall productivity.

Benefits of Using the Schneider ATV320D11N4C

Improved Operational Efficiency

By providing precise control over motor speed and torque, the ATV320D11N4C enhances the efficiency of industrial processes. This leads to increased productivity and reduced operational costs.

Cost Savings

The energy-efficient design of the ATV320D11N4C translates to significant cost savings over time. Businesses can reduce their energy bills and minimize maintenance costs thanks to the drive’s reliable performance.

Enhanced Reliability

The robust construction and advanced features of the ATV320D11N4C ensure it delivers reliable performance in demanding environments. This reduces the risk of equipment failure and downtime.
