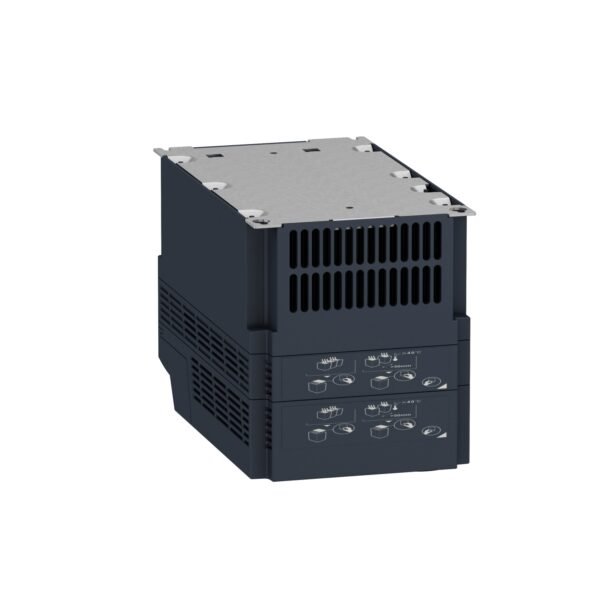

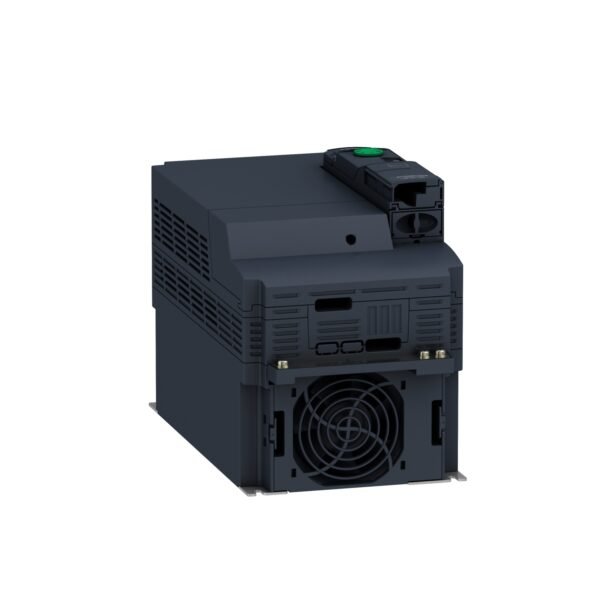

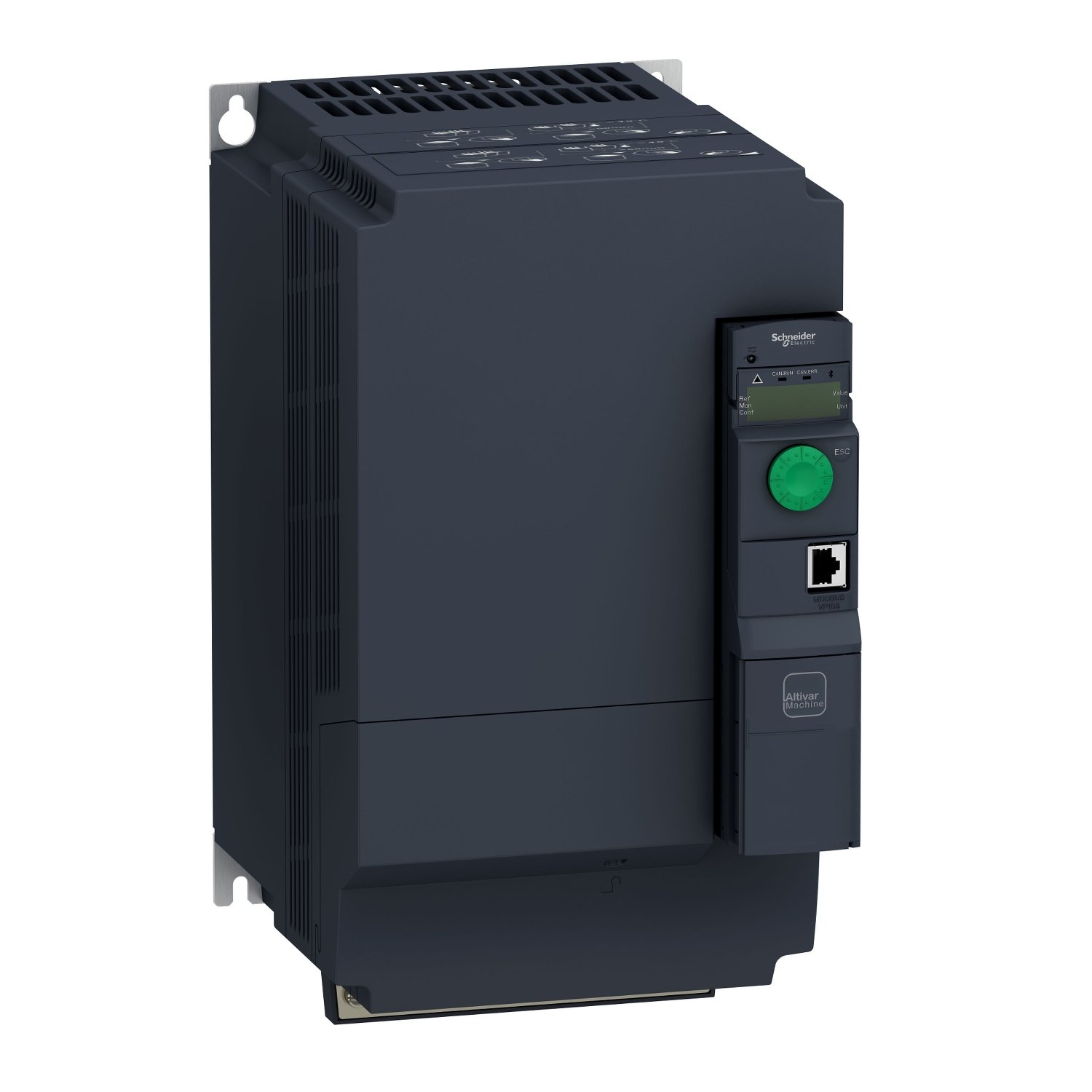

Schneider ATV320D11N4B ATV | Variable speed drive, ATV320, 11 kW, 380…500 V, 3 phases, book
Schneider Electric ATV320D11N4B ATV | Variable speed drive, ATV320, 11 kW, 380…500 V, 3 phases, book
Original price was: EGP 884,298.00.EGP 486,364.00Current price is: EGP 486,364.00.
Description
Schneider ATV320D11N4B ATV: Power, Efficiency, and Control
Schneider Electric’s ATV320D11N4B ATV is a versatile and reliable variable speed drive designed to meet the demands of modern industrial applications. With its compact design, advanced control capabilities, and robust safety features,it is the ideal solution for optimizing the performance of motors and enhancing energy efficiency in a wide range of systems.
Power and Performance
At the heart of it is its powerful motor control technology, which allows for precise speed and torque control across a broad range of operating conditions. With a maximum power rating of [insert power rating], this drive can easily handle the demands of even the most demanding industrial environments, ensuring smooth and efficient operation.
Compact Design
Despite its impressive power output, it features a compact and lightweight design, making it easy to install and integrate into existing systems. Its small footprint allows for flexible mounting options, saving valuable space in crowded equipment rooms or control cabinets.
Advanced Control
One of the standout features of it is its advanced control capabilities, which enable precise speed and torque regulation for optimal performance. With support for various control modes, including vector control and sensorless flux vector control, this drive can adapt to the specific requirements of different applications, ensuring maximum efficiency and reliability.
Safety Features
Safety is a top priority in industrial environments, and it is equipped with a range of built-in safety features to protect both equipment and personnel. From motor overload protection to short circuit protection and thermal management, this drive incorporates multiple layers of protection to prevent accidents and minimize downtime.
Applications
it is suitable for a wide range of applications across various industries, including:
- Industrial Machinery: From conveyor systems to pumps and fans, it can optimize the performance of a wide range of industrial equipment, improving productivity and reducing energy consumption.
- HVAC Systems: In HVAC applications, precise control of motor speed and torque is essential for maintaining optimal comfort levels while minimizing energy costs. The ATV320D11N4B ATV provides the flexibility and efficiency needed to achieve these goals.
- Water and Wastewater Treatment:it is well-suited for water and wastewater treatment applications, where reliable motor control is critical for maintaining process efficiency and regulatory compliance.
Benefits of Using Schneider ATV320D11N4B ATV
- Energy Efficiency: By optimizing motor performance and reducing energy waste, it can help businesses save on energy costs and reduce their carbon footprint.
- Cost Savings: With its compact design and advanced control features, the ATV320D11N4B ATV offers long-term cost savings through improved productivity and reduced maintenance requirements.
- Improved Performance: Whether it’s achieving higher production speeds or maintaining precise control over critical processes, the ATV320D11N4B ATV delivers the performance needed to stay competitive in today’s fast-paced industrial landscape.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| range of product | Altivar Machine ATV320 |
|---|---|
| product or component type | Variable speed drive |
| Product specific application | Complex machines |
| Variant | Standard version |
| Format of the drive | Book |
| mounting mode | Wall mount |
| communication port protocol | Modbus serial CANopen |
| Option card | Communication module, CANopen Communication module, EtherCAT Communication module, Profibus DP V1 Communication module, PROFINET Communication module, Ethernet Powerlink Communication module, EtherNet/IP Communication module, DeviceNet |
| [Us] rated supply voltage | 380...500 V - 15...10 % |
| Nominal output current | 27.7 A |
| Motor power kW | 11 kW for heavy duty |
| EMC filter | Class C3 EMC filter integrated |
| IP degree of protection | IP20 |
| Discrete input number | 7 |
|---|---|
| Discrete input type | STO safe torque off, 24 V DC, impedance: 1.5 kOhm DI1...DI6 logic inputs, 24 V DC (30 V) DI5 programmable as pulse input: 0…30 kHz, 24 V DC (30 V) |
| Discrete input logic | Positive logic (source) Negative logic (sink) |
| Discrete output number | 3 |
| Discrete output type | Open collector DQ+ 0…1 kHz 30 V DC 100 mA Open collector DQ- 0…1 kHz 30 V DC 100 mA |
| Analogue input number | 3 |
| Analogue input type | AI1 voltage: 0...10 V DC, impedance: 30 kOhm, resolution 10 bits AI2 bipolar differential voltage: +/- 10 V DC, impedance: 30 kOhm, resolution 10 bits AI3 current: 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration), impedance: 250 Ohm, resolution 10 bits |
| Analogue output number | 1 |
| Analogue output type | Software-configurable current AQ1: 0...20 mA impedance 800 Ohm, resolution 10 bits Software-configurable voltage AQ1: 0...10 V DC impedance 470 Ohm, resolution 10 bits |
| Relay output type | Configurable relay logic R1A 1 NO electrical durability 100000 cycles Configurable relay logic R1B 1 NC electrical durability 100000 cycles Configurable relay logic R1C Configurable relay logic R2A 1 NO electrical durability 100000 cycles Configurable relay logic R2C |
| Maximum switching current | Relay output R1A, R1B, R1C on resistive load, cos phi = 1: 3 A at 250 V AC Relay output R1A, R1B, R1C on resistive load, cos phi = 1: 3 A at 30 V DC Relay output R1A, R1B, R1C, R2A, R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC Relay output R1A, R1B, R1C, R2A, R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC Relay output R2A, R2C on resistive load, cos phi = 1: 5 A at 250 V AC Relay output R2A, R2C on resistive load, cos phi = 1: 5 A at 30 V DC |
| Minimum switching current | Relay output R1A, R1B, R1C, R2A, R2C: 5 mA at 24 V DC |
| Method of access | Slave CANopen |
| 4 quadrant operation possible | True |
| Asynchronous motor control profile | Voltage/frequency ratio, 5 points Flux vector control without sensor, standard Voltage/frequency ratio - Energy Saving, quadratic U/f Flux vector control without sensor - Energy Saving Voltage/frequency ratio, 2 points |
| Synchronous motor control profile | Vector control without sensor |
| Transient overtorque | 170…200 % of nominal motor torque |
| Maximum output frequency | 0.599 kHz |
| Acceleration and deceleration ramps | Linear U S CUS Ramp switching Acceleration/deceleration ramp adaptation Acceleration/deceleration automatic stop with DC injection |
| Motor slip compensation | Automatic whatever the load Adjustable 0...300 % Not available in voltage/frequency ratio (2 or 5 points) |
| Switching frequency | 2...16 kHz adjustable 4...16 kHz with derating factor |
| Nominal switching frequency | 4 kHz |
| Braking to standstill | By DC injection |
| Brake chopper integrated | True |
| Line current | 36.6 A at 380 V (heavy duty) 25.6 A at 500 V (heavy duty) |
| Maximum input current | 36.6 A |
| Maximum output voltage | 500 V |
| Apparent power | 22.2 kVA at 500 V (heavy duty) |
| Network frequency | 50...60 Hz |
| Relative symmetric network frequency tolerance | 5 % |
| Prospective line Isc | 22 kA |
| Base load current at high overload | 3.3 A |
| Power dissipation in W | Fan: 370 W at 380 V, switching frequency 4 kHz |
| With safety function Safely Limited Speed (SLS) | True |
| With safety function Safe brake management (SBC/SBT) | False |
| With safety function Safe Operating Stop (SOS) | False |
| With safety function Safe Position (SP) | False |
| With safety function Safe programmable logic | False |
| With safety function Safe Speed Monitor (SSM) | False |
| With safety function Safe Stop 1 (SS1) | True |
| With sft fct Safe Stop 2 (SS2) | False |
| With safety function Safe torque off (STO) | True |
| With safety function Safely Limited Position (SLP) | False |
| With safety function Safe Direction (SDI) | False |
| Protection type | Input phase breaks: drive Overcurrent between output phases and earth: drive Overheating protection: drive Short-circuit between motor phases: drive Thermal protection: drive |
| Width | 180 mm |
| Height | 404.0 mm |
| Depth | 232.0 mm |
| net weight | 6.8 kg |
| Operating position | Vertical +/- 10 degree |
|---|---|
| Product certifications | CE ATEX NOM GOST EAC RCM KC |
| marking | CE ATEX UL CSA EAC RCM |
| Standards | IEC 61800-5-1 |
| Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 |
| Environmental class (during operation) | Class 3C3 according to IEC 60721-3-3 Class 3S2 according to IEC 60721-3-3 |
| Maximum acceleration under shock impact (during operation) | 150 m/s² at 11 ms |
| Maximum acceleration under vibrational stress (during operation) | 10 m/s² at 13...200 Hz |
| Maximum deflection under vibratory load (during operation) | 1.5 mm at 2...13 Hz |
| Permitted relative humidity (during operation) | Class 3K5 according to EN 60721-3 |
| Volume of cooling air | 156.0 m3/h |
| Overvoltage category | III |
| Regulation loop | Adjustable PID regulator |
| Speed accuracy | +/- 10 % of nominal slip 0.2 Tn to Tn |
| Pollution degree | 2 |
| Ambient air transport temperature | -25…70 °C |
| Ambient air temperature for operation | -10…50 °C without derating 50…60 °C with derating factor |
| Ambient air temperature for storage | -25…70 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 23.000 cm |
| Package 1 Width | 42.000 cm |
| Package 1 Length | 27.200 cm |
| Package 1 Weight | 8.787 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 47.860 kg |
