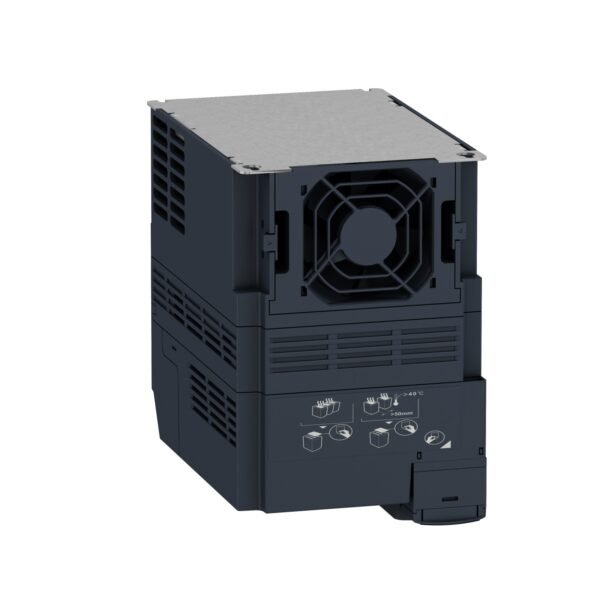

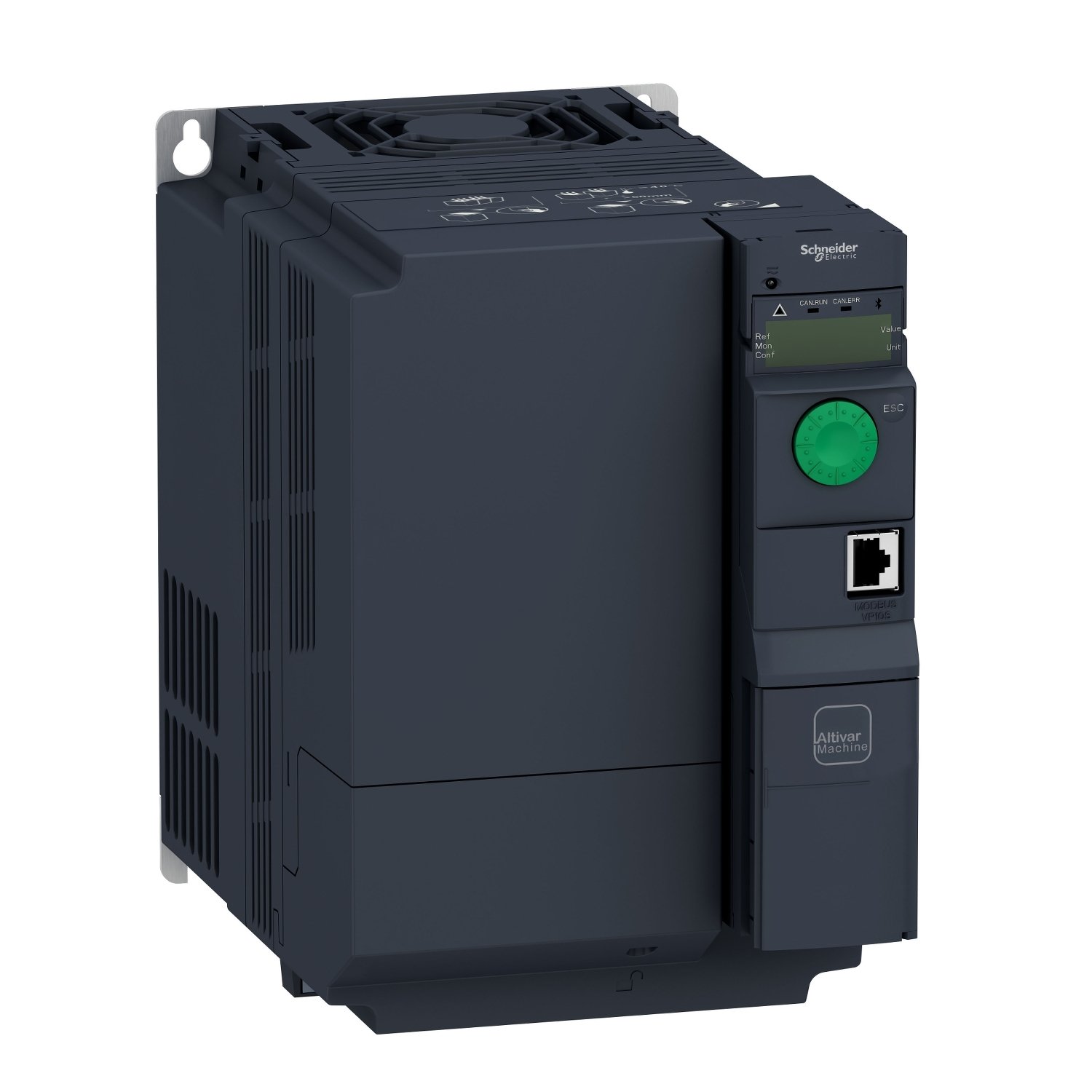

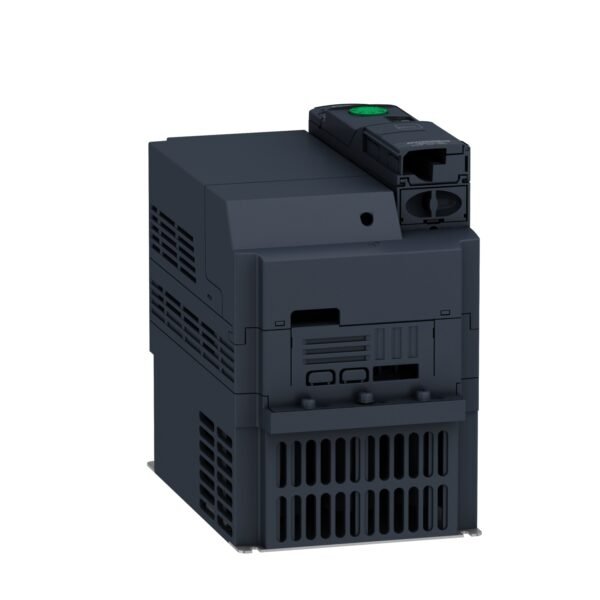

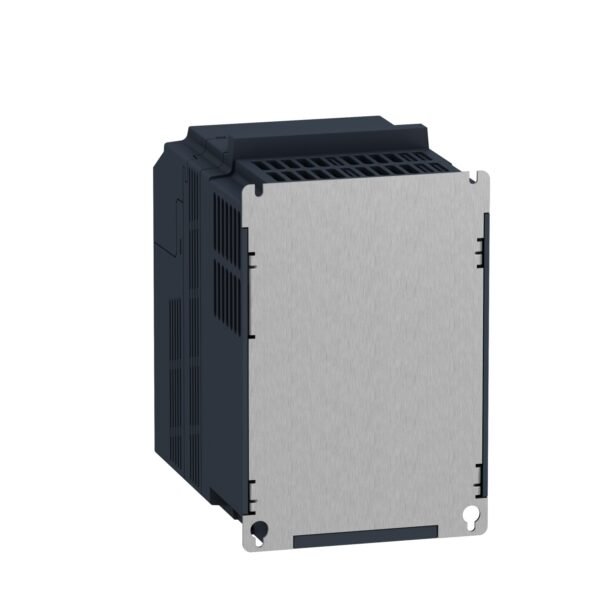

Schneider ATV320U55N4B ATV | Variable speed drive, ATV320, 5.5 kW, 380…500 V, 3 phases, book
Schneider ATV320U55N4B ATV
Original price was: EGP 611,838.00.EGP 336,511.00Current price is: EGP 336,511.00.
Description
Schneider ATV320U55N4B ATV: Enhancing Industrial Automation
Industrial automation has revolutionized the way businesses operate, streamlining processes, improving efficiency, and ensuring safety. In this article, we’ll delve into it, a powerful variable speed drive designed to enhance industrial automation systems.
Features and Specifications
Power and Voltage Ratings
The Schneider ATV320U55N4B ATV boasts impressive power and voltage ratings, making it suitable for a wide range of industrial applications. With a maximum power rating of [insert power rating here] and voltage rating of [insert voltage rating here], it offers the versatility needed for various automation tasks.
Compact Design
One of the standout features of it is its compact design. Despite its powerful performance capabilities, this drive is designed to be space-efficient, allowing for easy integration into existing automation setups without taking up excessive space.
Built-in Safety Features
Safety is paramount in industrial environments, and it doesn’t disappoint in this regard. It comes equipped with a range of built-in safety features, including [insert safety features here], ensuring the protection of both personnel and equipment.
Applications and Industries
Industrial Automation
it is ideal for a wide range of industrial automation applications, including conveyor systems, pumps, fans, and more. Its versatile design and customizable settings make it suitable for use in various manufacturing and production environments.
HVAC Systems
Heating, ventilation, and air conditioning (HVAC) systems require precise control to maintain optimal indoor environments. it provides the necessary speed and torque control to ensure efficient HVAC operation, resulting in improved comfort and energy savings.
Water and Wastewater Management
In water and wastewater management applications, reliable and efficient equipment is essential for maintaining operations. it offers the reliability and performance needed to control pumps and motors in water treatment plants, ensuring consistent and reliable operation.
Installation and Setup
Wiring and Connections
Installing it is straightforward, thanks to its user-friendly design and comprehensive installation instructions. Proper wiring and connections are crucial for optimal performance, and the drive’s intuitive interface simplifies the setup process.
Programming and Configuration
Once installed, the drive can be easily programmed and configured to suit specific application requirements. From adjusting speed and acceleration settings to configuring input and output parameters, users have full control over the drive’s operation.
Performance and Efficiency
Variable Speed Control
Variable speed drives offer precise control over motor speed, allowing for optimized performance and energy efficiency. it provides seamless variable speed control, enabling users to fine-tune motor operation to match changing load conditions.
Energy Savings
By controlling motor speed and torque, it helps businesses reduce energy consumption and lower operating costs. Its energy-saving features ensure that motors operate at optimal efficiency, resulting in significant energy savings over time.
Maintenance and Troubleshooting
Routine Maintenance
To ensure continued performance and reliability, regular maintenance is essential. it requires minimal maintenance, with routine checks and inspections ensuring that the drive remains in optimal condition.
Common Issues and Solutions
In the event of issues or malfunctions, the drive’s comprehensive diagnostic capabilities make troubleshooting straightforward. Common issues such as [insert common issues here] can be quickly identified and resolved, minimizing downtime and maximizing productivity.
Pricing and Availability
it is competitively priced, offering exceptional value for businesses looking to enhance their automation systems. It is readily available through authorized distributors and partners, ensuring easy access for customers worldwide.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| range of product | Altivar Machine ATV320 |
|---|---|
| product or component type | Variable speed drive |
| Product specific application | Complex machines |
| Variant | Standard version |
| Format of the drive | Book |
| mounting mode | Wall mount |
| communication port protocol | Modbus serial CANopen |
| Option card | Communication module, CANopen Communication module, EtherCAT Communication module, Profibus DP V1 Communication module, PROFINET Communication module, Ethernet Powerlink Communication module, EtherNet/IP Communication module, DeviceNet |
| [Us] rated supply voltage | 380...500 V - 15...10 % |
| Nominal output current | 14.3 A |
| Motor power kW | 5.5 kW for heavy duty |
| EMC filter | Class C2 EMC filter integrated |
| IP degree of protection | IP20 |
| Discrete input number | 7 |
|---|---|
| Discrete input type | STO safe torque off, 24 V DC, impedance: 1.5 kOhm DI1...DI6 logic inputs, 24 V DC (30 V) DI5 programmable as pulse input: 0…30 kHz, 24 V DC (30 V) |
| Discrete input logic | Positive logic (source) Negative logic (sink) |
| Discrete output number | 3 |
| Discrete output type | Open collector DQ+ 0…1 kHz 30 V DC 100 mA Open collector DQ- 0…1 kHz 30 V DC 100 mA |
| Analogue input number | 3 |
| Analogue input type | AI1 voltage: 0...10 V DC, impedance: 30 kOhm, resolution 10 bits AI2 bipolar differential voltage: +/- 10 V DC, impedance: 30 kOhm, resolution 10 bits AI3 current: 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration), impedance: 250 Ohm, resolution 10 bits |
| Analogue output number | 1 |
| Analogue output type | Software-configurable current AQ1: 0...20 mA impedance 800 Ohm, resolution 10 bits Software-configurable voltage AQ1: 0...10 V DC impedance 470 Ohm, resolution 10 bits |
| Relay output type | Configurable relay logic R1A 1 NO electrical durability 100000 cycles Configurable relay logic R1B 1 NC electrical durability 100000 cycles Configurable relay logic R1C Configurable relay logic R2A 1 NO electrical durability 100000 cycles Configurable relay logic R2C |
| Maximum switching current | Relay output R1A, R1B, R1C on resistive load, cos phi = 1: 3 A at 250 V AC Relay output R1A, R1B, R1C on resistive load, cos phi = 1: 3 A at 30 V DC Relay output R1A, R1B, R1C, R2A, R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC Relay output R1A, R1B, R1C, R2A, R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC Relay output R2A, R2C on resistive load, cos phi = 1: 5 A at 250 V AC Relay output R2A, R2C on resistive load, cos phi = 1: 5 A at 30 V DC |
| Minimum switching current | Relay output R1A, R1B, R1C, R2A, R2C: 5 mA at 24 V DC |
| Method of access | Slave CANopen |
| 4 quadrant operation possible | True |
| Asynchronous motor control profile | Voltage/frequency ratio, 5 points Flux vector control without sensor, standard Voltage/frequency ratio - Energy Saving, quadratic U/f Flux vector control without sensor - Energy Saving Voltage/frequency ratio, 2 points |
| Synchronous motor control profile | Vector control without sensor |
| Transient overtorque | 170…200 % of nominal motor torque |
| Maximum output frequency | 0.599 kHz |
| Acceleration and deceleration ramps | Linear U S CUS Ramp switching Acceleration/deceleration ramp adaptation Acceleration/deceleration automatic stop with DC injection |
| Motor slip compensation | Automatic whatever the load Adjustable 0...300 % Not available in voltage/frequency ratio (2 or 5 points) |
| Switching frequency | 2...16 kHz adjustable 4...16 kHz with derating factor |
| Nominal switching frequency | 4 kHz |
| Braking to standstill | By DC injection |
| Brake chopper integrated | True |
| Line current | 20.7 A at 380 V (heavy duty) 14.5 A at 500 V (heavy duty) |
| Maximum input current | 20.7 A |
| Maximum output voltage | 500 V |
| Apparent power | 12.6 kVA at 500 V (heavy duty) |
| Network frequency | 50...60 Hz |
| Relative symmetric network frequency tolerance | 5 % |
| Prospective line Isc | 22 kA |
| Base load current at high overload | 14.3 A |
| Power dissipation in W | Fan: 195.0 W at 380 V, switching frequency 4 kHz |
| With safety function Safely Limited Speed (SLS) | True |
| With safety function Safe brake management (SBC/SBT) | False |
| With safety function Safe Operating Stop (SOS) | False |
| With safety function Safe Position (SP) | False |
| With safety function Safe programmable logic | False |
| With safety function Safe Speed Monitor (SSM) | False |
| With safety function Safe Stop 1 (SS1) | True |
| With sft fct Safe Stop 2 (SS2) | False |
| With safety function Safe torque off (STO) | True |
| With safety function Safely Limited Position (SLP) | False |
| With safety function Safe Direction (SDI) | False |
| Protection type | Input phase breaks: drive Overcurrent between output phases and earth: drive Overheating protection: drive Short-circuit between motor phases: drive Thermal protection: drive |
| Width | 150 mm |
| Height | 308.0 mm |
| Depth | 232.0 mm |
| net weight | 4.4 kg |
| Operating position | Vertical +/- 10 degree |
|---|---|
| Product certifications | CE ATEX NOM GOST EAC RCM KC |
| marking | CE ATEX UL CSA EAC RCM |
| Standards | IEC 61800-5-1 |
| Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 |
| Environmental class (during operation) | Class 3C3 according to IEC 60721-3-3 Class 3S2 according to IEC 60721-3-3 |
| Maximum acceleration under shock impact (during operation) | 150 m/s² at 11 ms |
| Maximum acceleration under vibrational stress (during operation) | 10 m/s² at 13...200 Hz |
| Maximum deflection under vibratory load (during operation) | 1.5 mm at 2...13 Hz |
| Permitted relative humidity (during operation) | Class 3K5 according to EN 60721-3 |
| Volume of cooling air | 60 m3/h |
| Overvoltage category | III |
| Regulation loop | Adjustable PID regulator |
| Speed accuracy | +/- 10 % of nominal slip 0.2 Tn to Tn |
| Pollution degree | 2 |
| Ambient air transport temperature | -25…70 °C |
| Ambient air temperature for operation | -10…50 °C without derating 50…60 °C with derating factor |
| Ambient air temperature for storage | -25…70 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 20.500 cm |
| Package 1 Width | 33.000 cm |
| Package 1 Length | 27.200 cm |
| Package 1 Weight | 5.511 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 68.110 kg |
