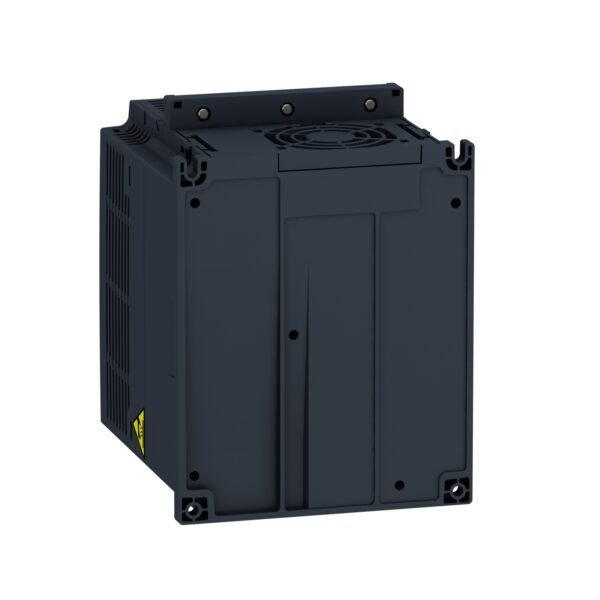

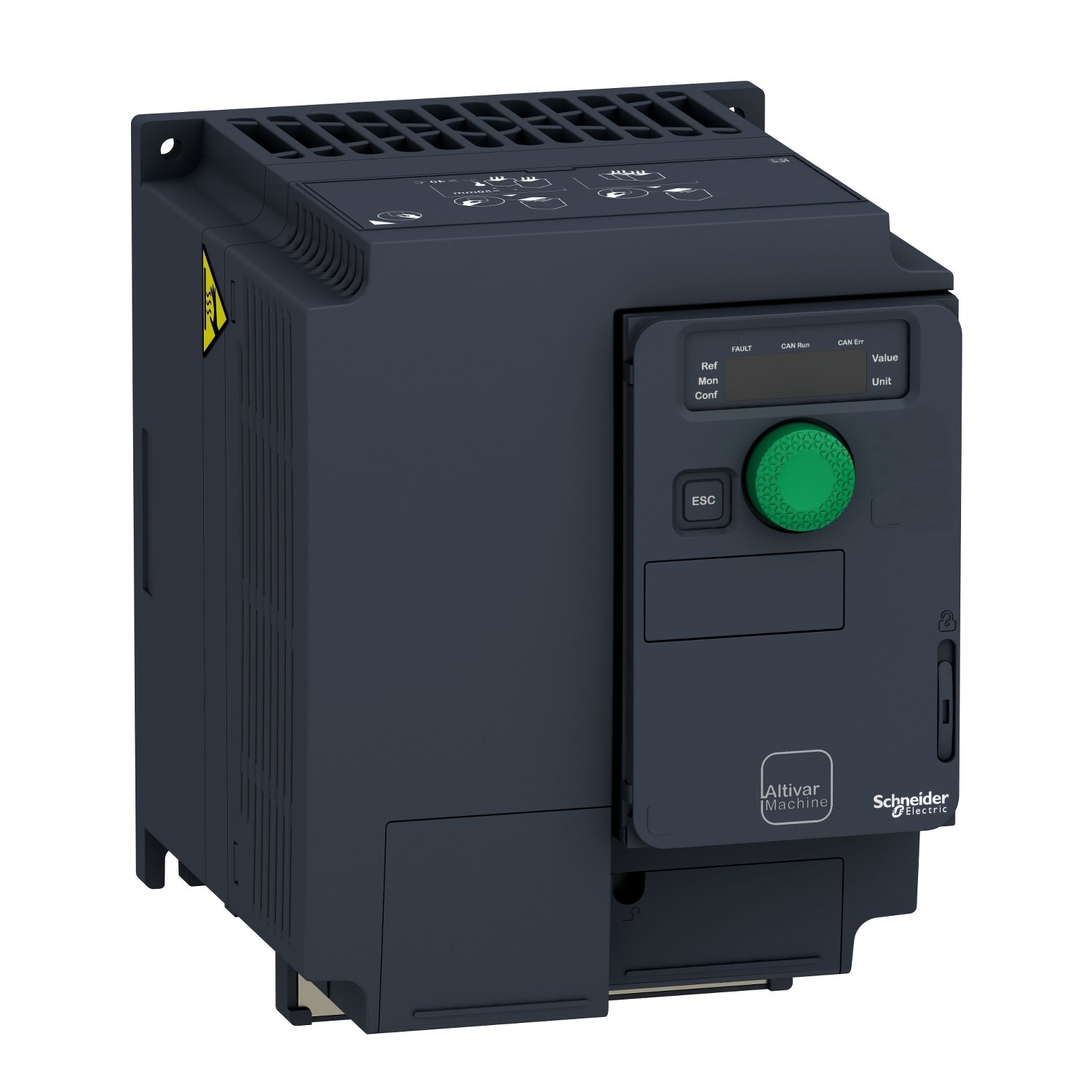

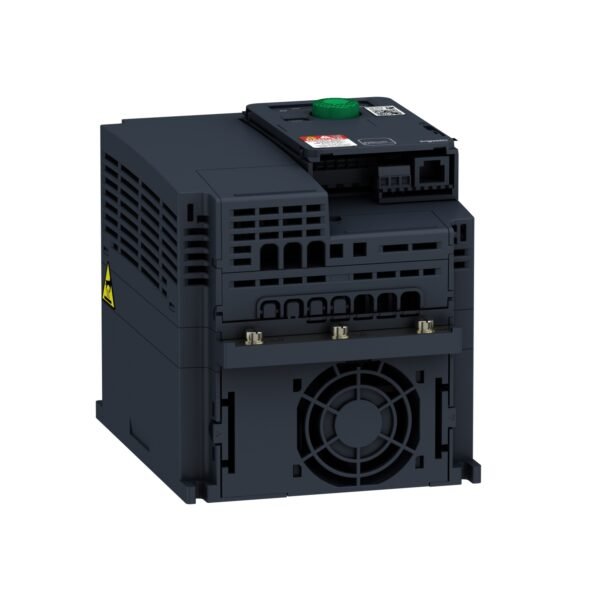

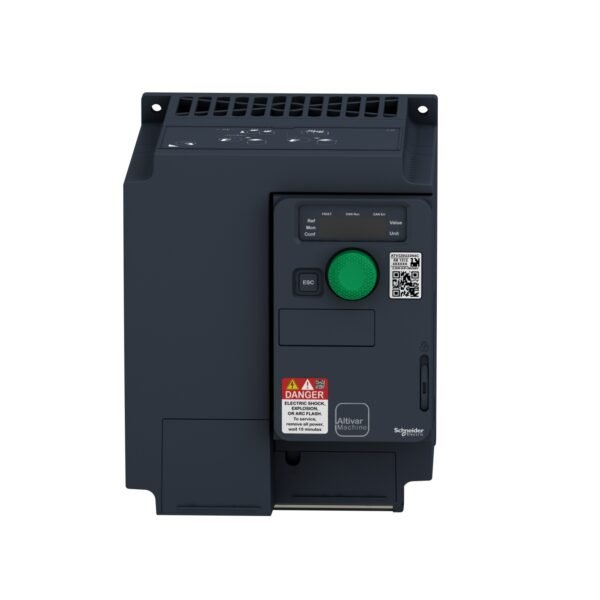

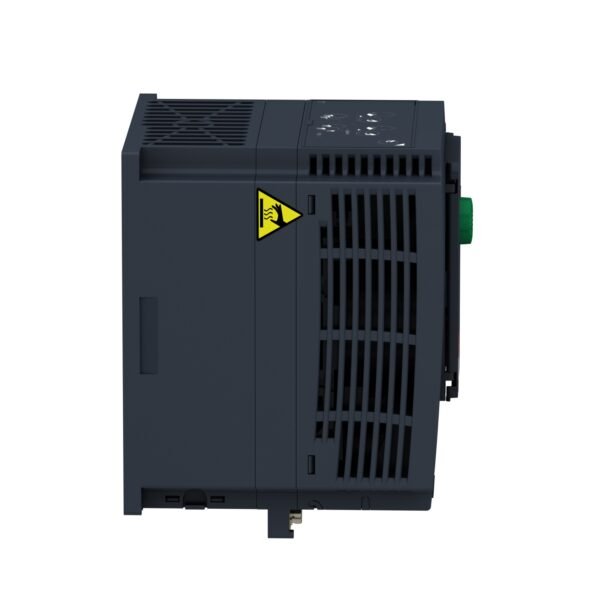

Schneider ATV320U30N4C ATV: Revolutionizing Industrial Automation

In the realm of industrial automation, it stands out as a formidable solution for efficient and precise motor control. Packed with advanced features and cutting-edge technology, this variable frequency drive (VFD) offers unparalleled performance and reliability.

Understanding the Features of Schneider ATV320U30N4C ATV

Variable Frequency Drive (VFD) Technology

At the heart of it lies its VFD technology, which allows for seamless control of motor speed and torque. This enables users to optimize energy consumption, reduce wear and tear on machinery, and enhance overall system efficiency.

Compact Design

Despite its powerful capabilities, it boasts a compact and space-saving design, making it ideal for installations where space is limited. Its sleek form factor ensures easy integration into existing setups without compromising performance.

User-Friendly Interface

Navigating the features and settings of it is a breeze thanks to its intuitive user interface. With clear displays and straightforward controls, operators can quickly configure the drive to meet their specific requirements, saving time and minimizing errors.

Energy Efficiency

One of the standout features of it is its focus on energy efficiency. By precisely regulating motor speed, it helps organizations reduce their energy consumption and carbon footprint, leading to significant cost savings and environmental benefits.

Applications

The versatility of it makes it suitable for a wide range of applications across various industries:

  • Industrial Machinery: From conveyors to pumps, it ensures smooth and reliable operation of industrial machinery.
  • HVAC Systems: In heating, ventilation, and air conditioning (HVAC) systems, it helps maintain optimal environmental conditions while minimizing energy consumption.
  • Water Treatment Plants: The precise control capabilities of it make it an indispensable component in water treatment plants, ensuring efficient water distribution and treatment processes.
  • Elevators and Escalators: In urban infrastructure projects, it plays a crucial role in the safe and efficient operation of elevators and escalators.

Advantages of Using

Improved Control

With its advanced control algorithms and high-resolution feedback, it offers unparalleled precision and responsiveness, allowing for fine-tuned motor control in a wide range of applications.

Cost Savings

By optimizing energy consumption, reducing maintenance costs, and minimizing downtime, it delivers significant cost savings over its lifespan, making it a wise investment for businesses seeking to improve their bottom line.

Enhanced Performance

Whether it’s achieving higher throughput, improving system reliability, or meeting stringent performance requirements, it consistently delivers superior performance in diverse industrial settings.

Installation and Setup Process

Installing and setting up it is a straightforward process that can be completed in a few simple steps:

  1. Mounting: Securely mount the drive in a suitable location, ensuring proper ventilation and accessibility for maintenance.
  2. Wiring: Connect the drive to the motor, power supply, and control devices according to the provided wiring diagram, ensuring proper grounding and insulation.
  3. Configuration: Use the intuitive interface to configure the drive settings to match the requirements of the application, adjusting parameters such as motor speed, acceleration, and deceleration.

Maintenance and Troubleshooting Tips

To ensure optimal performance and reliability, follow these maintenance and troubleshooting tips:

  • Regular Inspections: Periodically inspect the drive for signs of wear, damage, or overheating, and address any issues promptly to prevent downtime.
  • Firmware Updates: Stay up-to-date with the latest firmware updates to benefit from performance enhancements and bug fixes.
  • Common Issues and Solutions: Familiarize yourself with common issues such as overvoltage, overcurrent, and motor faults, and follow the recommended troubleshooting steps to resolve them quickly.

Additional information

brands

Schneider Electric

Specifications

Main
Range of product Altivar Machine ATV320
Product or component type Variable speed drive
Product specific application Complex machines
Variant Standard version
Format of the drive Compact
Mounting mode Wall mount
Communication port protocol Modbus serial CANopen
Option card Communication module, CANopen Communication module, EtherCAT Communication module, Profibus DP V1 Communication module, PROFINET Communication module, Ethernet Powerlink Communication module, EtherNet/IP Communication module, DeviceNet
[Us] rated supply voltage 380...500 V - 15...10 %
Nominal output current 7.1 A
Motor power kW 3.0 kW for heavy duty
EMC filter Class C2 EMC filter integrated
IP degree of protection IP20
Complementary
Discrete input number 7
Discrete input type STO safe torque off, 24 V DC, impedance: 1.5 kOhm DI1...DI6 logic inputs, 24 V DC (30 V) DI5 programmable as pulse input: 0…30 kHz, 24 V DC (30 V)
Discrete input logic Positive logic (source) Negative logic (sink)
Discrete output number 3
Discrete output type Open collector DQ+ 0…1 kHz 30 V DC 100 mA Open collector DQ- 0…1 kHz 30 V DC 100 mA
Analogue input number 3
Analogue input type AI1 voltage: 0...10 V DC, impedance: 30 kOhm, resolution 10 bits AI2 bipolar differential voltage: +/- 10 V DC, impedance: 30 kOhm, resolution 10 bits AI3 current: 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration), impedance: 250 Ohm, resolution 10 bits
Analogue output number 1
Analogue output type Software-configurable current AQ1: 0...20 mA impedance 800 Ohm, resolution 10 bits Software-configurable voltage AQ1: 0...10 V DC impedance 470 Ohm, resolution 10 bits
Relay output type Configurable relay logic R1A 1 NO electrical durability 100000 cycles Configurable relay logic R1B 1 NC electrical durability 100000 cycles Configurable relay logic R1C Configurable relay logic R2A 1 NO electrical durability 100000 cycles Configurable relay logic R2C
Maximum switching current Relay output R1A, R1B, R1C on resistive load, cos phi = 1: 3 A at 250 V AC Relay output R1A, R1B, R1C on resistive load, cos phi = 1: 3 A at 30 V DC Relay output R1A, R1B, R1C, R2A, R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC Relay output R1A, R1B, R1C, R2A, R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC Relay output R2A, R2C on resistive load, cos phi = 1: 5 A at 250 V AC Relay output R2A, R2C on resistive load, cos phi = 1: 5 A at 30 V DC
Minimum switching current Relay output R1A, R1B, R1C, R2A, R2C: 5 mA at 24 V DC
Method of access Slave CANopen
4 quadrant operation possible True
Asynchronous motor control profile Voltage/frequency ratio, 5 points Flux vector control without sensor, standard Voltage/frequency ratio - Energy Saving, quadratic U/f Flux vector control without sensor - Energy Saving Voltage/frequency ratio, 2 points
Synchronous motor control profile Vector control without sensor
Transient overtorque 170…200 % of nominal motor torque
Maximum output frequency 0.599 kHz
Acceleration and deceleration ramps Linear U S CUS Ramp switching Acceleration/deceleration ramp adaptation Acceleration/deceleration automatic stop with DC injection
Motor slip compensation Automatic whatever the load Adjustable 0...300 % Not available in voltage/frequency ratio (2 or 5 points)
Switching frequency 2...16 kHz adjustable 4...16 kHz with derating factor
Nominal switching frequency 4 kHz
Braking to standstill By DC injection
Brake chopper integrated True
Line current 11.1 A at 380 V (heavy duty) 8.4 A at 500 V (heavy duty)
Maximum input current 11.1 A
Maximum output voltage 500 V
Apparent power 7.3 kVA at 500 V (heavy duty)
Network frequency 50...60 Hz
Relative symmetric network frequency tolerance 5 %
Prospective line Isc 5 kA
Base load current at high overload 7.1 A
Power dissipation in W Fan: 93.0 W at 380 V, switching frequency 4 kHz
With safety function Safely Limited Speed (SLS) True
With safety function Safe brake management (SBC/SBT) False
With safety function Safe Operating Stop (SOS) False
With safety function Safe Position (SP) False
With safety function Safe programmable logic False
With safety function Safe Speed Monitor (SSM) False
With safety function Safe Stop 1 (SS1) True
With sft fct Safe Stop 2 (SS2) False
With safety function Safe torque off (STO) True
With safety function Safely Limited Position (SLP) False
With safety function Safe Direction (SDI) False
Protection type Input phase breaks: drive Overcurrent between output phases and earth: drive Overheating protection: drive Short-circuit between motor phases: drive Thermal protection: drive
Width 140 mm
Height 184.0 mm
Depth 158.0 mm
Net weight 2.1 kg
Environment
Operating position Vertical +/- 10 degree
Product certifications CE ATEX NOM GOST EAC RCM KC
Marking CE ATEX UL CSA EAC RCM
Standards IEC 61800-5-1
Electromagnetic compatibility Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11
Environmental class (during operation) Class 3C3 according to IEC 60721-3-3 Class 3S2 according to IEC 60721-3-3
Maximum acceleration under shock impact (during operation) 150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation) 10 m/s² at 13...200 Hz
Maximum deflection under vibratory load (during operation) 1.5 mm at 2...13 Hz
Permitted relative humidity (during operation) Class 3K5 according to EN 60721-3
Volume of cooling air 37.7 m3/h
Overvoltage category III
Regulation loop Adjustable PID regulator
Speed accuracy +/- 10 % of nominal slip 0.2 Tn to Tn
Pollution degree 2
Ambient air transport temperature -25…70 °C
Ambient air temperature for operation -10…50 °C without derating 50…60 °C with derating factor
Ambient air temperature for storage -25…70 °C
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 19.300 cm
Package 1 Width 27.000 cm
Package 1 Length 24.500 cm
Package 1 Weight 2.698 kg
Unit Type of Package 2 S06
Number of Units in Package 2 12
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 45.640 kg
