Altivar Machine ATV320

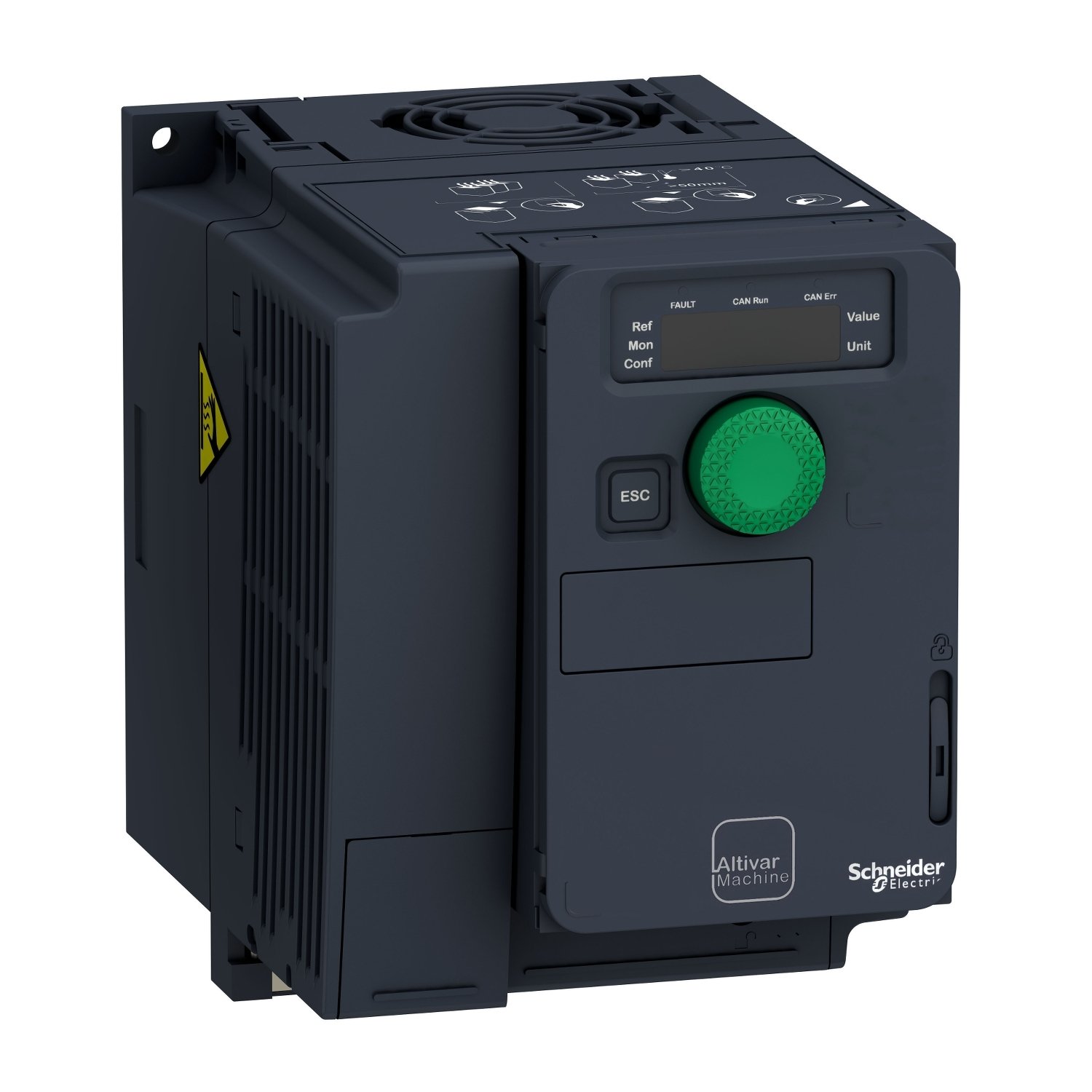

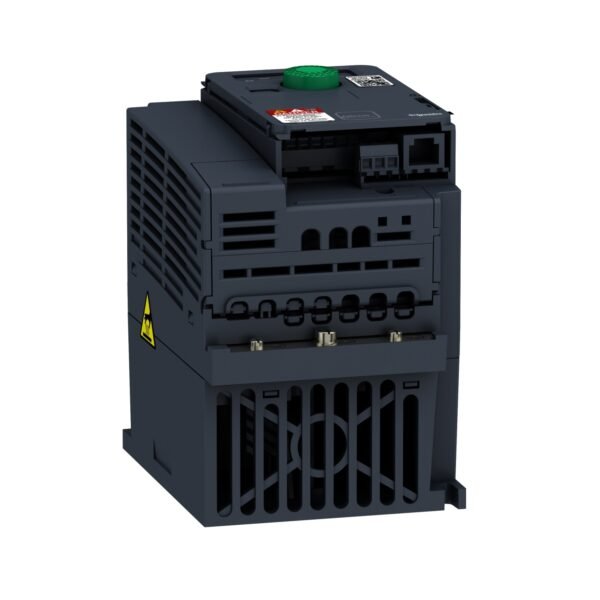

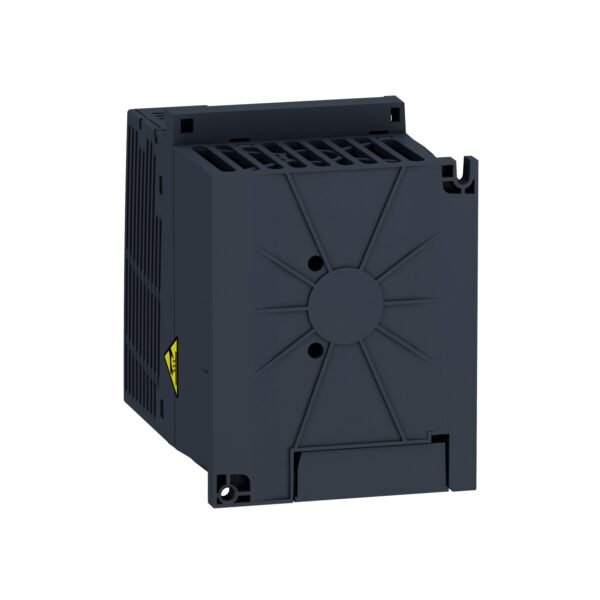

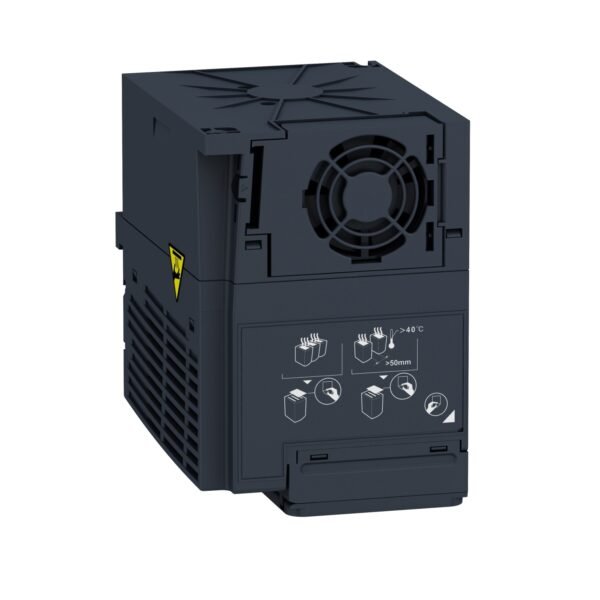

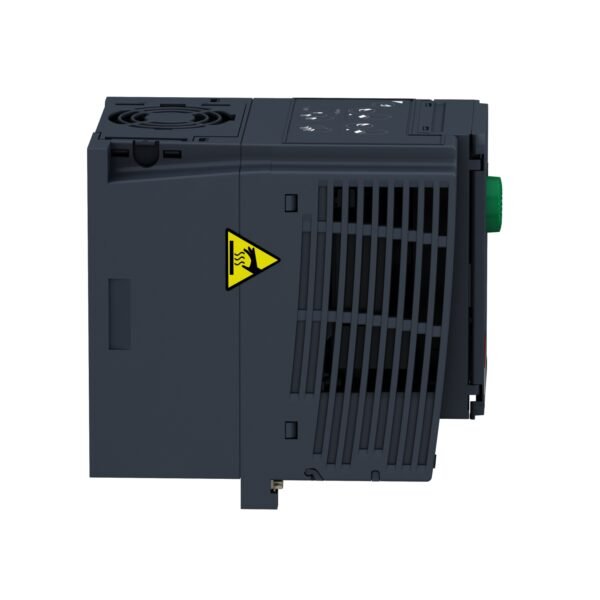

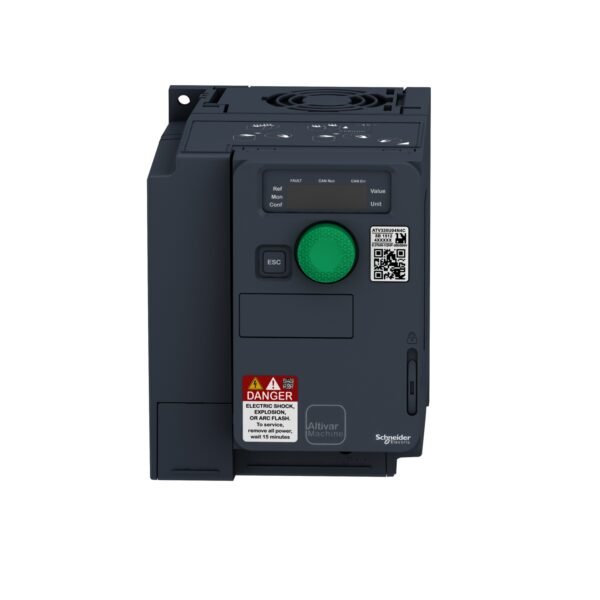

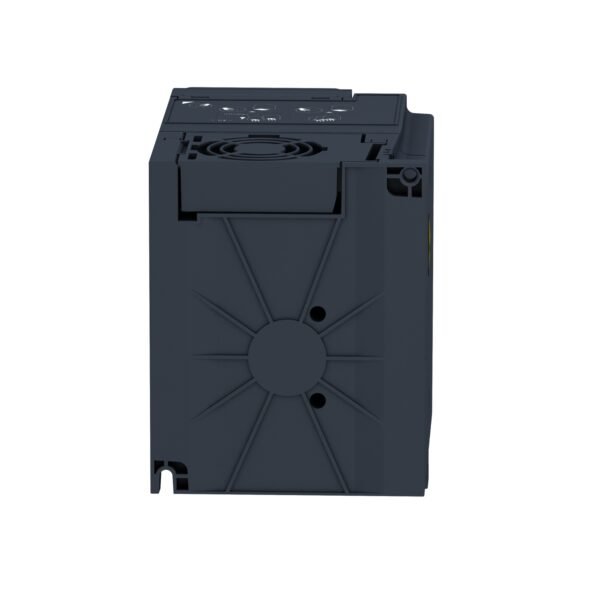

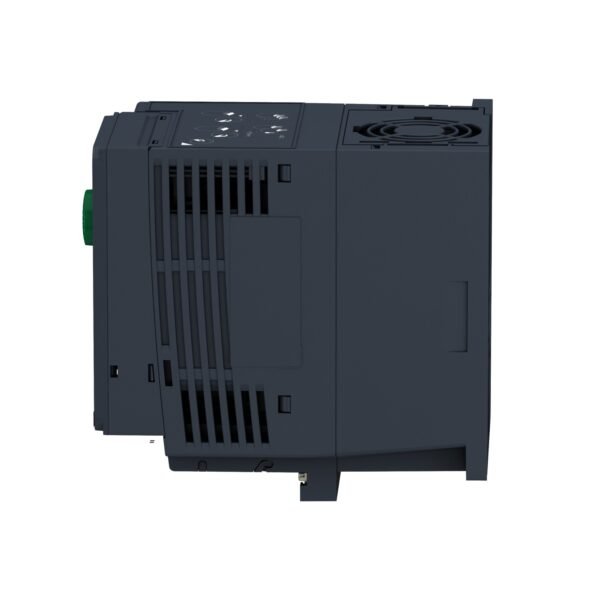

Schneider ATV320U06N4C | Variable speed drive, ATV320, 0.55 kW, 380…500 V, 3 phases, compact

Compare

Product Code:

ATV320U06N4C

Tags:

0.55 kW, 3 phases, 380…500 V, ATV320, compact, Variable speed drive

Brand: Schneider Electric

<span data-mce-type="bookmark" style="width: 0px;overflow: hidden;line-height: 0" class="mce_SELRES_start"></span>

Name: Schneider ATV320U06N4C | Variable speed drive, ATV320, 0.55 kW, 380…500 V, 3 phases, compact
Brand: Schneider Electric
SKU: ATV320U06N4C
Availability: InStock

Introduction

In the realm of industrial automation and control systems, the Schneider ATV320U06N4C Variable Speed Drive (VSD) stands out as a compact yet powerful solution for managing motor speed and energy consumption. This article dives into the details of this innovative product, exploring its features, applications, installation, configuration, benefits, and more.

Overview

The Schneider ATV320U06N4C is part of the ATV320 series, designed to offer precise control over motor speed in various industrial settings. With a power rating of 0.55 kW and compatibility with 380-500 V, 3-phase systems, it caters to a wide range of applications requiring efficient motor control.

Features

Basic Features

Compact Design: Space-saving and suitable for diverse installation scenarios.
Voltage Compatibility: Supports 380-500 V power systems.
Power Rating: Capable of handling 0.55 kW of power.
Three-Phase Operation: Ideal for industrial environments.

Advanced Features

Variable Speed Control: Enables precise adjustments for optimal performance.
Energy Efficiency: Reduces energy consumption by matching motor speed to actual requirements.
Built-in Protections: Safeguards against overloads, short circuits, and other electrical issues.
Communication Interfaces: Allows integration with automation systems for seamless control.

Applications

it finds applications in various industries such as manufacturing, HVAC (Heating, Ventilation, and Air Conditioning), pumping stations, and more. Its versatility and reliability make it a preferred choice for controlling motors in different operational scenarios.

Installation

Installing it is straightforward, thanks to its compact design and clear documentation provided by Schneider Electric. Proper installation ensures optimal performance and safety.

Configuration

The VSD offers flexible configuration options, allowing users to customize motor control parameters based on specific requirements. This includes setting speed limits, acceleration/deceleration rates, and monitoring functionalities.

Benefits

Energy Savings: Efficient motor control leads to reduced energy consumption and lower operational costs.
Improved Performance: Precise speed control enhances process efficiency and product quality.
Reliability: Built-in protections and durable construction ensure reliable operation.
Easy Integration: Compatible with various automation systems for seamless integration into existing setups.

Maintenance

Regular maintenance of it involves checking for firmware updates, inspecting for any wear and tear, and ensuring proper ventilation for cooling components. Following manufacturer guidelines enhances product lifespan and performance.

Troubleshooting

Common troubleshooting steps for it include checking connections, reviewing error codes on the display panel, and consulting the user manual for guidance. Schneider Electric provides comprehensive support to address any technical issues.

Conclusion

The Schneider ATV320U06N4C Variable Speed Drive combines advanced features with ease of use, making it a valuable asset for industries requiring precise motor control. Its compact design, energy efficiency, and reliability make it a top choice for enhancing automation systems.

brands	Schneider Electric

Main
Range of product	Altivar Machine ATV320
Product or component type	Variable speed drive
Product specific application	Complex machines
Variant	Standard version Standard version
Format of the drive	Compact
Mounting mode	Wall mount
Communication port protocol	Modbus serial CANopen
Option card	Communication module, CANopen Communication module, EtherCAT Communication module, Profibus DP V1 Communication module, PROFINET Communication module, Ethernet Powerlink Communication module, EtherNet/IP Communication module, DeviceNet
[Us] rated supply voltage	380...500 V - 15...10 %
Nominal output current	1.9 A
Motor power kW	0.55 kW for heavy duty
EMC filter	Class C2 EMC filter integrated
IP degree of protection	IP20

Complementary
Discrete input number	7
Discrete input type	STO safe torque off, 24 V DC, impedance: 1.5 kOhm DI1...DI6 logic inputs, 24 V DC (30 V) DI5 programmable as pulse input: 0…30 kHz, 24 V DC (30 V)
Discrete input logic	Positive logic (source) Negative logic (sink)
Discrete output number	3
Discrete output type	Open collector DQ+ 0…1 kHz 30 V DC 100 mA Open collector DQ- 0…1 kHz 30 V DC 100 mA
Analogue input number	3
Analogue input type	AI1 voltage: 0...10 V DC, impedance: 30 kOhm, resolution 10 bits AI2 bipolar differential voltage: +/- 10 V DC, impedance: 30 kOhm, resolution 10 bits AI3 current: 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration), impedance: 250 Ohm, resolution 10 bits
Analogue output number	1
Analogue output type	Software-configurable current AQ1: 0...20 mA impedance 800 Ohm, resolution 10 bits Software-configurable voltage AQ1: 0...10 V DC impedance 470 Ohm, resolution 10 bits
Relay output type	Configurable relay logic R1A 1 NO electrical durability 100000 cycles Configurable relay logic R1B 1 NC electrical durability 100000 cycles Configurable relay logic R1C Configurable relay logic R2A 1 NO electrical durability 100000 cycles Configurable relay logic R2C
Maximum switching current	Relay output R1A, R1B, R1C on resistive load, cos phi = 1: 3 A at 250 V AC Relay output R1A, R1B, R1C on resistive load, cos phi = 1: 3 A at 30 V DC Relay output R1A, R1B, R1C, R2A, R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC Relay output R1A, R1B, R1C, R2A, R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC Relay output R2A, R2C on resistive load, cos phi = 1: 5 A at 250 V AC Relay output R2A, R2C on resistive load, cos phi = 1: 5 A at 30 V DC
Minimum switching current	Relay output R1A, R1B, R1C, R2A, R2C: 5 mA at 24 V DC
Method of access	Slave CANopen
4 quadrant operation possible	True
Asynchronous motor control profile	Voltage/frequency ratio, 5 points Flux vector control without sensor, standard Voltage/frequency ratio - Energy Saving, quadratic U/f Flux vector control without sensor - Energy Saving Voltage/frequency ratio, 2 points
Synchronous motor control profile	Vector control without sensor
Maximum output frequency	0.599 kHz
Acceleration and deceleration ramps	Linear U S CUS Ramp switching Acceleration/deceleration ramp adaptation Acceleration/deceleration automatic stop with DC injection
Motor slip compensation	Automatic whatever the load Adjustable 0...300 % Not available in voltage/frequency ratio (2 or 5 points)
Switching frequency	2...16 kHz adjustable 4...16 kHz with derating factor
Nominal switching frequency	4 kHz
Braking to standstill	By DC injection
Brake chopper integrated	True
Line current	2.8 A at 380 V (heavy duty) 2.2 A at 500 V (heavy duty)
Maximum input current	2.8 A
Maximum output voltage	500 V
Apparent power	1.9 kVA at 500 V (heavy duty)
Network frequency	50...60 Hz
Relative symmetric network frequency tolerance	5 %
Prospective line Isc	5 kA
Base load current at high overload	7.1 A
Power dissipation in W	Fan: 27.0 W at 380 V, switching frequency 4 kHz
With safety function Safely Limited Speed (SLS)	True
With safety function Safe brake management (SBC/SBT)	False
With safety function Safe Operating Stop (SOS)	False
With safety function Safe Position (SP)	False
With safety function Safe programmable logic	False
With safety function Safe Speed Monitor (SSM)	False
With safety function Safe Stop 1 (SS1)	True
With sft fct Safe Stop 2 (SS2)	False
With safety function Safe torque off (STO)	True
With safety function Safely Limited Position (SLP)	False
With safety function Safe Direction (SDI)	False
Protection type	Input phase breaks: drive Overcurrent between output phases and earth: drive Overheating protection: drive Short-circuit between motor phases: drive Thermal protection: drive
Width	105.0 mm
Height	142.0 mm
Depth	158.0 mm
Net weight	1.2 kg
Transient overtorque	170…200 % of nominal motor torque

Environment
Operating position	Vertical +/- 10 degree
Product certifications	CE ATEX NOM GOST EAC RCM KC
Marking	CE ATEX UL CSA EAC RCM
Standards	IEC 61800-5-1
Electromagnetic compatibility	Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11
Environmental class (during operation)	Class 3C3 according to IEC 60721-3-3 Class 3S2 according to IEC 60721-3-3
Maximum acceleration under shock impact (during operation)	150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation)	10 m/s² at 13...200 Hz
Maximum deflection under vibratory load (during operation)	1.5 mm at 2...13 Hz
Permitted relative humidity (during operation)	Class 3K5 according to EN 60721-3
Volume of cooling air	18.0 m3/h
Overvoltage category	III
Regulation loop	Adjustable PID regulator
Speed accuracy	+/- 10 % of nominal slip 0.2 Tn to Tn
pollution degree	2
Ambient air transport temperature	-25…70 °C
Ambient air temperature for operation	-10…50 °C without derating 50…60 °C with derating factor
Ambient air temperature for storage	-25…70 °C

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	18.000 cm
Package 1 Width	18.500 cm
Package 1 Length	18.700 cm
Package 1 Weight	1.672 kg
Unit Type of Package 2	P06
Number of Units in Package 2	30
Package 2 Height	75.000 cm
Package 2 Width	60.000 cm
Package 2 Length	80.000 cm
Package 2 Weight	63.340 kg
