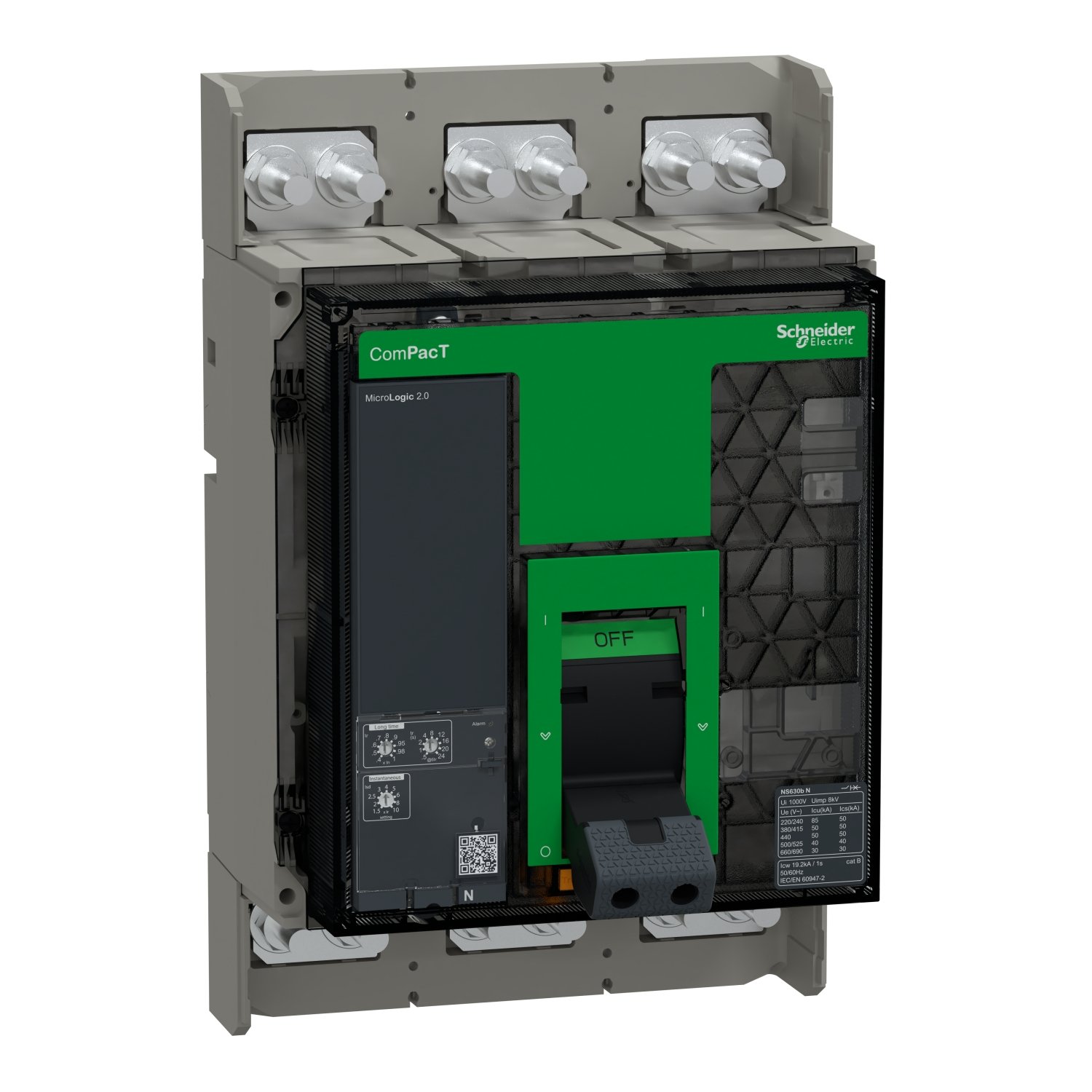

Schneider C063N320FM | Circuit breaker, ComPacT NS630bN, 50kA at 415VAC, 3P, fixed, manually operated, MicroLogic 2.0 control unit, 630A
Schneider C063N320FM | Circuit breaker, ComPacT NS630bN, 50kA at 415VAC, 3P, fixed, manually operated, MicroLogic 2.0 control unit, 630A
-
630A capacity with 50kA breaking strength ideal for industrial-grade applications.
-
MicroLogic 2.0 provides dependable and intelligent protection functions.
-
Easy manual operation with minimal training and low maintenance.
-
Compact design allows for space-efficient panel layouts.
-
Trusted Schneider Electric quality with global technical support and spare parts availability.
Original price was: EGP 12,503,748.00.EGP 8,189,955.00Current price is: EGP 8,189,955.00.
Description
Schneider C063N320FM | Circuit breaker, ComPacT NS630bN, 50kA at 415VAC, 3P, fixed, manually operated, MicroLogic 2.0 control unit, 630A
- Technical Specifications C063N320FM
-
Brand: Schneider Electric
-
Model Number: C063N320FM
-
Series: ComPacT NS630bN
-
Device Type: Molded Case Circuit Breaker (MCCB)
-
Rated Current: 630 A
-
Number of Poles: 3P
-
Breaking Capacity: 50 kA at 415 VAC
-
Rated Operational Voltage: Up to 690 V AC
-
Control Unit: MicroLogic 2.0 (thermal-magnetic protection)
-
Mounting Type: Fixed
-
Operation Mode: Manual
-
Frequency: 50/60 Hz
-
Standards Compliance: IEC 60947-2
-
Protection Degree: IP40 (when installed in a panel)
- Key Features C063N320FM
-
High breaking capacity of 50 kA ensures safe interruption of heavy fault currents.
-
Equipped with MicroLogic 2.0 trip unit for accurate thermal and magnetic protection.
-
Manual operation offers simplicity and reliability for traditional control needs.
-
Fixed version with compact design for easy panel integration.
-
Designed for enhanced performance in demanding low-voltage distribution systems.
Applications:
-
Main low-voltage distribution panels in commercial and industrial facilities.
-
Generator and transformer protection circuits.
-
Heavy-duty motor control centers (MCCs).
-
Infrastructure and utility networks requiring robust and reliable circuit protection.
-
Electrical panels in water treatment, mining, and processing plants.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | ComPacT |
|---|---|
| Product name | ComPacT NS new generation |
| Range of product | ComPacT NS630b...1600 new generation |
| Product or component type | Circuit breaker |
| Device application | Distribution |
| Number of poles | 3P |
| Protected poles description | 3D |
| [In] rated current | 630 A at 50 °C |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| Utilisation category | Category B |
| Breaking capacity | 85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 40 kA Icu at 500/525 V AC 50/60 Hz conforming to IEC 60947-2 30 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Breaking capacity code | N 50 kA 415 V AC |
| Trip unit name | MicroLogic 2.0 |
| Trip unit technology | Electronic |
| Trip unit protection functions | LI |
| Control type | Manually operated |
| Mounting mode | Fixed |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz conforming to IEC 60947-2 |
|---|---|
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-2 |
| [Ics] rated service breaking capacity | 50 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 50 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 50 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 40 kA at 500/525 V AC 50/60 Hz conforming to IEC 60947-2 30 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Icw] rated short-time withstand current | 19.2 kA 1 s conforming to IEC 60947-2 |
| Mechanical durability | 10000 cycles |
| Electrical durability | 2000 cycles at 690 V In 4000 cycles at 690 V In/2 5000 cycles at 440 V In 6000 cycles at 440 V In/2 |
| Power losses | 10 W |
| Mounting support | Backplate |
| Upside connection | Front |
| Downside connection | Front |
| Connection pitch | 70 mm |
| Protection type | L : for overload protection (long time) I : for instantaneous short-circuit protection |
| Trip unit rating | 630 A at 50 °C |
| Long-time pick-up adjustment type Ir (thermal protection) | Adjustable 9 settings |
| [Ir] long-time protection pick-up adjustment range | 0.4...1 x In |
| Long-time protection delay adjustment type tr | Adjustable 9 settings |
| [tr] long-time delay adjustment range | 12.5…600 s at 1.5 x Ir 0.5…24 s at 6 x Ir 0.7…16.6 s at 7.2 x Ir |
| Thermal memory | 20 mn |
| Instantaneous protection pick-up adjustment type Ii | Adjustable |
| [Ii] instantaneous protection pick-up adjustment range | 1.5...10 x Ir |
| Earth-leakage protection | Without |
| Zone selective interlocking ZSI | Without |
| Auxiliary contact composition | 1 NO/NC |
| Local signalling | 4 LEDs (red) for fault indication 1 LED (yellow) for overload |
| Width (W) | 210 mm |
| Height (H) | 327 mm |
| Depth (D) | 147 mm |
| Net weight | 14 kg |
| Standards | EN/IEC 60947-2 |
|---|---|
| Product certifications | IECEE CB Scheme |
| Overvoltage category | III |
| Electrical shock protection class | Class II on front face |
| Pollution degree | 3 conforming to IEC 60947 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to EN 50102 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -50…85 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0...2000 m without derating 2000 m...5000 m with derating |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 37.000 cm |
| Package 1 Width | 39.500 cm |
| Package 1 Length | 23.000 cm |
| Package 1 Weight | 12.376 kg |
