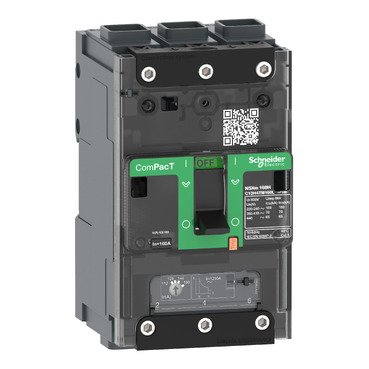

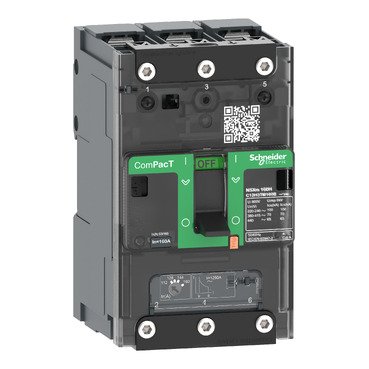

Schneider C11E3TM025B | Circuit breaker, ComPacT NSXm 63E, 16kA/415VAC, 3 poles, TMD trip unit 25A, lugs/busbars
Original price was: EGP 1,345,200.00.EGP 860,928.00Current price is: EGP 860,928.00.
Description
Schneider C11E3TM025B | Circuit breaker, ComPacT NSXm 63E, 16kA/415VAC, 3 poles, TMD trip unit 25A, lugs/busbars
Schneider C11E3TM025B Description
It is a ComPacT NSXm molded case circuit breaker, 25A, 16kA at 415VAC, for all LV standard applications.
It offers new features like Everlink technology, DIN rail and plate mounting capability.
It embeds new spring type auxiliaries externally visible.
ComPacT NSXm is one of the smallest MCCB on the market, 81mm (W) x 137mm (H) x 80mm (D).
This is a 3 poles version with an embedded thermal-magnetic trip unit.
It ensures compliance with international standards (IEC 60947/CCC/EAC) and marine specifications.
Introduction to Schneider C11E3TM025B
The Schneider C11E3TM025B is a high-performance surge protector designed to protect electronic devices from voltage spikes and electrical disturbances. This model ensures reliable performance and enhanced protection for various applications.
Importance of Surge Protection
In a world reliant on electronic devices, protecting these investments from sudden voltage spikes is crucial. The Schneider C11E3TM025B offers advanced surge protection, making it essential for homes, offices, and industrial environments.
Specifications of Schneider C11E3TM025B
The Schneider C11E3TM025B is equipped with several key specifications for optimal functionality:
Voltage Rating and Capacity: It operates efficiently within specified voltage ranges and can handle significant power surges without compromising performance.
Frequency Compatibility: Compatible with a broad frequency range, ensuring seamless integration with various electrical systems.
Surge Protection Technology: Utilizes cutting-edge technology to divert excess voltage away from connected devices, ensuring their safety and longevity.
Design and Build Quality
The Schneider C11E3TM025B is built with durable materials, offering a robust design that withstands different environmental conditions. Its sleek design also facilitates easy installation in various setups.
Key Features of Schneider C11E3TM025B
- Response Time: Provides an immediate response to surge events, minimizing potential damage to connected devices.
- Indicator Lights: Integrated LED indicators give real-time status updates on surge protection and grounding, enhancing user awareness.
- Mounting Options: Flexible mounting options make installation convenient in different environments.
Installation Process
Installing the Schneider C11E3TM025B is straightforward, with clear wiring instructions provided. Safety considerations ensure the installation process complies with electrical standards, prioritizing user safety.
Applications of Schneider C11E3TM025B
The Schneider C11E3TM025B is suitable for various applications, including:
- Residential Use: Protects home electronics, appliances, and entertainment systems from voltage spikes.
- Commercial Use: Safeguards office equipment, computers, and network devices from electrical disturbances.
- Industrial Use: Ensures the continuous operation of critical machinery and equipment in industrial settings.
Benefits of Using Schneider C11E3TM025B
- Enhanced Equipment Lifespan: Reduces wear and tear on electronic devices, extending their operational lifespan.
- Cost Savings: Minimizes repair and replacement costs associated with electrical damage.
- Protection Against Power Surges: Provides reliable protection against voltage spikes, preserving the functionality and reliability of connected devices.
Maintenance Tips
Regular cleaning and periodic inspection of the Schneider C11E3TM025B are recommended to maintain optimal performance and longevity.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | ComPacT new generation |
|---|---|
| Product name | ComPacT NSXm new generation |
| Range of product | ComPacT NSXm new generation |
| Device short name | NSXm 63E |
| product or component type | Circuit breaker |
| Device application | Distribution |
| poles description | 3P |
| Protected poles description | 3D |
| [In] rated current | 25 A at 40 °C |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Suitability for isolation | Yes conforming to IEC 60947-2 |
| Utilisation category | Category A |
| [Icu] rated ultimate short-circuit breaking capacity | 25 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 16 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 8 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| Performance level | E 16 kA 415 V AC |
| Trip unit name | TM-D |
| Trip unit technology | Thermal-magnetic |
| Trip unit protection functions | LI |
| Control type | Toggle |
| Circuit breaker mounting mode | Fixed |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz |
|---|---|
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ics] rated service short-circuit breaking capacity | 25 kA at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 16 kA at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 10 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 8 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| Mechanical durability | 20000 cycles |
| Electrical durability | 20000 cycles at 440 V In/2 10000 cycles at 440 V In 10000 cycles at 690 V In/2 5000 cycles at 690 V In |
| Power dissipation per pole | 2.83 W |
| mounting support | Backplate |
| Mounting position | Horizontal and vertical Flat on the back |
| Upside connection | Front |
| downside connection | Front |
| Connection terminals | Compression lug/busbar |
| Connection pitch | 35 mm with spreaders 27 mm without spreaders |
| 9 mm pitches | 9 module |
| Trip unit rating | 25 A at 40 °C |
| Long-time pick-up adjustment type Ir (thermal protection) | Adjustable |
| [Ir] long-time protection pick-up adjustment range | 0.7...1 x In |
| Long-time protection delay adjustment type tr | Fixed |
| Instantaneous protection pick-up adjustment type Ii | Fixed |
| [Ii] instantaneous protection pick-up adjustment range | 600 A |
| Earth-leakage protection | Without |
| Number of slots for electrical auxiliaries | 1 slot(s) for auxiliary switch OF 1 slot(s) for alarm switch SD 1 slot(s) for voltage release MN or MX |
| Local signalling | Flag (green) for presence of auxiliary contacts |
| Width (W) | 81 mm |
| Height (H) | 137 mm |
| Depth (D) | 80 mm |
| net weight | 1.06 kg |
| Colour | Grey (RAL 7016) |
| Standards | EN/IEC 60947 |
|---|---|
| Pollution degree | 3 conforming to IEC 60664-1 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -50…85 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 2000 m without derating 5000 m with derating |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9 cm |
| Package 1 Width | 22 cm |
| Package 1 Length | 13 cm |
| Package 1 Weight | 1.3 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 9 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 12.29 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 216 |
| Package 3 Height | 150 cm |
| Package 3 Width | 80 cm |
| Package 3 Length | 120 cm |
| Package 3 Weight | 304.89 kg |
