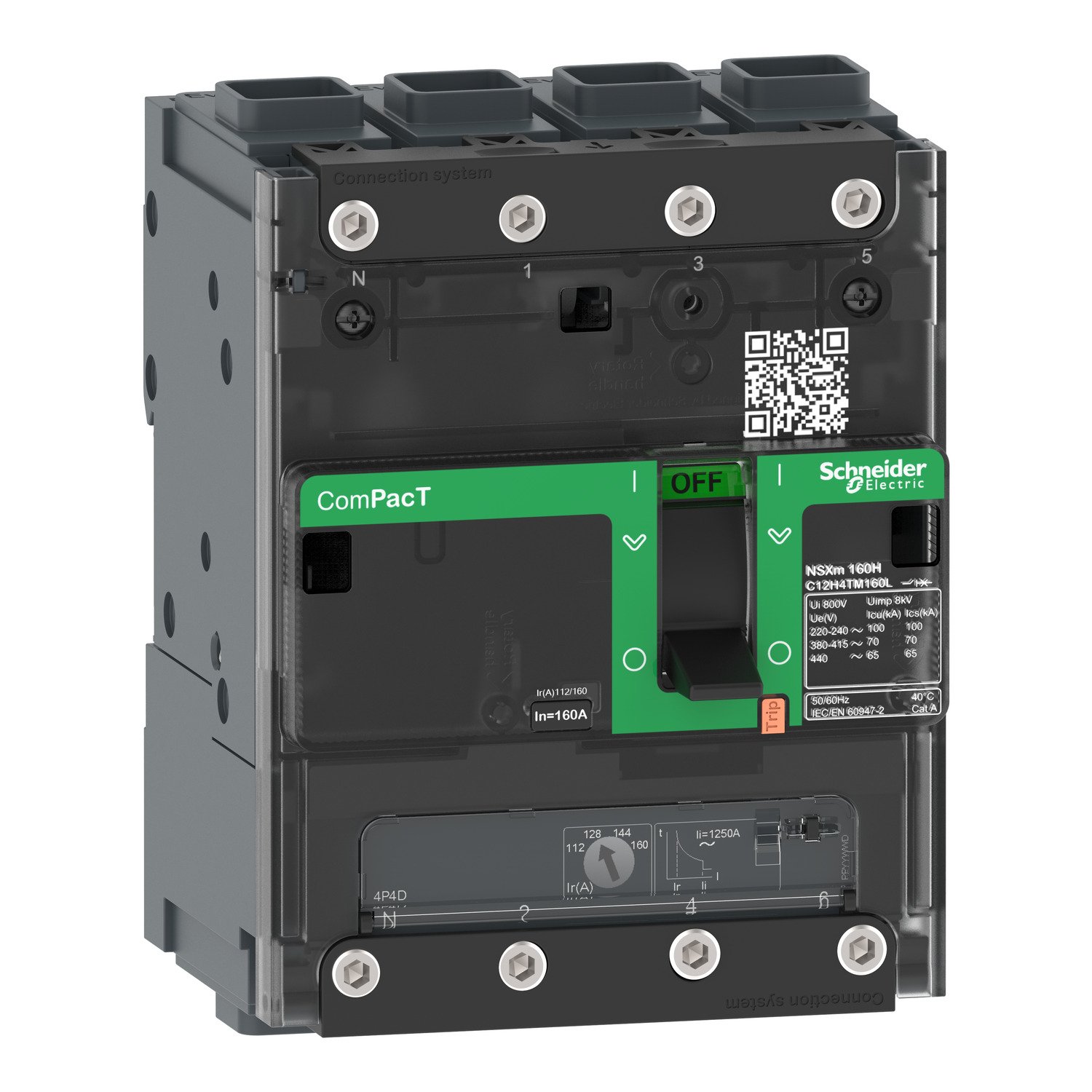

Schneider C11N6TM016L | circuit breaker ComPacT NSXm N (50 kA at 415 VAC), 4P 3d, 16 A rating TMD trip unit, EverLink connectors

1. Technical Specifications C11N6TM016L

• Product Reference: C11N6TM016L

• Series: ComPacT NSXm

• Type: Molded Case Circuit Breaker (MCCB)

• Poles: 4P (3d)

  • 3 poles protected (phases), 1 pole dedicated neutral (not protected)

• Rated Current (In): 16 A

• Trip Unit Type:

  • TMD (Thermal Magnetic Device)

  • Fixed settings for thermal and magnetic trip curves

• Breaking Capacity:

  • Icu = 50 kA at 415 V AC (IEC 60947-2)

• Rated Operating Voltage (Ue):

  • 220–415 V AC (50/60 Hz)

• Rated Insulation Voltage (Ui): 800 V

• Rated Impulse Withstand Voltage (Uimp): 8 kV

• Utilization Category: A (non-selective)

• Connection Type:

  • EverLink™ patented terminals for reliable, vibration-proof connections

  • Suitable for flexible, rigid, or ferruled cables

• Mounting Type:

  • Fixed, DIN rail or backplate mounting

• Conformity & Standards:

  • IEC 60947-2

  • CE, RoHS compliant

• Dimensions:

  • Compact frame size (NSXm body): approx. 90 mm wide

• Degree of Protection:

  • IP40 (front face), IP20 (terminals)

2. Key Features

• Compact footprint with 4-pole protection for small-scale and space-constrained panels

• High short-circuit breaking capacity (50 kA) ensures strong protection for critical circuits

• Thermal-magnetic trip unit provides dual protection:

  • Thermal: Overload (long-time protection)

  • Magnetic: Short-circuit (instantaneous protection)

• EverLink™ terminal technology:

  • Prevents loosening over time due to thermal cycling or vibrations

  • Maintains reliable torque and cable clamping

• Integrated neutral simplifies wiring and improves safety in 3-phase + N applications

• Padlockable toggle and compatibility with auxiliary accessories (OF/SD contacts, shunt trip, etc.)

• Designed for panel integration, offering a clean and modular assembly

• Fully tested under international standards for safety, performance, and endurance

3. Applications

• Industrial control panels requiring reliable short-circuit and overload protection

• Commercial distribution boards where space-saving and 4P protection are needed

• Final distribution in 3-phase + N low-voltage systems (up to 415 V AC)

• Ideal for protecting:

  • Small motors

  • HVAC systems

  • UPS outputs

  • Lighting circuits

  • Distribution to sub-panels or field equipment

• Suitable for:

  • Data centers

  • Building automation systems

  • Renewable energy panels

  • Machine control cabinets

• Frequently used in harsh environments where EverLink’s anti-vibration benefit is key (e.g., compressors, elevators, pumps)
