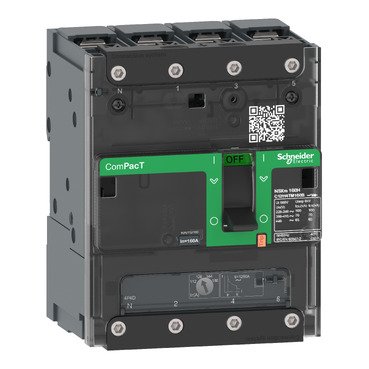

Schneider C11H6TM100B | Circuit breaker, ComPacT NSXm 160H, 70kA/415VAC, 4 poles 3D (neutral not protected), TMD trip unit 100A, lugs/busbars
Schneider C11H6TM100B | Circuit breaker, ComPacT NSXm 160H, 70kA/415VAC, 4 poles 3D (neutral not protected), TMD trip unit 100A, lugs/busbars
Original price was: EGP 2,938,920.00.EGP 1,880,909.00Current price is: EGP 1,880,909.00.
Description
Schneider C11H6TM100B: A Comprehensive Guide
Introduction
it stands as a pivotal component in the realm of electrical engineering, renowned for its exceptional performance and reliability. In today’s landscape where efficiency and durability are paramount, understanding the intricacies of such components holds significant value for professionals and enthusiasts alike.
What is the Schneider C11H6TM100B?
it represents a pinnacle in high-performance electrical components, meticulously crafted to meet rigorous standards across various applications. Its specifications boast robust electrical characteristics and a design engineered for longevity and efficiency.
Key Features
- High Durability: Engineered to endure demanding conditions.
- Efficiency: Optimized to conserve energy effectively.
- Versatility: Suitable for diverse applications across industries.
Applications of Schneider C11H6TM100B
Industrial Applications
Within industrial settings, it plays a pivotal role in ensuring the seamless operation of critical machinery and systems, thereby enhancing productivity and safety standards.
Commercial Uses
From corporate offices to commercial complexes, this component serves as a cornerstone in maintaining efficient electrical systems, crucial for uninterrupted business operations.
Residential Uses
In residential environments, it offers a dependable solution for a myriad of electrical requirements, providing peace of mind with its consistent performance and advanced safety features.
Benefits of Using Schneider C11H6TM100B
Reliability
One of the foremost advantages of it lies in its unparalleled reliability. Users can rely on its consistent performance to minimize downtime and mitigate maintenance costs effectively.
Efficiency
The Schneider C11H6TM100B excels in efficiency, leveraging advanced design principles to optimize energy utilization. This efficiency not only enhances operational effectiveness but also contributes to substantial long-term cost savings.
Cost-effectiveness
With its robust construction and efficient performance, the Schneider C11H6TM100B delivers exceptional value, making it a cost-effective investment for various applications.
Technical Specifications
Electrical Characteristics
- Voltage Rating: Designed to accommodate a wide spectrum of voltage requirements, ensuring versatility in application.
- Current Capacity: Capable of managing significant electrical loads with ease.
Physical Dimensions
- Compact Design: Facilitates seamless integration into diverse systems and environments.
- Sturdy Build: Engineered for durability, even under challenging operational conditions.
Environmental Ratings
- Temperature Tolerance: Capable of operating effectively across a broad range of temperatures.
- Resilience: Exhibits resilience against moisture and dust, bolstering longevity and reliability.
Installation Process
Pre-installation Requirements
Before commencing installation of the Schneider C11H6TM100B, ensure all requisite tools and components are readily available, and meticulously review the installation guidelines provided.
Step-by-step Installation Guide
- Preparation: Gather necessary tools and components.
- Positioning: Place the component in its designated installation site.
- Connection: Establish secure electrical connections as specified in the installation manual.
- Testing: Conduct comprehensive testing procedures to verify operational functionality.
Safety Precautions
- Always deactivate power sources before initiating installation procedures.
- Adhere strictly to prescribed safety protocols and guidelines.
- Employ appropriate personal protective equipment (PPE) throughout the installation process.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | ComPacT new generation |
|---|---|
| Product name | ComPacT NSXm new generation |
| Range of product | ComPacT NSXm new generation |
| Device short name | NSXm 160H |
| product or component type | Circuit breaker |
| Device application | Distribution |
| poles description | 4P |
| Protected poles description | 3D |
| Neutral position | Left |
| [In] rated current | 100 A at 40 °C |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Suitability for isolation | Yes conforming to IEC 60947-2 |
| Utilisation category | Category A |
| [Icu] rated ultimate short-circuit breaking capacity | 100 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 70 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 30 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 22 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 660...690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Performance level | H 70 kA 415 V AC |
| Trip unit name | TM-D |
| Trip unit technology | Thermal-magnetic |
| Trip unit protection functions | LI |
| Control type | Toggle |
| Circuit breaker mounting mode | Fixed |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz |
|---|---|
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ics] rated service short-circuit breaking capacity | 100 kA at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 70 kA at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 65 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 30 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 22 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2 2.5 kA at 660...690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Mechanical durability | 20000 cycles |
| Electrical durability | 20000 cycles at 440 V In/2 10000 cycles at 440 V In 10000 cycles at 690 V In/2 5000 cycles at 690 V In |
| Power dissipation per pole | 8.77 W |
| mounting support | Backplate |
| Mounting position | Horizontal and vertical Flat on the back |
| Upside connection | Front |
| downside connection | Front |
| Connection terminals | Compression lug/busbar |
| Connection pitch | 35 mm with spreaders 27 mm without spreaders |
| 9 mm pitches | 12 module |
| Trip unit rating | 100 A at 40 °C |
| Long-time pick-up adjustment type Ir (thermal protection) | Adjustable |
| [Ir] long-time protection pick-up adjustment range | 0.7...1 x In |
| Long-time protection delay adjustment type tr | Fixed |
| Neutral protection settings | No protection (3D) |
| Instantaneous protection pick-up adjustment type Ii | Fixed |
| [Ii] instantaneous protection pick-up adjustment range | 1250 A |
| Earth-leakage protection | Without |
| Number of slots for electrical auxiliaries | 1 slot(s) for auxiliary switch OF 1 slot(s) for alarm switch SD 1 slot(s) for voltage release MN or MX |
| Local signalling | Flag (green) for presence of auxiliary contacts |
| Width (W) | 108 mm |
| Height (H) | 137 mm |
| Depth (D) | 80 mm |
| net weight | 1.42 kg |
| Colour | Grey (RAL 7016) |
| Standards | EN/IEC 60947 |
|---|---|
| Pollution degree | 3 conforming to IEC 60664-1 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -50…85 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 2000 m without derating 5000 m with derating |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 13 cm |
| Package 1 Width | 12 cm |
| Package 1 Length | 22 cm |
| Package 1 Weight | 1.6 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 10.19 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 144 |
| Package 3 Height | 150 cm |
| Package 3 Width | 80 cm |
| Package 3 Length | 120 cm |
| Package 3 Weight | 254.49 kg |
