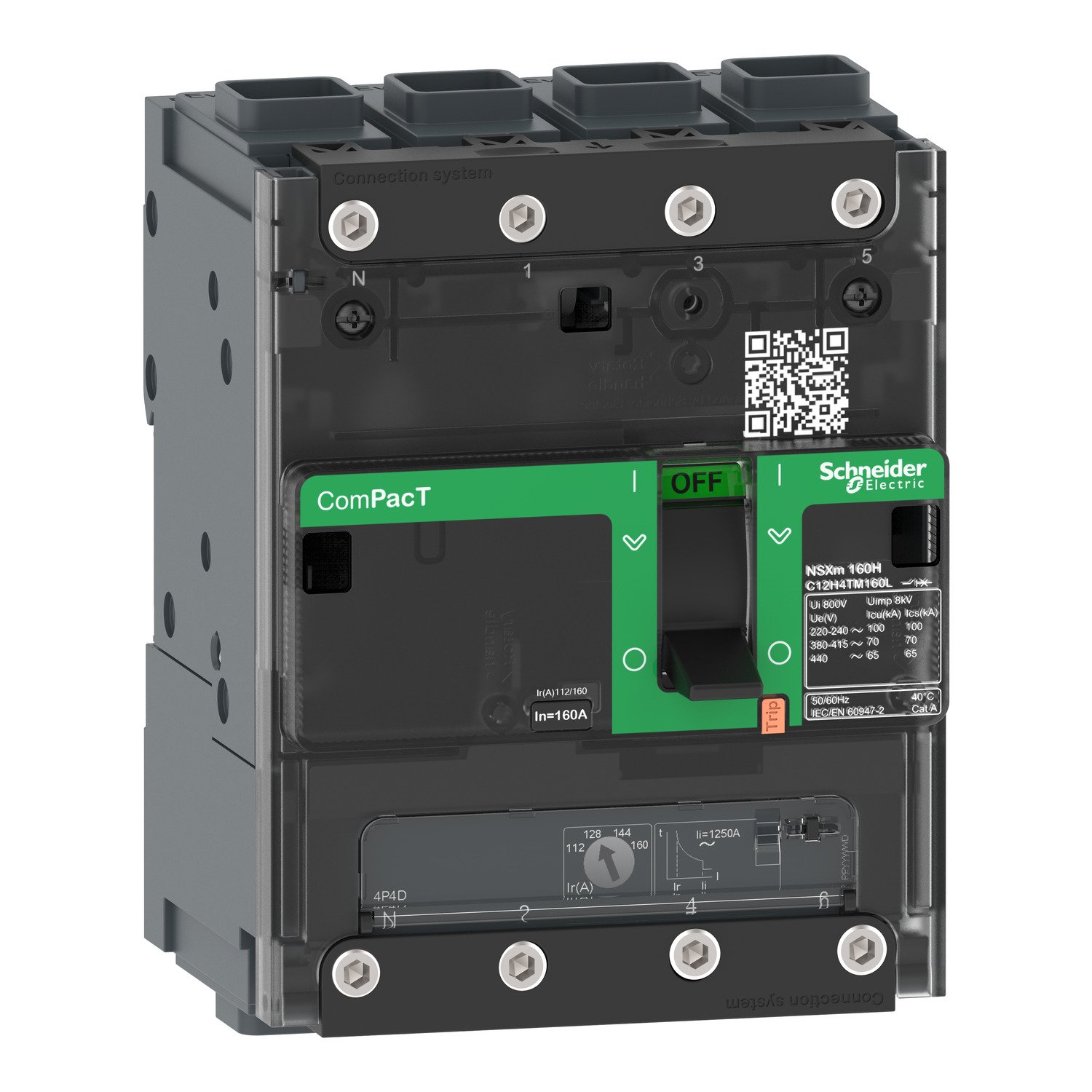

Schneider C11N6TM040L | circuit breaker ComPacT NSXm N (50 kA at 415 VAC), 4P 3d, 40 A rating TMD trip unit, EverLink connectors
Schneider C11N6TM040L | Circuit breaker, ComPacT NSXm 63N, 50kA/415VAC, 4 poles 3D (neutral not protected), TMD trip unit 40A, EverLink lugs
Original price was: EGP 2,513,700.00.EGP 1,608,768.00Current price is: EGP 1,608,768.00.
Description
Schneider C11N6TM040L | circuit breaker ComPacT NSXm N (50 kA at 415 VAC), 4P 3d, 40 A rating TMD trip unit, EverLink connectors
Technical Specifications C11N6TM040L
-
Product Reference: C11N6TM040L
-
Product Range: ComPacT NSXm N
-
Device Type: Molded Case Circuit Breaker (MCCB)
-
Rated Current (In): 40 Amperes
-
Rated Operational Voltage: Up to 415 VAC
-
Breaking Capacity: 50 kA at 415 VAC
-
Number of Poles: 4 poles (3D – 3 protected poles + 1 switched neutral, not protected)
-
Trip Unit Type: TMD (Thermal Magnetic)
-
Neutral Protection: Neutral is switched but not protected
-
Connection Technology: EverLink lug connectors
-
Mounting Type: Fixed installation
-
Standards Compliance: IEC 60947-2
-
Frequency: 50/60 Hz
-
Control Method: Manual toggle
Key Features
-
High Short-Circuit Protection: Capable of interrupting fault currents up to 50 kA at 415 VAC, ideal for critical applications.
-
Thermal-Magnetic Trip Unit: Provides dual protection for overload (thermal) and short-circuit (magnetic) events.
-
EverLink Lug Connectors: Maintain secure, vibration-resistant connections, reducing the risk of overheating due to loose wiring.
-
Compact Design: Small footprint suitable for confined distribution boards and space-limited applications.
-
4-Pole (3D) Configuration: Ensures three-phase protection with a switched neutral, increasing system isolation and safety.
-
Modular System Compatibility: Accepts a wide range of auxiliary and control accessories, such as shunt trips and auxiliary contacts.
-
Clear Status Display: Visual indication of ON/OFF/TRIP status for quick operational awareness and troubleshooting.
Applications
-
Industrial Control Panels: Protects sensitive equipment in manufacturing, processing plants, and automation systems.
-
Commercial Distribution Boards: Used in office buildings, shopping centers, hotels, and healthcare facilities.
-
Data Centers and Telecommunications: Offers reliable circuit protection for critical IT infrastructure.
-
Renewable Energy Installations: Suitable for solar PV and wind systems requiring compact, high-capacity protection.
-
Public Infrastructure Projects: Used in electrical panels in transportation systems, water facilities, and government buildings.
-
Backup Power Systems: Safeguards connections to generators, inverters, and UPS systems.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Interval | ComPacT new generation |
|---|---|
| Product name | ComPacT NSXm new generation |
| Product selection | ComPacT NSXm new generation |
| Device short name | NSXm 63N |
| Type of product or component | Circuit breaker |
| Device application | Distribution |
| Description of posts | 4P |
| Protected poles description | 3D |
| Neutral position | Left |
| [In] Nominal current | 40 Discoverable40 °C |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Suitability for isolation | Yes IEC 60947-2 |
| Utilization category | Category A |
| [Icu] rated ultimate short-circuit breaking capacity | 90 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 440 V AC 50 /60 Hz conforming to IEC 60947-2 25 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 15 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 660.. .690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Performance level | N 50 kA 415 V AC |
| Trip unit name | TM-D |
| Travel block technology | Thermomagnetic |
| Trip unit protection functions | LI |
| Control device type | Toggle |
| Circuit breaker mounting mode | Fixed |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz |
|---|---|
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ics] rated service short-circuit breaking capacity | 90 kA 220...240 V AC 50/60 Hz IEC 60947-2 50 kA 380...415 V AC 50/60 Hz IEC 60947-2 50 kA 440 V AC 50/60 Hz IEC 60947-2 25 kA 500 V AC 50/60 Hz IEC 60947-2 15 kA 525 V AC 50/60 Hz IEC 60947-2 2.5 kA 660...690 V AC 50/60 Hz IEC 60947-2 |
| Mechanical resistance | 20000 cycles |
| Electrical durability | 20000 cycles 440 V In/2 10000 cycles 440 V In 10000 cycles 690 V In/2 5000 cycles 690 V In |
| Power dissipation per pole | 3.46W |
| Installation support | Backplate |
| Installation position | Horizontal and vertical Flat on the back |
| Upside connection | Front |
| downside connection | Front |
| Connection terminals | 1 Everlink lug 2.5…95 mm², rigid or threaded aluminium/copper 1 Everlink lug 2.5…70 mm², flexible copper |
| Connection pitch | 35 mm with spreaders 27 mm without spreaders |
| 9 mm pitches | 12 modules |
| Trip unit rating | 40 A at 40 °C |
| Long-time pick-up adjustment type Ir (thermal protection) | Adjustable |
| [Ir] long-time protection pick-up adjustment range | 0.7...1 x In |
| Long-time protection delay adjustment type tr | Fixed |
| Neutral protection settings | No protection 3D) |
| Instantaneous protection pick-up adjustment type Ii | Fixed |
| [Ii] instantaneous protection pick-up adjustment range | 600 A |
| Earth-leakage protection | Without |
| Number of slots for electrical auxiliaries | 1 auxiliary switch OF 1 alarm switch SD 1 voltage release MN or MX |
| Local signal | For presence of auxiliary contacts flag (green) |
| Width (W) | 108 mm |
| Height (H) | 137 mm |
| Depth (D) | 80 mm |
| Net weight | 1.42 kg |
| Colour | Gray (RAL 7016) |
| Standards | EN/IEC 60947 |
|---|---|
| Pollution degree | 3 conforming to IEC 60664-1 |
| IP protection level | IP40 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| ambient air temperature required for operation | -25...70 °C |
| Ambient storage temperature | -50...85 °C |
| Relative humidity | 0...95 % |
| Operating altitude | 2000 m without derating 5000 m with derating |
| Packaging type 1 | PCE |
|---|---|
| Number of units per package 1 | 1 |
| Package 1 Height | 12 cm |
| Package width 1 | 13 cm |
| Package length 1 | 22 cm |
| Package weight 1 | 1.6 kg |
| Package type 2 | S03 |
| Number of units per package 2 | 6 |
| Package height 2 | 30 cm |
| Package width 2 | 30 cm |
| Package length 2 | 40 cm |
| Package weight 2 | 10.19 kg |
| Type of packaging 3 | P12 |
| Number of units per package 3 | 144 |
| Package height 3 | 150 cm |
| Package width 3 | 80 cm |
| Package length 3 | 120 cm |
| Package weight 3 | 254.49 kg |
