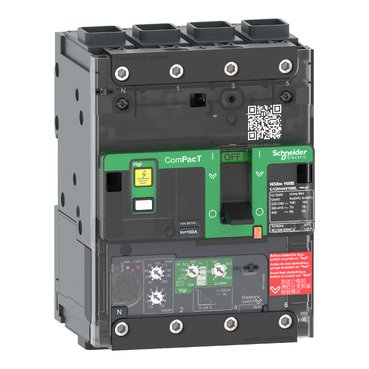

Schneider C12H44V160L | circuit breaker ComPacT NSXm H (70 kA at 415 VAC), 4P 4d, 160 A rating Micrologic 4.1 trip unit, EverLink connectors
Schneider C12H44V160L | circuit breaker ComPacT NSXm H (70 kA at 415 VAC), 4P 4d, 160 A rating Micrologic 4.1 trip unit, EverLink connectors
Original price was: EGP 7,717,800.00.EGP 4,939,392.00Current price is: EGP 4,939,392.00.
Description
Schneider C12H44V160L: A Comprehensive Guide
Introduction
Ever wondered what the Schneider C12H44V160L is all about? You’re in the right place. This guide dives deep into the Schneider C12H44V160L, exploring its features, benefits, and applications. Whether you’re a professional electrician or just a curious homeowner, this article is tailored to give you a clear understanding of this remarkable product.
Overview of Schneider Electric
Brief History
Schneider Electric has been a powerhouse in the energy management and automation sector for over a century. Founded in 1836, the company has consistently evolved, becoming a global leader known for innovation and sustainability.
Product Portfolio
From circuit breakers to smart home solutions, Schneider Electric offers a wide range of products. it is a testament to their commitment to quality and efficiency.
Understanding the Schneider C12H44V160L
Key Specifications
it boasts impressive specifications:
- Voltage Rating: 160V
- Current Rating: 44A
- Efficiency: High-efficiency rating for reduced energy consumption
Unique Features
What sets the Schneider C12H44V160L apart? Its advanced safety features, robust design, and user-friendly interface make it a top choice in the market.
Design and Build Quality
Materials Used
Crafted from high-quality materials, it is designed to withstand harsh environments. Its durable construction ensures long-term reliability.
Durability Aspects
Durability is a key factor. This device is built to last, withstanding wear and tear while maintaining optimal performance.
Installation and Setup
Step-by-Step Guide
Installing it is straightforward:
- Turn off the main power supply.
- Mount the device on a stable surface.
- Connect the wiring as per the manual.
- Test the setup to ensure proper installation.
Common Challenges and Solutions
Facing issues? Common problems include wiring errors and incorrect configurations. Always double-check connections and consult the manual for troubleshooting tips.
Performance and Efficiency
Power Consumption
it is designed for efficiency, consuming less power while delivering high performance. This not only saves energy but also reduces utility bills.
Performance Metrics
Performance is top-notch, with rapid response times and reliable operation even under heavy loads.
Safety Features
Built-In Protections
Safety first! it includes overcurrent protection, short-circuit protection, and thermal overload protection, ensuring safe operation at all times.
Compliance with Standards
It complies with international safety standards, providing peace of mind to users regarding its safety and reliability.
Applications in Various Industries
Residential Use
Ideal for homes, it ensures efficient energy management, contributing to a smart and safe home environment.
Commercial and Industrial Applications
In commercial and industrial settings, it enhances energy efficiency, reduces operational costs, and ensures compliance with regulatory standards.
Comparing with Competitors
Key Competitors
Competitors include brands like Siemens and ABB. Each has its strengths, but it stands out for its unique features and reliability.
Comparative Analysis
Compared to its competitors, it offers better efficiency, superior safety features, and a more user-friendly design.
Pros and Cons
Advantages
- High efficiency
- Robust safety features
- Durable construction
Potential Drawbacks
- Higher initial cost compared to some competitors
- Availability may vary by region
Maintenance and Troubleshooting
Regular Maintenance Tips
Keep the device clean and dust-free. Regularly inspect connections and test the system to ensure optimal performance.
Common Issues and Fixes
Common issues include tripped circuits and wiring problems. Refer to the manual for troubleshooting steps or contact Schneider Electric support for assistance.
Pricing and Availability
Market Price Range
it is priced competitively, reflecting its high-quality features and durability. Prices can range depending on the retailer and location.
Where to Buy
Available at major electronics retailers and online stores. Ensure you purchase from authorized dealers to get genuine products and warranty support.
Future of Schneider C12H44V160L
Technological Advancements
Expect continuous improvements with new technology integrations, enhancing efficiency and functionality.
Expected Updates
Future updates may include smarter features, better integration with home automation systems, and enhanced user interfaces.
Conclusion
it is a standout product in the energy management sector. Its robust design, high efficiency, and comprehensive safety features make it a top choice for both residential and commercial applications. If you’re looking for a reliable and efficient energy management solution, it should be at the top of your list.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | ComPacT new generation |
|---|---|
| Product name | ComPacT NSXm new generation |
| Range of product | ComPacT NSXm new generation |
| Device short name | NSXm 160H |
| product or component type | Earth leakage circuit breaker |
| Device application | Distribution |
| poles description | 4P |
| Protected poles description | 4D |
| Neutral position | Left |
| [In] rated current | 160 A at 40 °C |
| [Ue] rated operational voltage | 440 V AC 50/60 Hz |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Suitability for isolation | Yes conforming to IEC 60947-2 |
| Utilisation category | Category A |
| [Icu] rated ultimate short-circuit breaking capacity | 100 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 70 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
| Performance level | H 70 kA 415 V AC |
| Trip unit name | MicroLogic 4.1 |
| Trip unit technology | Electronic |
| Trip unit protection functions | LSoIR |
| Control type | Toggle |
| Circuit breaker mounting mode | Fixed |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz |
|---|---|
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ics] rated service short-circuit breaking capacity | 100 kA at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 70 kA at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 65 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
| Mechanical durability | 20000 cycles |
| Electrical durability | 20000 cycles at 440 V In/2 10000 cycles at 440 V In 10000 cycles at 690 V In/2 5000 cycles at 690 V In |
| Power dissipation per pole | 12.21 W |
| mounting support | Backplate |
| Mounting position | Horizontal and vertical Flat on the back |
| Upside connection | Front |
| downside connection | Front |
| Connection terminals | 1 Everlink lug wire size 2.5…70 mm², fine stranded copper 1 Everlink lug wire size 2.5…95 mm², rigid or stranded aluminium/copper |
| Connection pitch | 35 mm with spreaders 27 mm without spreaders |
| 9 mm pitches | 12 module |
| Trip unit rating | 160 A at 40 °C |
| Long-time pick-up adjustment type Ir (thermal protection) | Adjustable 9 settings |
| [Ir] long-time protection pick-up adjustment range | 63...160 A |
| Long-time protection delay adjustment type tr | Fixed |
| [tr] long-time protection delay adjustment range | 200 s at 1.5 x Ir 8 s at 6 x Ir 5 s at 7.2 x Ir |
| Neutral protection settings | 1 x Ir (4D) |
| thermal memory | 20 minutes before and after tripping |
| Short-time protection pick-up adjustment type Isd | Adjustable 9 settings |
| [Isd] Short-time protection pick-up adjustment range | 1.5...10 x Ir |
| Short-time protection delay adjustment type tsd | Fixed |
| Instantaneous protection pick-up adjustment type Ii | Fixed |
| [Ii] instantaneous protection pick-up adjustment range | 2000 A |
| Earth-leakage protection | Integrated |
| Earth-leakage protection class | Class A Class AC |
| Earth-leakage protection sensitity adjustment type IΔn | Adjustable |
| [IΔn] earth-leakage protection sensitivity adjustment range | 30 mA 100 mA 300 mA 500 mA 1 A 3 A 5 A |
| Earth-leakage sensitivity | 30 mA for class A 100 mA for class A 300 mA for class A 500 mA for class A 1 A for class A 30 mA for class AC 100 mA for class AC 300 mA for class AC 500 mA for class AC 1 A for class AC 3 A for class AC 5 A for class AC |
| Earth-leakage protection time delay adjustement type Δt | Adjustable |
| [Δt] Earth-leakage protection time delay adjustment range | 0 ms 60 ms 150 ms 500 ms 1000 ms |
| Number of slots for electrical auxiliaries | 1 slot(s) for auxiliary switch OF 1 slot(s) for alarm switch SD 1 slot(s) for voltage release MN or MX |
| Local signalling | Flag (green) for presence of auxiliary contacts |
| Width (W) | 108 mm |
| Height (H) | 144 mm |
| Depth (D) | 80 mm |
| net weight | 1.63 kg |
| Colour | Grey (RAL 7016) |
| Standards | EN/IEC 60947 |
|---|---|
| Pollution degree | 3 conforming to IEC 60664-1 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -40…85 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 2000 m without derating 5000 m with derating |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 15.0 cm |
| Package 1 Width | 13.0 cm |
| Package 1 Length | 19.0 cm |
| Package 1 Weight | 1.814 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 7.64 kg |
| Warranty | 18 months |
|---|
