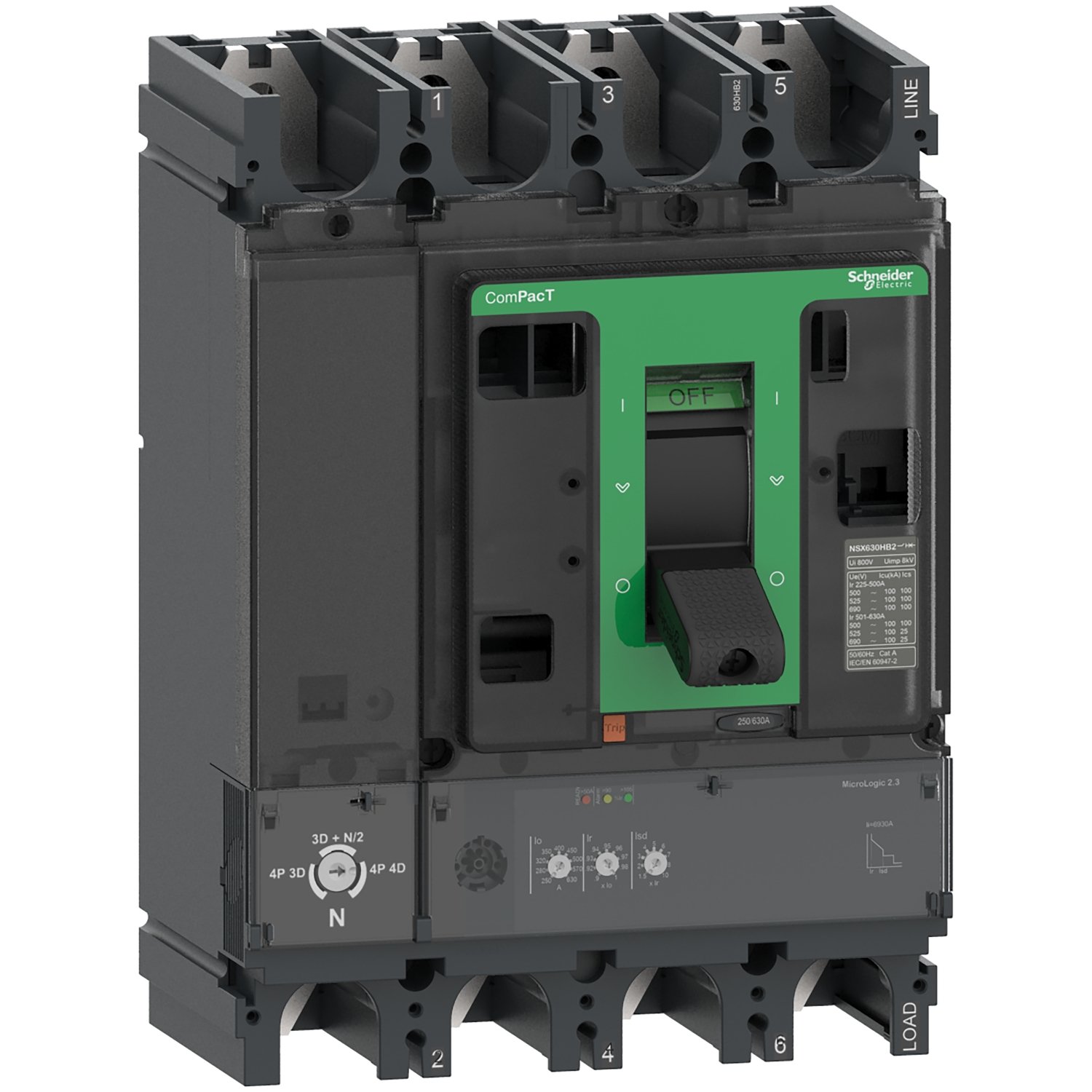

Schneider C63H42D630 | Circuit breaker ComPacT NSX630H, 70kA at 415VAC, MicroLogic 2.3 trip unit 630A, 4 poles 4d
Schneider C63H42D630 | Circuit breaker ComPacT NSX630H, 70kA at 415VAC, MicroLogic 2.3 trip unit 630A, 4 poles 4d
Original price was: EGP 1,269,618.00.EGP 837,948.00Current price is: EGP 837,948.00.
Description
Schneider C63H42D630 | Circuit breaker ComPacT NSX630H, 70kA at 415VAC, MicroLogic 2.3 trip unit 630A, 4 poles 4d
Schneider C63H42D630: Comprehensive Product Guide
Introduction
The Schneider C63H42D630 is a high-capacity molded case circuit breaker (MCCB) designed to deliver exceptional protection for heavy-duty electrical systems. With a robust 630A rating, it’s well-suited for applications that demand dependable circuit protection and power management in industrial, commercial, and infrastructure settings. This model combines Schneider’s proven thermal-magnetic trip technology for efficient overload and short-circuit protection, making it a solid choice for high-demand environments where reliability is critical.
Key Features of Schneider C63H42D630
- 630A Rated Current: Provides protection for high-capacity circuits, ensuring safe and reliable operations in power-intensive environments.
- Thermal-Magnetic Trip Unit: Dual-mode protection combines thermal response for gradual overloads with magnetic response for instant short-circuit faults.
- High Breaking Capacity: Designed to interrupt substantial fault currents, protecting both equipment and users in high-load applications.
- Compact Design for Panel Efficiency: Optimized for easy installation in panels without occupying excessive space, making it ideal for densely packed systems.
- Customizable Trip Settings: Allows for tailored protection by adjusting trip settings, providing flexibility for varied electrical setups.
Applications of Schneider C63H42D630
- Heavy Industrial Equipment and Machinery: Provides essential protection for motors, pumps, compressors, and other high-power equipment.
- Large Commercial Buildings: Ensures safe and efficient power distribution for HVAC systems, lighting, elevators, and other major electrical loads.
- Data Centers and Telecommunications: Offers reliable protection for power-critical IT infrastructure, minimizing the risk of power interruptions.
- Renewable Energy Installations: Works effectively with solar, wind, and other renewable systems to protect against power surges and load variations.
- Utility and Infrastructure Systems: Protects substations and utility networks, enhancing the reliability and safety of power distribution.
Benefits of Using Schneider C63H42D630
- Enhanced Safety for High-Capacity Systems: The 630A rating delivers dependable protection in environments with large electrical demands.
- Fast, Accurate Fault Detection: The thermal-magnetic trip technology provides immediate response to short circuits and overloads.
- Adaptability Across Applications: Adjustable trip settings allow for customization to specific system requirements, improving both performance and safety.
- Efficient Use of Space: Compact and sturdy design fits efficiently in panels, maximizing available space for other essential equipment.
- Low Maintenance Requirements: Built with Schneider’s commitment to quality, this MCCB is durable and requires minimal maintenance over time.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | ComPacT new generation |
|---|---|
| Product name | ComPacT NSX new generation |
| Device short name | NSX630H |
| Product or component type | Circuit breaker |
| Device application | Distribution |
| poles description | 4P |
| Protected poles description | 4D 3D + N/2 3D |
| Neutral position | Left |
| [In] rated current | 630 A at 40 °C |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| Utilisation category | Category A |
| [Icu] rated ultimate short-circuit breaking capacity | 100 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 35 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2 20 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 20 kA at 600 V AC 50/60 Hz conforming to UL 508 |
| Performance level | H 70 kA 415 V AC |
| Trip unit name | MicroLogic 2.3 |
| Trip unit technology | Electronic |
| Trip unit protection functions | LSoI |
| Control type | Toggle |
| Circuit breaker mounting mode | Fixed |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz |
|---|---|
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ics] rated service short-circuit breaking capacity | 100 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 70 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 65 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 50 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 11 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2 10 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Mechanical durability | 15000 cycles |
| Electrical durability | 8000 cycles at 440 V In/2 4000 cycles at 440 V In 6000 cycles at 690 V In/2 2000 cycles at 690 V In |
| Power dissipation per pole | 39.69 W |
| Mounting support | Backplate |
| Mounting position | Horizontal and vertical Flat on the back |
| Upside connection | Front |
| downside connection | Front |
| Connection pitch | 45 mm |
| Protection type | L : for overload protection (long time) So : for short time short-circuit protection with fixed delay I : for instantaneous short-circuit protection |
| Trip unit rating | 630 A at 40 °C |
| Long-time pick-up adjustment type Ir (thermal protection) | Adjustable 9 settings |
| [Ir] long-time protection pick-up adjustment range | 250...630 A |
| Long-time protection delay adjustment type tr | Fixed |
| [tr] long-time protection delay adjustment range | 400 s at 1.5 x Ir 16 s at 6 x Ir 11 s at 7.2 x Ir |
| Neutral protection settings | 0.5 x Ir (3D + N/2) 1 x Ir (4D) No protection (3D) |
| thermal memory | 20 minutes before and after tripping |
| Short-time protection pick-up adjustment type Isd | Adjustable 9 settings |
| [Isd] Short-time protection pick-up adjustment range | 1.5...10 x Ir |
| Short-time protection delay adjustment type tsd | Fixed |
| Instantaneous protection pick-up adjustment type Ii | Fixed |
| [Ii] instantaneous protection pick-up adjustment range | 6900 A |
| Earth-leakage protection | Without |
| Zone selective interlocking ZSI | Without |
| Number of slots for electrical auxiliaries | 6 slot(s) |
| Local signalling | Flashing LED (green) for ready to operate LED 105 % Ir (red) for overload LED 90 % Ir (orange) for overload |
| Width (W) | 185 mm |
| Height (H) | 255 mm |
| Depth (D) | 110 mm |
| Net weight | 8.13 kg |
| Standards | EN/IEC 60947-2 |
|---|---|
| Overvoltage category | Class II |
| Electrical shock protection class | Class II |
| Pollution degree | 3 conforming to IEC 60664-1 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -50…85 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0...2000 m without derating 2000 m...5000 m with derating |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 15.0 cm |
| Package 1 Width | 20.4 cm |
| Package 1 Length | 29.0 cm |
| Package 1 Weight | 7.542 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 40.0 cm |
| Package 2 Length | 60.0 cm |
| Package 2 Weight | 16.0 kg |
