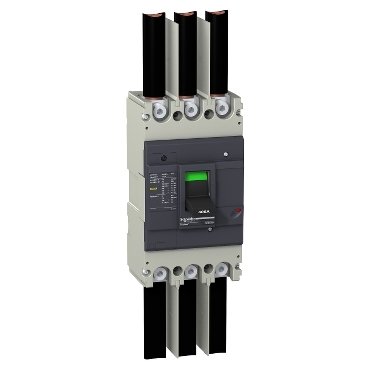

Schneider EZC100F3050 | circuit breaker Easypact EZC100F – TMD – 50 A – 3 poles 3d
The Schneider EZC100F3050 is a 3-pole molded case circuit breaker (MCCB) from the EasyPact EZC100F series. Designed to deliver dependable protection for electrical circuits, this model features a thermal-magnetic (TMD) trip unit with fixed settings, making it ideal for general-purpose low-voltage applications.
Technical Specifications
-
Product Model: EZC100F3050
-
Product Series: EasyPact EZC100F
-
Rated Current (In): 50 A
-
Frame Size: 100 A
-
Number of Poles: 3P (3 poles)
-
Trip Unit: TMD (Thermal-Magnetic, fixed)
-
Breaking Capacity: Typically up to 25 kA at 415V AC (varies by configuration)
-
Rated Operational Voltage (Ue): Up to 415 V AC
-
Mounting: Fixed
-
Connection Type: 3D (3-pole direct)
Key Features
-
Dual Protection
-
Thermal protection against overloads
-
Magnetic protection against short circuits
-
-
Compact Design
-
Saves space in control panels and distribution boards
-
-
Robust Construction
-
Industrial-grade durability for long-term reliability
-
-
Ease of Installation
-
Fixed-mounted with straightforward wiring
-
Typical Applications
-
Electrical panel protection
-
Commercial and industrial power distribution
-
HVAC and lighting circuit protection
-
Machinery and equipment safety
-
Sub-distribution boards
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | EasyPact |
|---|---|
| Product or component type | Circuit breaker |
| Device short name | Easypact EZC100F |
| circuit breaker name | Easypact EZC100F |
| Device application | Distribution |
| Poles description | 3P |
| Protected poles description | 3t |
| Network type | DC AC |
| Network frequency | 50/60 Hz |
| [In] rated current | 50 A at 40 °C |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| [Ue] rated operational voltage | 550 V AC 50/60 Hz conforming to IEC 60947-2 250 V DC conforming to IEC 60947-2 |
| Breaking capacity code | F |
| Breaking capacity | 25 kA Icu at 110...130 V AC 50/60 Hz conforming to IEC 60947-2 25 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 5 kA Icu at 125 V DC 1P conforming to IEC 60947-2 5 kA Icu at 250 V DC 2P conforming to IEC 60947-2 5 kA Icu at 550 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 380 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 400...415 V AC 50/60 Hz conforming to IEC 60947-2 7.5 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ics] rated service breaking capacity | 12.5 kA at 110/130 V AC 50/60 Hz conforming to IEC 60947-2 12.5 kA at 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2 2.5 kA at 125 V DC conforming to IEC 60947-2 2.5 kA at 250 V DC conforming to IEC 60947-2 2.5 kA at 550 V AC 50/60 Hz conforming to IEC 60947-2 5 kA at 380 V AC 50/60 Hz conforming to IEC 60947-2 5 kA at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 3.75 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
| Suitability for isolation | Yes conforming to IEC 60947-2 |
| utilisation category | Category A |
| Trip unit name | TM-D |
| Trip unit technology | Thermal-magnetic |
| Trip unit rating | 50 A at 50 °C |
| Protection type | Overload protection Short-circuit protection |
| Pollution degree | 3 conforming to IEC 60664-1 3 conforming to IEC 947-1 |
| control type | Toggle |
|---|---|
| Mounting mode | Fixed |
| mounting support | Backplate |
| Upside connection | Front |
| downside connection | Front |
| Mechanical durability | 8500 cycles |
| Electrical durability | Category A: 1500 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2 |
| Connection pitch | 25 mm |
| local signalling | Positive contact indication |
| Neutral protection setting | Without protection |
| earth-leakage protection | Without |
| height | 130 mm |
| Width | 75 mm |
| Depth | 60 mm |
| Standards | EN/IEC 60947-1 GB/T 14048.2 JIS C8201-2-2 EN/IEC 60947-2 |
|---|---|
| IP degree of protection | IP20 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -35…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.4 cm |
| Package 1 Width | 8.2 cm |
| Package 1 Length | 14.0 cm |
| Package 1 Weight | 758.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 9.496 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 384 |
| Package 3 Height | 75 cm |
| Package 3 Width | 120 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 317 kg |
| Warranty | 18 months |
|---|
