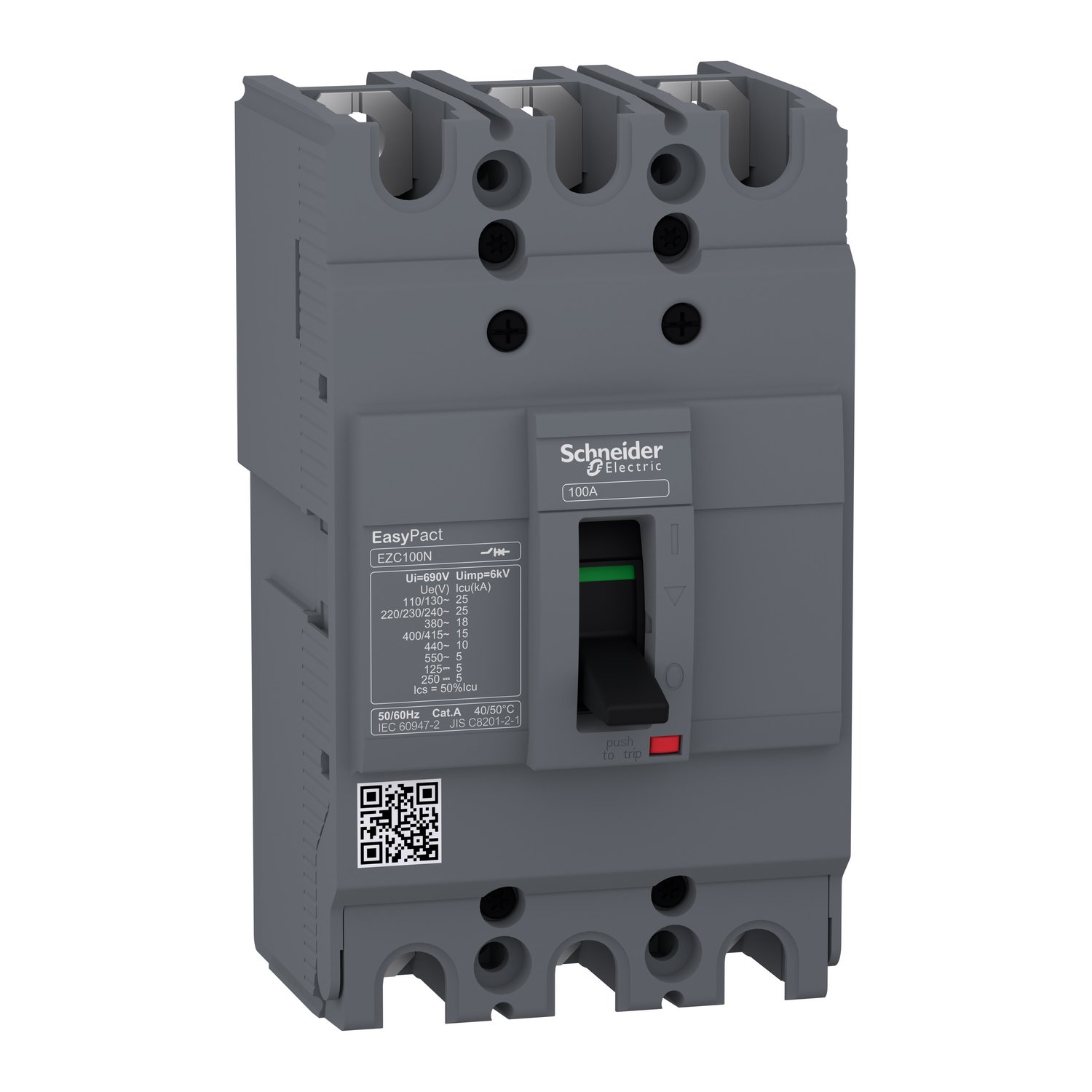

The Schneider EZC100N3025 is a molded case circuit breaker (MCCB) from the EasyPact EZC100N range, engineered for dependable protection in low-voltage electrical systems. This model is equipped with a thermal-magnetic (TMD) trip unit, offering robust overload and short-circuit protection for circuits rated at 25 A.

 Technical Specifications

• Model: EZC100N3025

• Series: EasyPact EZC100N

• Rated Current (In): 25 A

• Number of Poles: 3

• Trip Unit Type: TMD (Thermal-Magnetic, fixed settings)

• Connection Type: 3D (Direct mounting terminals)

• Rated Operational Voltage (Ue): Up to 415 V AC

• Rated Insulation Voltage (Ui): 690 V AC

• Ultimate Short-Circuit Breaking Capacity (Icu):

  • Up to 25 kA at 415 V AC

• Utilization Category: A

• Standard Compliance: IEC 60947-2

• Mounting: Fixed, panel mount

 Key Features

• Thermal-Magnetic Protection:

  • Combines long-time overload and instantaneous short-circuit protection.

• High Breaking Capacity:

  • Suitable for industrial and commercial installations with moderate fault levels.

• Compact and Rugged Design:

  • Space-saving with reliable performance under harsh operating conditions.

• Easy to Install:

  • Direct terminal connection with simple panel integration.

 Applications

• Power distribution boards

• Industrial machines

• Sub-panels in commercial facilities

• Motor control centers

• General-purpose low-voltage circuit protection

The EZC100N3025 delivers a cost-effective and reliable solution for circuit protection needs in a wide variety of environments, ensuring safety, durability, and performance in your electrical distribution system.
