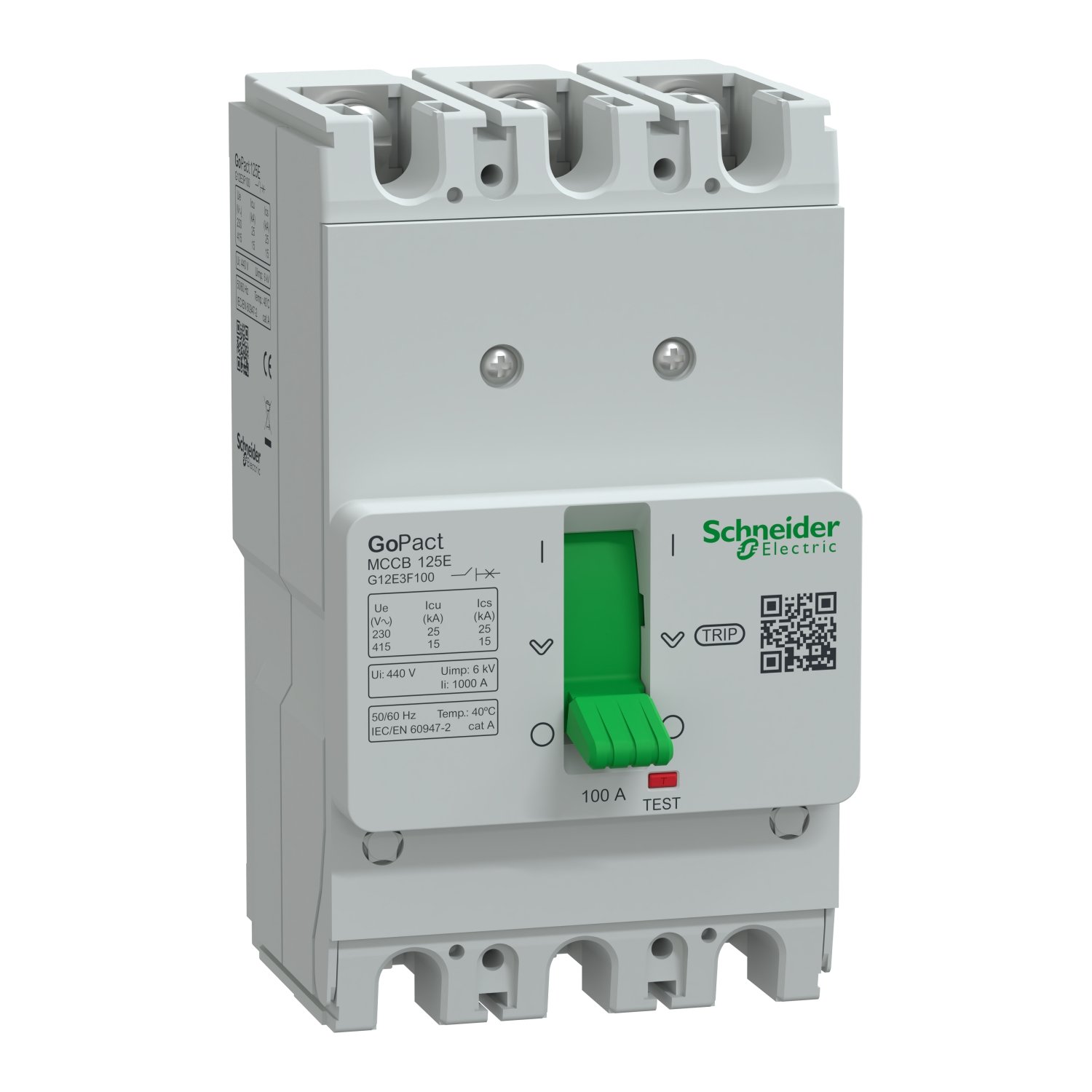

Schneider G12E3F100 | Circuit breaker, GoPact MCCB 125, 3 poles, 15kA at 415VAC, 100A rating, TMD trip unit, fixed thermal protection

Schneider G12E3F100 | Circuit Breaker, GoPact MCCB 125, 3 poles, 15kA at 415VAC, 100A rating, TMD trip unit, fixed thermal protection description

In today’s modern electrical systems, safety and reliability are paramount. One of the key components ensuring safety is the circuit breaker. Among them, the Schneider G12E3F100 stands out as a reliable choice. Let’s delve deeper into its features, functionality, and advantages.

Introduction to Schneider G12E3F100

Schneider Electric is a renowned name in the electrical industry, known for its innovative solutions. The G12E3F100 is part of their circuit breaker series, designed to protect electrical circuits from overloads and short circuits.

What is a Circuit Breaker?

Before diving into specifics, let’s understand what a circuit breaker is. It is a switching device that automatically interrupts electrical circuits during abnormal conditions like overload or short circuit, thereby protecting the electrical system and devices connected to it.

Overview of GoPact MCCB 125

The G12E3F100 belongs to the GoPact MCCB 125 series, denoting its robustness and ability to handle medium to high currents efficiently.

Understanding 3 Poles in Circuit Breakers

Circuit breakers can have different pole configurations. The “3 poles” in this model mean it can interrupt three different conductors simultaneously, enhancing its versatility in handling complex electrical setups.

Explaining 15kA at 415VAC Rating

The 15kA at 415VAC rating indicates the maximum fault current the circuit breaker can safely interrupt at 415 volts AC, showcasing its high breaking capacity.

Detailed Description of 100A Rating

With a 100A rating, this circuit breaker can handle currents up to 100 amperes without tripping under normal operating conditions, making it suitable for various industrial and commercial applications.

Introduction to TMD Trip Unit

The TMD trip unit is a feature that enhances the breaker’s precision in detecting faults. It provides accurate tripping based on thermal and magnetic conditions, ensuring timely interruption during overloads or short circuits.

Importance of Fixed Thermal Protection

Fixed thermal protection is crucial as it prevents the circuit from overheating during prolonged overloads, safeguarding the equipment and preventing potential fire hazards.

Advantages of Schneider G12E3F100

• Robust and reliable design
• High breaking capacity
• Precise tripping mechanism
• Suitable for diverse applications
• Enhanced safety features

Applications of GoPact MCCB 125

The GoPact MCCB 125 series, including the G12E3F100, finds applications in:

• Industrial plants
• Commercial buildings
• Power distribution networks
• Renewable energy systems

Maintenance and Safety Tips

To ensure the optimal performance and longevity of the Schneider G12E3F100:

• Regularly inspect for signs of wear or damage
• Follow manufacturer-recommended maintenance schedules
• Ensure proper installation by qualified personnel
• Conduct periodic testing for functionality

Conclusion

In conclusion, the Schneider G12E3F100 is a reliable circuit breaker with advanced features like the TMD trip unit and fixed thermal protection, making it an ideal choice for ensuring electrical safety and system reliability.
